Weldex 30W Amber LED Rotating Beacon | Low Profile

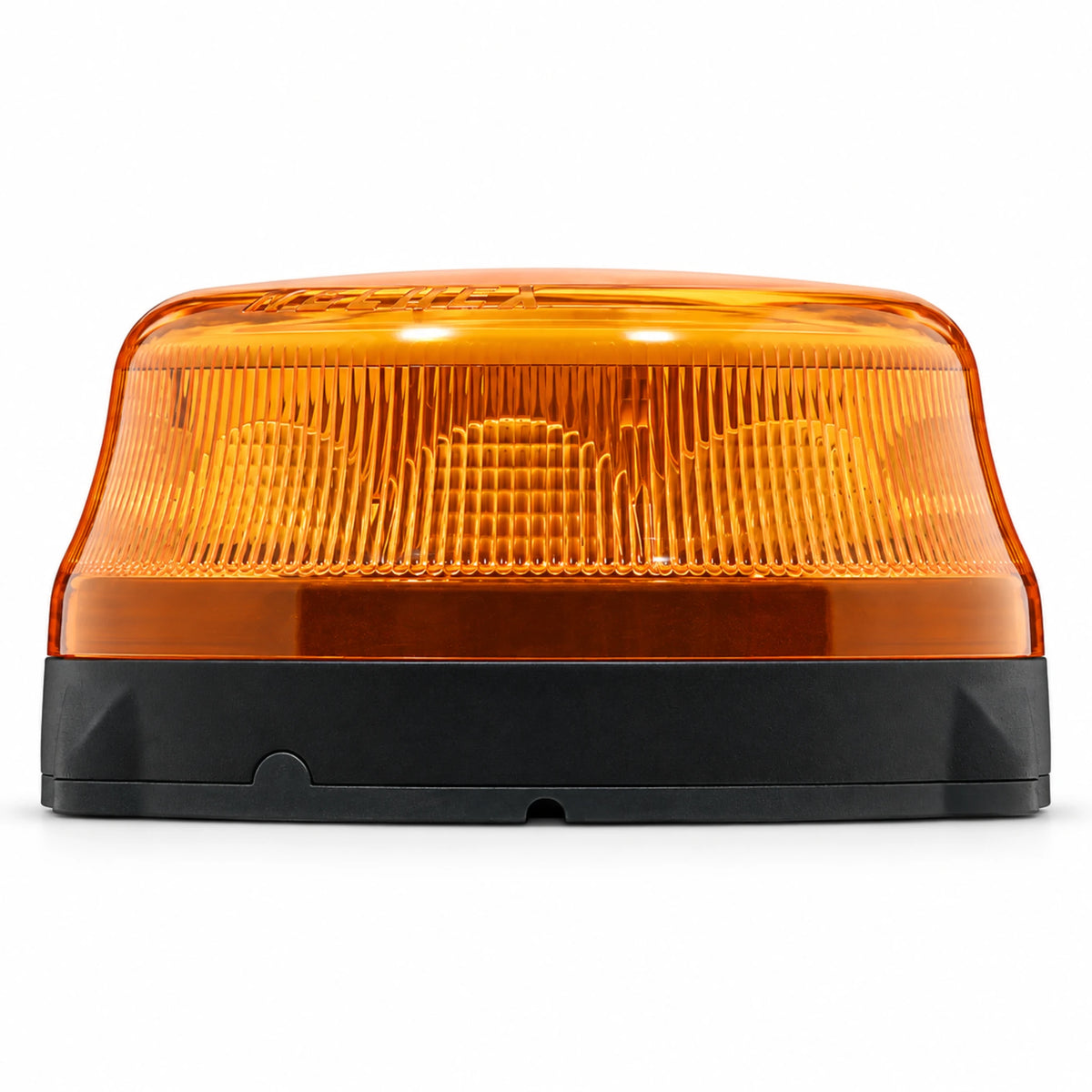

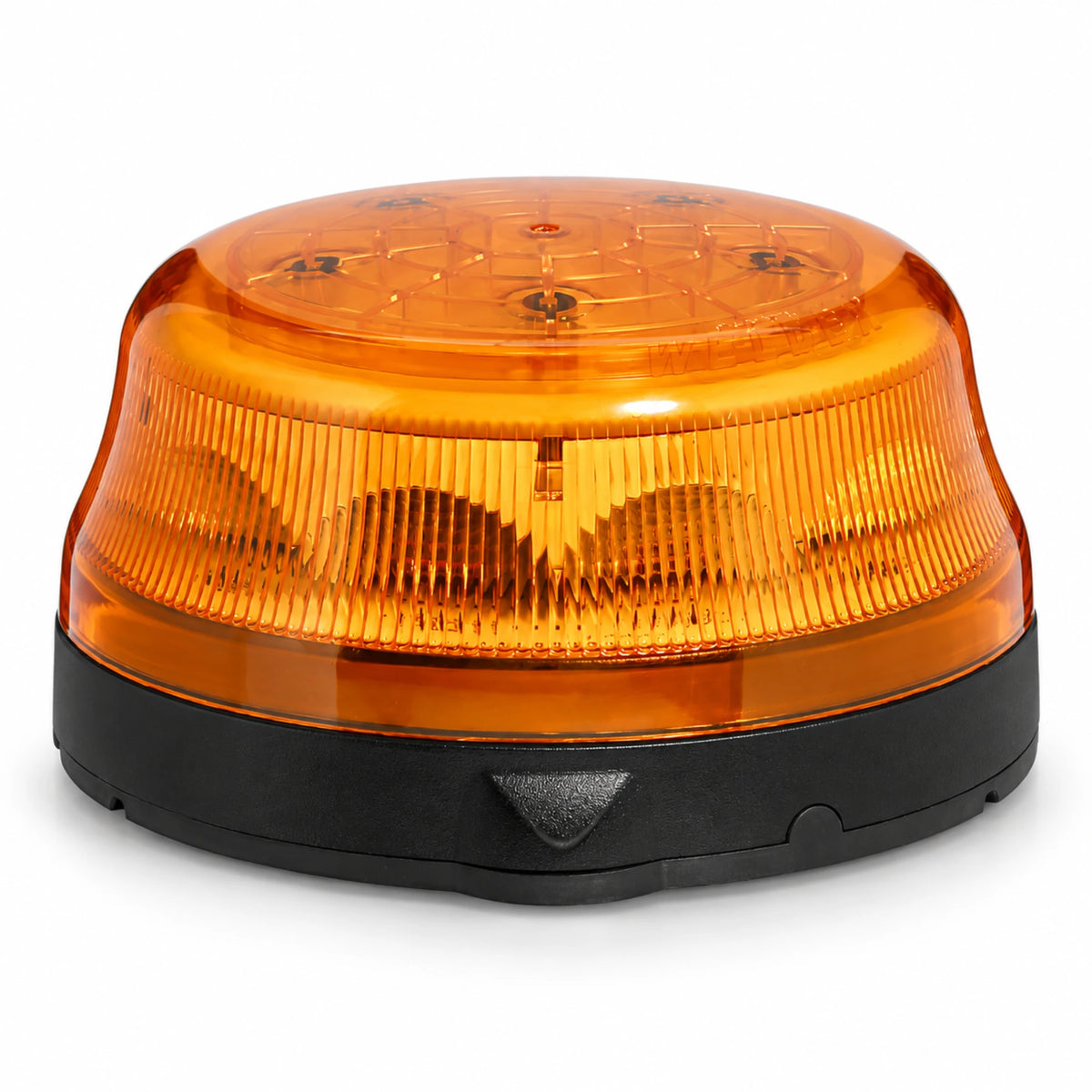

The Weldex WDBL-91R30W 30W amber LED rotating beacon is a low-profile, permanently mounted 360-degree warning beacon for work vehicles and plant. At 140mm diameter and 70mm high, it suits roof, canopy and headboard positions where height is limited.

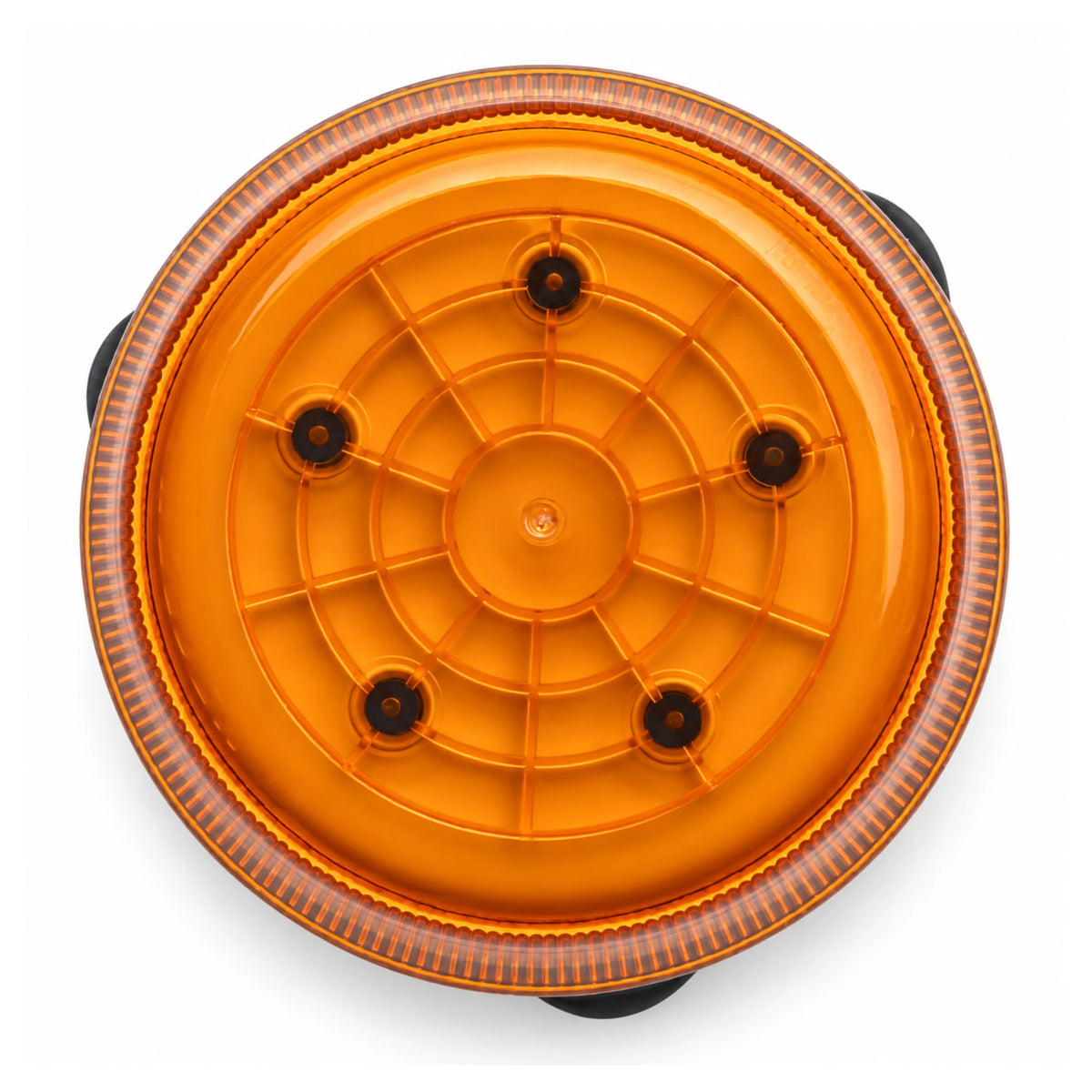

Light output comes from circular LED discs behind an impact-resistant polycarbonate amber lens. The beacon runs a single rotating pattern, so there is nothing to program: power it and it rotates. In rotating mode it draws about 0.9A (12W) at 13.8V, as measured by UAGS, because not all the LEDs are lit at once. Weldex rates the LEDs for 50,000 hours.

The heavy-duty cast alloy base and cap have a multi-stage paint finish for UV and corrosion protection, and the unit is fully sealed and pre-wired to IP69K. The lens is part of the sealed unit and is not replaceable. It is rated for 60G vibration and an operating range of -40°C to +80°C.

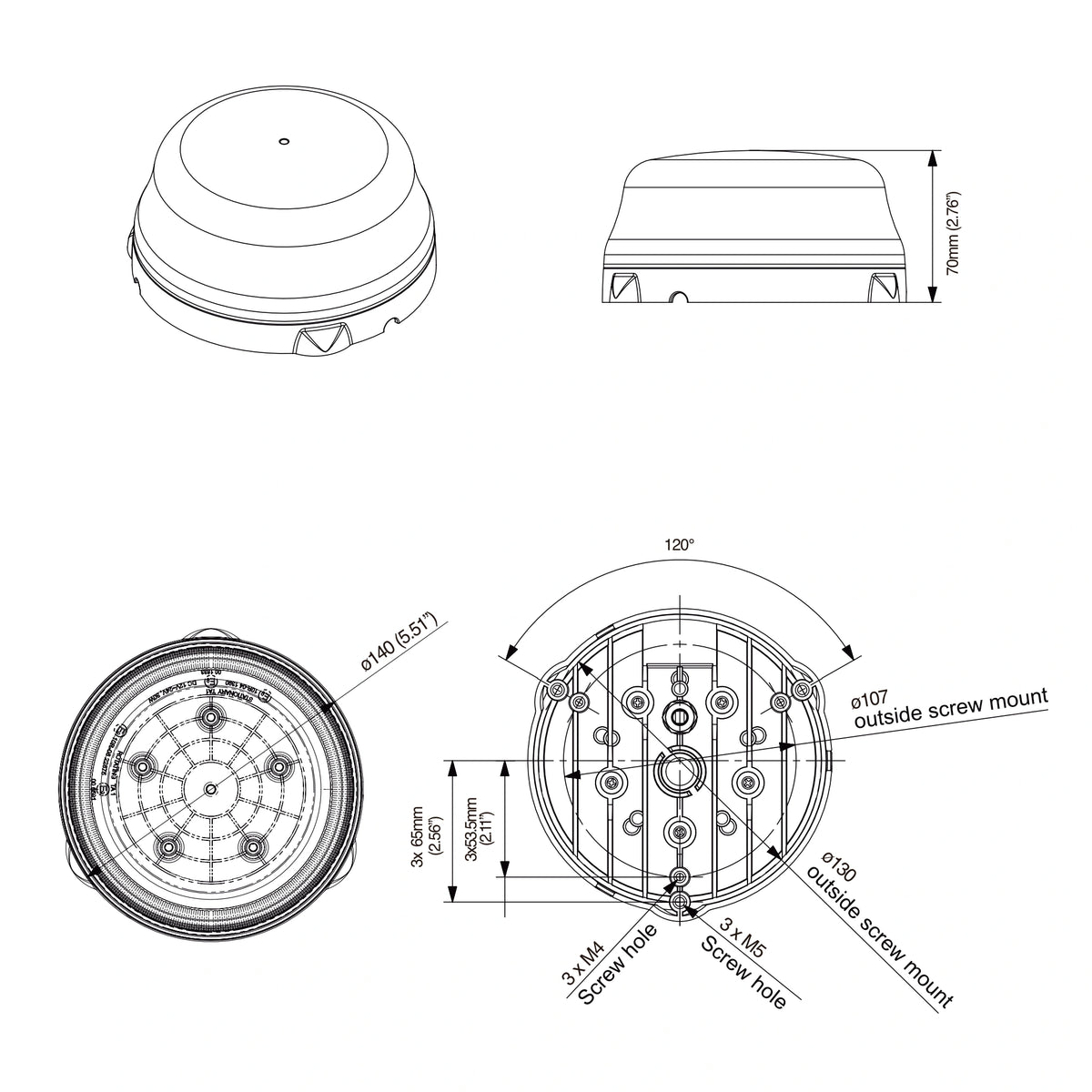

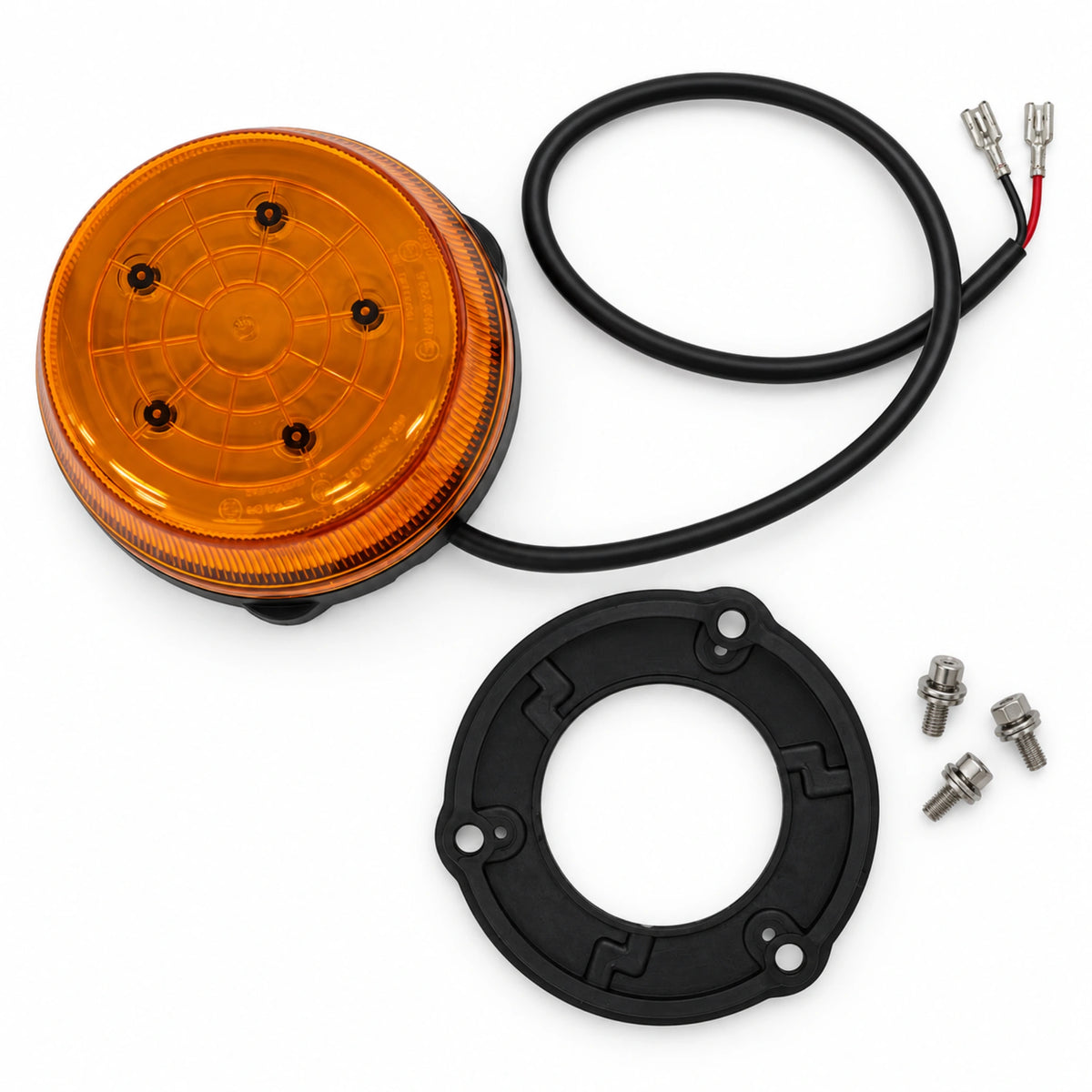

The beacon surface mounts on a rubber gasket, with three M4 x 12 sems machine screws supplied that have the flat washer and spring washer already fitted. The base has two tapped hole patterns, 3 x M4 on a 107mm pitch circle and 3 x M5 on a 130mm pitch circle, and the supplied M4 screws suit the 107mm pattern. It runs on 10-36V DC, suiting 12V and 24V vehicle electrical systems. For mounting clear of a rack upright or roof bar, it suits the UAGS 175mm Offset Beacon Mounting Bracket.

The beacon comes with a 600mm 2-core lead (red positive, black negative) with female spade connectors fitted to the ends, and no plug. Its negative is not isolated from its metal base, so once bolted to a vehicle or frame it earths through the mounting. Where the beacon is controlled by negative switching, such as some arrow board controllers, Weldex suggests using a relay to switch the positive supply instead. Installation should be carried out by a qualified auto electrician. The Weldex installation guide is supplied in the box, and you can download it here (PDF). It is a general guide for the Weldex WDBL-91R30 range.

Weldex product data lists ECE R65, ECE R10, SAE J845 Class 1 and CISPR 25 Class 5 EMC performance. These relate to light output and electrical performance as per the supplied product data.

Commonly fitted to traffic control vehicles, civil fleet vehicles, utility vehicles, council maintenance vehicles and plant equipment. Vehicle lighting requirements may vary by vehicle type, registration category, jurisdiction and intended use. Vehicle warning systems support visibility but do not replace a traffic management plan or traffic guidance scheme.

• Low 70mm Profile: 140mm diameter housing for height-restricted mounting positions
• Rotating Pattern: single rotating pattern, no programming needed
• Low Current Draw: about 0.9A (12W) at 13.8V in rotating mode, measured by UAGS
• 360-Degree Output: circular LED discs behind an impact-resistant polycarbonate amber lens
• IP69K Sealed: fully sealed and pre-wired against dirt and moisture
• Cast Alloy Base and Cap: multi-stage paint coating for UV and corrosion protection, rated to 60G vibration
• Proper Mounting Hardware: rubber gasket fitted, 3 M4 x 12 sems machine screws supplied with flat and spring washers already fitted
• Wide Voltage Range: 10-36V DC suits 12V and 24V vehicle electrical systems
• Wide Temperature Range: -40°C to +80°C operating
• Certified Output: supplier product data lists ECE R65, ECE R10 and SAE J845 Class 1
