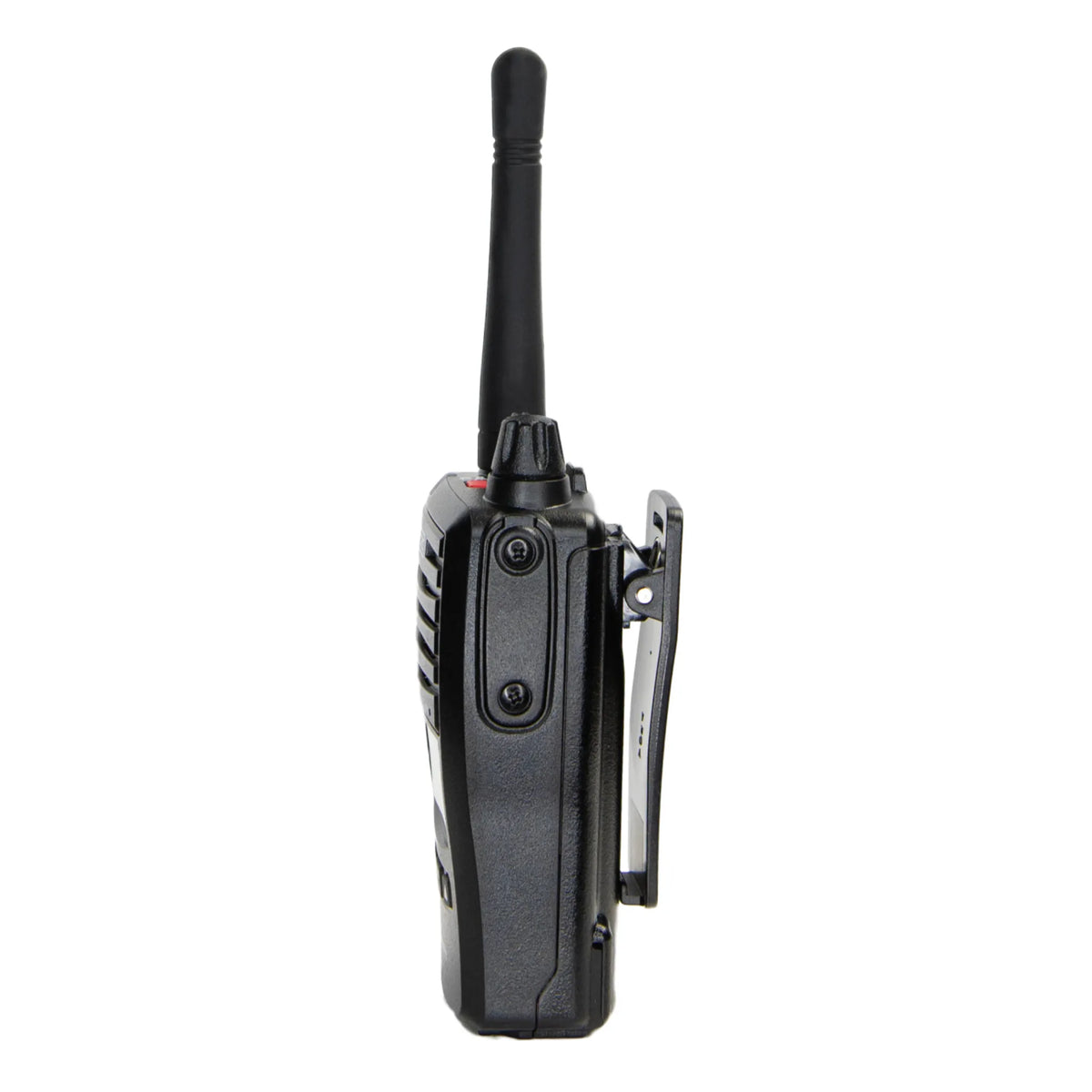

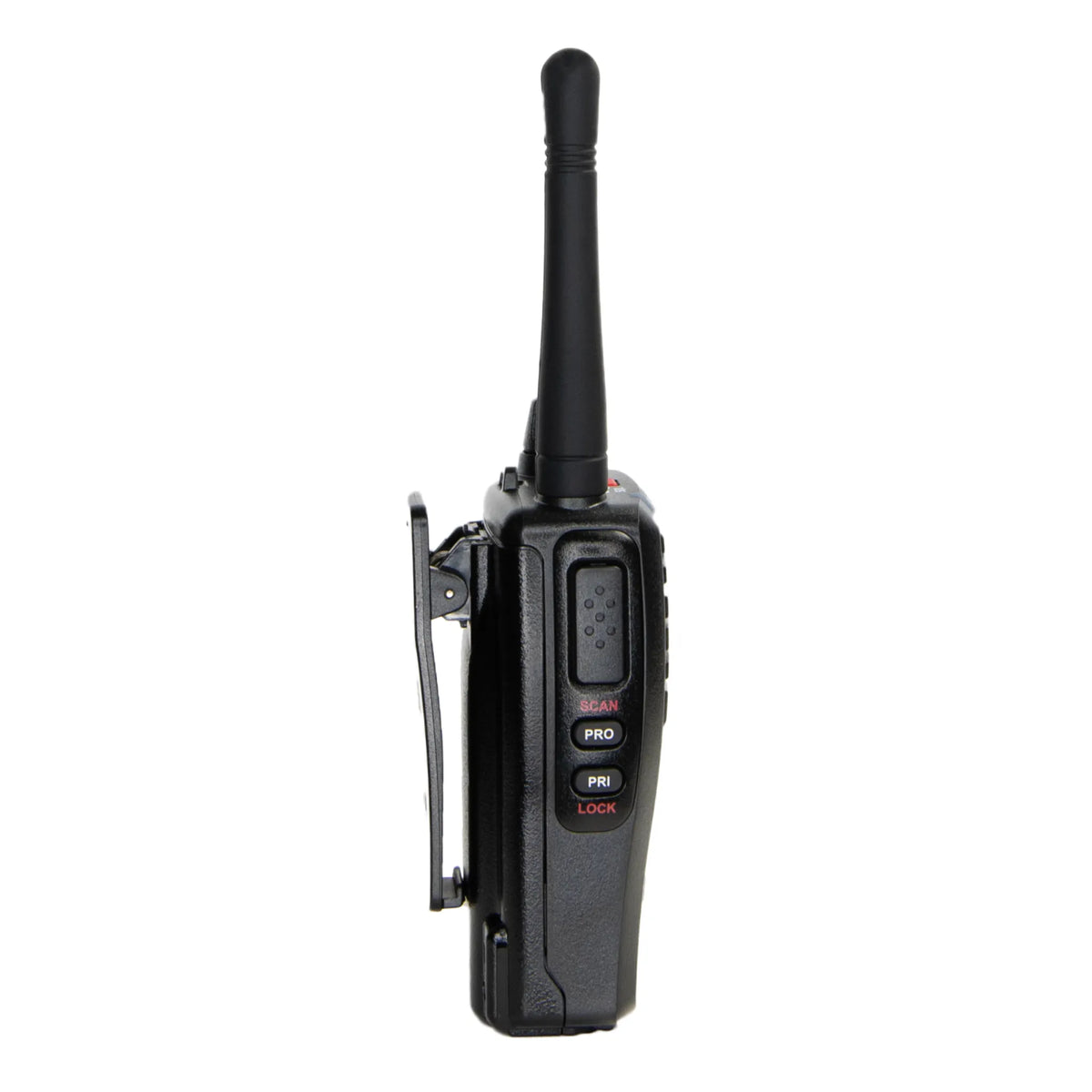

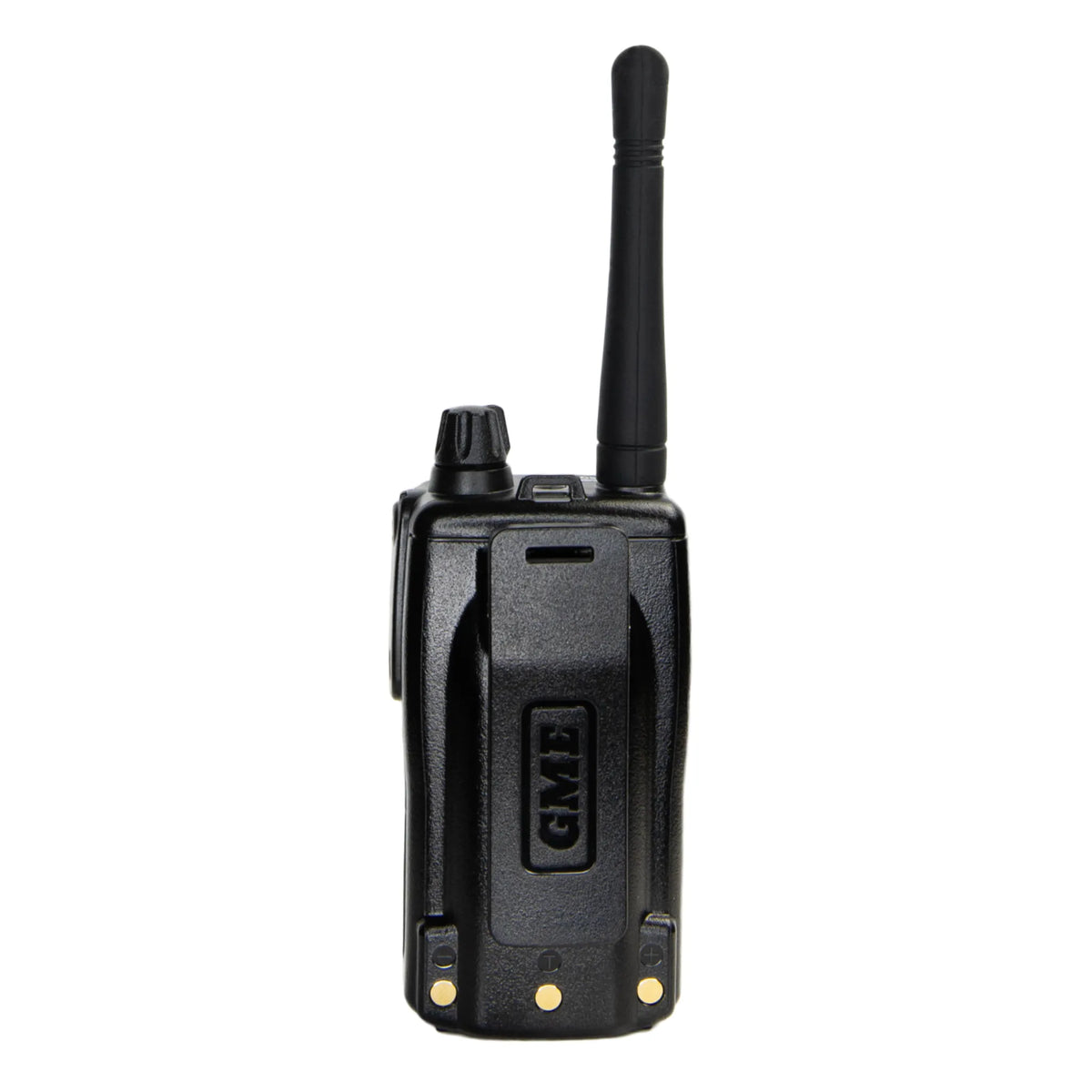

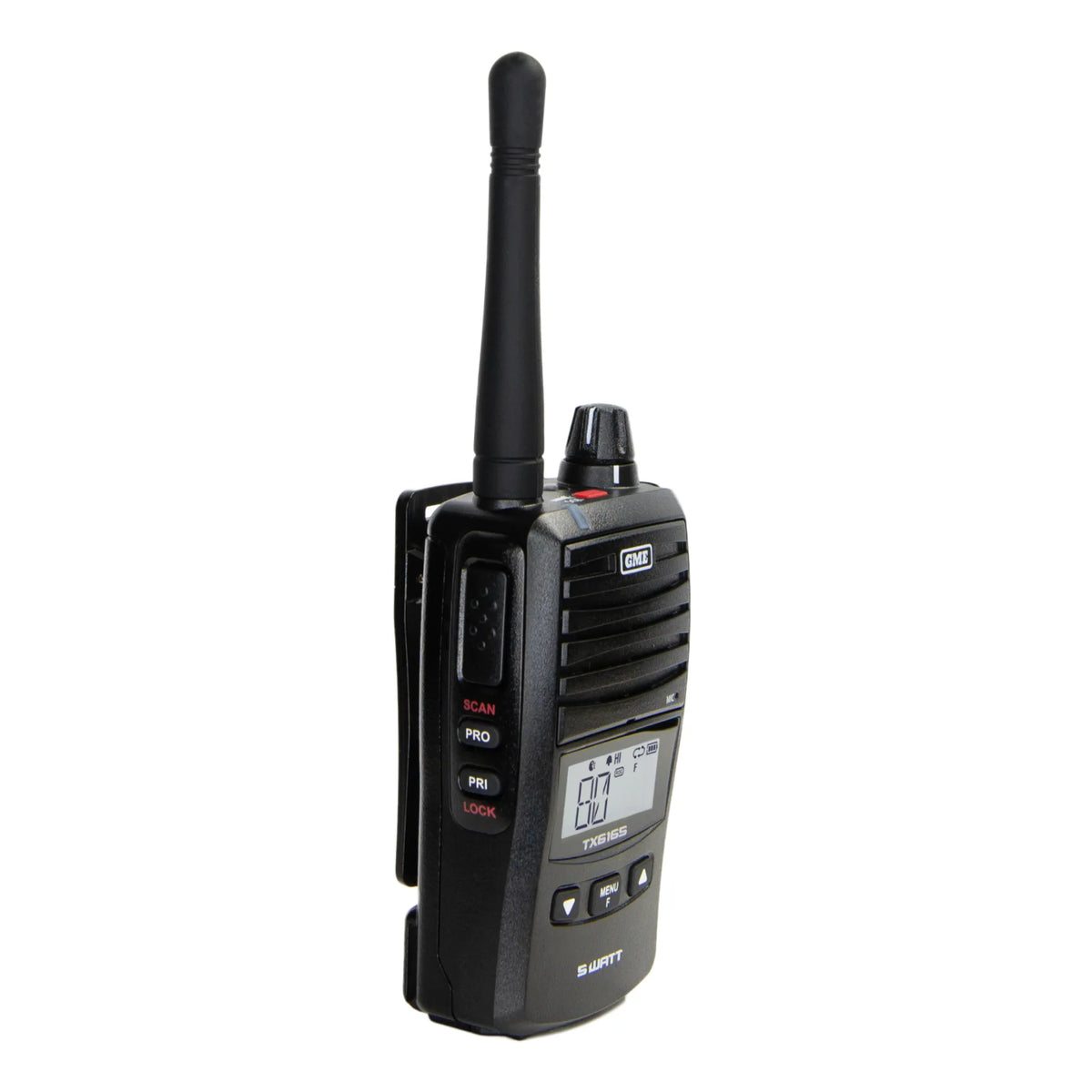

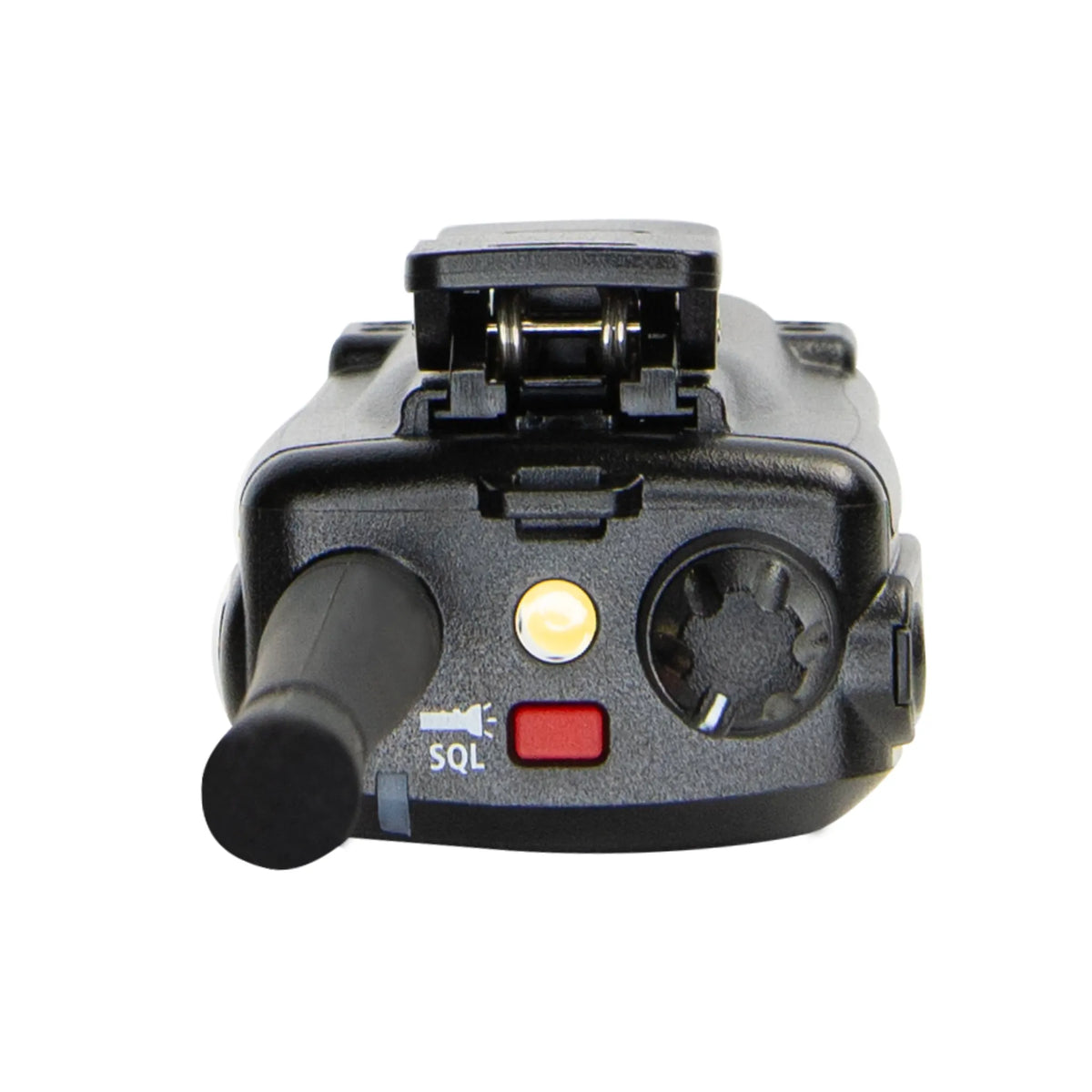

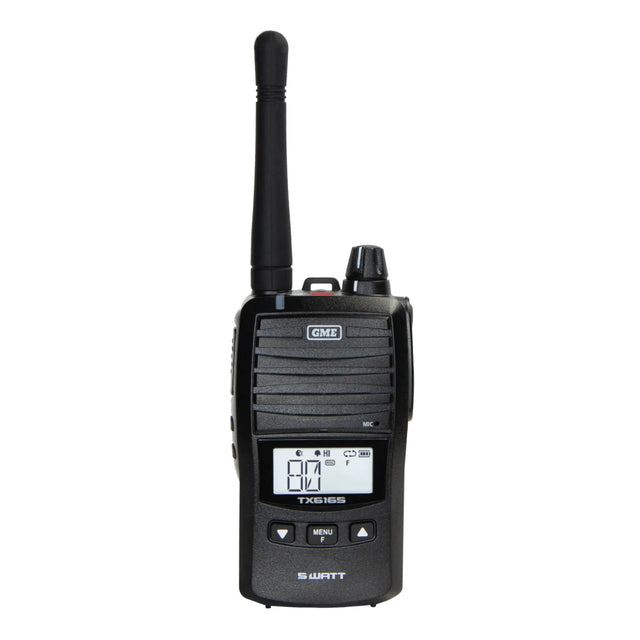

GME TX6165X 5W Handheld UHF CB Radio | IP67

5W IP67 | 80 Channel Handheld

SKU: TX6165X
$25300
Taxes and shipping calculated at checkout.

Pickup available at 7 Royan Place

Usually ready in 24 hours

Radio-only 5W handheld UHF CB. 80 channels, IP67 and MIL-STD-810G, up to 30 hours battery. Includes charger, antenna and belt clip; no speaker mic or vehicle charger. 3-year warranty.

Description

GME TX6165X 5/1W Handheld UHF CB Radio is the radio-only version of GME's 5 watt handheld, for traffic controllers, civil crews and contractors who already have the microphones and accessories they need and just want the radio.

5 watts is the maximum transmit power allowed for UHF CB in Australia, so the TX6165X runs at the top of the legal range. It covers all 80 UHF CB channels (476.425 to 477.4125 MHz) and operates under the ACMA citizen band class licence, so there is no individual licence and no licence fee. Switchable 5/1 watt power, scan, dual and triple watch, a priority channel and VOX hands-free cover the day-to-day on site.

The radio is IP67 rated, dust tight and waterproof to 1 metre, and carries a MIL-STD-810G rating for shock, vibration and temperature. A 2600mAh lithium-ion battery gives up to 18 hours at 5 watts or 30 hours at 1 watt. A 2 watt speaker and high-contrast display keep it clear around plant and traffic, with a built-in LED torch and a user-programmable button.

The pack includes the radio, 2600mAh battery (BP026), desktop charger (BCD020), AC adaptor (PS013), antenna (AE4021) and belt clip (MB060). It does not include a speaker microphone, earpiece or vehicle charger.

For the full kit with speaker microphone, earpiece and 12V vehicle charger included, see the GME TX6165 with accessory kit. A matching MC011 speaker microphone and BCV013 vehicle charger are available separately.

Features

  • Maximum Legal Power: 5/1 watt switchable, running at the 5W ceiling allowed for UHF CB in Australia.
  • 80 UHF CB Channels: Full 476.425 to 477.4125 MHz band.
  • IP67 and MIL-STD-810G: Dust tight, waterproof to 1 metre, and rated for shock, vibration and temperature.
  • Up to 30 Hours Runtime: 2600mAh lithium-ion battery, 18h at 5W or 30h at 1W.
  • Monitoring Modes: Scan, dual watch, triple watch and a priority channel.
  • Hands-Free VOX: Plus a 2 watt speaker, high-contrast display, LED torch and a user-programmable button.
  • Radio-Only Pack: Radio, charger, antenna and belt clip; add a speaker microphone or vehicle charger separately.

Specifications

ModelTX6165X
Product TypeHandheld UHF CB radio
ComplianceAS/NZS 4365
Power Output5W high / 1W low, switchable
Channels80 CB, 12.5 kHz spacing
Frequency Range476.425 to 477.4125 MHz
ModulationFM
Receiver Sensitivity-121 dBm (12 dB SINAD)
Audio Output2W (8 ohm)
MonitoringScan, Dual Watch, Triple Watch, Priority
Battery7.4V 2600mAh lithium-ion (BP026)
Operating Time18h at 5W, 30h at 1W (typical)
Antenna Connection50 ohm, SMA Female
ProtectionIP67, MIL-STD-810G
Dimensions59 x 35 x 102 mm (W x D x H, excl. antenna)
Weight286g (with battery and antenna)
Sold AsRadio-only pack

Warranty

GME Manufacturer Warranty
The TX6165X handheld radio is covered by a 3-year manufacturer warranty from GME. Included accessories are covered by a 1-year manufacturer warranty.

Warranty claims are handled through GME's authorised service network. UAG Services can help with the process, including providing proof of purchase and facilitating claims where needed.

This warranty covers defects in materials and workmanship under normal use. It does not cover damage caused by misuse, incorrect installation, unauthorised modification or normal wear from operational use.

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. This warranty is provided in addition to these rights and does not limit or exclude them.

GME TX6165X FAQs

Do I need a licence to use this radio?

No. UHF CB in Australia operates under the ACMA citizen band class licence, so there is no individual licence to apply for and no licence fee.

Is 5 watts the most powerful UHF CB I can buy?

Yes. 5 watts is the maximum transmit power allowed for UHF CB in Australia, so the TX6165X runs at the top of the legal range.

What is in the pack?

The radio, 2600mAh battery, desktop charger, AC adaptor, antenna and belt clip. It does not include a speaker microphone, earpiece or vehicle charger.

What is the difference between this and the TX6165 kit?

Same radio. The TX6165 kit adds a speaker microphone, earpiece and 12V vehicle charger. This X pack is the radio on its own.

How long does the battery last?

Up to about 18 hours at 5 watts or 30 hours at 1 watt in typical use.
