GME TX6165 5W Handheld UHF CB Radio with Accessory Kit | IP67

5W IP67 | 80 Channel Handheld Kit

SKU: TX6165
$31700
Taxes and shipping calculated at checkout.

Pickup available at 7 Royan Place

Usually ready in 24 hours

Full-kit 5W handheld UHF CB radio. 80 channels, IP67 and MIL-STD-810G, up to 30 hours battery, supplied with speaker microphone, earpiece and 12V vehicle charger. 3-year warranty.

Description

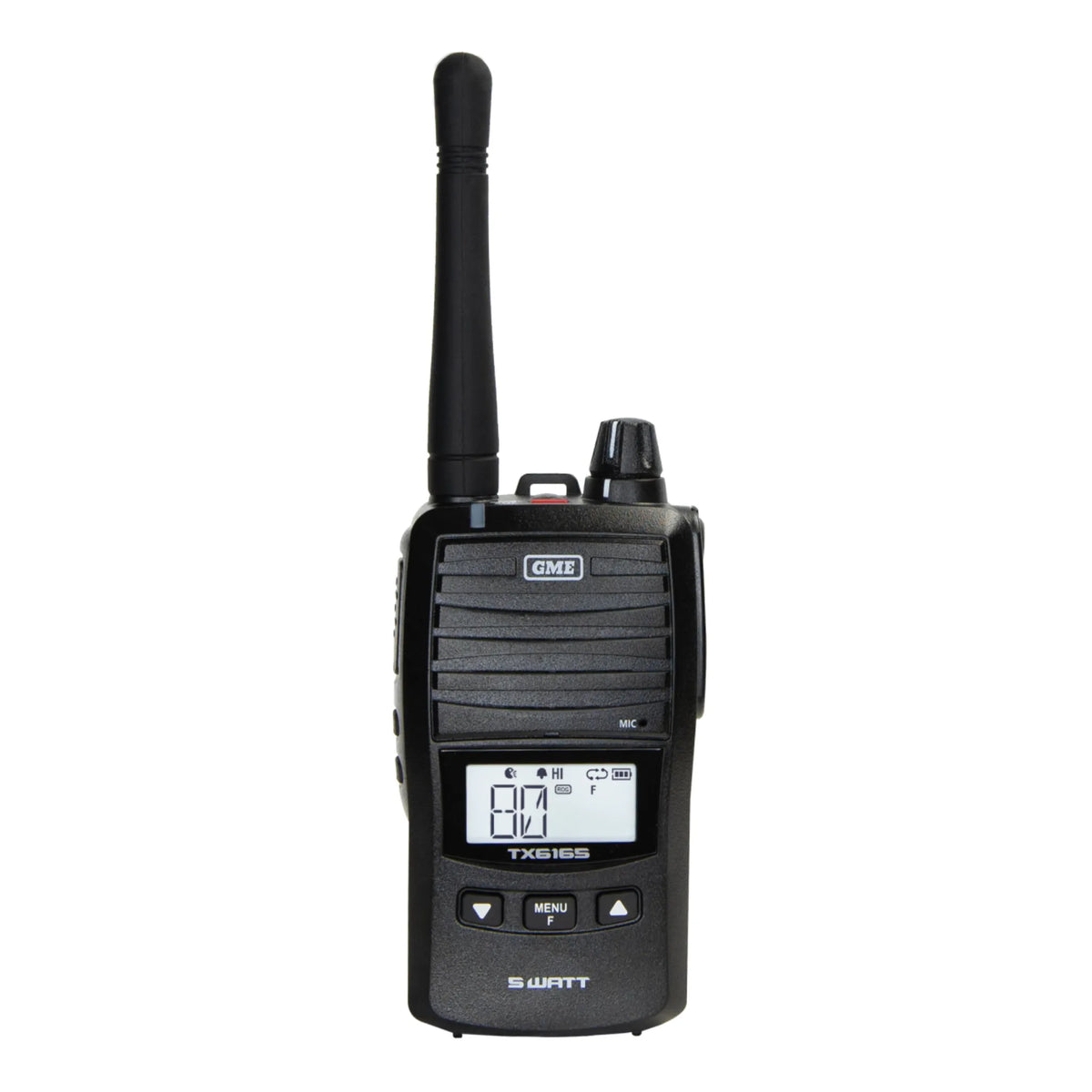

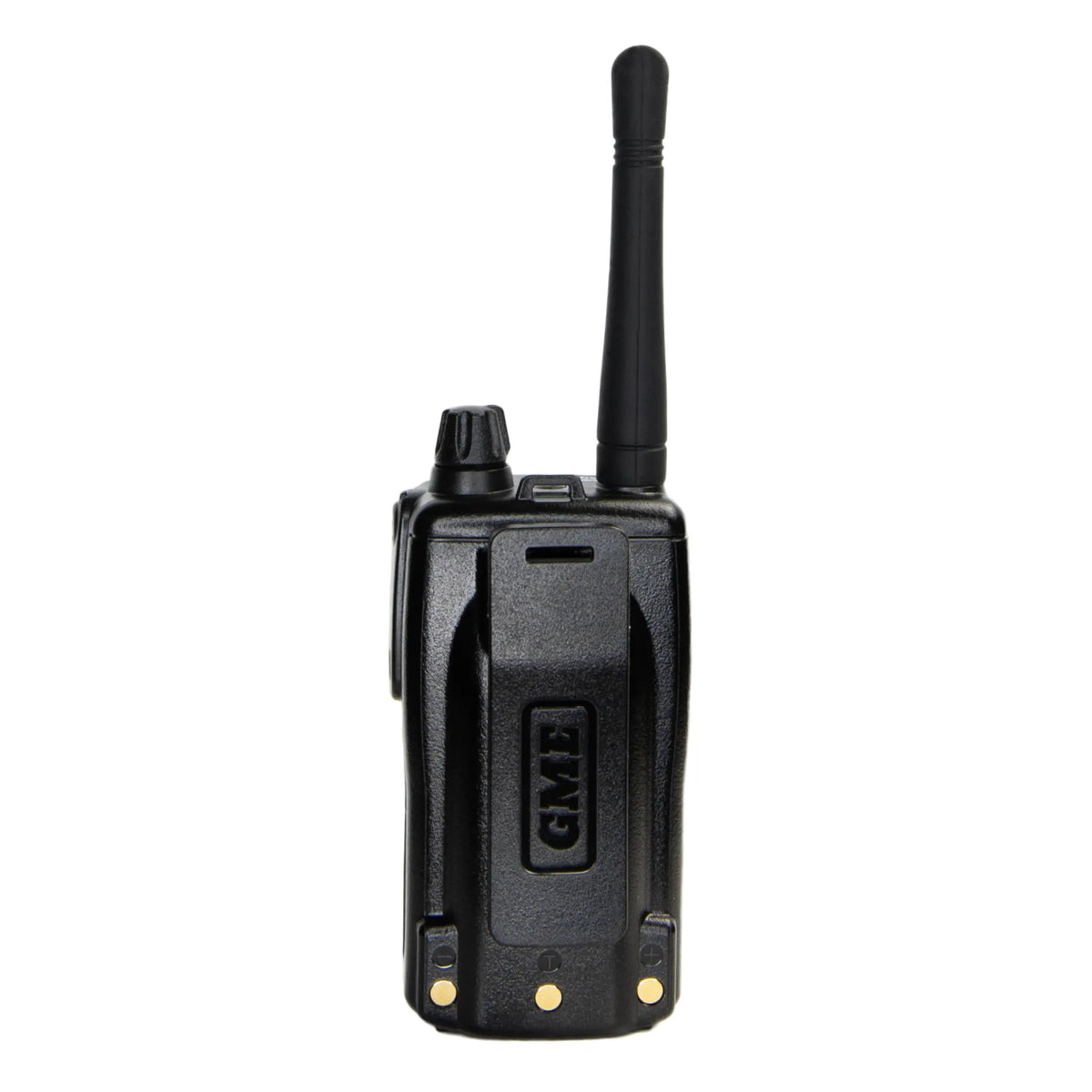

GME TX6165 5/1W Handheld UHF CB Radio is a 5 watt handheld built for traffic controllers, civil crews and contractors who need reliable communication across a worksite, a convoy or a spread-out crew. This is the full-kit version, supplied with everything needed to put it straight to work, on foot or from the vehicle.

5 watts is the maximum transmit power allowed for UHF CB in Australia, so the TX6165 runs at the top of the legal range. It covers all 80 UHF CB channels (476.425 to 477.4125 MHz) and operates under the ACMA citizen band class licence, which means no individual licence and no licence fee. Switchable 5/1 watt power, scan, dual and triple watch, a priority channel and VOX hands-free cover the day-to-day on site.

The radio is IP67 rated, so it is dust tight and handles being dropped in water, and it carries a MIL-STD-810G rating for shock, vibration and temperature. A 2600mAh lithium-ion battery gives up to 18 hours at 5 watts or 30 hours at 1 watt, enough for a full shift. A 2 watt speaker and high-contrast display keep it clear around plant and traffic, and there is a built-in LED torch and a user-programmable button.

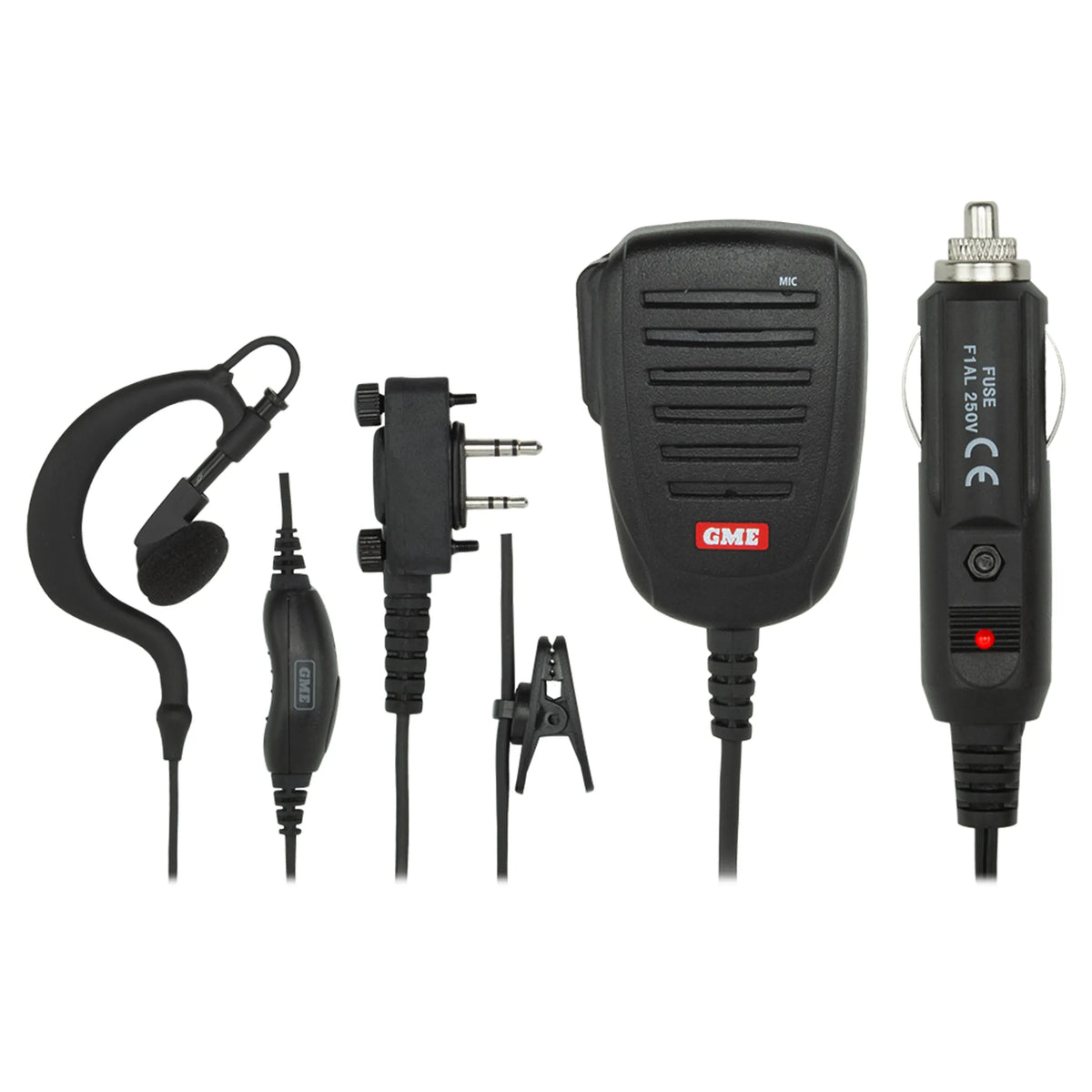

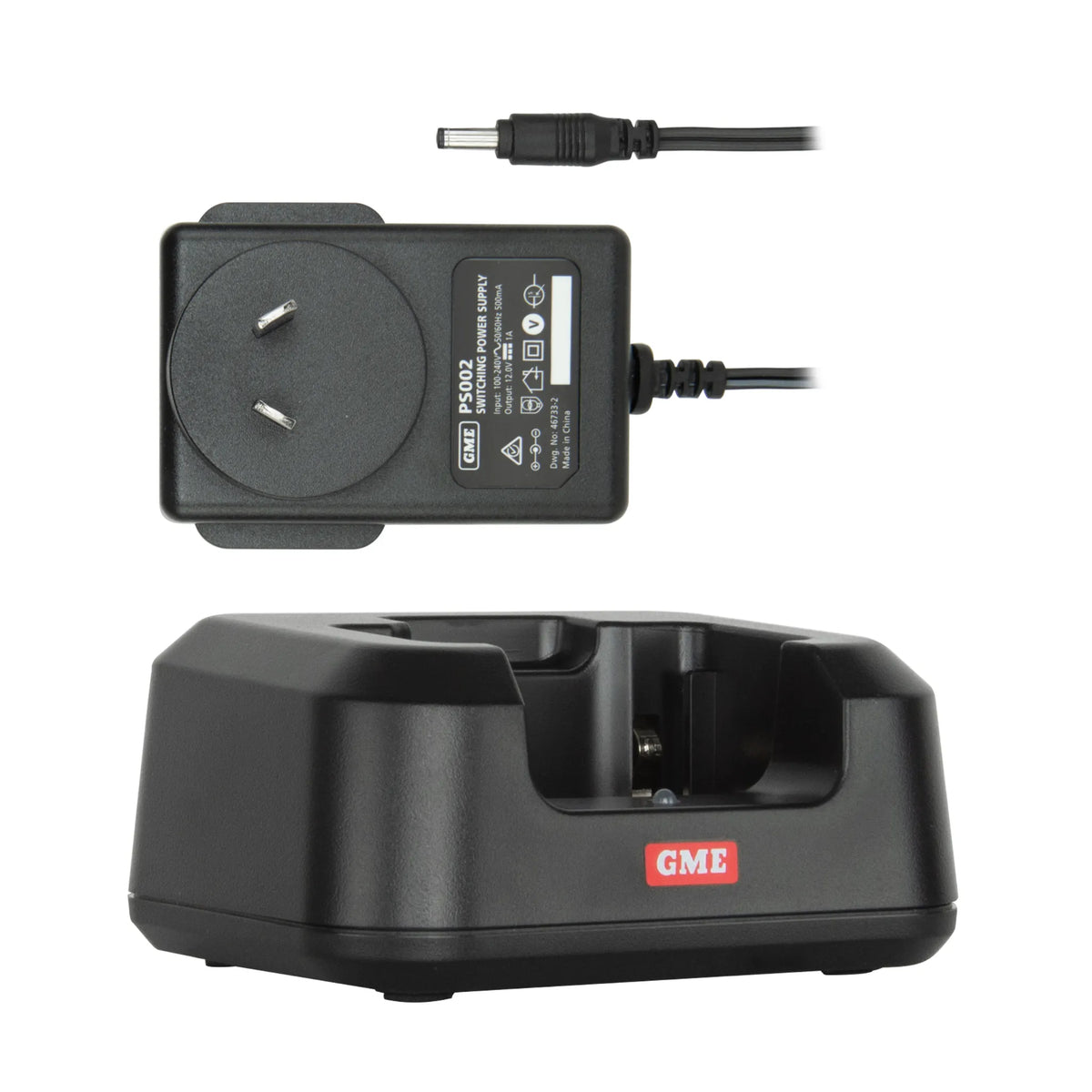

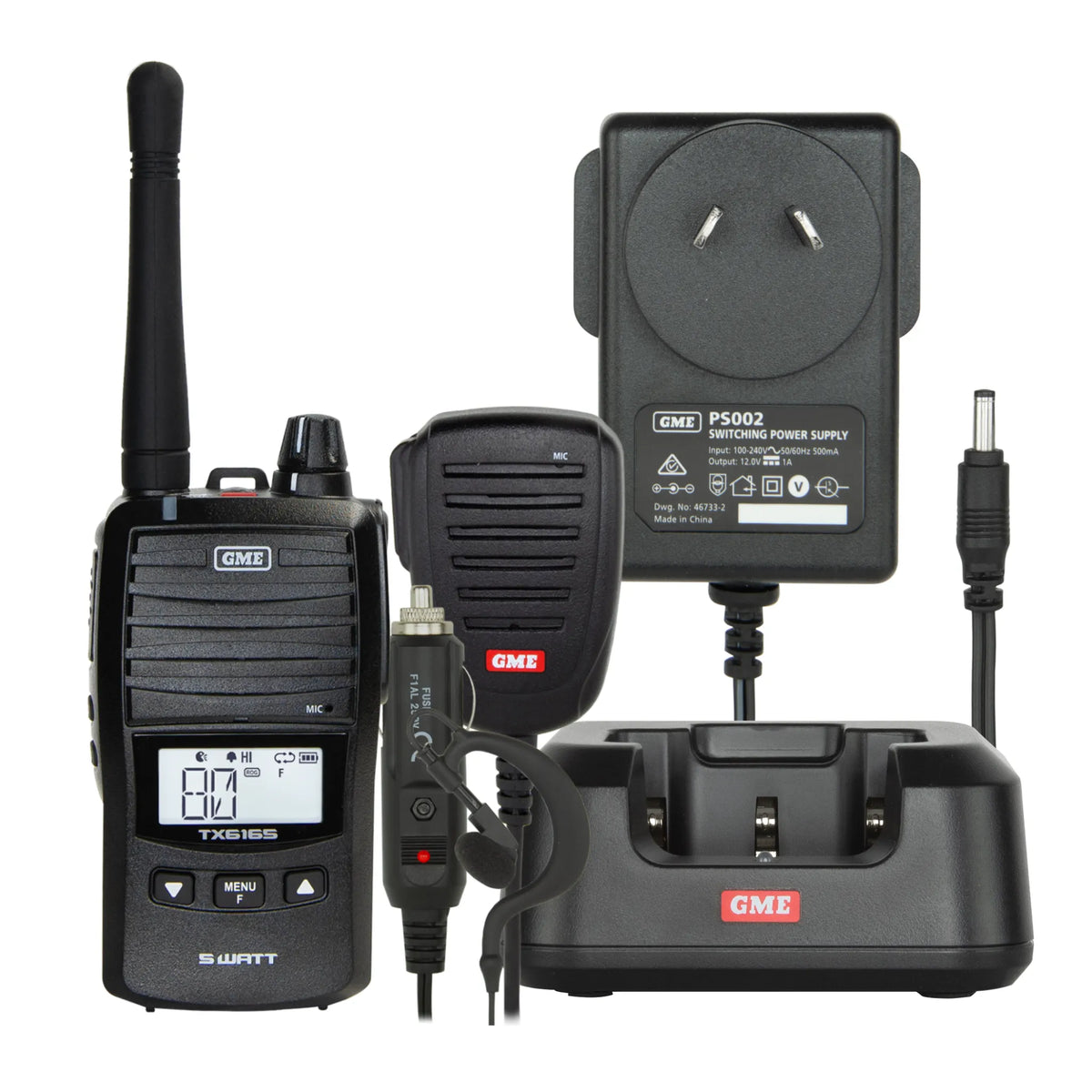

The kit includes the radio, 2600mAh battery (BP026), desktop charger (BCD020), AC adaptor (PS013), antenna (AE4021), belt clip (MB060), IP67 speaker microphone (MC011), earpiece microphone (HS015) and a 12V vehicle charger (BCV007), so a crew member can move between driving and on-foot work without swapping radios.

If you want the radio on its own without the extra accessories, see the GME TX6165X handheld. For a spare or replacement, the MC011 speaker microphone and BCV013 vehicle charger are available separately.

Features

  • Maximum Legal Power: 5/1 watt switchable, running at the 5W ceiling allowed for UHF CB in Australia.
  • 80 UHF CB Channels: Full 476.425 to 477.4125 MHz band.
  • IP67 and MIL-STD-810G: Dust tight, waterproof to 1 metre, and rated for shock, vibration and temperature.
  • Up to 30 Hours Runtime: 2600mAh lithium-ion battery, 18h at 5W or 30h at 1W.
  • Monitoring Modes: Scan, dual watch, triple watch and a priority channel.

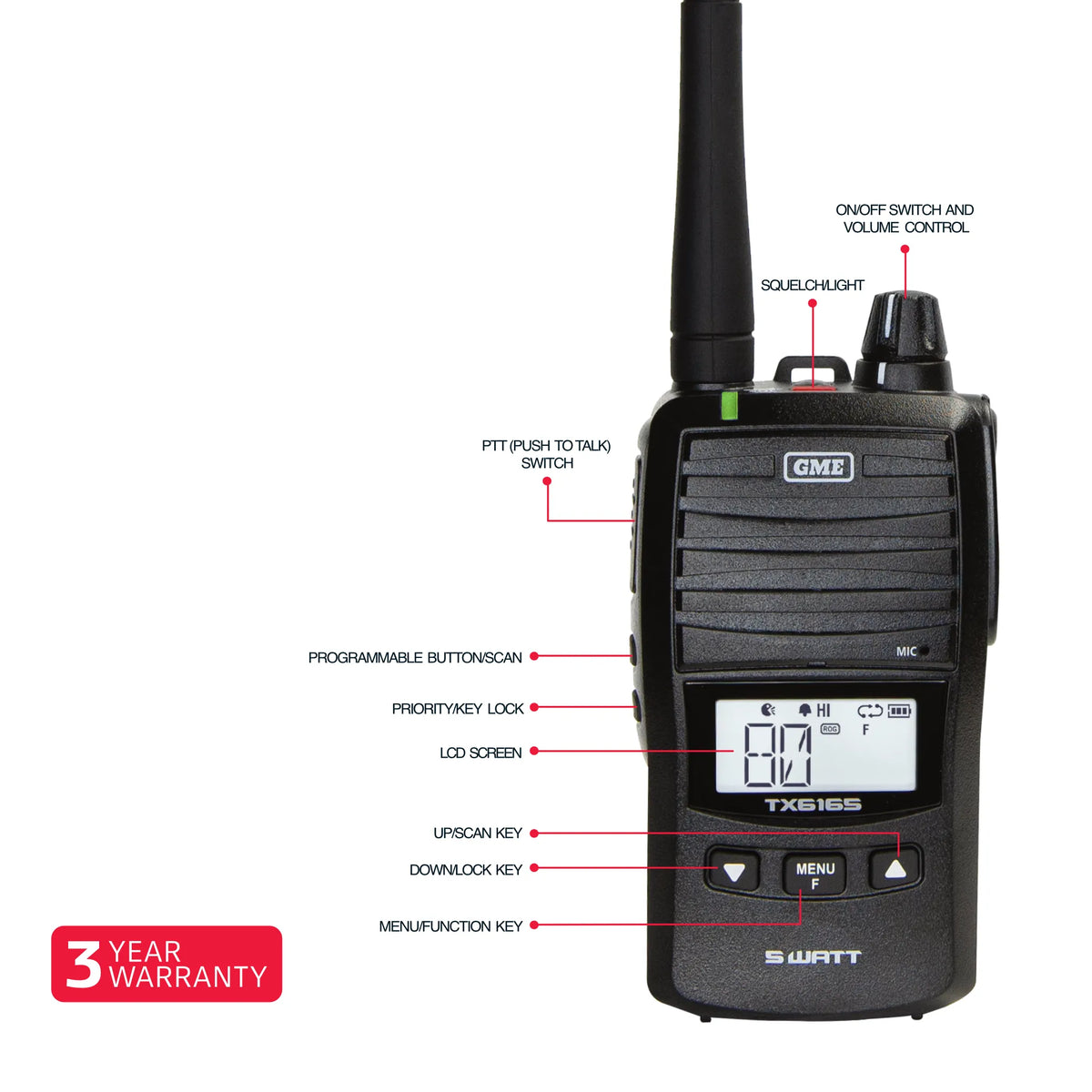

  • Hands-Free VOX: Plus a 2 watt speaker, high-contrast display, LED torch and a user-programmable button.
  • Complete Kit: Supplied with speaker microphone, earpiece and 12V vehicle charger, ready to work on foot or from the vehicle.

Specifications

ModelTX6165
Product TypeHandheld UHF CB radio
ComplianceAS/NZS 4365
Power Output5W high / 1W low, switchable
Channels80 CB, 12.5 kHz spacing
Frequency Range476.425 to 477.4125 MHz
ModulationFM
Receiver Sensitivity-121 dBm (12 dB SINAD)
Audio Output2W (8 ohm)
MonitoringScan, Dual Watch, Triple Watch, Priority

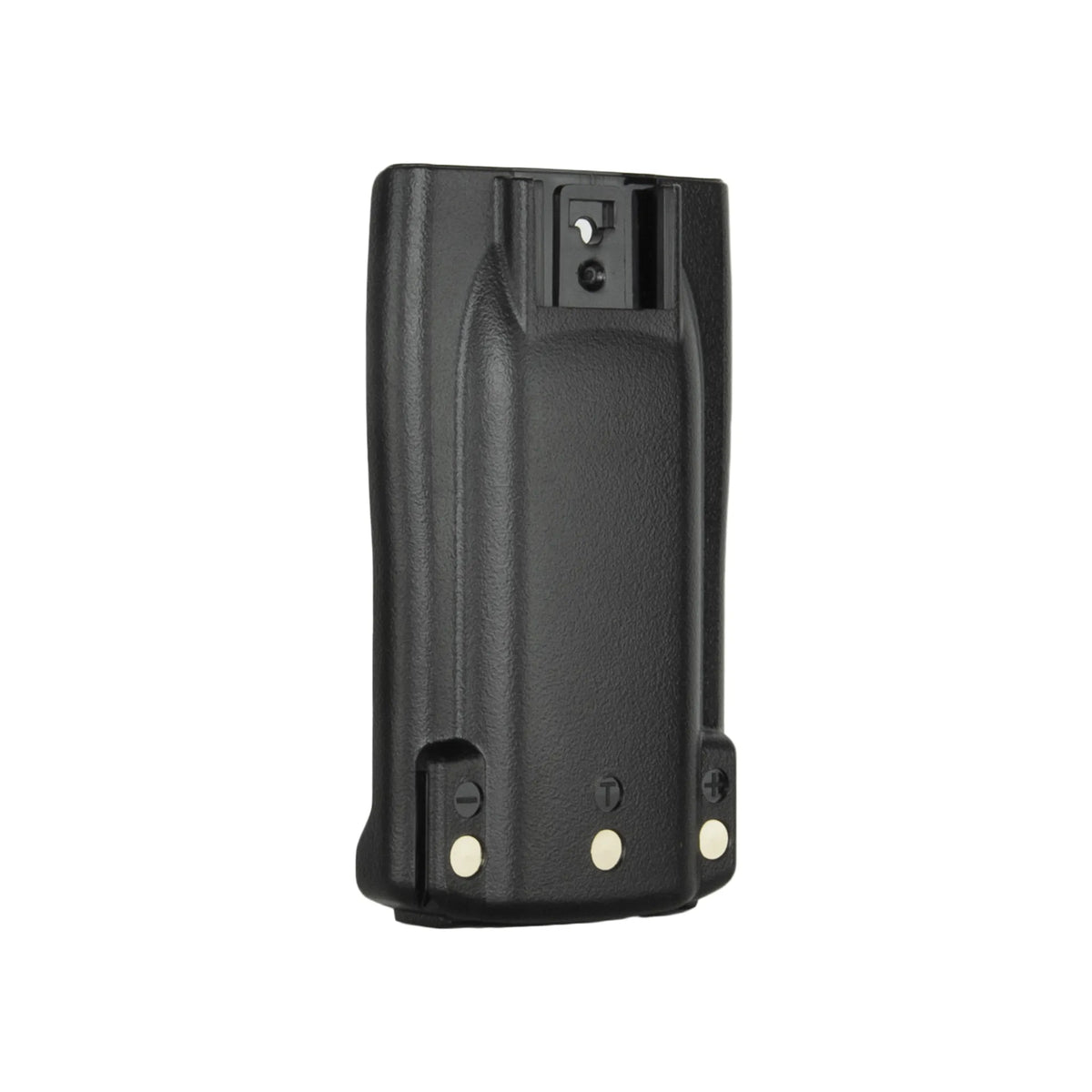

Battery7.4V 2600mAh lithium-ion (BP026)
Operating Time18h at 5W, 30h at 1W (typical)
Antenna Connection50 ohm, SMA Female
ProtectionIP67, MIL-STD-810G
Dimensions59 x 35 x 102 mm (W x D x H, excl. antenna)
Weight286g (with battery and antenna)
Sold AsComplete accessory kit

Warranty

GME Manufacturer Warranty
The TX6165 handheld radio is covered by a 3-year manufacturer warranty from GME. Included accessories are covered by a 1-year manufacturer warranty.

Warranty claims are handled through GME's authorised service network. UAG Services can help with the process, including providing proof of purchase and facilitating claims where needed.

This warranty covers defects in materials and workmanship under normal use. It does not cover damage caused by misuse, incorrect installation, unauthorised modification or normal wear from operational use.

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. This warranty is provided in addition to these rights and does not limit or exclude them.

GME TX6165 FAQs

Do I need a licence to use this radio?

No. UHF CB in Australia operates under the ACMA citizen band class licence, so there is no individual licence to apply for and no licence fee. You just follow the standard channel rules.

Is 5 watts the most powerful UHF CB I can buy?

Yes. 5 watts is the maximum transmit power allowed for UHF CB in Australia, so the TX6165 runs at the top of the legal range.

What comes in the kit?

The radio, 2600mAh battery, desktop charger, AC adaptor, antenna, belt clip, IP67 speaker microphone, earpiece microphone and a 12V vehicle charger. It is ready to use out of the box.

What is the difference between this and the TX6165X?

Same radio. This is the full accessory kit; the TX6165X is the radio-only pack without the speaker microphone, earpiece or vehicle charger.

How long does the battery last?

Up to about 18 hours at 5 watts or 30 hours at 1 watt in typical use, which covers a full shift.
