GME TX3100 Super Compact 5W UHF CB Radio | Value Pack
5W | 80 Channel In-Vehicle Value Pack
GME TX3100 Super Compact 5W UHF CB Radio | Value Pack is backordered and will ship as soon as it is back in stock.
Pickup currently unavailable at 7 Royan Place
GME TX3100 Super Compact 5W UHF CB Radio | Value Pack is backordered and will ship as soon as it is back in stock.
Description
Description

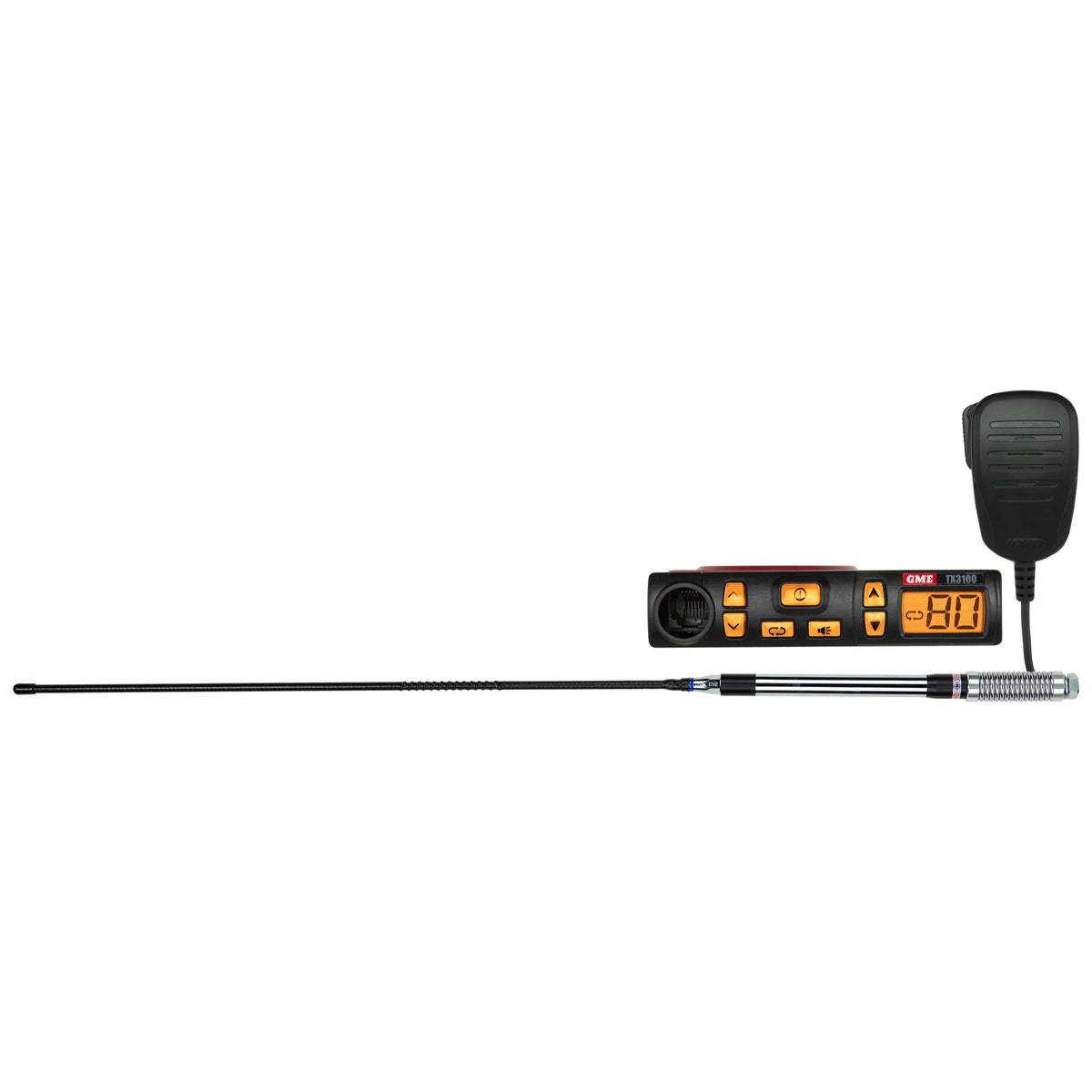

GME TX3100 Value Pack is a complete in-vehicle 5 watt UHF CB setup: the super compact TX3100DP radio supplied with an antenna and mounting bracket, ready to fit to a work vehicle. It suits traffic control, civil and fleet vehicles, as well as 4WD and touring use.
5 watts is the maximum transmit power allowed for UHF CB in Australia, so the TX3100 runs at the top of the legal range across all 80 UHF CB channels (476.425 to 477.4125 MHz). UHF CB operates under the ACMA citizen band class licence, so there is no individual licence and no fee.

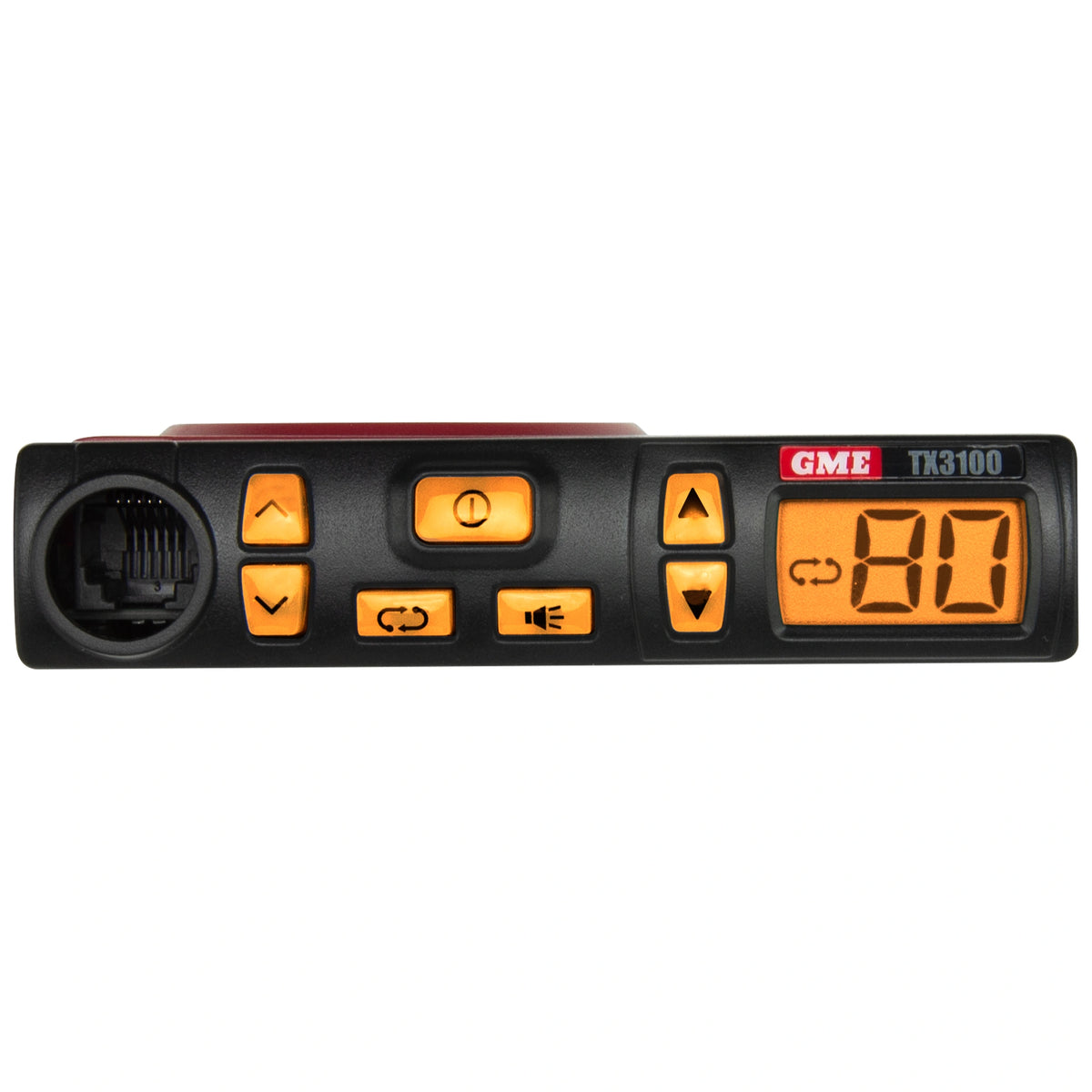

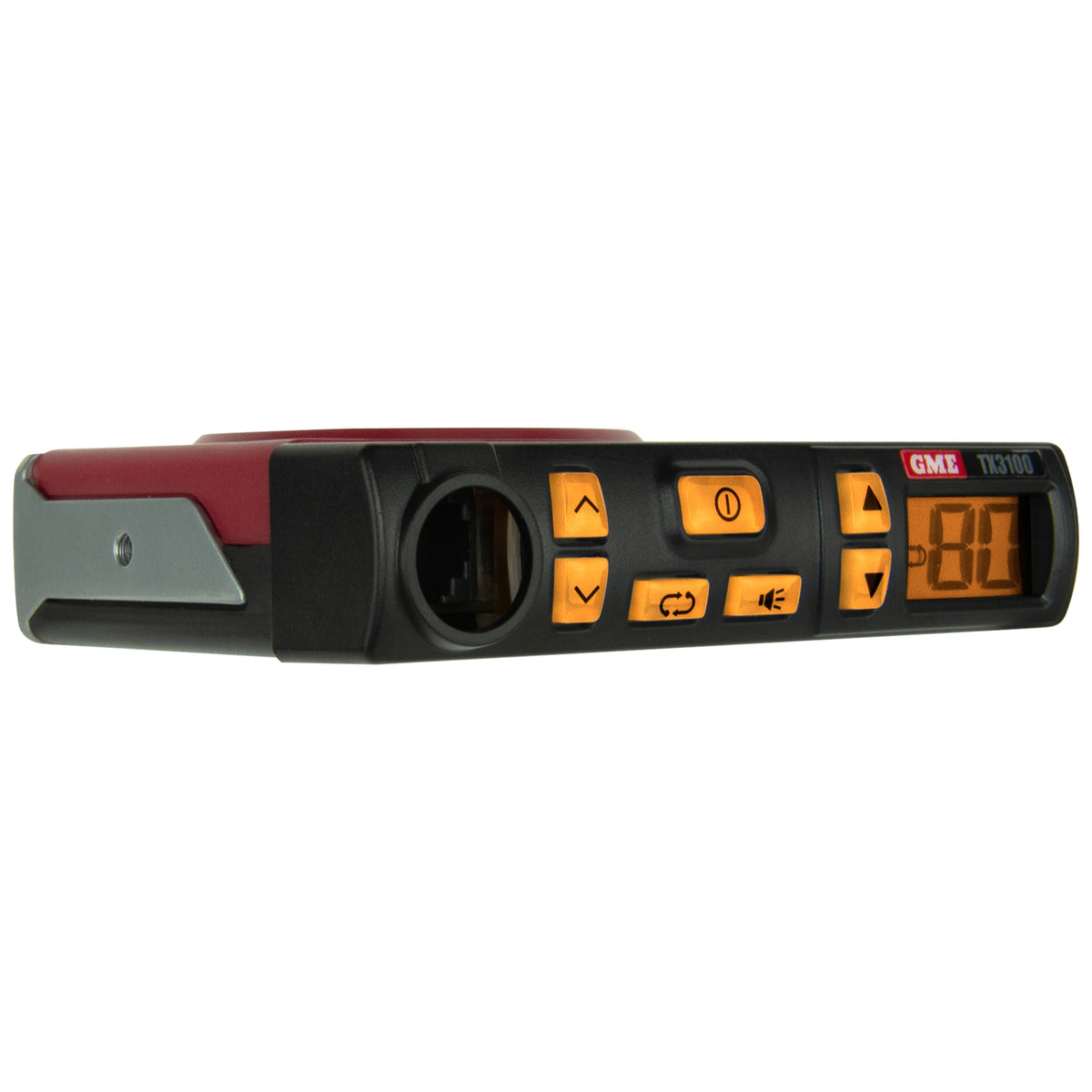

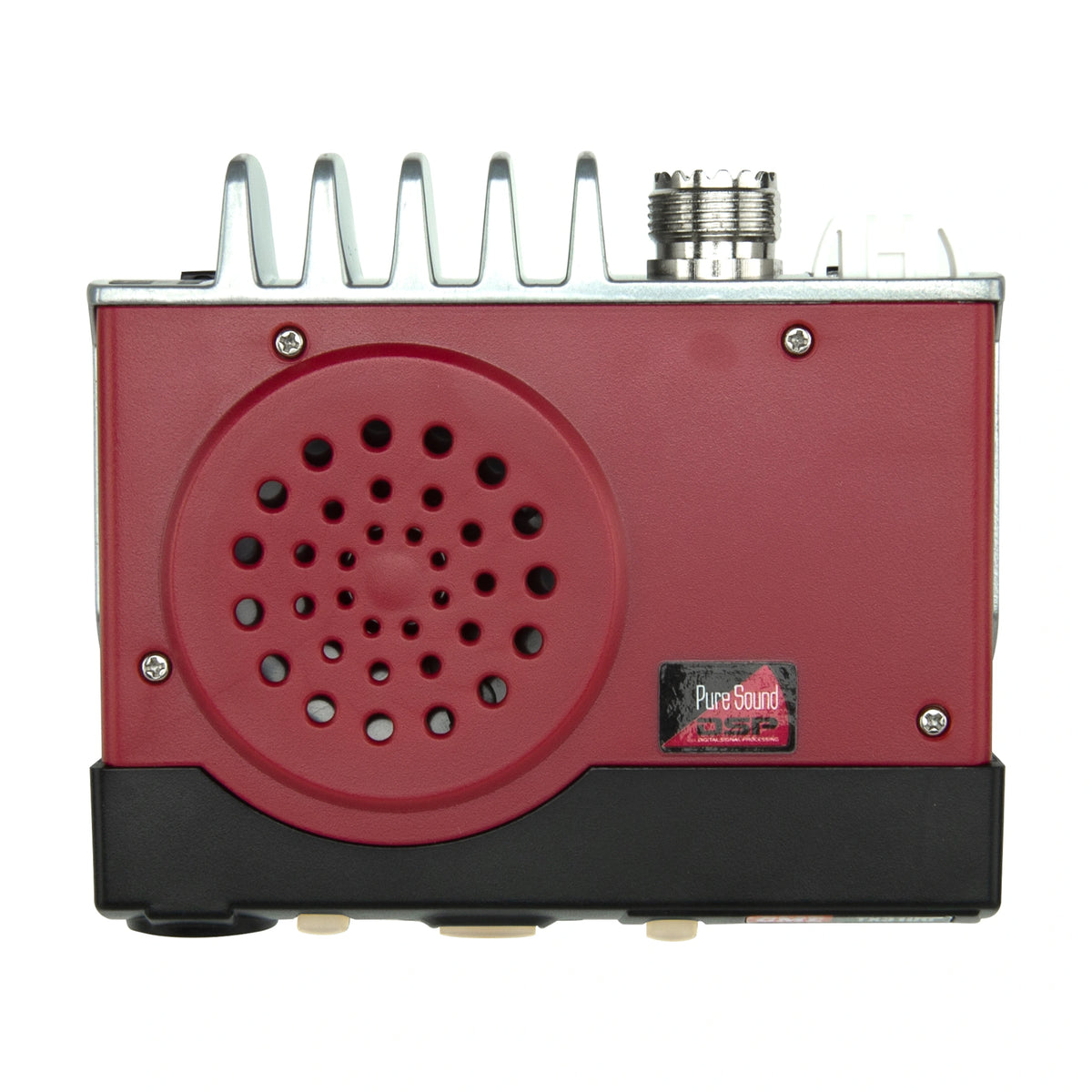

The radio uses a super compact chassis with front-mounted controls and a display flip function, so it fits neatly into a modern dash. Digital Signal Processing keeps received audio clear, and there is a built-in speaker plus a socket for an external speaker. It runs on 12V DC (10 to 14V), negative earth, with an in-line 2 amp fuse.

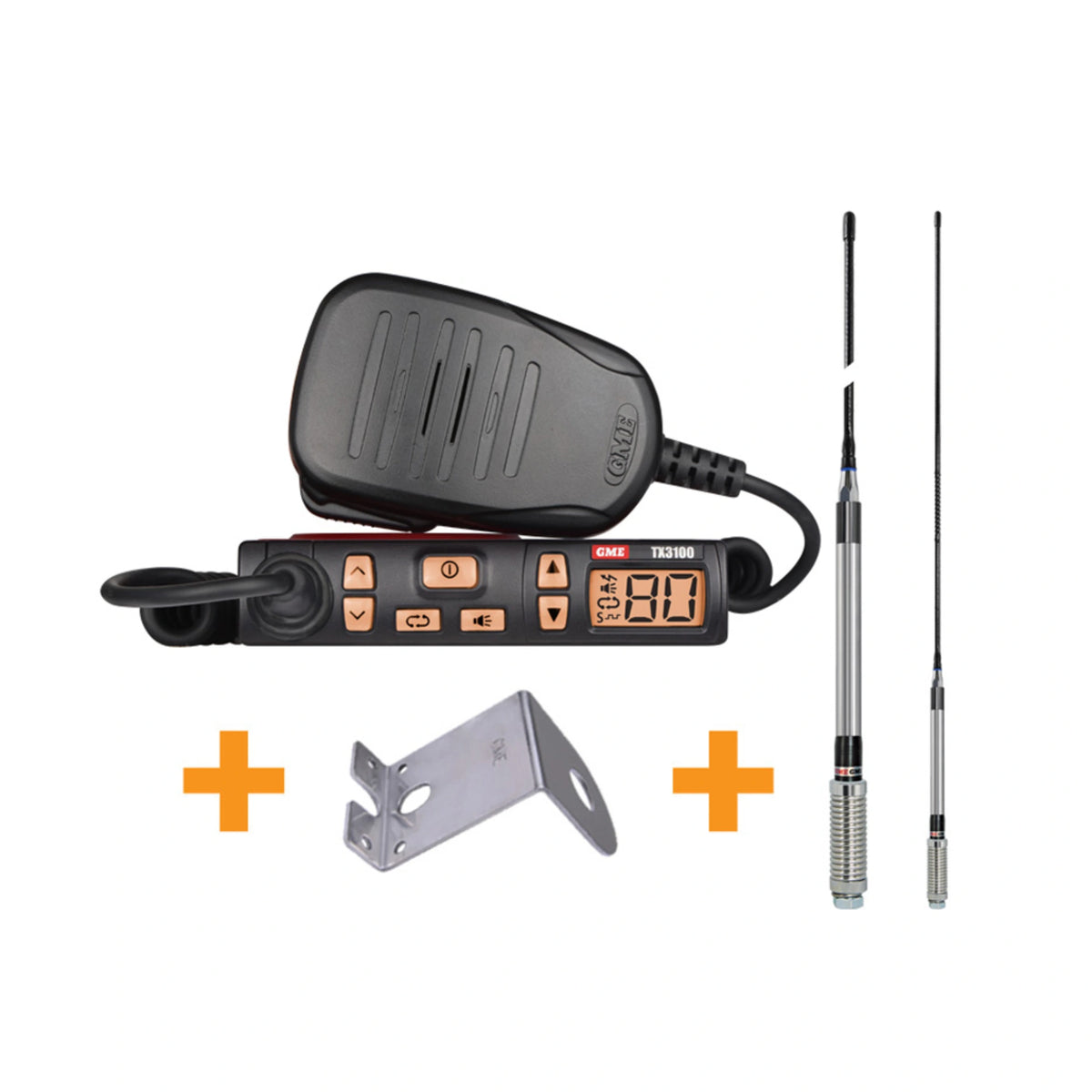

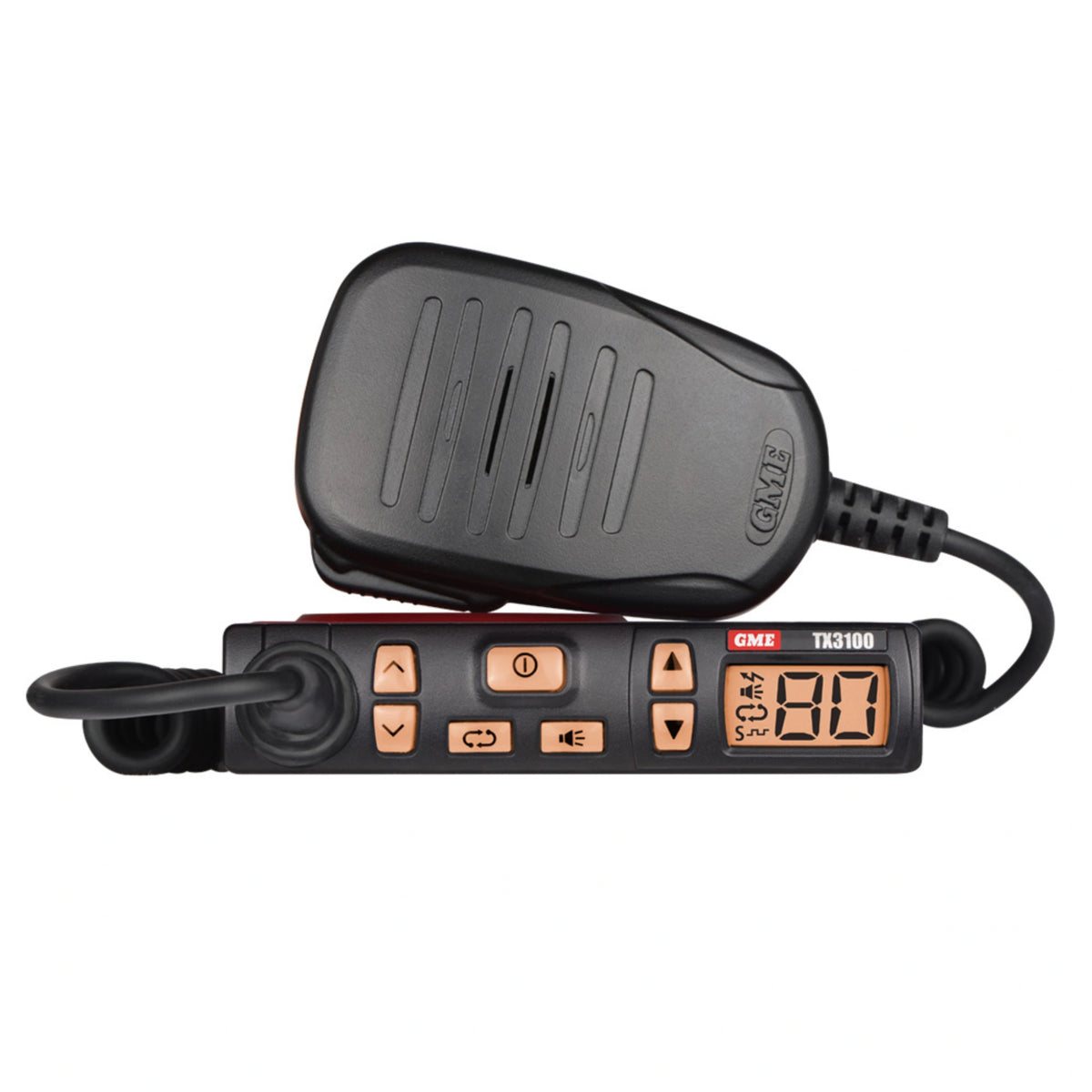

The Value Pack includes the TX3100DP radio, compact microphone (MC301B), the AE4018K2 antenna assembly, an antenna mounting bracket (MB407SS), a microphone mounting bracket (MB205), a 12V DC power lead (LE09) and mounting hardware.
For a handheld instead of a fixed in-vehicle radio, see the GME TX6165 handheld.
Features
Features
- Complete In-Vehicle Pack: Radio, antenna, bracket and lead, ready to fit.
- Maximum Legal Power: 5 watts, at the UHF CB ceiling, across all 80 channels.
- Super Compact: Front-mounted controls and a display flip function for a tidy dash install.
- Digital Signal Processing: Clearer received audio.
- External Speaker Socket: Plus a built-in speaker.
- 5-Year Warranty: On the radio.
Specifications
Specifications
| Model | TX3100DP |
| Product Type | Super compact in-vehicle UHF CB radio |
| Compliance | AS/NZS 4365 |
| Power Output | 5W |
| Channels | 80 CB, 12.5 / 25 kHz spacing |
| Frequency Range | 476.425 to 477.4125 MHz |
| Modulation | FM with DSP |
| Receiver Sensitivity | -123 dBm (12 dB SINAD) |
| Audio Output | 3W (4 ohm) |
| Supply | 12V DC nominal (10 to 14V), negative earth, in-line 2A fuse |
| Antenna Connection | 50 ohm nominal, SO239 panel socket |
| Microphone Port | 6 pin RJ12, front mounted |
| External Speaker | 3.5mm mono jack |
| Dimensions | 102 x 97 x 23 mm (W x D x H) |
| Weight | 178g (radio) |
| Sold As | Value pack (radio, antenna, bracket and lead) |
Warranty
Warranty
GME Manufacturer Warranty
The TX3100DP radio is covered by a 5-year manufacturer warranty from GME. The included antenna and mounting bracket carry a 1-year manufacturer warranty.
Warranty claims are handled through GME's authorised service network. UAG Services can help with the process, including providing proof of purchase and facilitating claims where needed.
This warranty covers defects in materials and workmanship under normal use. It does not cover damage caused by misuse, incorrect installation, unauthorised modification or normal wear from operational use.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. This warranty is provided in addition to these rights and does not limit or exclude them.
GME TX3100 Value Pack FAQs
Do I need a licence to use this radio?
Do I need a licence to use this radio?
No. UHF CB in Australia operates under the ACMA citizen band class licence, so there is no individual licence to apply for and no licence fee.
What is in the pack?
What is in the pack?
The TX3100DP radio, compact microphone, the AE4018K2 antenna assembly, an antenna mounting bracket, a microphone mounting bracket, a 12V DC power lead and mounting hardware. Everything needed to fit it to a vehicle.
Is this a handheld or a fixed radio?
Is this a handheld or a fixed radio?
It is a fixed in-vehicle radio that mounts in the dash and runs off the vehicle's 12V supply. For a handheld, see the GME TX6165.
Will it fit a modern dash?
Will it fit a modern dash?
It uses a super compact chassis with front controls and a display flip function, designed for unobtrusive mounting in modern vehicles. Fitment still depends on the space available in your vehicle.
