246mm 30W Amber LED Fixed Mount Warning Minibar

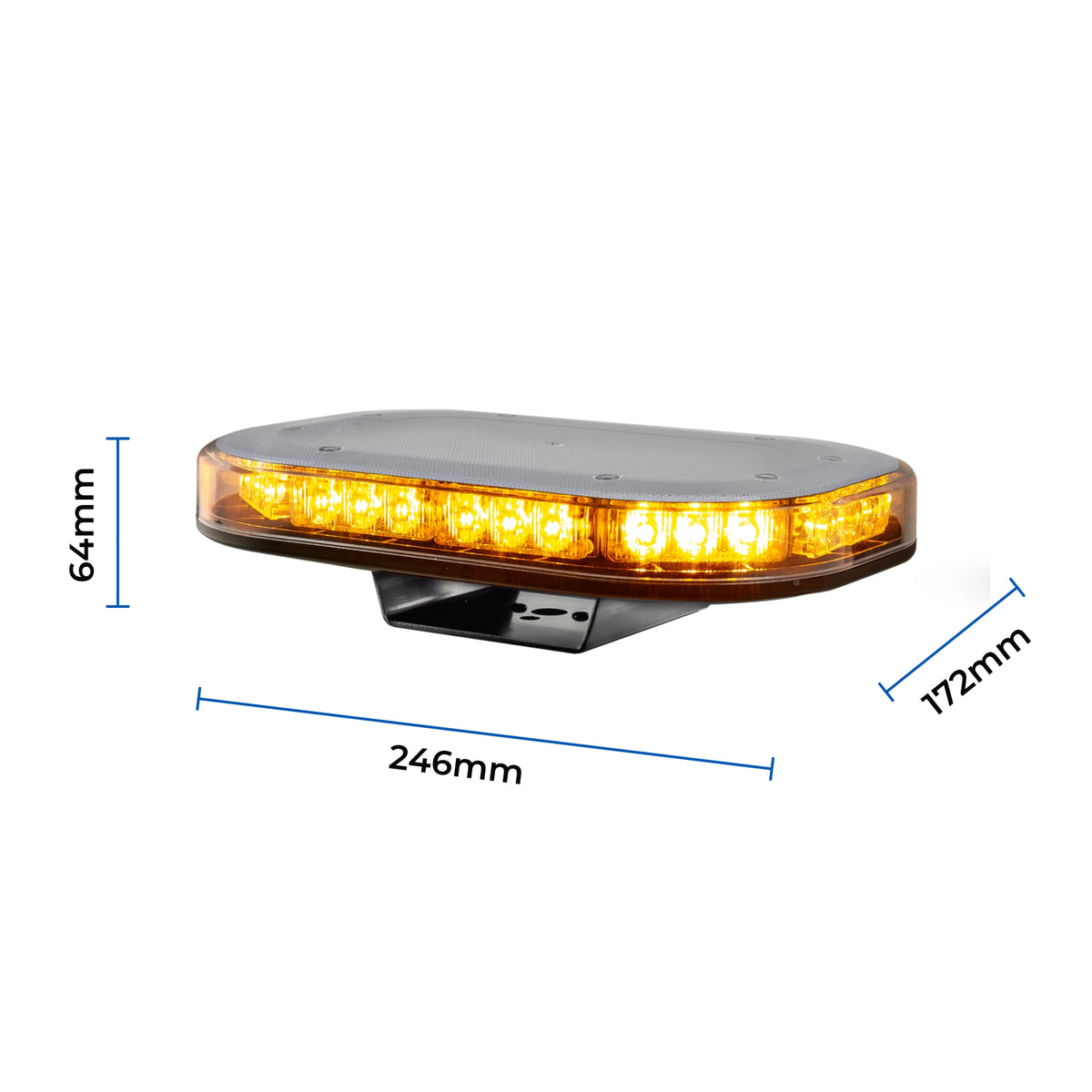

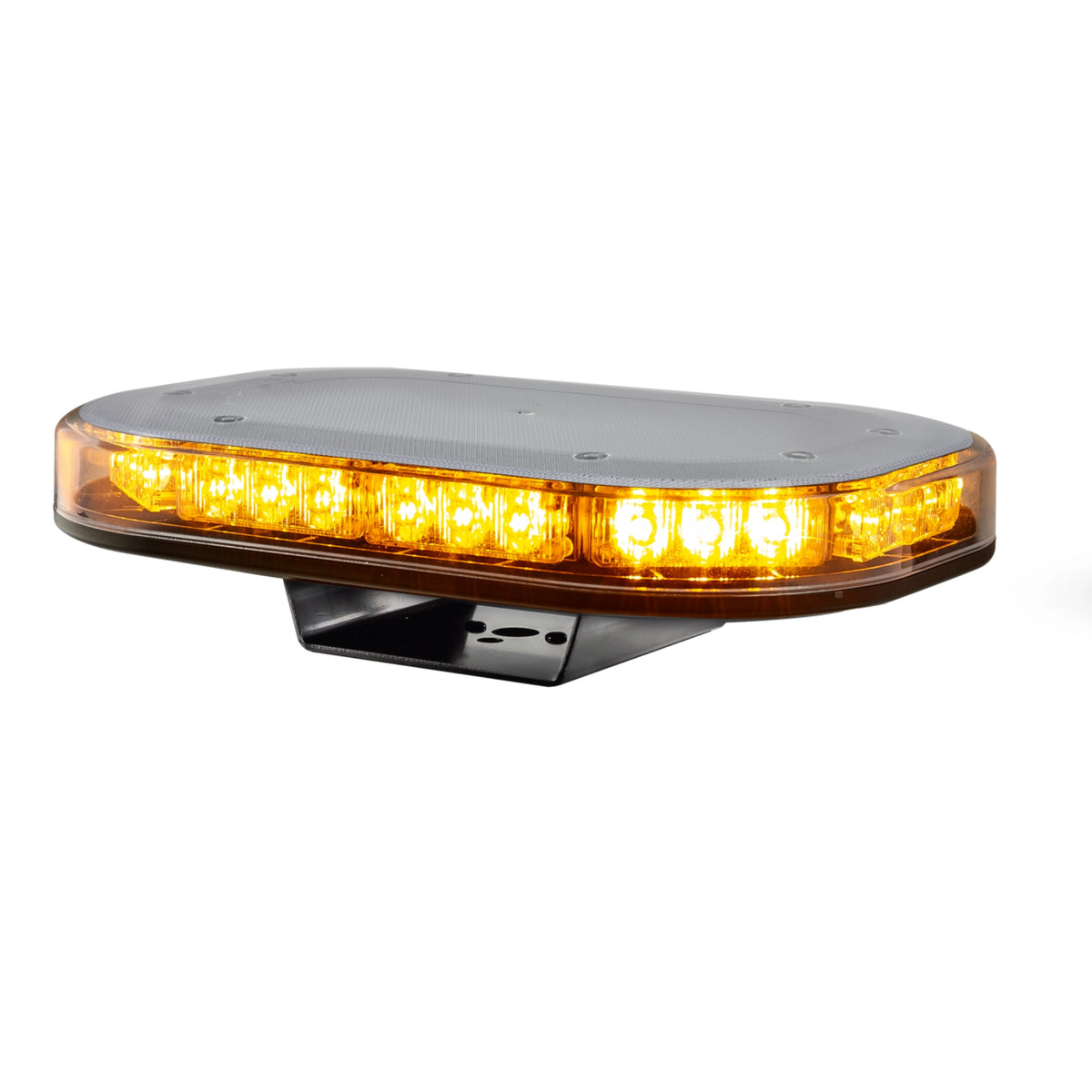

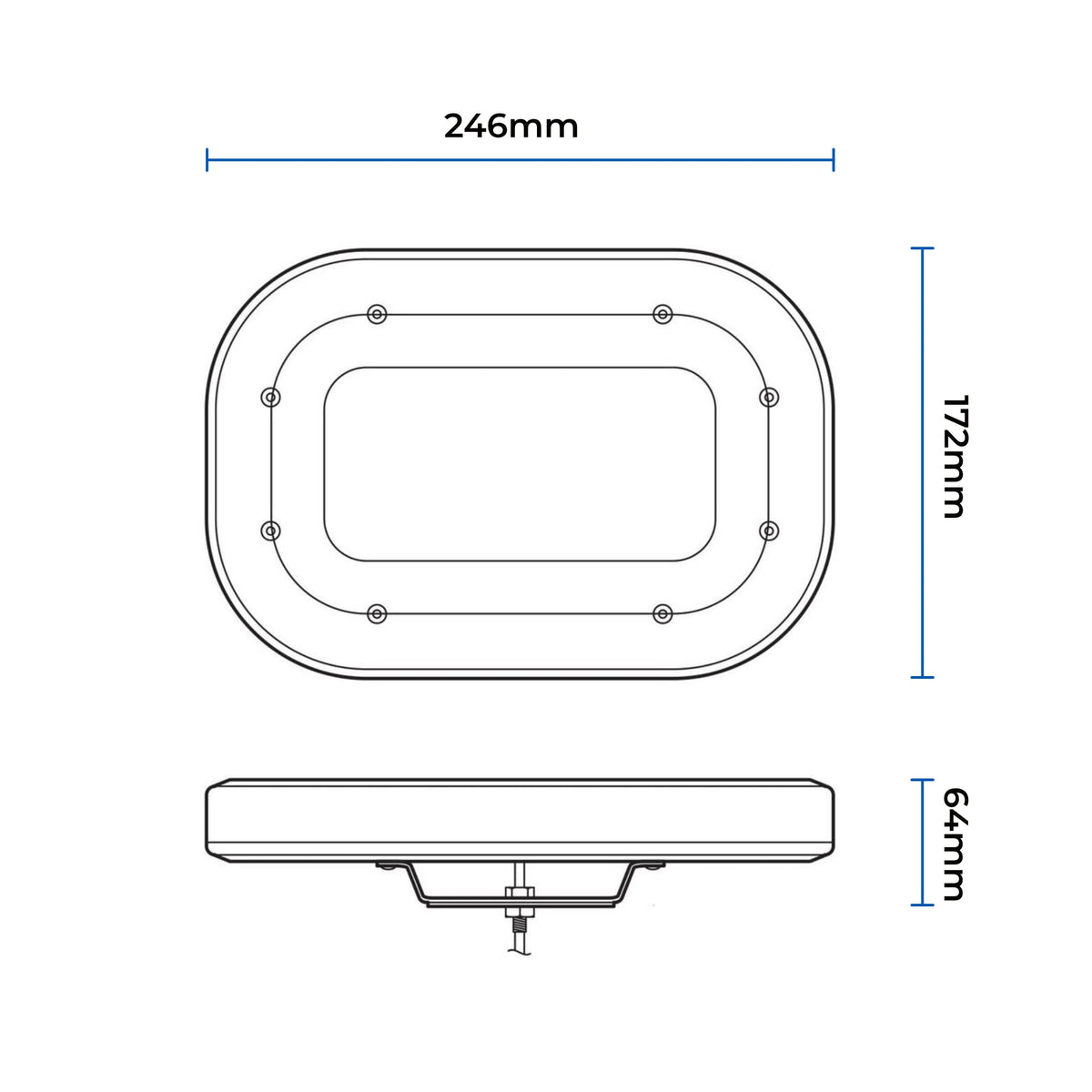

The LED Autolamps LB246ACM amber warning minibar provides 360-degree amber hazard warning from the vehicle roof as a permanent fixed-mount installation. At 246mm it is the compact fixed-mount option in the LED Autolamps range, suited to utes, service vans and fleet vehicles that carry their warning lighting full time.

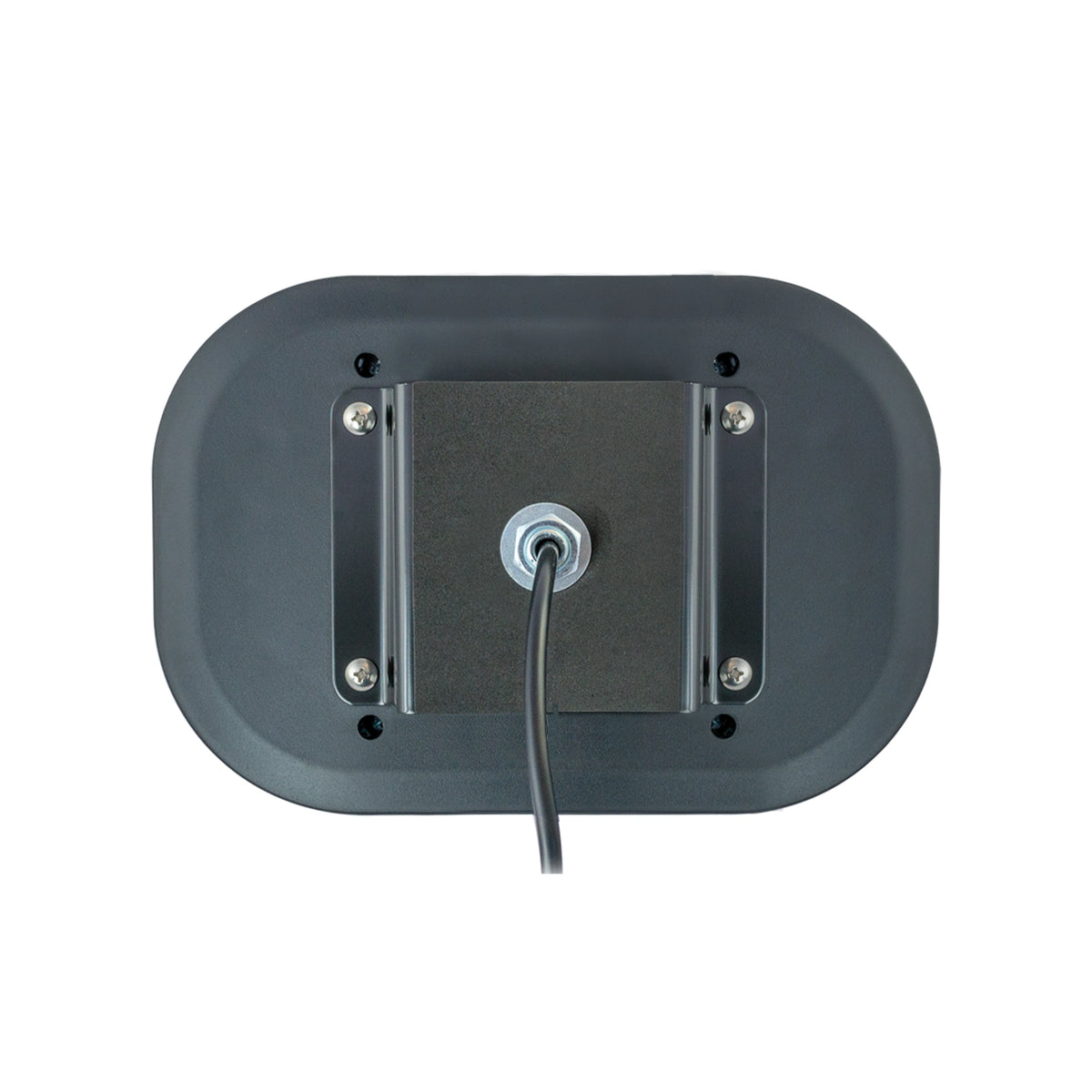

The bar installs on a single-bolt mount with a painted steel bracket, fixed to the vehicle roof or a flat mounting surface. A 45cm cable connects the bar to the vehicle electrical system for hardwired installation through a cab switch.

Flash patterns are selected through the pattern wire: a short contact steps to the next pattern and a longer contact steps back. Multiple bars can be synchronised by setting the same pattern and joining the pattern wires, keeping flash output matched across two or more bars on the same vehicle.

Light output comes from 30 x 1 watt LEDs behind a clear polycarbonate lens, producing 360-degree omnidirectional amber output. There are 18 selectable flash patterns, from rotating and single/double/quad flash modes through to hyper-flash and steady burn. The supplied product data identifies pattern 9 (Quad, all LEDs) as the SAE J845 Class 1 compliant pattern and patterns 12 to 15 (the 2Hz modes) as the ECE R65 patterns.

Multivolt 10-30V DC operation suits both 12V and 24V vehicle electrical systems. Current draw is 1.63A at 13.8V DC and 0.56A at 28V DC.

The ABS base and polycarbonate lens carry an IP67 ingress protection rating with an operating temperature range of -40°C to +60°C, suiting exposed roof positions subject to dust, weather and vibration.

The supplied product data lists ECE R65 and ECE R10 approval and SAE J845 Class 1 compliance. These certifications relate to light output performance and electromagnetic compatibility as per the supplied product data.

For temporary or vehicle-to-vehicle use, UAGS also stocks the magnetic version of this bar with an amber lens: the 246mm Amber LED Magnetic Warning Minibar. For a longer fixed bar, see the 744mm 72W Amber LED Warning Lightbar.

Commonly used on traffic control vehicles, civil fleet vehicles, utility vehicles and maintenance vehicles. Vehicle lighting requirements may vary by vehicle type, registration category, jurisdiction and intended use. Vehicle warning systems support visibility but do not replace a traffic management plan or traffic guidance scheme.

• 30 x 1W LED Configuration: amber output through a clear polycarbonate lens with 360-degree omnidirectional coverage
• Compact 246mm Footprint: the smallest fixed-mount bar in the range, suited to utes, vans and fleet vehicles
• Single-Bolt Fixed Mounting: painted steel bracket for permanent installation on the vehicle roof or a flat mounting surface
• Hardwired Installation: 45cm cable for connection through a cab switch, with pattern selection via the pattern wire
• Synchronisation: two or more bars synchronise by setting the same pattern and joining the pattern wires
• 18 Flash Patterns: pattern 9 (Quad, all LEDs) is the SAE J845 Class 1 compliant pattern; patterns 12-15 (2Hz modes) are the ECE R65 patterns per supplied data
• Multivolt Operation: 10-30V DC input suits 12V and 24V vehicle electrical systems
• IP67 Construction: ABS base and polycarbonate lens, rated -40°C to +60°C
• Certified Output: supplied product data lists ECE R65 and ECE R10 approval and SAE J845 Class 1 compliance
