C9 27W LED Warning Light Head | 180 Degree Reflex Lens

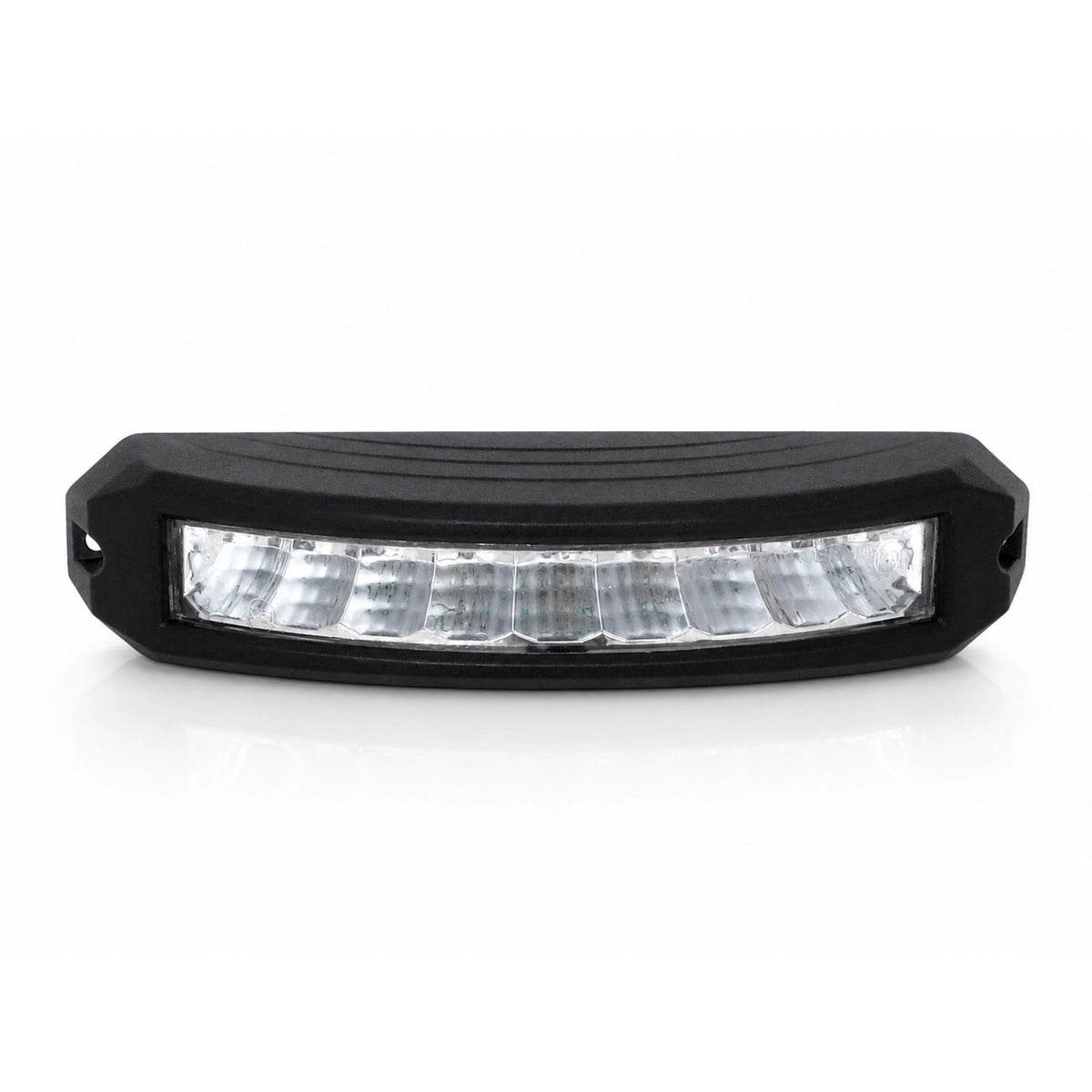

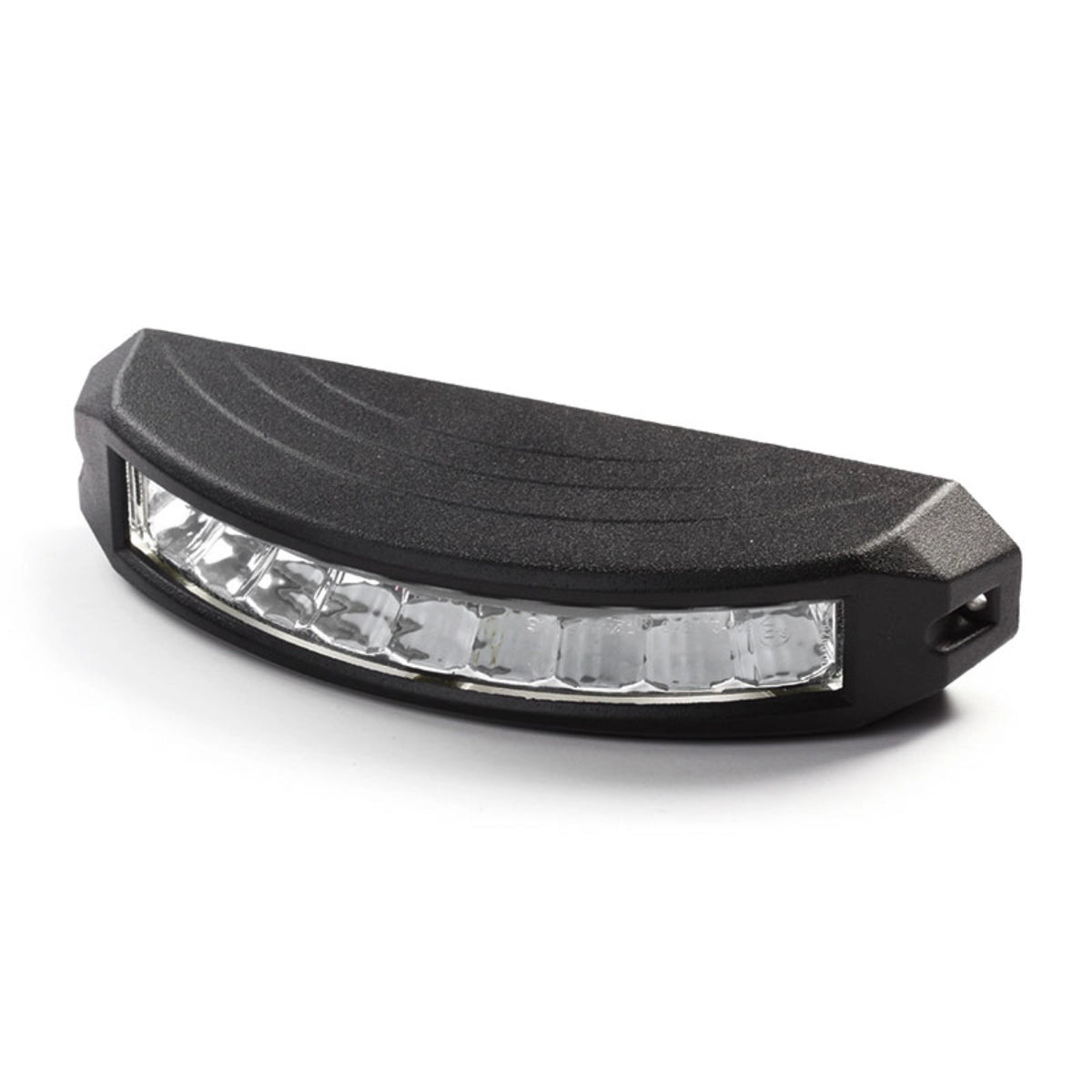

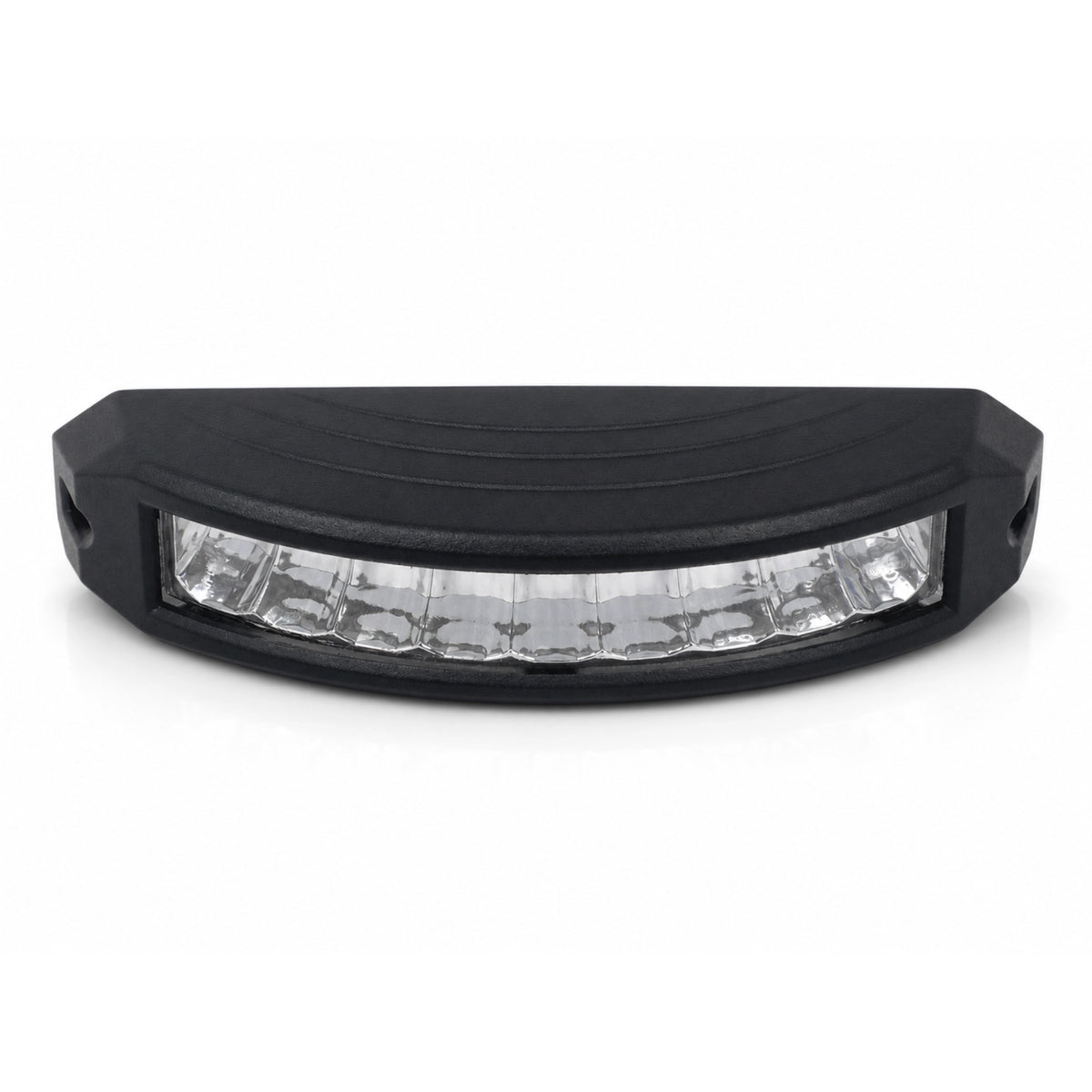

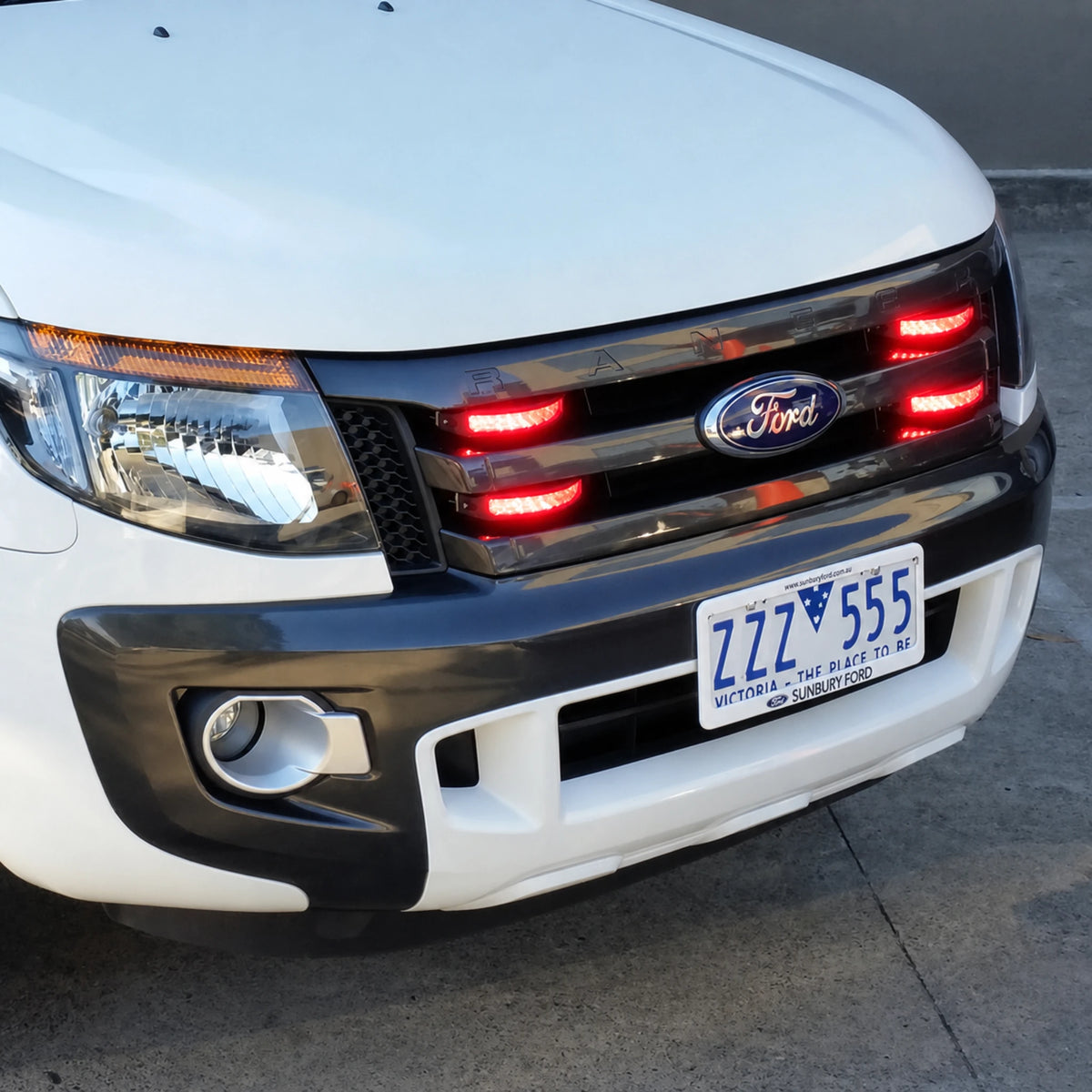

The C9 is the highest output surface mount head in this range, built around nine 3W LEDs behind a curved reflex lens for a 27W LED array. The housing curves through its length so the reflectors throw light across roughly 180 degrees rather than straight ahead, which is what makes it the head to choose where a vehicle needs to be seen from the side as much as head on, at intersections, on approaches and in bumper and grille positions.

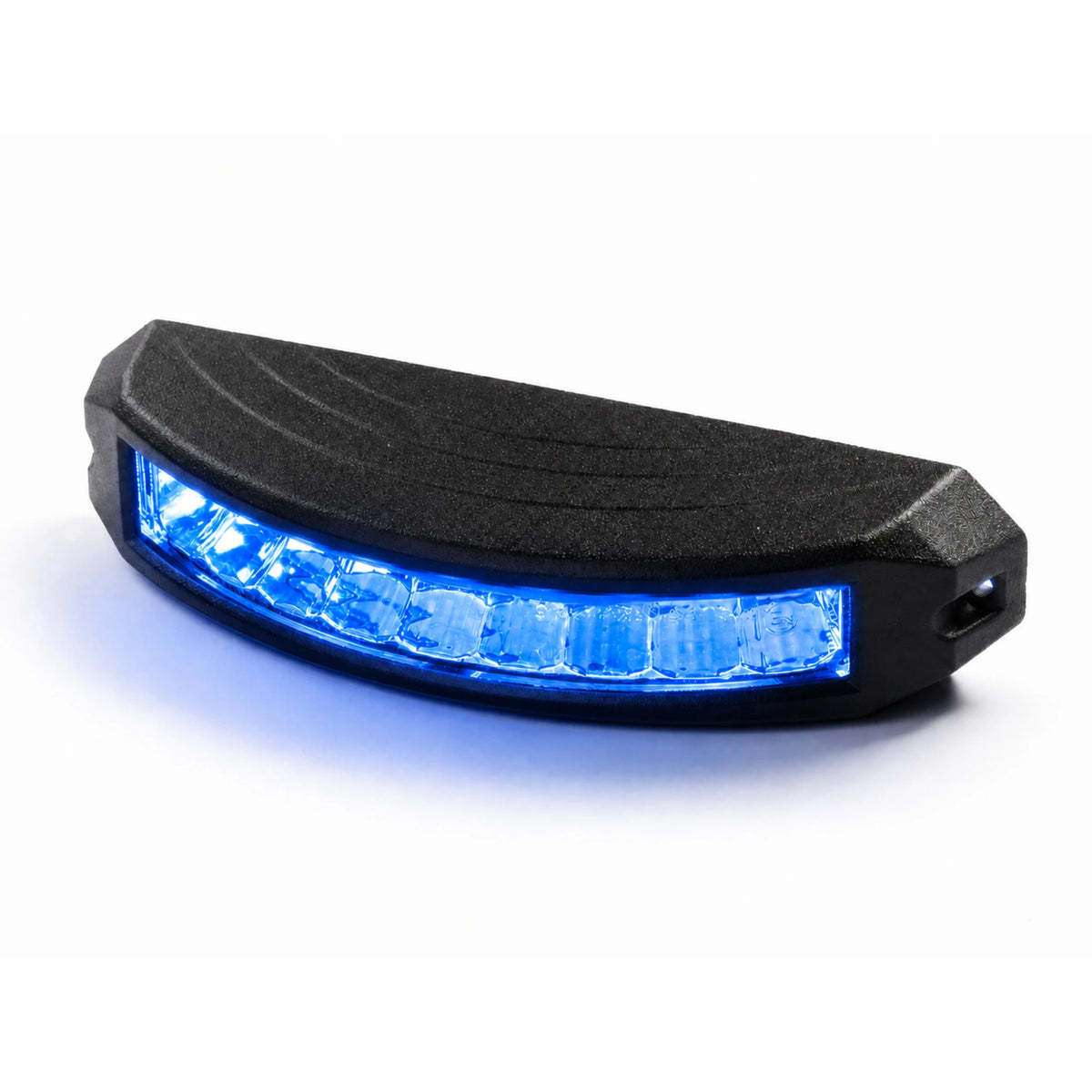

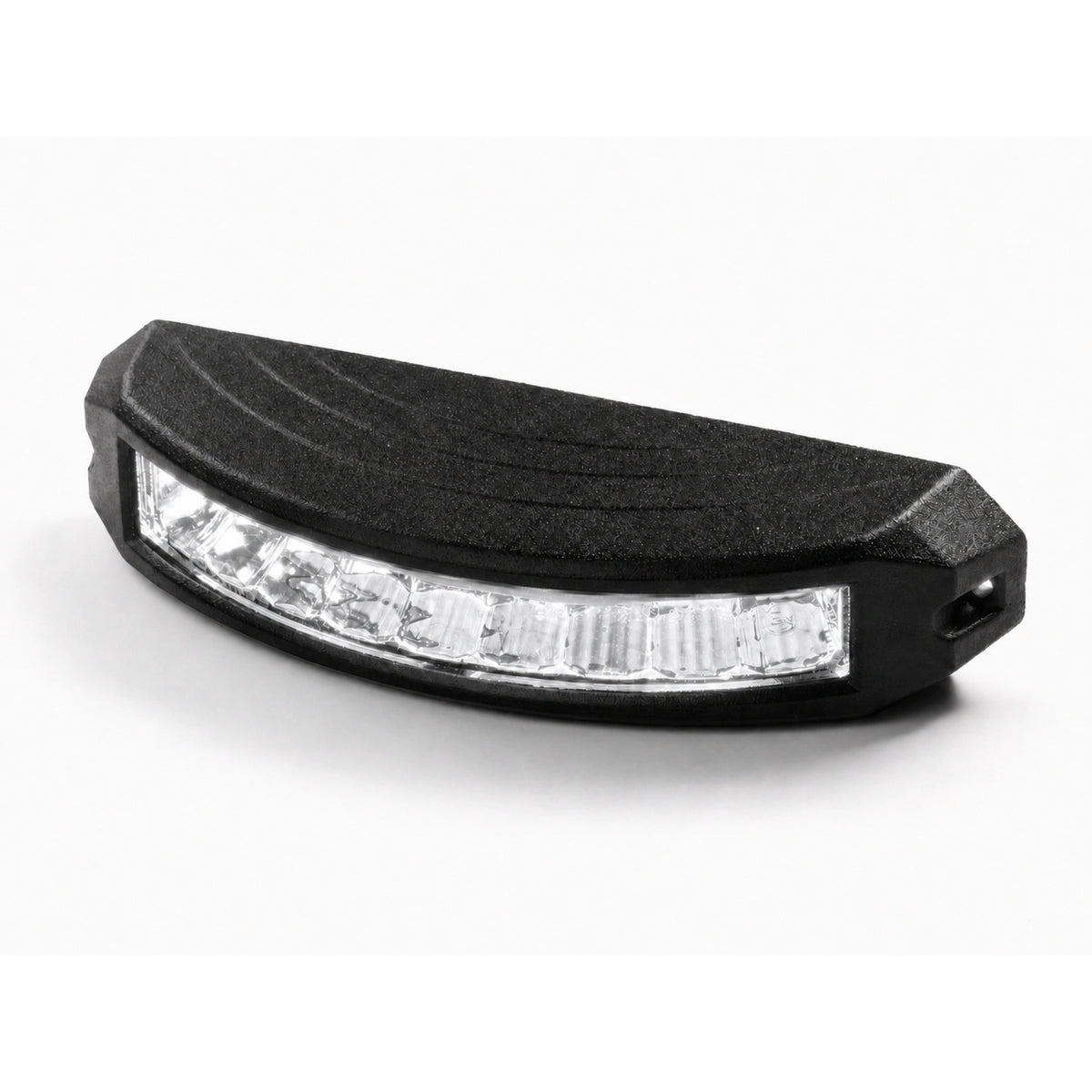

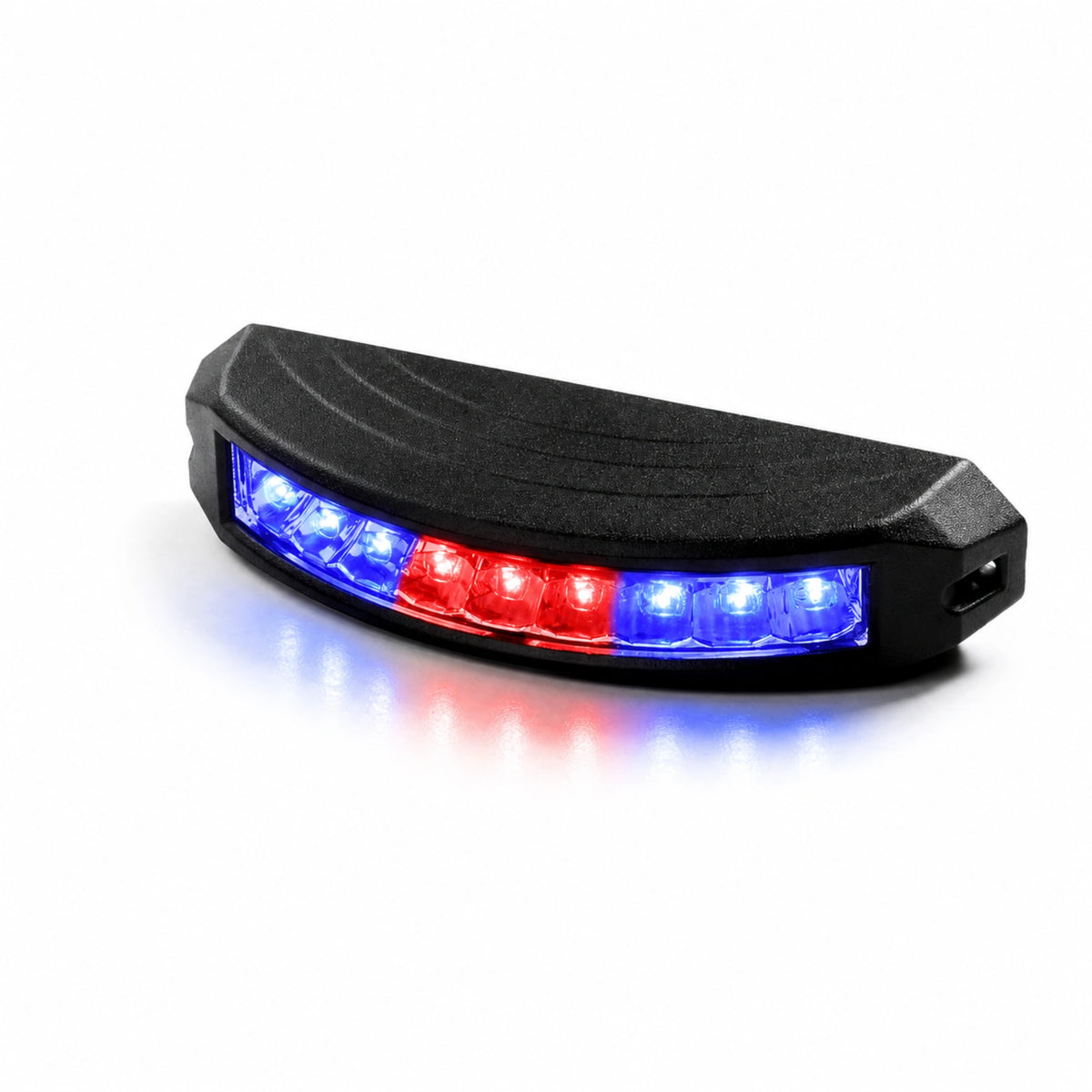

Four output colours are stocked: white, red, blue, or blue and red. On the two-colour unit the LEDs are split across the lens.

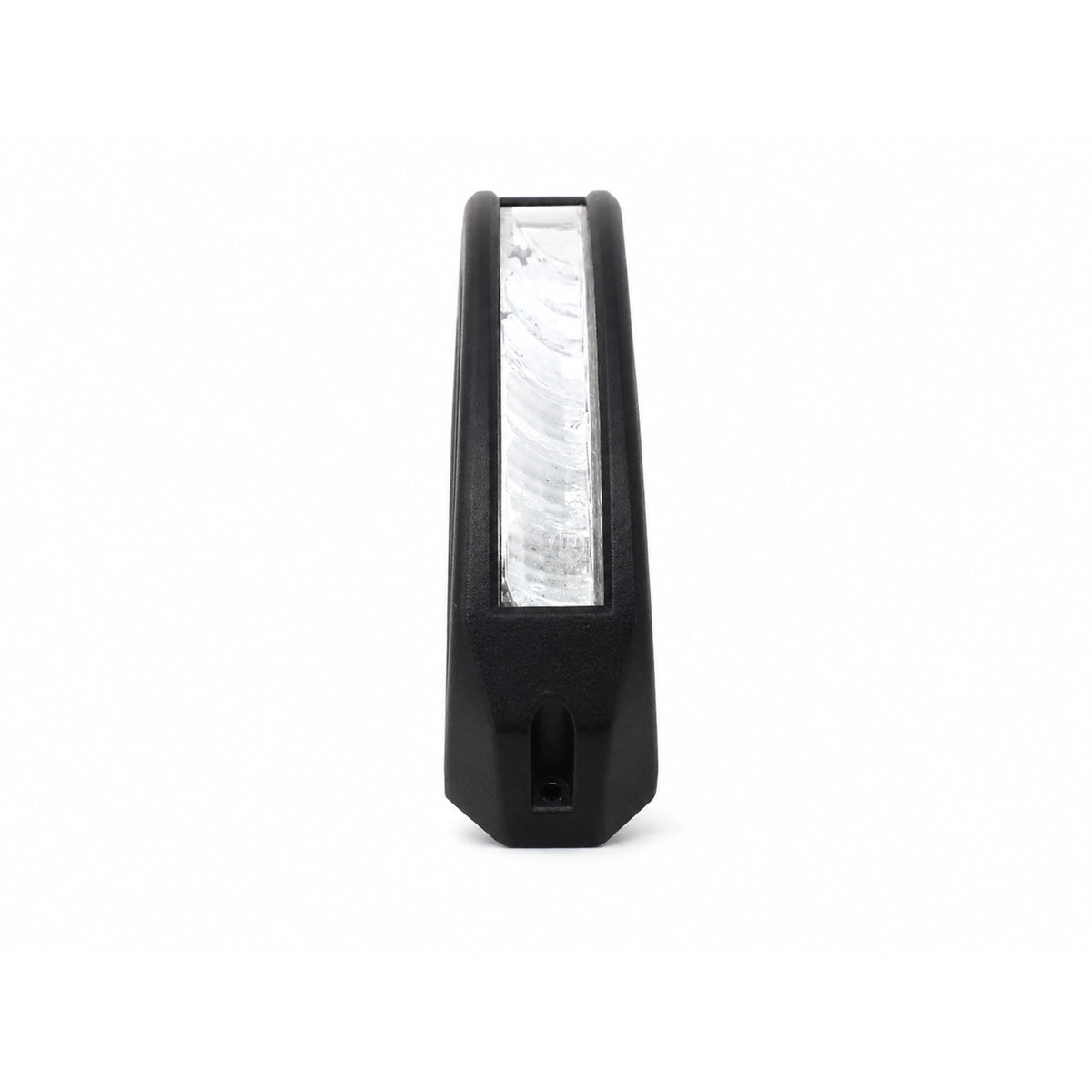

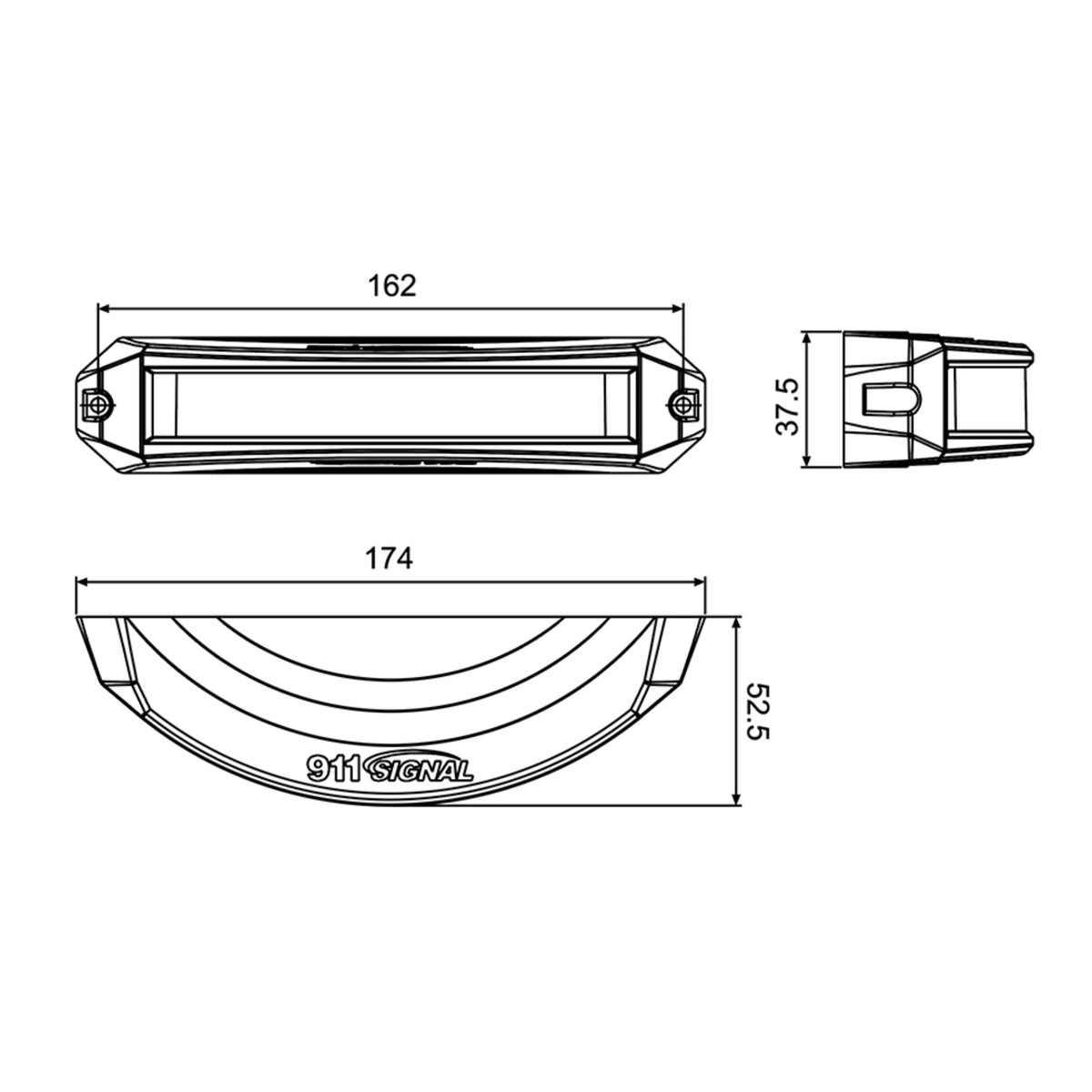

The C9 surface mounts through two screw fixing points, one in each end lug, 162mm between centres, and the head is 174mm long overall. Drill two holes in the mounting surface and fix with two screws. Confirm mounting hardware and wiring with your auto electrician for your specific vehicle and application.

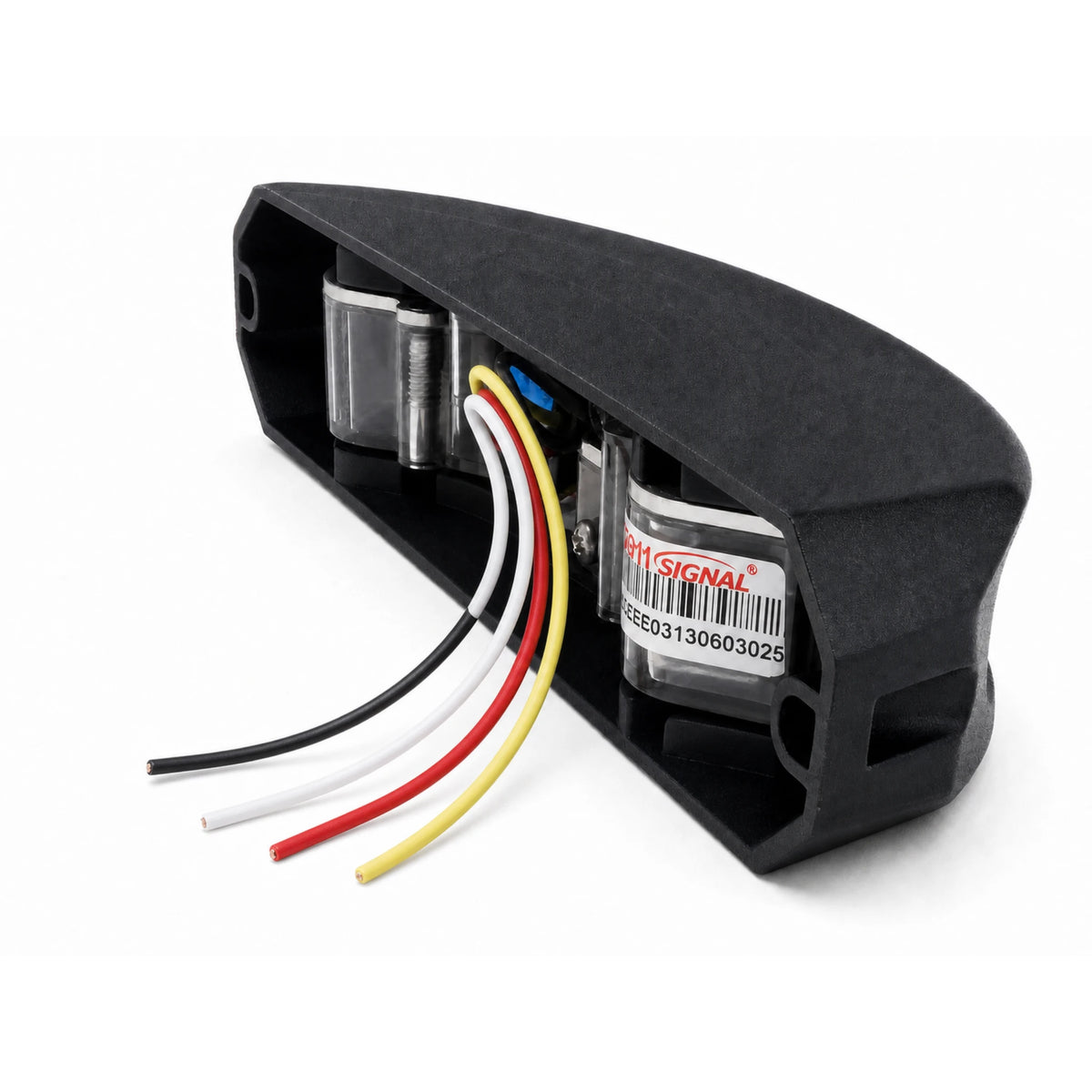

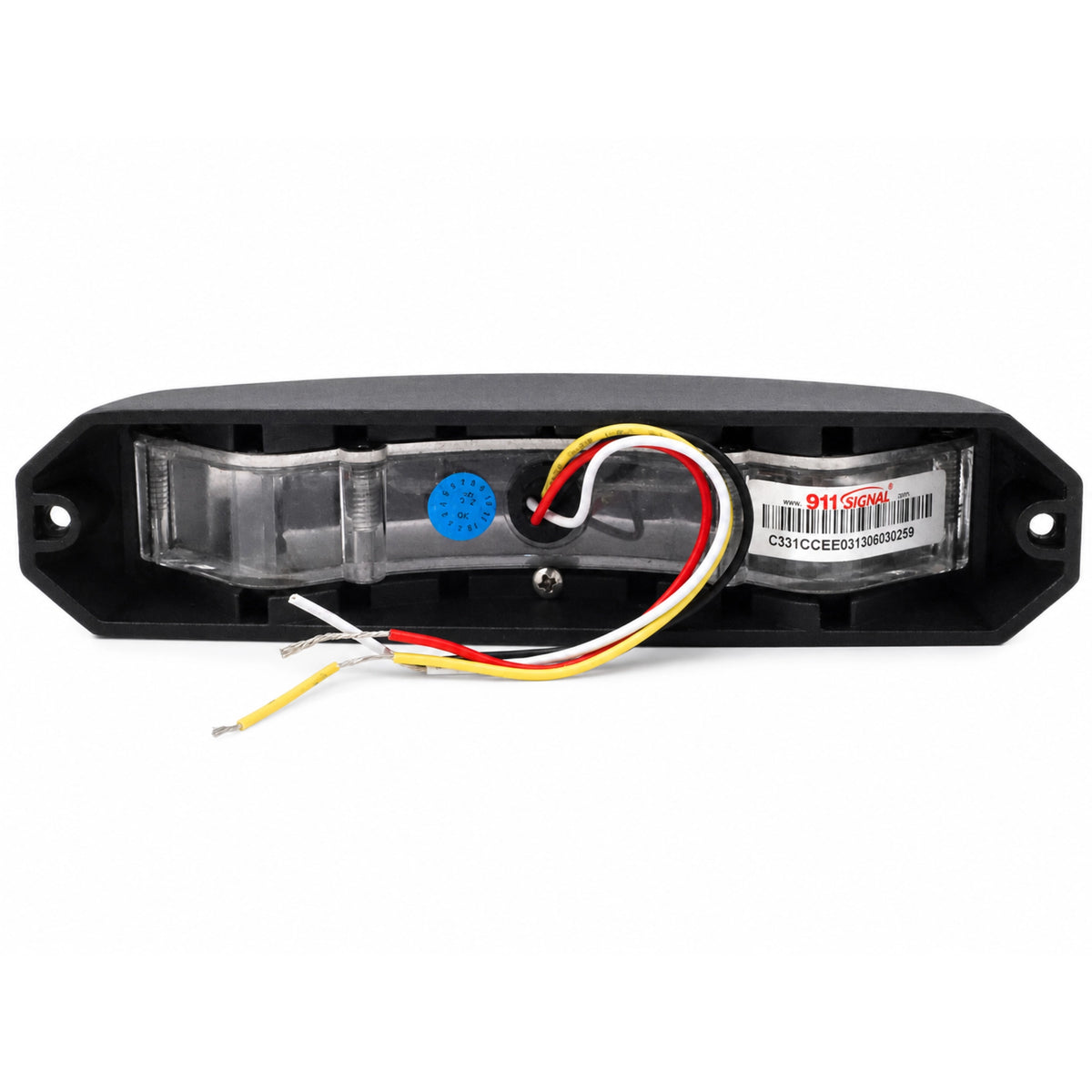

Output runs across 19 selectable flash patterns at a flash rate of 1 to 4Hz, and the head holds the last pattern selected when power is removed. Input is 10 to 33V DC, covering 12V and 24V vehicles and plant with the one part, at a maximum draw of 13W. Wiring runs on four cores: red for +12 to 24V DC power through a 3A fuse, black for chassis ground, white to set the head into flash group one or group two for simultaneous or alternating operation, and yellow for pattern selection and synchronisation. Connecting the yellow wires of several heads together synchronises their flash. Wiring should be carried out by a qualified auto electrician.

The head is built on a black aluminium base with a polycarbonate lens, sealed to IP67 and rated for ambient temperatures from -20 to +65 degrees, suited to exposed mounting positions on vehicles working in vibration, dust and weather. LED lifespan is rated at 100,000 hours. Overall size is 174 x 52.5 x 37.5mm.

Supplied product data lists ECE R65 XA1 00 0039 and ECE R10 05 1864. Vehicle lighting requirements vary by vehicle type, registration category and jurisdiction, so confirm the requirements that apply to your vehicle and use.

Within this range the C9 is the largest and brightest head. The C4 12W LED warning light head is the smaller four-LED reflex head at 117mm for tighter positions. For forward-directed TIR output instead of wide angle reflex, see the H4 and E4 12W heads, or the E3 at 9W. The X6 18W LED warning light head also gives a 180 degree viewing angle, from a much smaller 90mm housing with a TIR lens, and is the head UAGS continues to stock in depth across amber, white, red, blue and blue/red. For amber warning output on traffic control and civil vehicles, see the UAGS-branded U30-6, U30-12A and U31 light heads.

• 9 x 3W LEDs (27W Array): The highest output surface mount head in this range.
• 180 Degree Coverage: The housing curves through its length so the reflectors throw light sideways as well as forward, for intersections, approaches and bumper positions.
• Reflex Lens: Reflector optics behind each LED rather than a forward-directed TIR beam.
• 19 Flash Patterns: Selected through the yellow wire, at a flash rate of 1 to 4Hz.
• Pattern Memory: Holds the last pattern selected when power is removed.
• Synchronisation: Yellow wires linked between heads run a set of front, side and rear lights as one system.
• Two Flash Groups: The white wire sets each head to group one or group two for simultaneous or alternating flash.
• 10-33V DC: Suits 12V and 24V vehicles and plant with one part, 13W maximum draw.
• Surface Mount: Two screw fixing points, one in each end lug, 162mm between centres.
• IP67 Sealed: Black aluminium base with a polycarbonate lens, rated -20 to +65 degrees.
• 100,000 Hour LED Lifespan.
• Approvals: ECE R65 XA1 00 0039 and ECE R10 05 1864.
• Four Output Colours: White, red, blue, or blue and red.
