C4 12W LED Warning Light Head | Reflex Lens

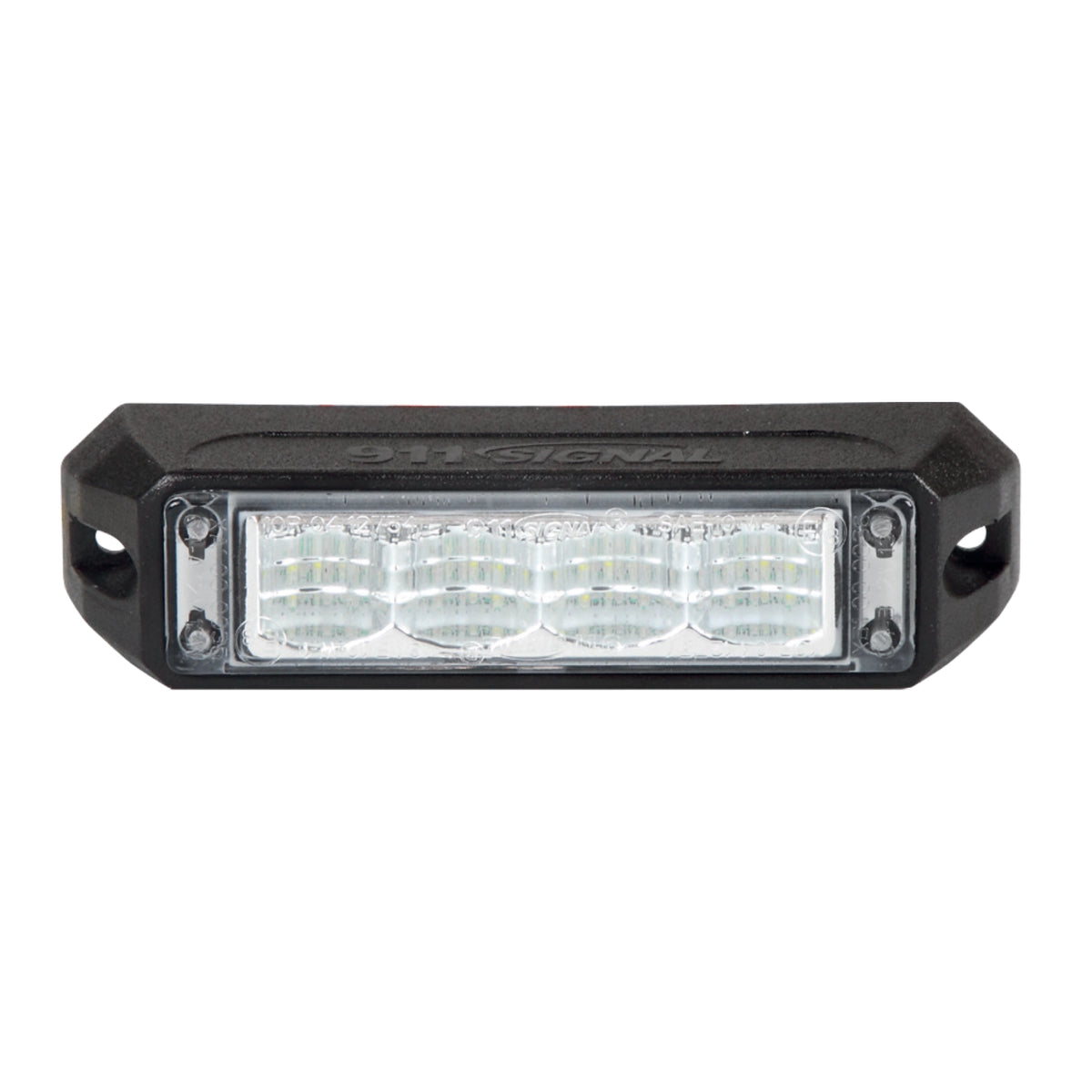

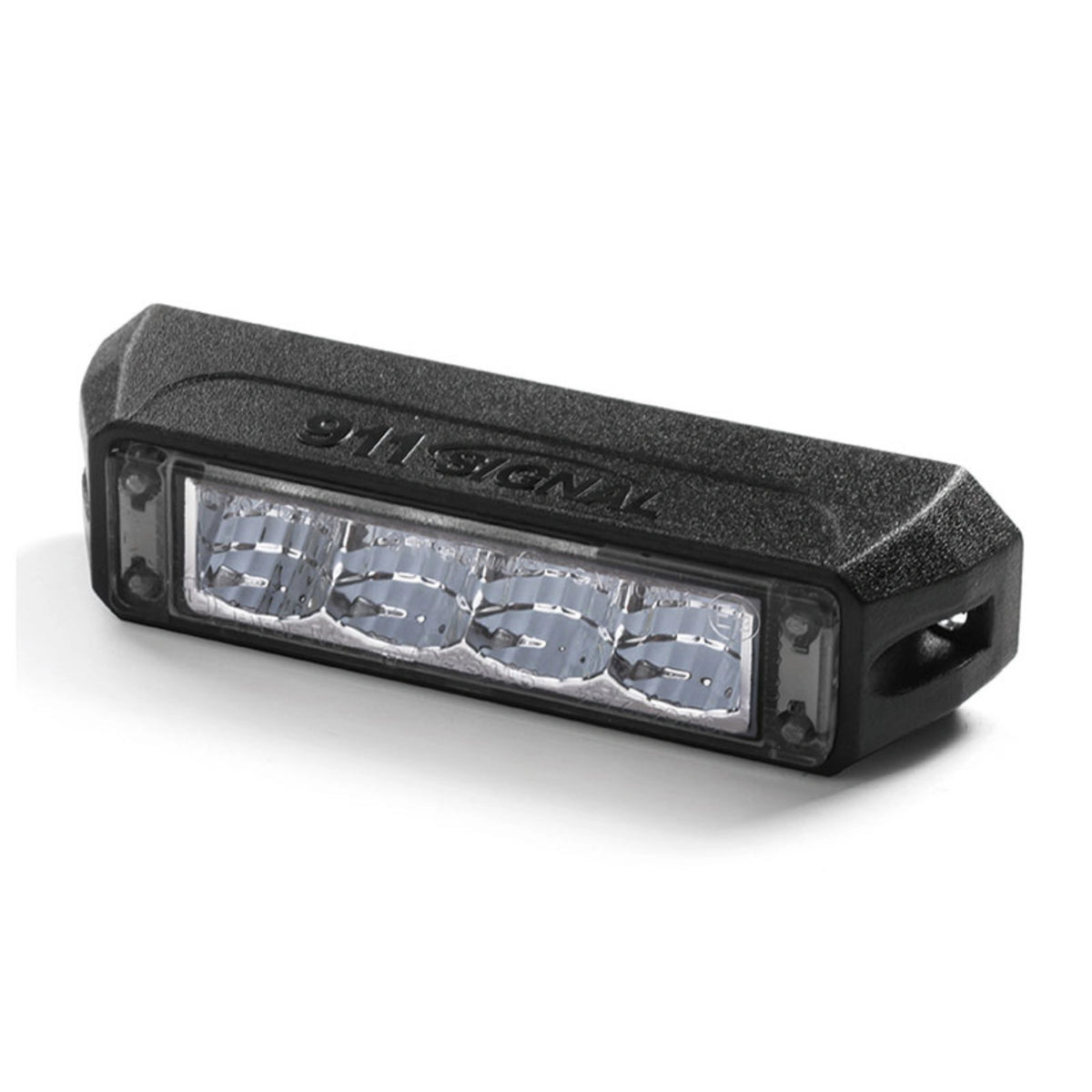

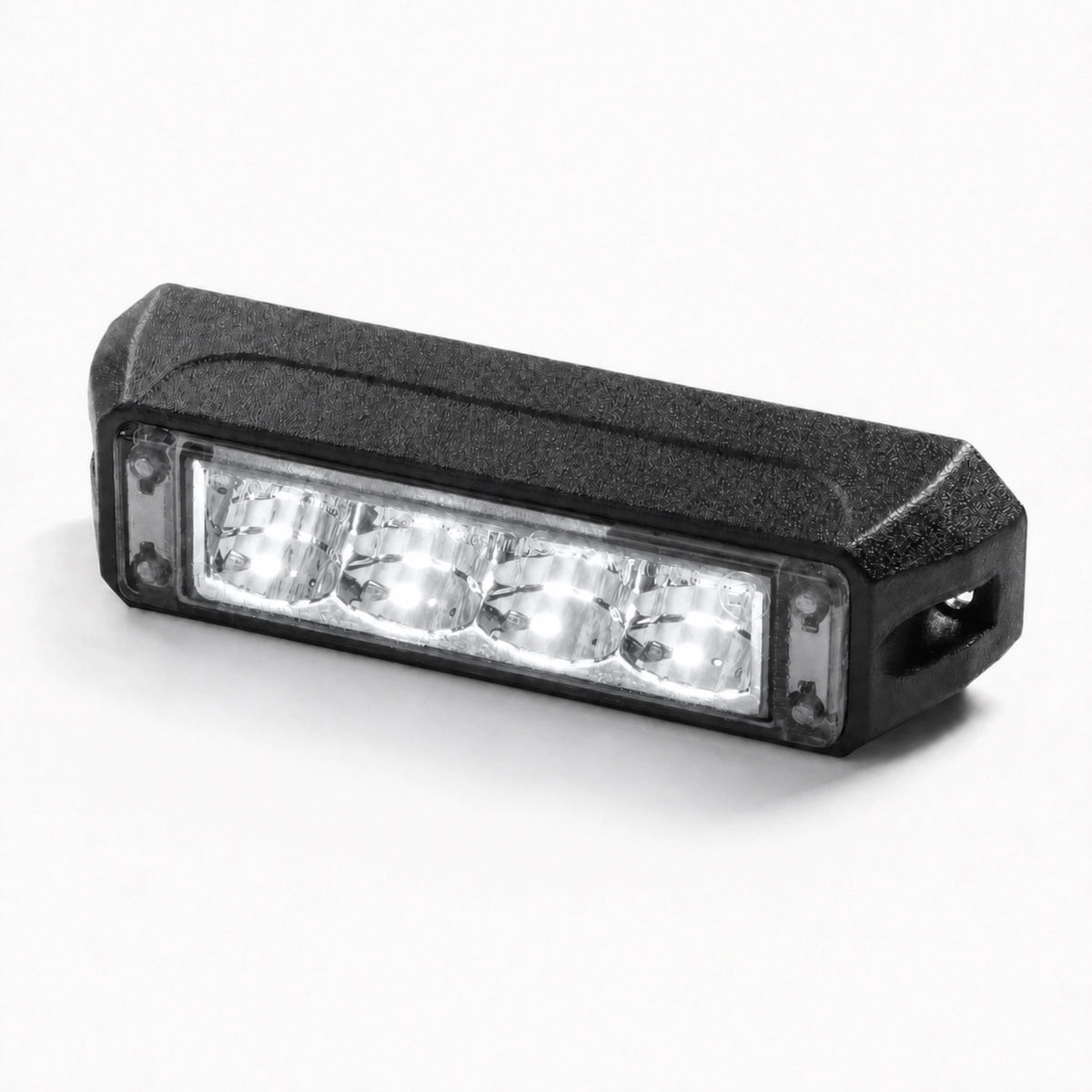

The C4 is a surface mount LED warning light head built around four 3W LEDs behind a reflex lens, giving a 12W LED array in a compact 117mm housing. Where the TIR heads in this range send output forward through separate optical cells, the C4 uses a reflector behind each LED to spread light off-axis, so it stays visible from a much wider angle. It signals vehicle presence on traffic control, civil, utility and fleet vehicles, plant and machinery.

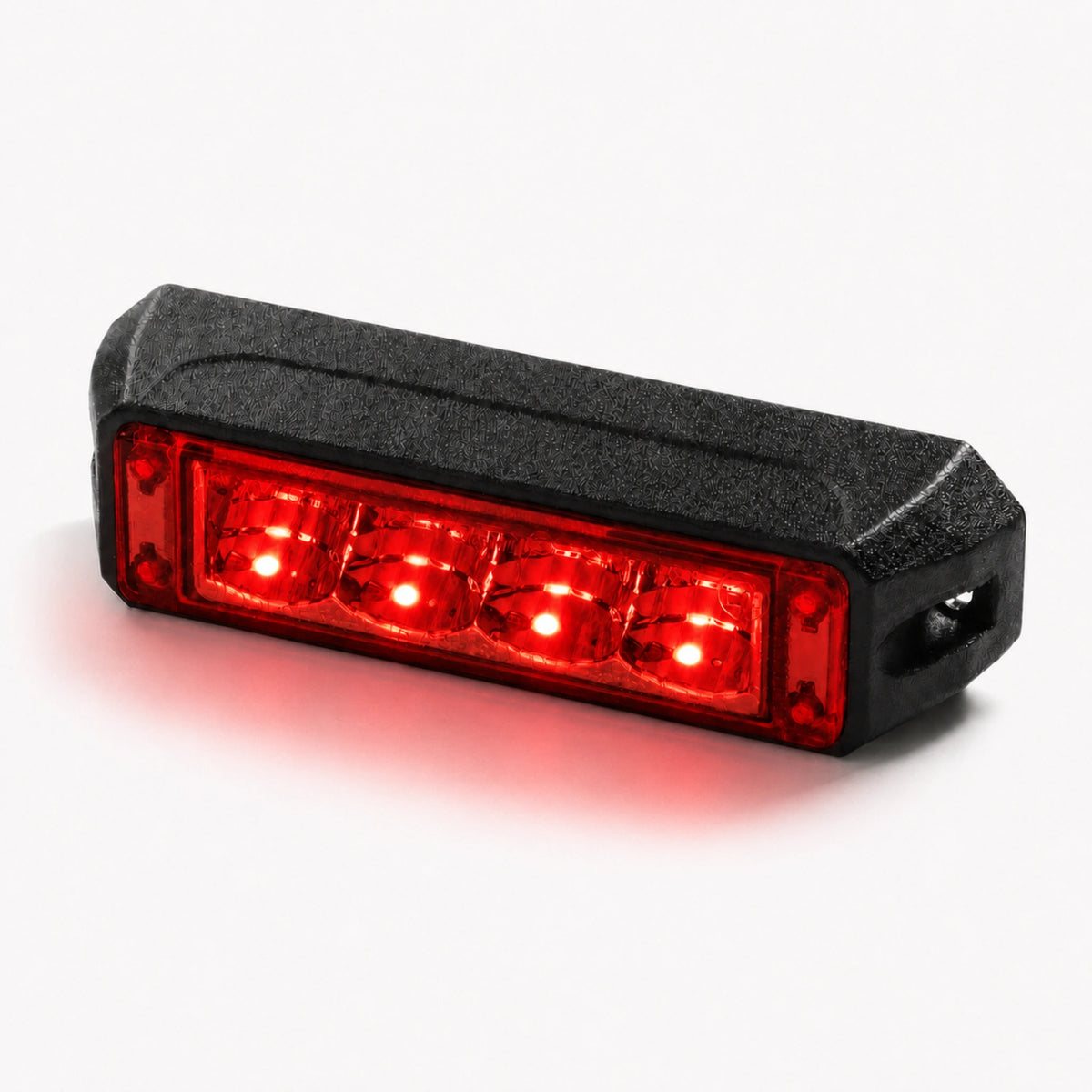

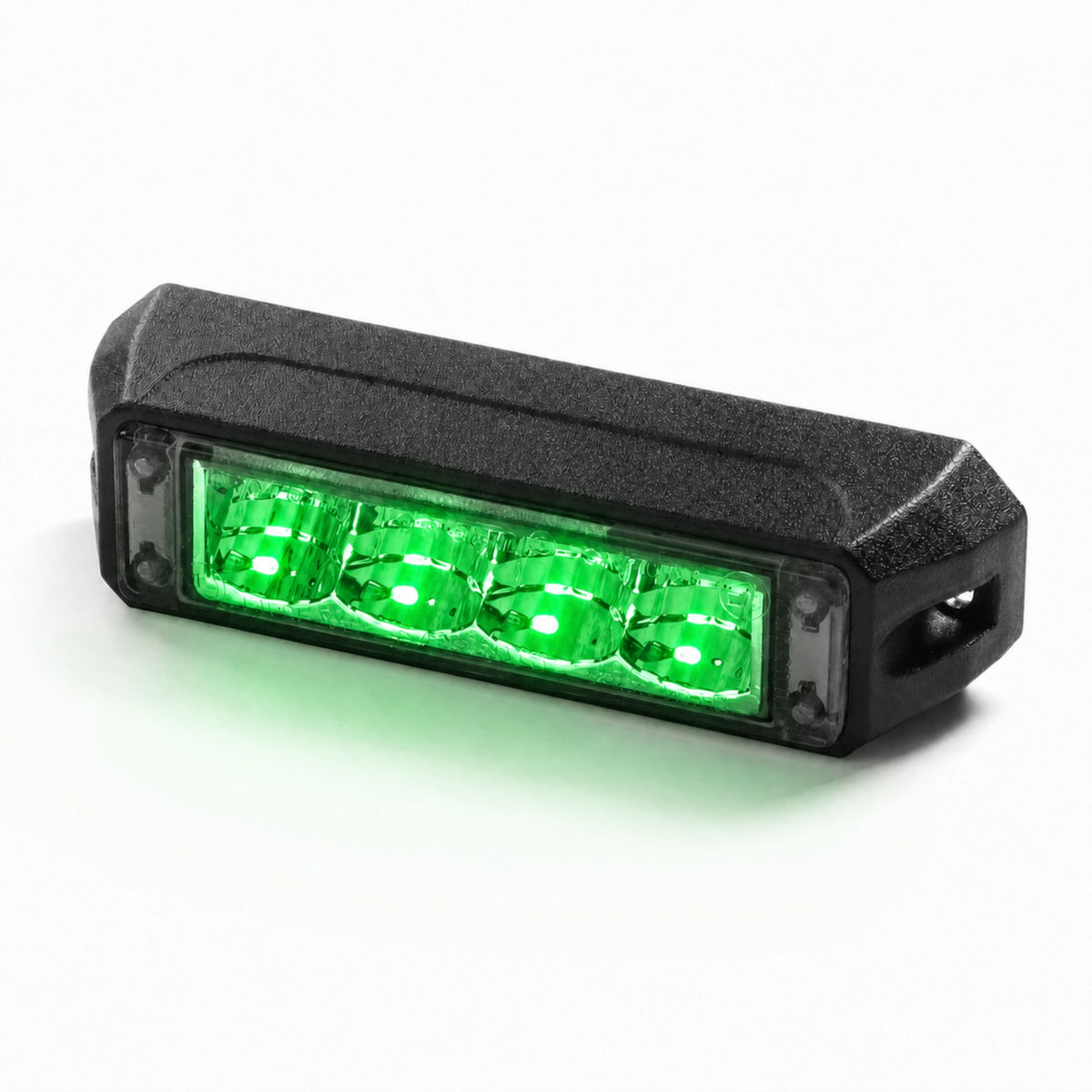

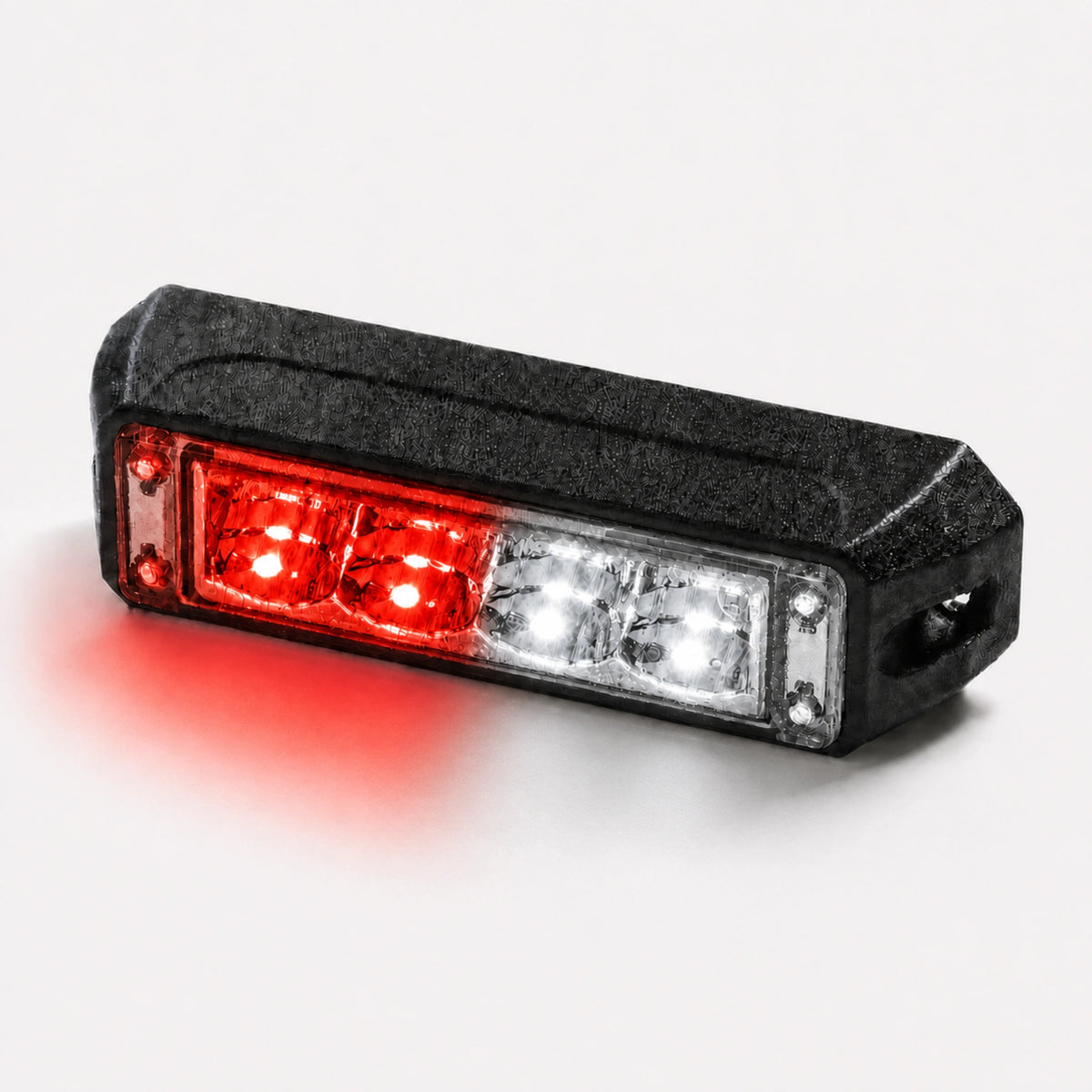

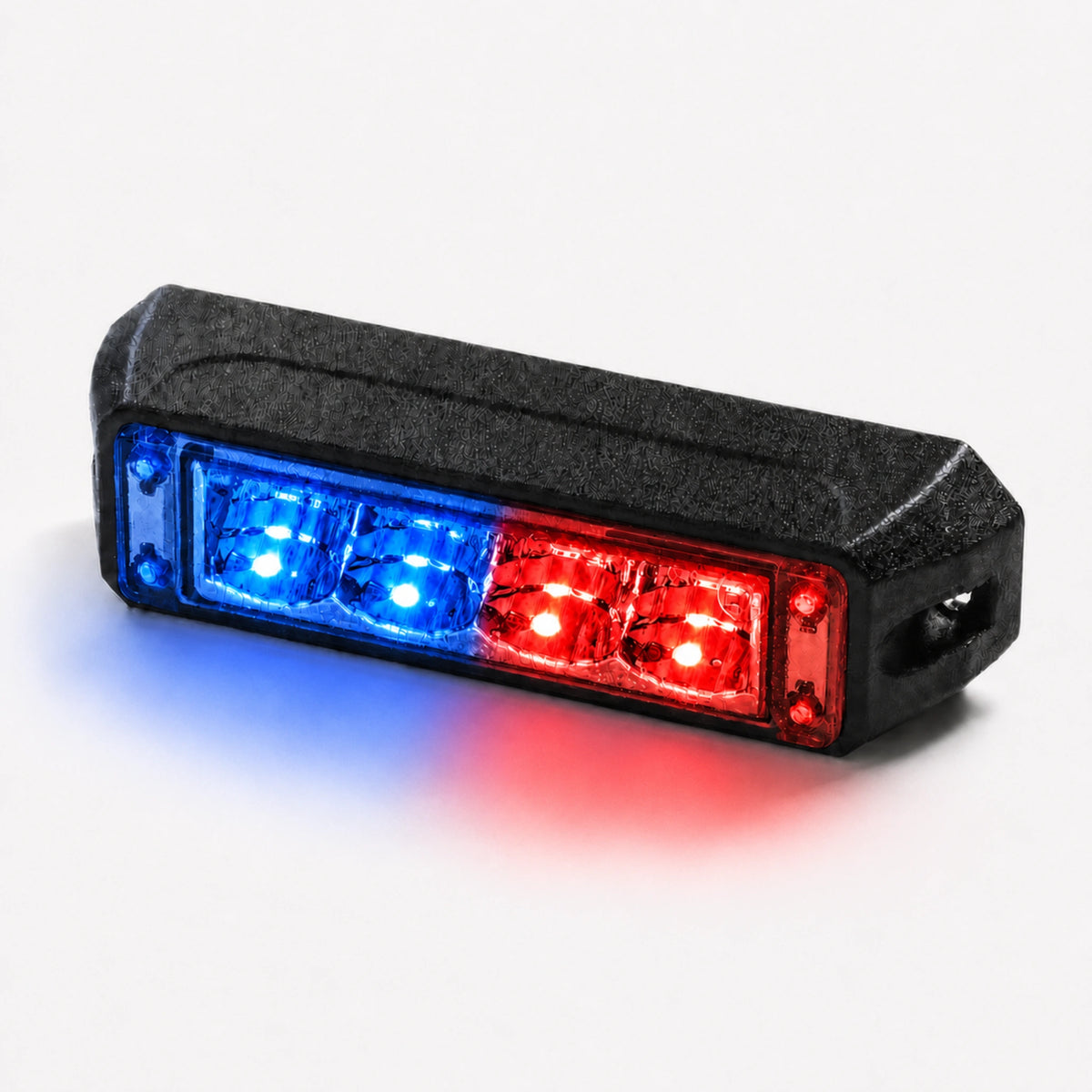

Six output colours are stocked, the widest choice in the range: white, red, blue, green, blue and red, or red and white. On the two-colour units the LEDs are split, two of each colour across the lens.

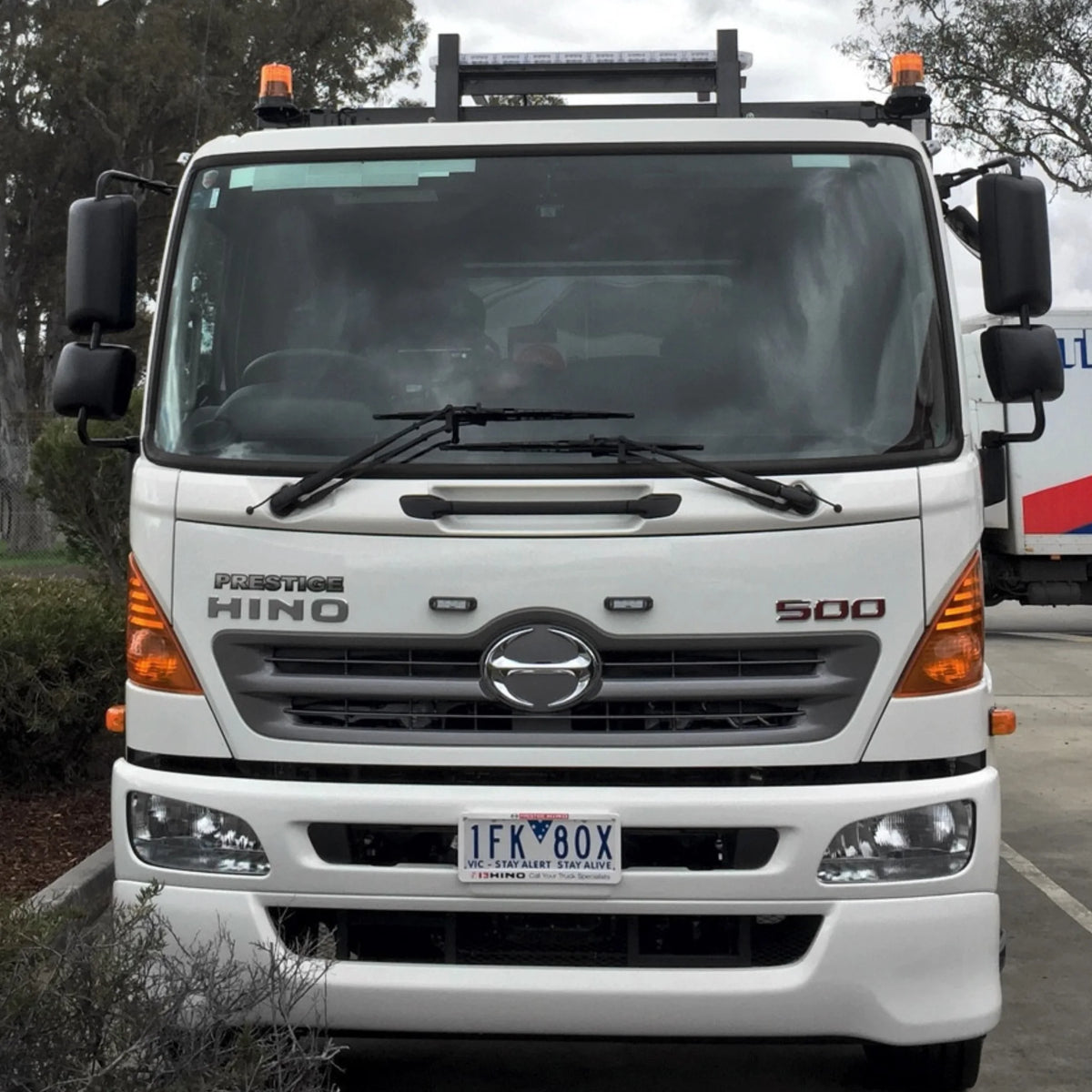

The C4 surface mounts through two screw fixing points, one in each end lug, 104mm between centres. It suits bumpers, grille surrounds, bull bars, guards, tray and body rails, headboards and rear body panels. Confirm mounting hardware and wiring with your auto electrician for your specific vehicle and application.

Output runs across 19 selectable flash patterns at a flash rate of 1 to 4Hz. Input is 10 to 30V DC, covering 12V and 24V vehicles and plant with the one part, at a maximum draw of 9W. Wiring runs on four cores: red for +12 to 24V DC power through a 3A fuse, black for chassis ground, white to set the head into flash group one or group two for simultaneous or alternating operation, and yellow for pattern selection and synchronisation. Connecting the yellow wires of several heads together synchronises their flash. Wiring should be carried out by a qualified auto electrician.

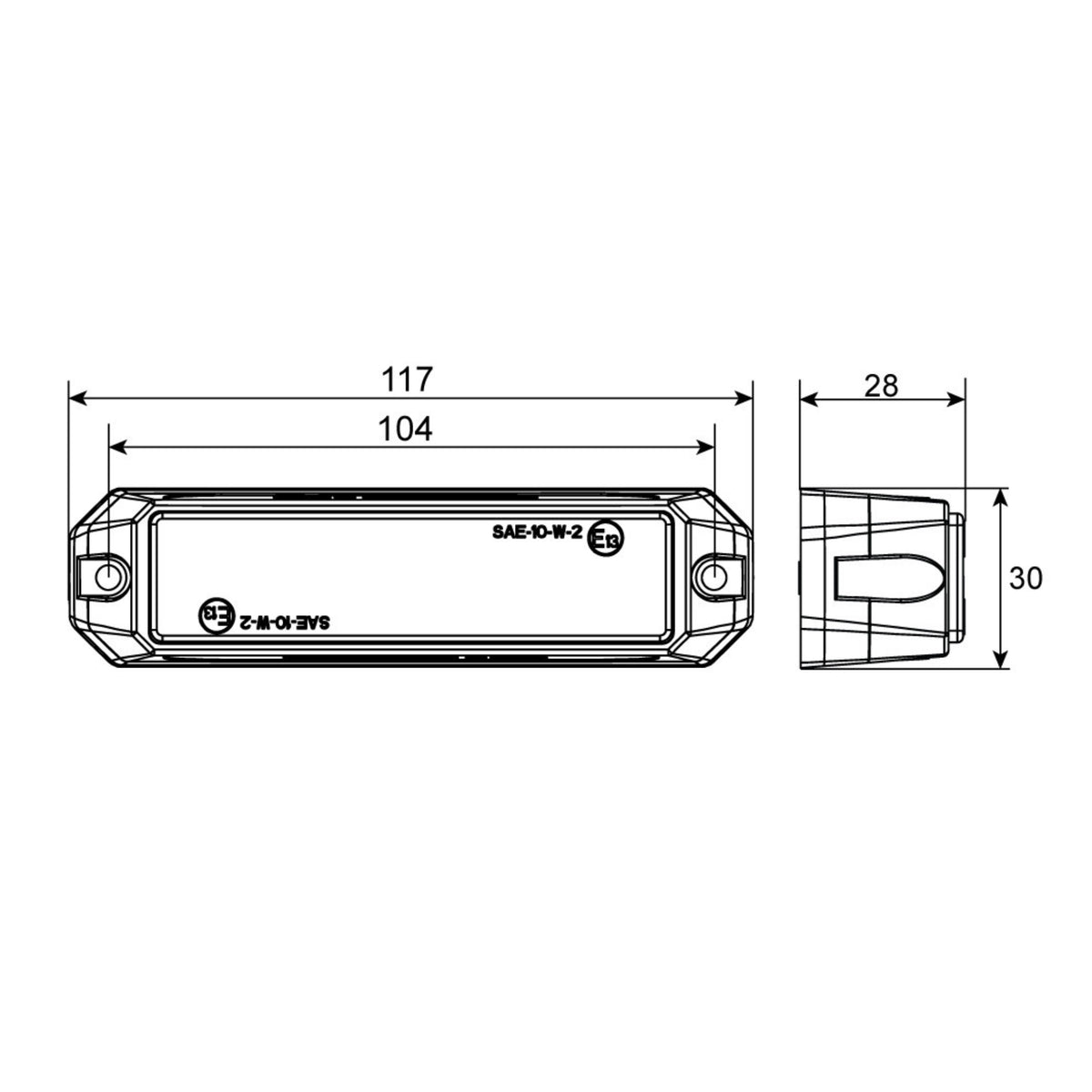

The head is built on an aluminium base, sealed to IP68 and rated for ambient temperatures from -20 to +65 degrees, suited to exposed mounting positions on vehicles working in vibration, dust and weather. LED lifespan is rated at 100,000 hours. Overall size is 117 x 30 x 28mm.

Supplied product data lists ECE R65 XA1 00 0036, ECE R65 XB1 00 0035 and ECE R10 04 12754. Vehicle lighting requirements vary by vehicle type, registration category and jurisdiction, so confirm the requirements that apply to your vehicle and use.

The C4 is the wide angle reflex head in this range. For forward-directed TIR output, the H4 12W LED warning light head and the longer E4 12W LED warning light head are the same 12W four-LED format with a TIR lens, and the X6 18W LED warning light head steps up to six LEDs. The E3 9W LED warning light head is the smallest and lowest draw head in the range, and the HL6 18W white LED warning light head uses a linear lens instead. For more output from the same reflex optics, see the 27W C9. For amber warning output on traffic control and civil vehicles, see the UAGS-branded U30-6, U30-12A and U31 light heads.

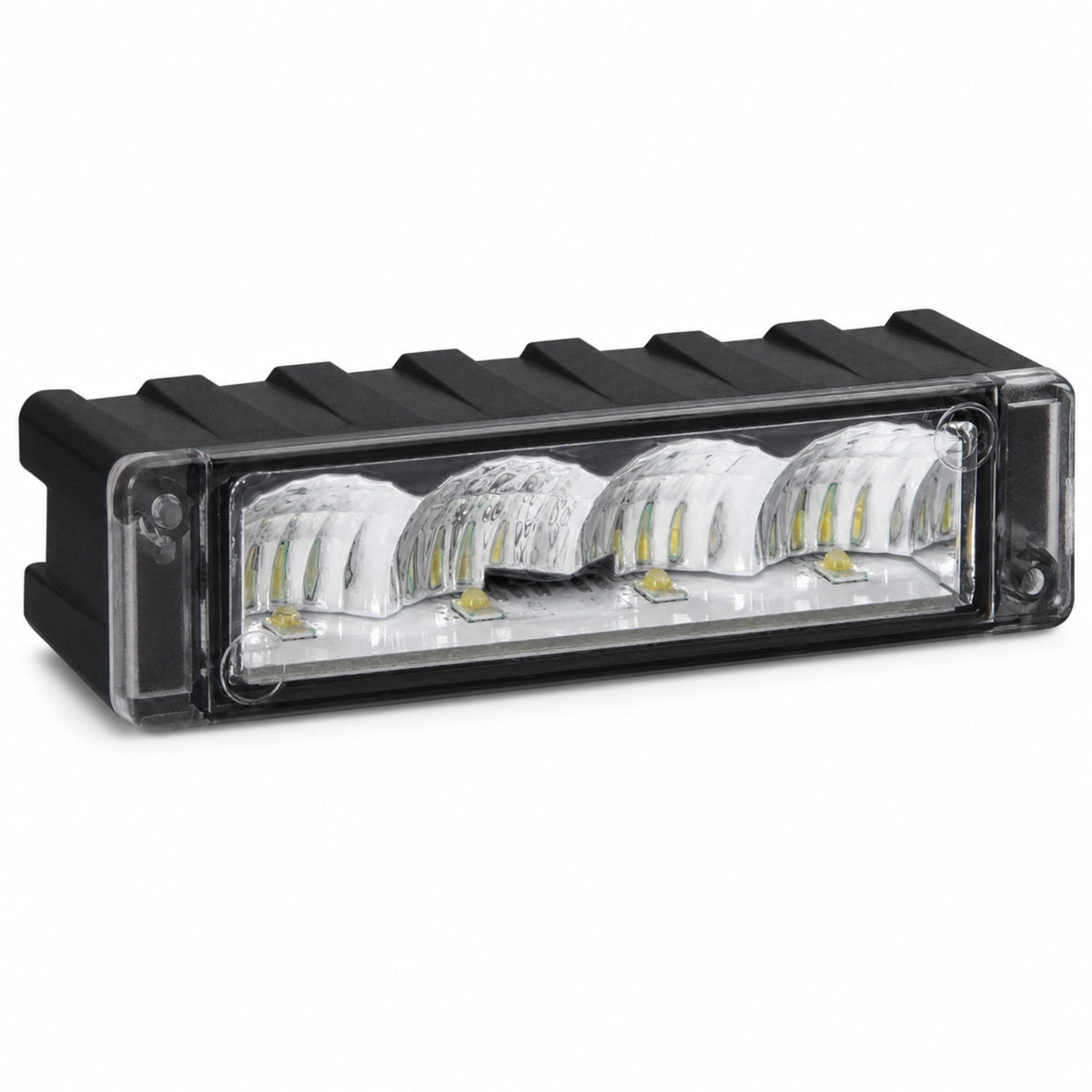

• 4 x 3W LEDs (12W Array): Each LED sits in its own reflector cup behind the lens.
• Wide Angle Reflex Lens: Reflector optics spread output off-axis, so the head stays visible from a much wider angle than a forward-directed TIR lens.
• Six Output Colours: White, red, blue, green, blue and red, or red and white. The widest colour choice in the range.
• 19 Flash Patterns: Selected through the yellow wire, at a flash rate of 1 to 4Hz.
• Synchronisation: Yellow wires linked between heads run a set of front, side and rear lights as one system.
• Two Flash Groups: The white wire sets each head to group one or group two for simultaneous or alternating flash.
• 10-30V DC: Suits 12V and 24V vehicles and plant with one part, 9W maximum draw.

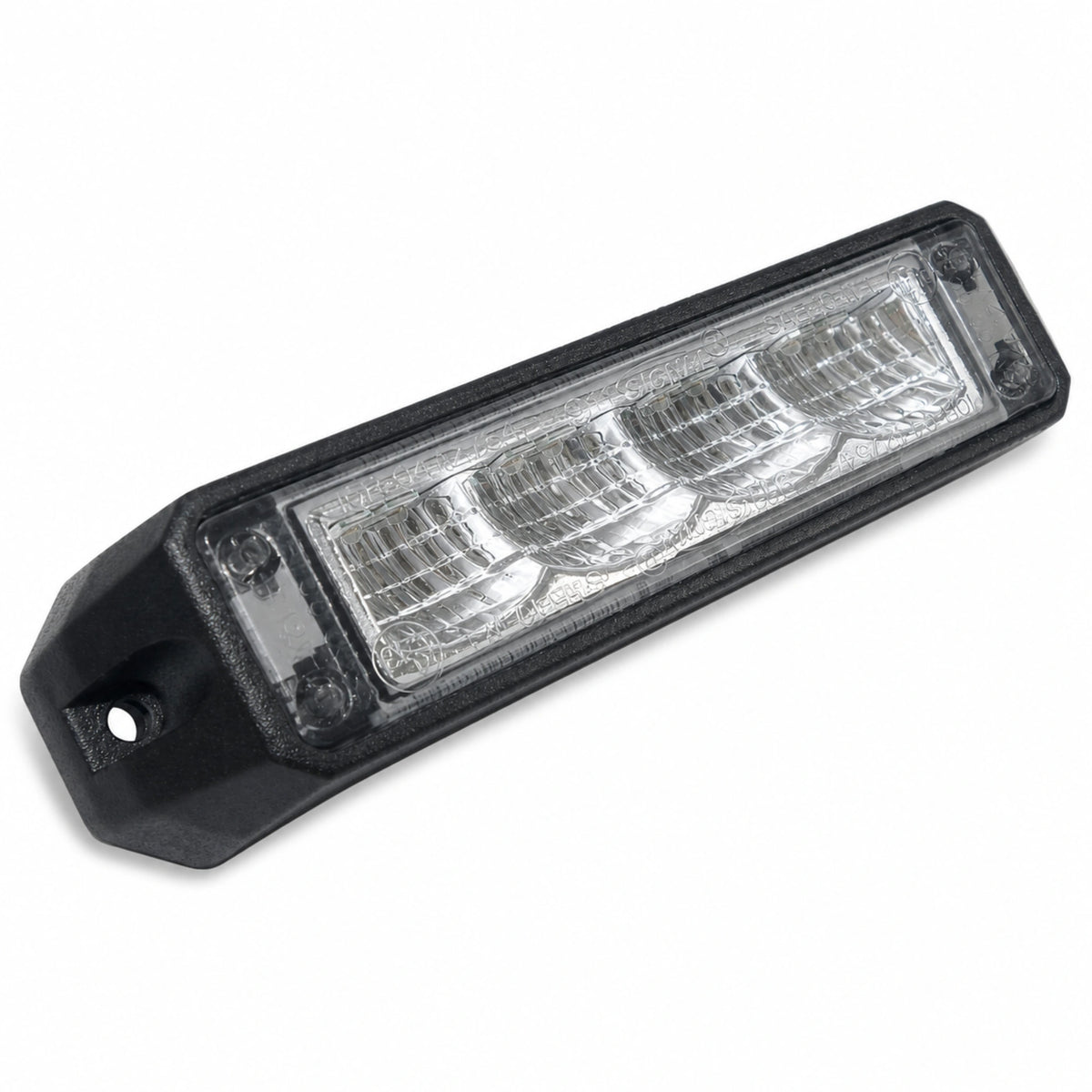

• Surface Mount: Two screw fixing points, one in each end lug, 104mm between centres.
• Compact 117mm Housing: 117 x 30 x 28mm, for bumpers, grille surrounds, guards, tray rails, headboards and rear body panels.
• IP68 Sealed: Aluminium base, rated -20 to +65 degrees for exposed mounting positions.
• 100,000 Hour LED Lifespan.
• Approvals: ECE R65 XA1 00 0036, ECE R65 XB1 00 0035 and ECE R10 04 12754.

UAGS Warning Light Warranty - 3-Year Limited Coverage
This product is imported and branded by UAG Services Pty Ltd, which acts as the manufacturer of this item for warranty purposes. It is covered by a 3-year limited warranty against defects in materials and workmanship under normal use.

This warranty does not cover normal wear and tear, weathering or UV degradation, accidental or impact damage, water ingress caused by damaged seals not reported at delivery, incorrect or unauthorised installation, unauthorised modification, or use outside the product's stated voltage and operating conditions. Installation should be carried out by a qualified auto electrician; damage caused by DIY wiring is not covered.

To make a warranty claim, contact UAG Services Pty Ltd (Gate 2, 7 Royan Place, Bayswater North VIC 3153) at sales@uags.com.au or (03) 8750 0926 with your order reference, a description of the fault and photos of the product. Claims are subject to inspection and approval. Where a defect is confirmed, UAG Services Pty Ltd will repair, replace or refund the product at its discretion. Return shipping costs are handled in accordance with the UAGS Returns Policy unless otherwise required under Australian Consumer Law.

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. This warranty is provided in addition to these rights and does not limit or exclude them.
