Dual Battery Systems for Traffic Control Vehicles: Why a Work Setup Is Not a Touring Setup

A dual battery system in a traffic control vehicle keeps your arrow board, warning lights and VMS running from a dedicated secondary battery while leaving your starting battery untouched. Traffic control vehicles often sit stationary for hours with the engine off, powering warning devices continuously. Without a separate auxiliary battery and a proper DC-DC charger, that load will drain your starting battery and leave you stranded at the end of a shift. Here's how the system works, what battery technology suits traffic control applications, and why under-tray mounting with a circuit breaker is the right configuration. It is also a different job from the touring setups most dual battery guides describe, which is where work vehicles get caught out.

In this guide

• Why traffic control vehicles need a dual battery system (and what it costs when they don't have one)
• How is a traffic control vehicle setup different from a 4WD touring setup?
• What does a DC-DC charger do and why does it matter?
• AGM or lithium: which battery suits a traffic control fitout?
• Where should the second battery be mounted?
• What components does the system need?
• Frequently asked questions

Why do traffic control vehicles need a dual battery system?

Traffic control vehicles are stationed at worksites to direct traffic and protect workers using arrow boards, VMS message displays and warning lights. The load these devices place on a vehicle's electrical system is significant, and it is often sustained for hours with the engine off. A dual battery system addresses this by separating the electrical load into two circuits:

1. Uninterrupted power for warning devices. Arrow boards and warning lights must run consistently throughout a shift. A secondary battery dedicated to these loads means they keep running without touching the primary battery, preventing a flat start battery at the end of a long night on a busy road.
2. Sustained operation at stationary worksites. When the engine is off, the alternator is not charging. The secondary battery carries the full accessory load during stationary periods, keeping the primary battery reserved for starting the vehicle when the job is done.
3. Circuit protection and manual isolation. A circuit breaker connects the second battery output to the main fuse protection for the arrow board and VMS. It gives the crew a manual way to isolate all accessories from the auxiliary battery, which is particularly useful during extended periods of downtime when the vehicle is parked and the system does not need to remain live.

What does this actually do to the starter battery?

Running accessories off the starter battery does not just risk a flat battery at end of shift. It degrades the battery permanently with every deep discharge.

Starter batteries are built around thin lead plates designed to deliver a large burst of current for engine cranking, then recover quickly from the alternator. They are not built for sustained discharge. When that battery is used to power an arrow board, beacons and a radio through a long shift, regularly discharging it well past 50%, a process called sulphation begins. Lead sulphate builds up on the plates in a form that a standard alternator charge cannot reverse. Over repeated deep discharges, the thin plate structure also physically degrades, shedding active material and losing capacity it never recovers.

The result is a starter battery that fails well ahead of its expected service life. A replacement battery for a ute in Australia typically costs $200 to $400 or more for the part, with installation on top. On a fleet running multiple vehicles, with operators regularly deep cycling their starter batteries through every shift, that becomes a recurring and avoidable cost.

A dual battery setup eliminates the problem. The starter battery does only what it is built for: cranking the engine. The accessories run from a dedicated deep-cycle AGM or lithium auxiliary battery that is designed for repeated discharge and can handle hundreds of charge-discharge cycles without the same degradation. The upfront cost of the setup is offset by not replacing starter batteries ahead of schedule, often multiple times across the life of the vehicle.

How is a traffic control vehicle setup different from a 4WD touring setup?

Nearly all dual battery advice in Australia is written for touring: run a fridge at camp, keep the beer cold, charge while you drive all day. A traffic control vehicle works the opposite duty cycle. It might drive 20 minutes to site, then sit stationary for a full shift with the engine off while the arrow board and beacons carry the load, then get a short drive home to recover the battery. Copying a touring setup onto a work vehicle gets the priorities backwards.

	4WD touring vehicle	Traffic control vehicle
Where the day goes	Mostly driving, camped at night	Mostly stationary at a worksite, engine off
When the alternator charges	Hours of driving most days	Short hops between depot and sites
Main loads	Fridge, camp lights, charging devices	Arrow board, beacons, VMS and UHF running the full shift
A flat auxiliary battery means	Warm food and a rough night	Warning devices out of action on a live worksite mid-shift
What the design must prioritise	Charge capacity while driving	Deep-cycle capacity for engine-off shifts, solar top-up while parked, isolation between shifts

That reversed duty cycle drives every choice in the rest of this guide. Battery capacity is sized to the shift, not the drive. Solar earns its keep parked at a worksite, not at a campsite. A mains charger overnight covers vehicles whose between-site drives are too short to recharge. And the auxiliary battery lives under the tray because the tray itself is working space for signs, frames and cones, not a fridge slide.

What does a DC-DC charger do and why does it matter?

Relying solely on a vehicle's alternator to charge the secondary battery is no longer best practice, particularly in newer vehicles. Modern vehicles use smart alternators, also called variable voltage alternators, which adjust output based on driving conditions to improve fuel economy. This means the alternator may not be producing a full charge voltage, and a simple battery isolator (VSR) may not trigger correctly, leaving the secondary battery chronically undercharged.

A dedicated DC-DC charger solves this. It draws power from the alternator circuit, regulates and boosts the voltage as needed, and delivers a proper multi-stage charge profile to the auxiliary battery regardless of what the alternator is doing. This prevents both overcharging and undercharging, extends battery life, and ensures the secondary battery is as full as possible when the vehicle arrives on site.

For vehicles with short commutes between sites, the DC-DC charger maximises the charge efficiency during whatever driving time is available. Drivers should periodically check auxiliary battery charge levels and use a mains charger overnight if the vehicle is not travelling enough to top up the secondary battery between shifts.

The Projecta IDC25X runs at 25A, handles simultaneous alternator and solar input, and is compatible with AGM, gel, calcium and LiFePO4 battery chemistries. UAGS installs the IDC25X on traffic control vehicles and service utes as part of complete vehicle fitouts.

AGM or lithium: which battery suits a traffic control fitout?

Traditional lead-acid batteries are being replaced in most work vehicle applications by AGM and lithium options. Both suit dual battery setups, but they suit different budgets and operating requirements.

• AGM batteries are sealed, maintenance-free and highly resistant to vibration, which makes them well suited to the rough conditions of a worksite vehicle. They handle deep-cycle use, meaning repeated discharge and recharge from powering warning devices, without significant capacity loss. AGM batteries pair well with DC-DC chargers and are a practical, cost-effective choice for most traffic control fitouts.
• Lithium (LiFePO4) batteries offer higher energy density, lighter weight, faster charge acceptance and a longer cycle life than AGM. They can sustain more charge-discharge cycles before degrading, which suits demanding applications like continuous arrow board operation across long shifts. The higher upfront cost is offset by longer service life in high-cycle applications. Confirm DC-DC charger compatibility before pairing with a lithium battery.

Both technologies are significantly more capable than conventional lead-acid in a dual battery application. The right choice depends on your budget, the vehicle's weight tolerance and how intensively the secondary battery will be cycled.

Where should the second battery be mounted?

Placement matters as much as the technology. Traffic control vehicles often operate in high-heat environments, particularly when stationary at worksites with limited airflow. Mounting the secondary battery in the engine bay exposes it to accumulated heat, which shortens battery life and degrades performance, particularly for AGM and lithium chemistries.

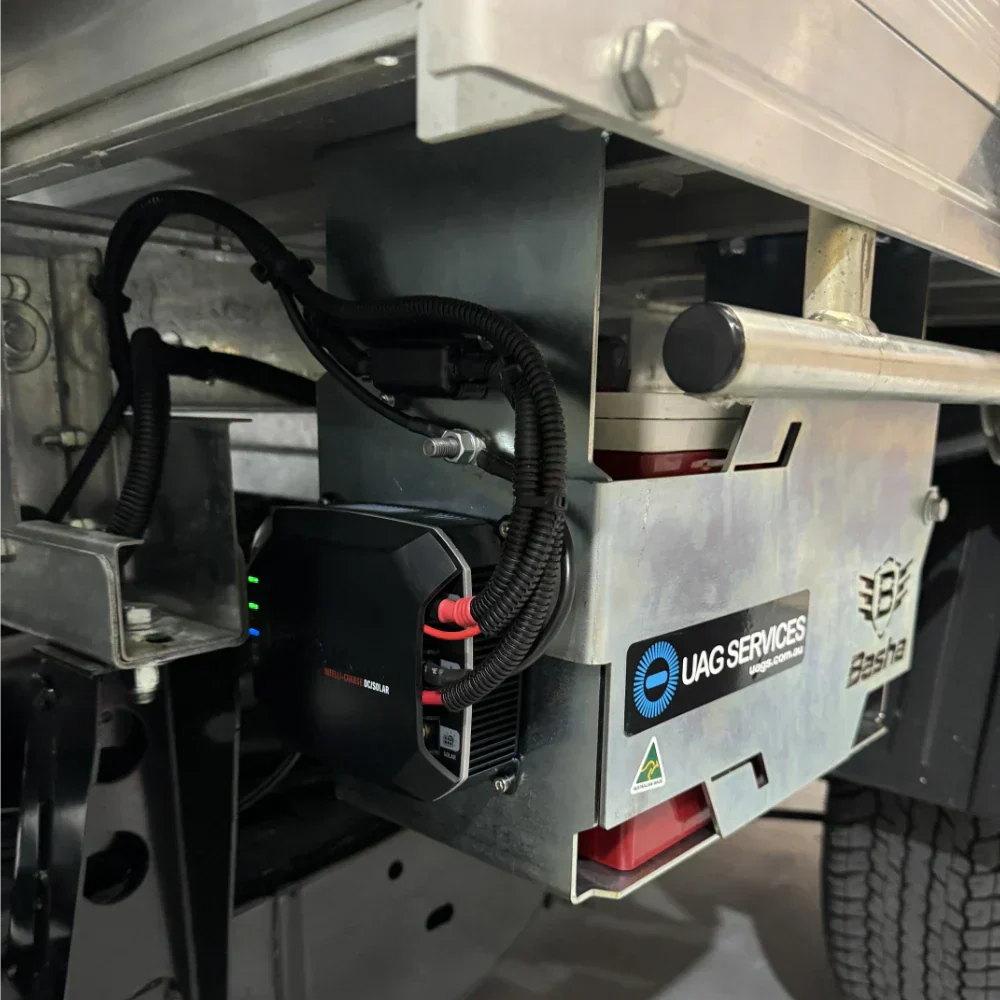

Under-tray mounting is the preferred approach for traffic control utes. The position benefits from better airflow and cooler ambient temperatures than the engine bay, and it keeps the battery away from the cab and out of the tray's working space. An adjustable under-tray battery tray secures the battery against movement under load and road conditions, keeps it accessible for inspection, and provides a clean mounting point for the circuit breaker and DC-DC charger alongside it.

What other components does the system need?

Beyond the battery, charger and tray, a properly installed dual battery system requires correct cabling and circuit protection throughout.

Cable. The runs between the starting battery, DC-DC charger and auxiliary battery need to be correctly sized for the current load and cable length. Undersized cable causes voltage drop and heat. UAGS supplies 8 B&S single-core battery cable in red and black in 30m rolls. Cable gauge and run length should be confirmed by your installer.

Circuit protection. Each battery positive terminal needs fuse protection as close to the terminal as practical. A MIDI fuse holder on the inter-battery cable protects the wiring between the two batteries. A manual reset circuit breaker on the second battery output then connects through to the main fuse protection for the arrow board and VMS. This gives the operator a single point to isolate all accessories from the auxiliary battery during extended downtime when the system does not need to remain live.

Solar input. If the DC-DC charger supports solar input, a solar panel can contribute to charging the auxiliary battery while the vehicle is parked with the engine off. The Projecta IDC25X accepts simultaneous alternator and solar input, so a panel mounted to the roof or tray can keep the auxiliary battery topped up during long stationary shifts at a worksite. This is particularly useful for vehicles that spend extended periods on site without moving. Confirm your charger's solar input specifications before purchasing a panel.

All components should be specified and installed by a licensed auto electrician with experience in auxiliary power systems. Final responsibility for cable sizing, fuse rating selection, charger compatibility and circuit design rests with the installer, not the component supplier.

Frequently asked questions

Will running accessories off my starter battery damage it?

Yes. Starter batteries are designed for short high-current bursts to crank the engine, not sustained discharge. Running an arrow board, beacons and a radio off the starter battery through a long shift repeatedly discharges it past 50%, which causes sulphation on the battery plates and physical plate degradation that a standard charge cannot reverse. The battery loses capacity permanently and fails ahead of its expected service life. A dual battery setup prevents this by keeping all accessory load on a dedicated deep-cycle auxiliary battery, leaving the starter battery to do only what it is built for.

What is a dual battery system?

A dual battery system uses two batteries in a vehicle: a primary battery dedicated to starting the engine and running core systems, and a secondary auxiliary battery that powers accessories such as arrow boards, warning lights and VMS displays. A DC-DC charger manages the charging of the secondary battery from the alternator while the vehicle is running.

Why do I need a DC-DC charger instead of just linking the batteries together?

Modern vehicles use smart alternators that vary their output to save fuel. A simple battery isolator (VSR) may not trigger correctly when the alternator is running at reduced output, leaving the auxiliary battery undercharged. A DC-DC charger actively regulates the incoming voltage and delivers a proper charge profile regardless of alternator output, making it the correct choice for any vehicle built in the last decade or so.

Is AGM or lithium better for a traffic control ute?

Both work well in dual battery applications. AGM is sealed, vibration-resistant and cost-effective, making it the practical choice for most fitouts. Lithium offers higher energy density, lighter weight and a longer cycle life, which suits applications where the battery is cycled heavily every day and weight is a consideration. Confirm DC-DC charger compatibility with your chosen battery chemistry before purchasing.

Why is under-tray mounting recommended?

Under-tray mounting keeps the secondary battery away from engine bay heat, which shortens battery life, particularly for AGM and lithium types. The under-tray position also benefits from better airflow, keeps the battery out of the cab, and frees up tray space for traffic control equipment. The circuit breaker and DC-DC charger can be housed in the same assembly for a clean, protected installation.

What fuse protection does a dual battery system need?

Each battery positive terminal should have fuse protection installed as close to the terminal as practical. A MIDI fuse holder and correctly rated MIDI fuse on the inter-battery cable, and a manual reset circuit breaker on the auxiliary battery terminal, are standard. Fuse ratings must be specified by your installer based on the cable gauge and expected current load, not selected independently.

Can I add solar to a dual battery system?

Yes, if the DC-DC charger supports solar input. The Projecta IDC25X accepts simultaneous alternator and solar input, meaning a solar panel can contribute to charging the auxiliary battery while the vehicle is parked, alongside alternator charging during driving. This is useful for vehicles that spend long periods stationary at worksites where the engine is off. Confirm input compatibility with your charger's specifications before connecting a solar panel.
