Vehicle Direction Alarm | Left, Right & Reverse

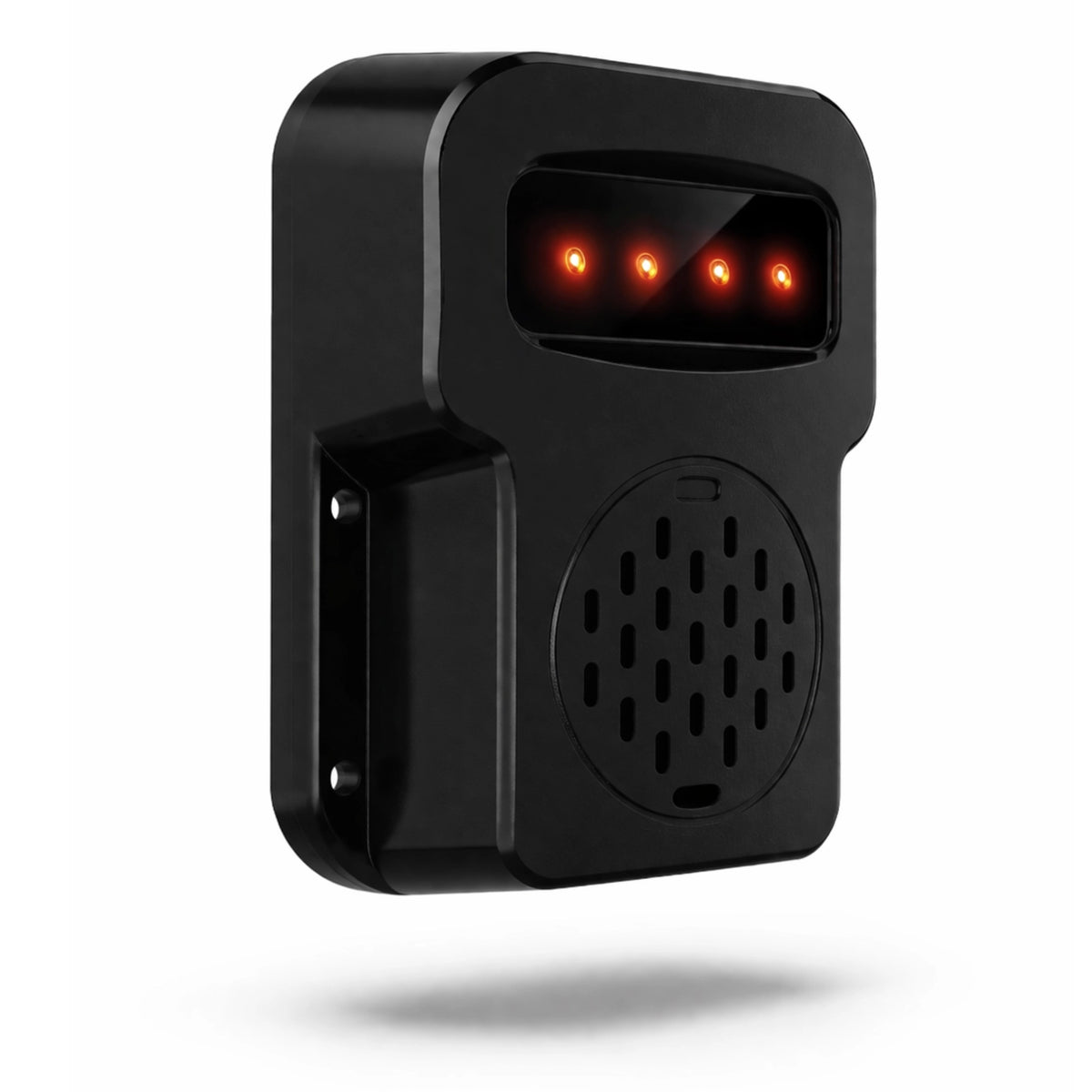

Vehicle Direction Alarm | Left, Right and Reverse | VDA001 is an audible warning system that announces a vehicle's movements to workers and pedestrians nearby. When the driver indicates or selects reverse, the alarm sounds the matching warning, backed by four flashing LEDs, so people on the ground know which way the vehicle is about to move.

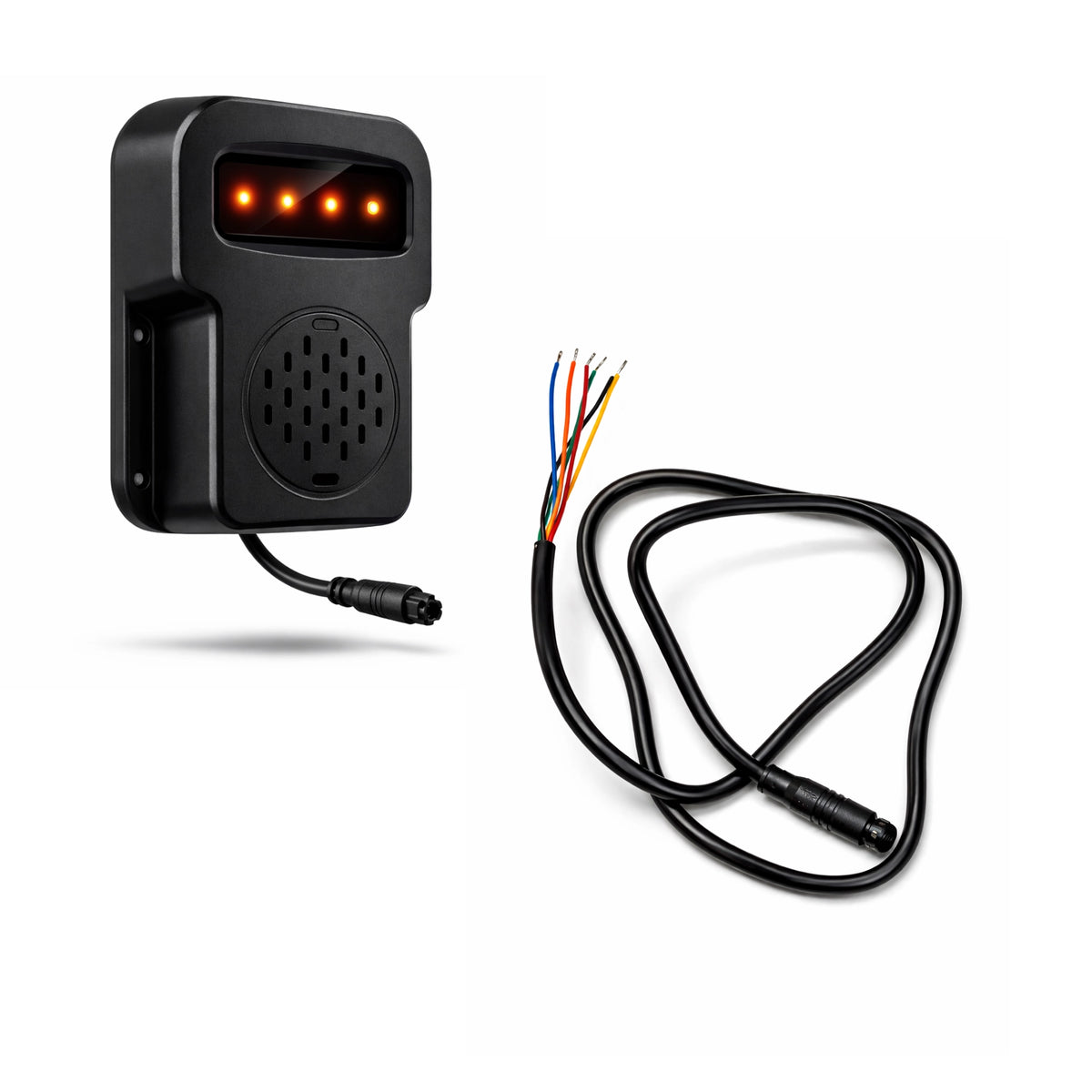

The unit surface mounts to the vehicle body with the supplied screws and foam pad, and wires into the vehicle through a 6-pin connector with an 800mm breakout cable. Running 10 to 32V DC, one part number covers 12V utes and 24V trucks and plant. Installation by an auto electrician as part of the vehicle fit-out is recommended.

Warnings play at 90dB in voice mode or 93dB tonal at 1kHz, selectable per installation, with left, right and reverse each triggering their own output. The directional announcement tells workers not just that the vehicle is moving but which way, information a standard reversing beeper cannot give.

The IP67-rated housing seals against dust and water for exposed mounting on trucks, plant and site vehicles that work in weather and get washed down.

It fits into a vehicle safety package alongside beacons, reversing equipment and vehicle warning lighting; UAGS fits alarms like this during traffic control vehicle fit-outs.

Typical installs are traffic control vehicles working around crews on foot, waste and delivery trucks in pedestrian areas, and plant and site vehicles operating where ground workers are close to moving machines.

• Direction-Specific Warnings: Separate left, right and reverse outputs triggered by the vehicle's indicators and reverse gear.
• Voice Or Tonal Alarm: 90dB voice or 93dB tonal output at 1kHz.
• Visual Backup: 4 flashing LEDs reinforce the audible warning.
• 12V And 24V Compatible: 10 to 32V DC covers utes, trucks and plant with one unit.
• IP67 Sealed: Dust and waterproof housing for exposed external mounting.
• Straightforward Install: Surface mount with supplied screws and foam pad, 6-pin connector with 800mm breakout cable.
• Fit-Out Ready: Suits traffic control vehicles, trucks and plant working around people on foot.

UAGS Vehicle Safety Product Warranty - 1-Year Limited Coverage
This product is supplied by UAG Services Pty Ltd and is covered by a 12-month limited warranty against defects in materials and workmanship under normal intended use, from the date of purchase. The warranty applies to the original purchaser and proof of purchase is required for all claims.

This warranty does not cover damage caused by incorrect installation, wiring faults, misuse, modification, impact, environmental exposure beyond intended use, or normal wear from service conditions. Labour and installation costs are not included. Installation should be carried out by a qualified auto electrician.

To make a warranty claim, contact UAG Services Pty Ltd (Gate 2, 7 Royan Place, Bayswater North VIC 3153) at sales@uags.com.au or (03) 8750 0926 with your order reference, a description of the fault and photos of the product. Claims are subject to inspection and approval. Where a defect is confirmed, UAG Services Pty Ltd will repair or replace the product at its discretion. Return shipping costs are handled in accordance with the UAGS Returns Policy unless otherwise required under Australian Consumer Law.

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. This warranty is provided in addition to these rights and does not limit or exclude them.
