Multi-Message Sign Leg Extensions | 500mm Lift (Pair)

The Multi-Message Sign Leg Extensions (500mm Lift) are modular leg extensions used to raise a compatible multi-message sign frame when it sits too low behind barriers, fencing or uneven ground. Each extension slides into the stem of a compatible MMS frame leg and lifts the sign by approximately 500mm per unit. Sold in pairs.

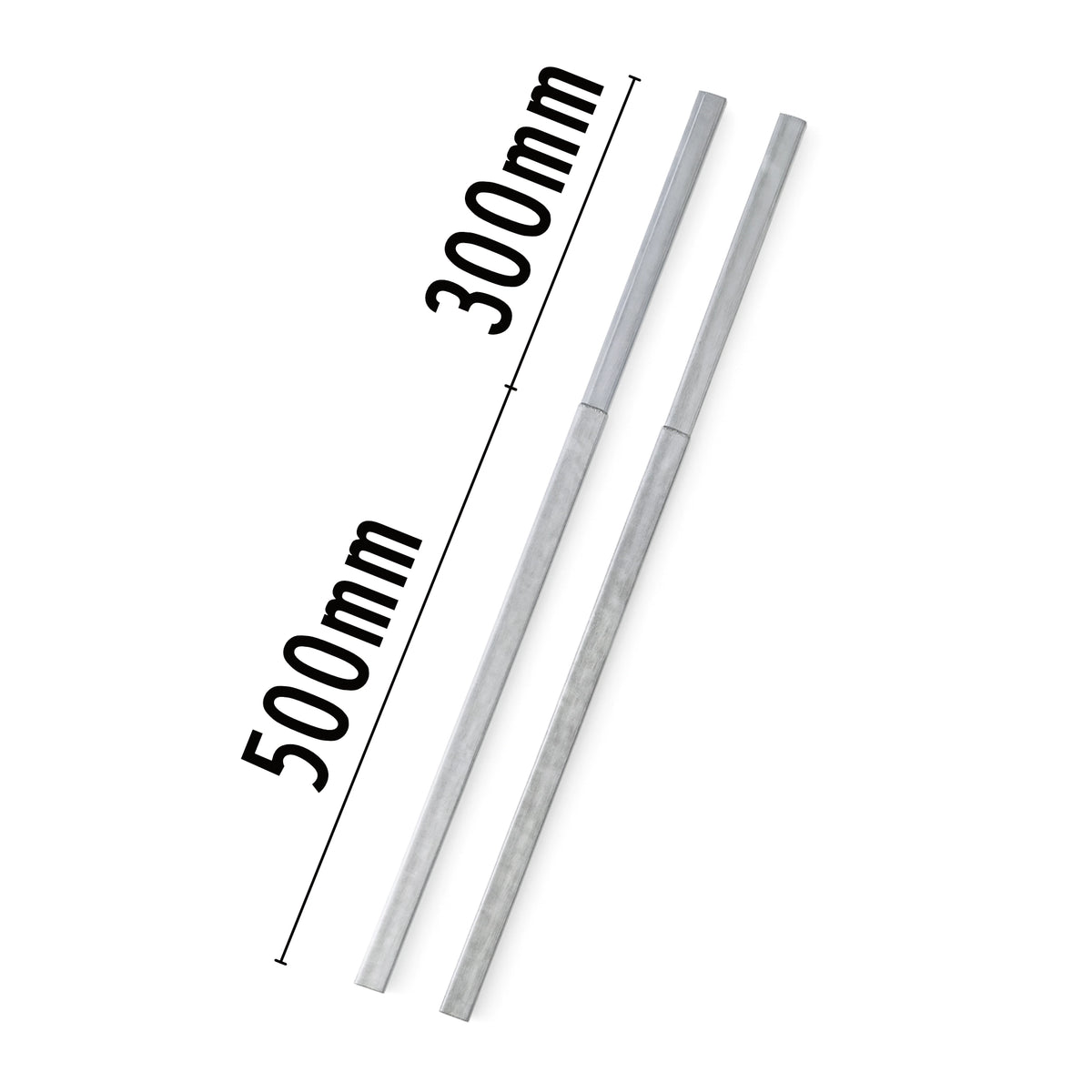

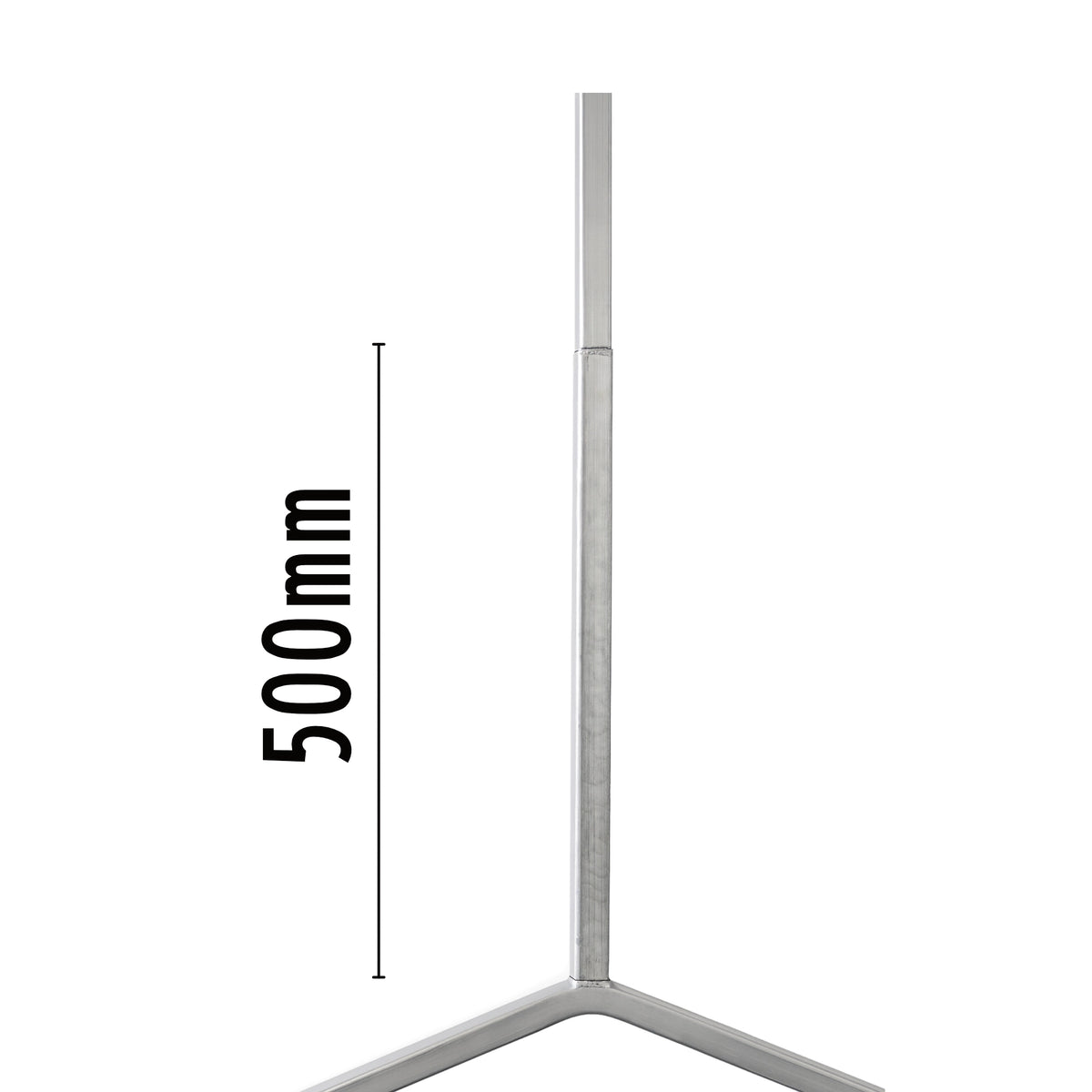

The extension is built from a 500mm 25x25mm SHS DuraSteel outer section welded to a 300mm 20x20mm SHS stem section, giving each extension a total length of 800mm. The 500mm outer section forms the usable lift, while the 300mm stem inserts securely into the sign frame leg or into another extension.

Because each extension is modular, multiple units can be stacked. Two extensions slotted together raise a compatible frame by approximately 1 metre, which can help when working behind tall concrete barriers, deep shoulders or temporary fencing. When stacking extensions to this height, weights or sandbags are recommended to help prevent the frame tipping in strong wind.

These extensions are compatible with UAGS multi-message sign frame leg stems where the stem size and fitment are suitable, including the Heavy Duty Traffic Sign Y-Leg | Yellow and the Folding Traffic Sign Frame Leg | DuraGal. Sign frames, legs and sign panels are supplied separately unless included as part of a package or quote.

Common use includes roadworks, utility works, civil construction and council maintenance activities where a sign needs extra height behind barriers, drop-offs or uneven shoulders.

• Modular Height System: Increases sign lift by approximately 500mm per extension.
• Stackable Design: Multiple extensions slot into each other for greater height.
• DuraSteel SHS Construction: 25x25mm outer section (500mm) welded to a 20x20mm stem section (300mm).
• 800mm Total Length: Per extension.
• Improves Sign Visibility: Behind barriers, fencing, drop-offs or uneven shoulders.
• Simple Drop-In Installation: Fits into compatible sign frame leg stems, no tools required.
• Sold As: Supplied in pairs.

UAGS Fabricated Steel Warranty - 2-Year Limited Coverage
This product includes a 2-year limited warranty from UAG Services Pty Ltd covering manufacturing defects in the welded steel fabrication, including structural integrity, welds and bends, under normal use conditions.

This warranty does not cover wear and tear, rubbing, scuffing or wearing of the cold galvanising paint or powder coat finish from normal handling, transport or storage, nor does it cover damage from misuse, impact, unauthorised modification or incorrect use.

To make a warranty claim, contact UAG Services Pty Ltd (Gate 2, 7 Royan Place, Bayswater North VIC 3153) at sales@uags.com.au or (03) 8750 0926 with your order reference, a description of the issue and photos of the product. Claims are subject to inspection and approval. Where a defect is confirmed, UAG Services Pty Ltd will repair, replace or refund the product at its discretion. Return shipping costs are handled in accordance with the UAGS Returns Policy unless otherwise required under Australian Consumer Law.

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. This warranty is provided in addition to these rights and does not limit or exclude them.
