Lane Ahead & Left Turn Open (SYM)

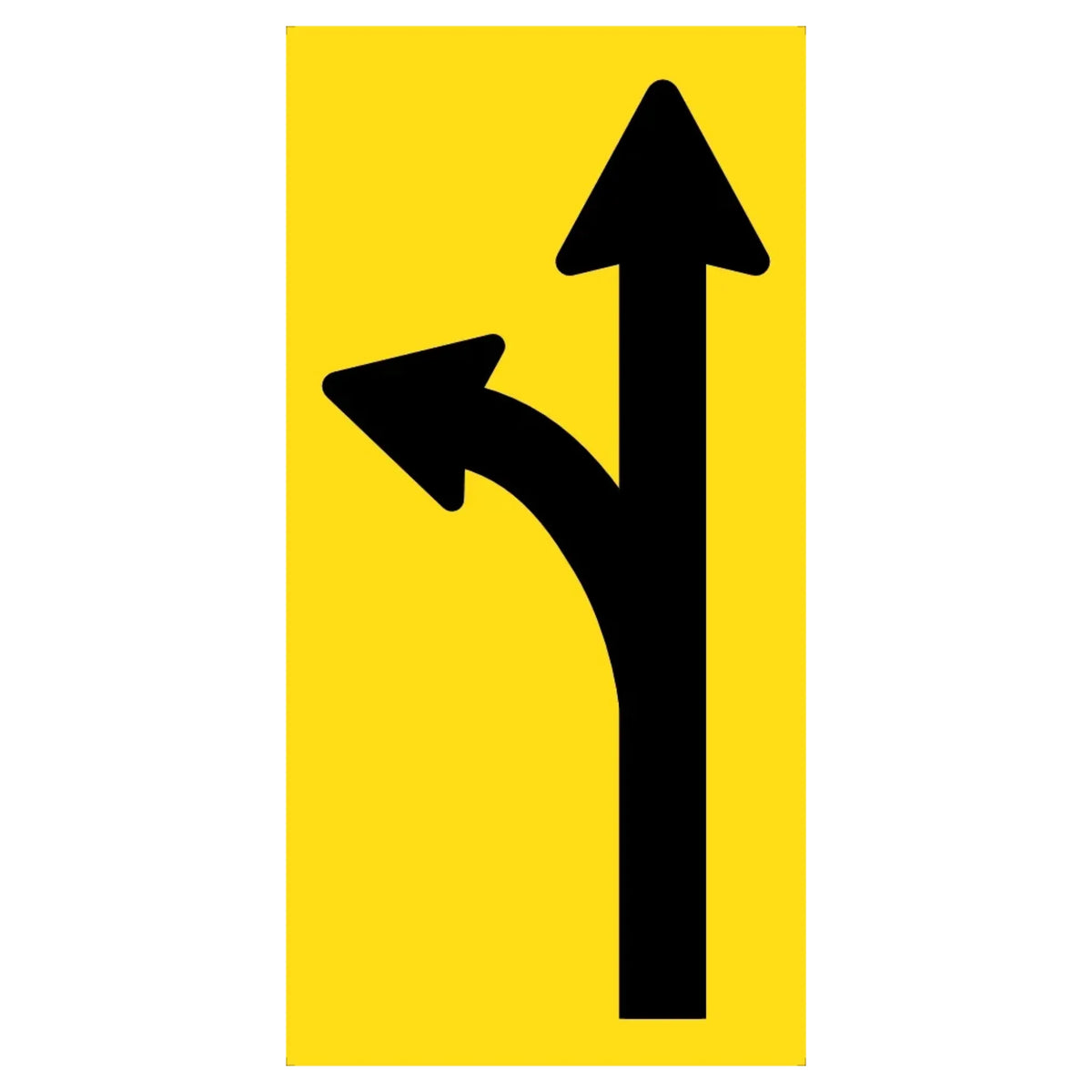

Lane Ahead & Left Turn Open - TM10 Series (300x600mm) corflute sign panel displays a black straight-through lane arrow and left-turn arrow symbol on a yellow retroreflective background. It is used as a modular partial lane-status component panel within compatible temporary multi-message lane-status sign arrangements.

This panel is not treated as a standalone national sign code panel. It is a partial component panel used to help configure compatible TM10 Series lane-status arrangements where a straight-through lane movement and left-turn movement need to be shown as open as part of the completed sign assembly.

UAGS temporary traffic sign corflute panels are manufactured from 6mm UV stabilised corflute using Class 400T retroreflective yellow sheeting with opaque black printing. The black straight-through arrow, black left-turn arrow, black border and yellow retroreflective background support lane-status component messaging where this panel is specified.

This 300x600mm corflute panel is intended for compatible modular multi-message sign frame arrangements that accept 300x600mm lane-status component panels. For UAGS temporary multi-message sign frame hardware, see the Multi-Message Sign Frame No. 1, where the required panel size, layout and frame configuration are suitable.

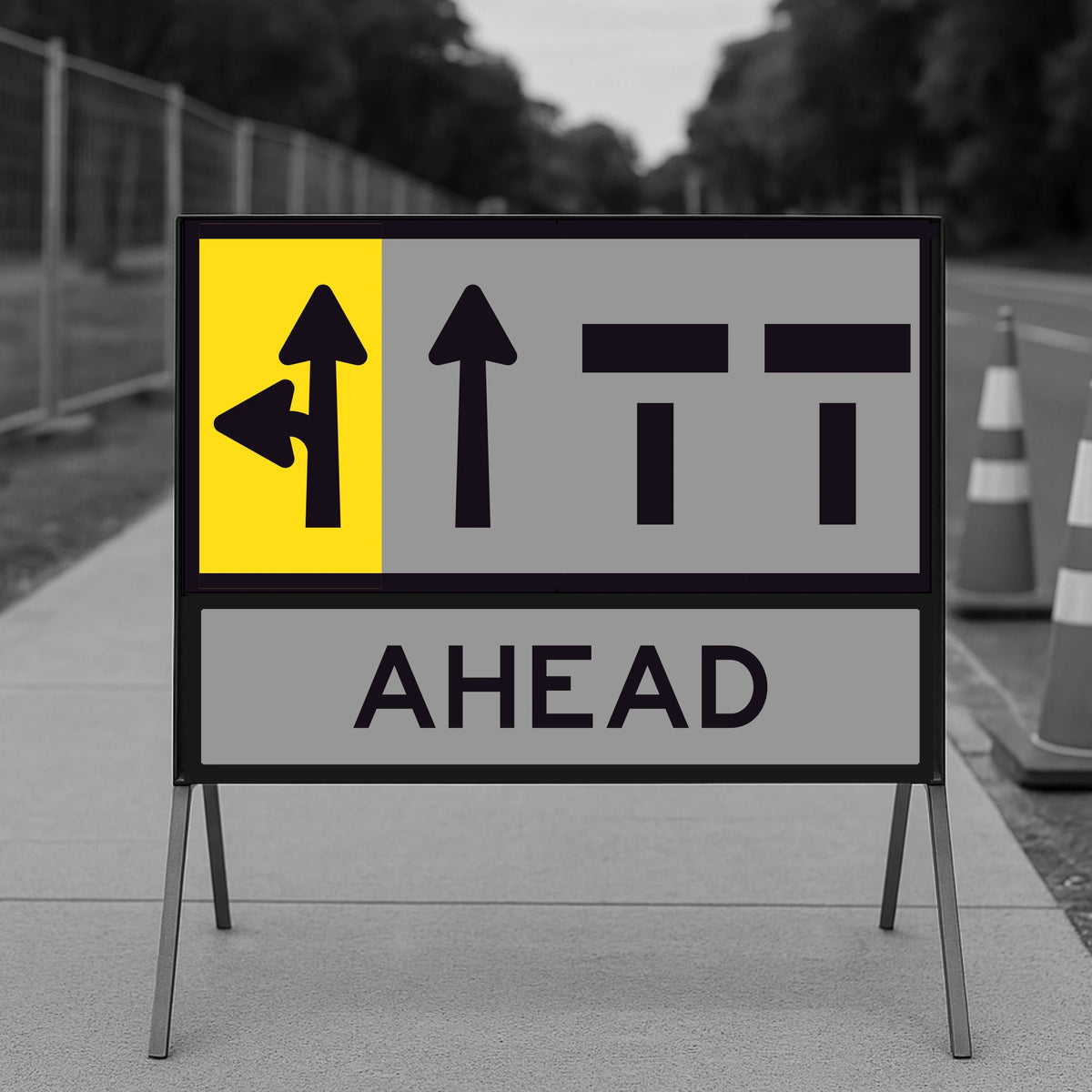

In practical use, this panel may be combined with other compatible 300x600mm lane-status component panels, including straight-through arrow panels, closed-lane T-symbol panels or other lane-status panels, to build the required lane arrangement. Final panel combinations may vary depending on the number of traffic lanes, permitted movements, lane-status message and temporary traffic management arrangement.

State and regional reference material may identify comparable through-and-left-turn lane-status partial panel applications, including VicRoads reference TM10-V105, drawing sign no. 763701, described as THROUGH AND LEFT TURN LANE AHEAD, and comparable South Australian reference TM10-SA121A. These references are supplied for identification only and do not make this individual panel a complete national sign assembly or confirm suitability for every project.

This panel provides lane-status component information only. It does not create, authorise or legally enforce a lane closure, permitted movement, lane direction, merge arrangement, traffic diversion or traffic control arrangement by itself. Selection, panel combination, sign sequencing, frame arrangement, placement, display timing and use remain subject to the applicable TMP, TGS, lane arrangement, site conditions, project requirements and relevant authority requirements.

• Substrate: Manufactured from 6mm UV stabilised corflute for lightweight temporary traffic sign use.
• Reflective Sheeting: Class 400T retroreflective yellow sheeting with opaque black printing.
• Lane-Status Component: Displays a black straight-through lane arrow and black left-turn arrow symbol on a yellow retroreflective background.
• Partial Panel Format: 300x600mm modular component panel intended for compatible TM10 Series lane-status sign arrangements.
• Panel Combination Use: May be combined with compatible lane-status component panels, including straight-through arrow panels, closed-lane T-symbol panels or other lane-status panels, where specified.
• Frame Compatibility: Intended for compatible modular multi-message sign frame arrangements that accept 300x600mm lane-status component panels.
• Reference Context: State and regional references may include VicRoads TM10-V105, drawing sign no. 763701, previous or internal reference TMU-705E, and comparable South Australian reference TM10-SA121A.
• Standalone Use: Not intended to be used as a standalone lane-status sign or complete traffic control arrangement by itself.
• Deployment Note: Selection, panel combination, sign sequencing, frame arrangement, placement, display timing and use remain subject to the applicable TMP, TGS, lane arrangement, site conditions, project requirements and relevant authority requirements.

Reflective terminology note: This panel is supplied with Class 400T retroreflective yellow sheeting and opaque black printing. Reflective wording relates to the supplied signface material and printed signface construction only. Check project-specific reflective sheeting and signface requirements where applicable.
