Fire Extinguisher Bracket - 15-25 N80 Toyota Hilux

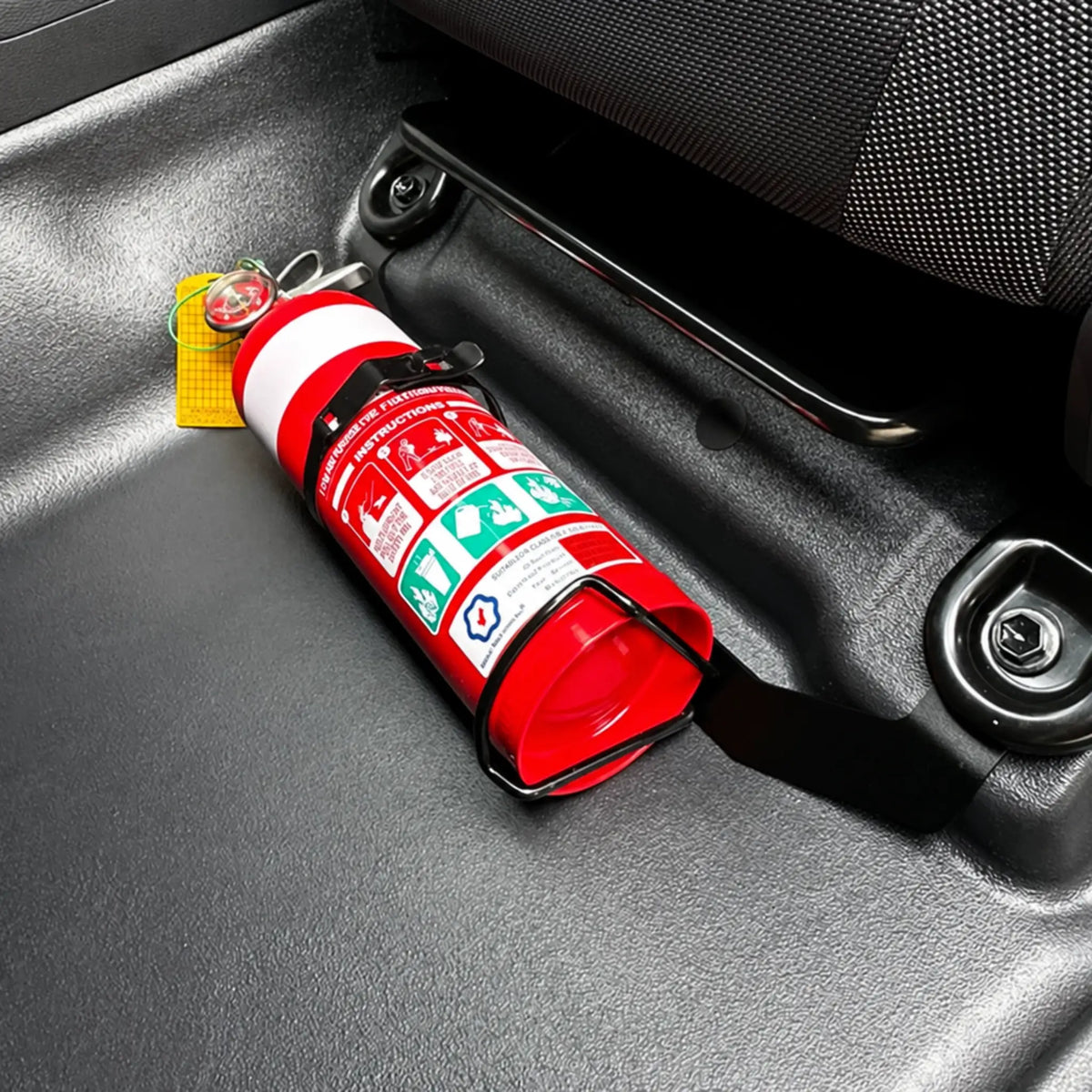

Fire Extinguisher Bracket (2015-2025 N80 Toyota Hilux) is a seat mount that fixes a fire extinguisher to the passenger seat rails of the 2015 to 2025 N80 Toyota Hilux. It suits traffic control, civil, utility and fleet utes where crews want the extinguisher kept in the cab and within reach of both front seats, instead of rolling around the floor or buried behind the seat.

The bracket bolts on using the existing seat bolts, so there is no drilling into the floor or trim. Your extinguisher's own mounting bracket then bolts to this plate using the two bolts, washers and nylon nuts supplied. It is designed for a 1kg extinguisher, and we have fitted 1.5kg extinguishers without issue.

Fitting means removing and refitting the passenger seat bolts. Seat bolts are safety-critical, so refit them to the vehicle manufacturer's torque specification. If you are not confident doing this, have the bracket fitted by a qualified installer.

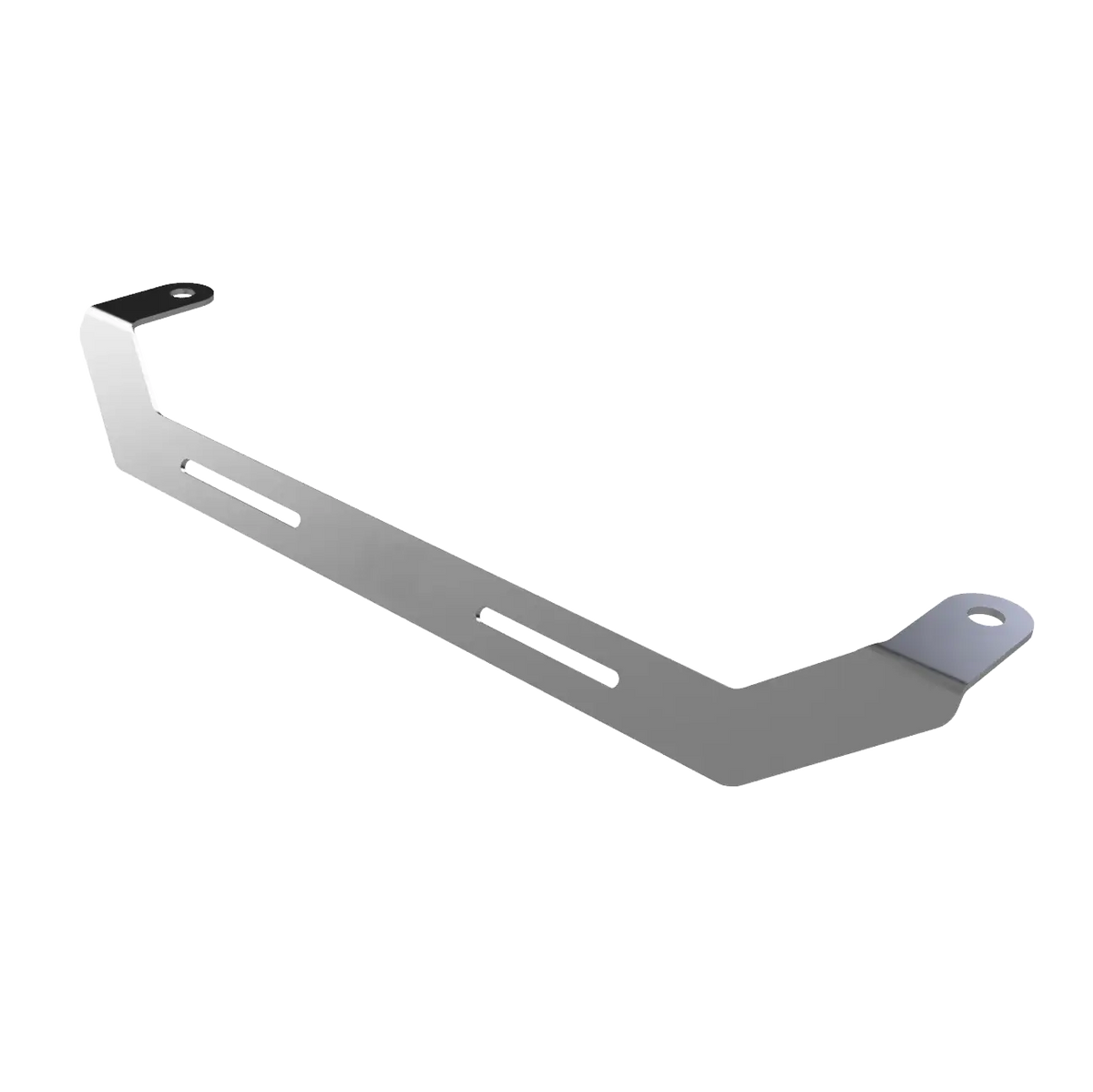

The bracket is 3mm steel, designed and made in Australia, and is supplied in either a black or stainless steel finish depending on stock. Contact us before ordering if you need a particular finish. The fire extinguisher is sold separately.

We also stock this bracket for the 2026 onwards N90 Toyota Hilux, the 2021 to 2026 Isuzu D-MAX and the MV Mitsubishi Triton. UAGS also fits these brackets as part of complete traffic control vehicle fit-outs, alongside racking cages, warning lights and traffic control equipment.

• Vehicle Specific: Made for the 2015 to 2025 N80 Toyota Hilux, mounting to the passenger seat rails.
• No Drilling: Bolts on using the existing seat bolts, so the floor and trim are left untouched.
• Takes Your Extinguisher's Bracket: The extinguisher's own mounting bracket bolts to this plate. Bolts, washers and nylon nuts are supplied.
• Extinguisher Size: Designed for a 1kg extinguisher. We have fitted 1.5kg extinguishers without issue.
• Cab Access: Keeps the extinguisher within reach of both front seats.
• Australian Made: 3mm steel, designed and made in Australia, backed by a 2-year UAGS warranty.

UAGS Fabricated Steel Warranty - 2-Year Limited Coverage
This product includes a 2-year limited warranty from UAG Services Pty Ltd covering manufacturing defects in the fabrication, including structural integrity and finish adhesion, under normal use conditions.

This warranty does not cover wear and tear, rubbing, scuffing or wearing of the finish from normal use, transport or storage, nor does it cover damage from incorrect installation (including seat bolts not refitted to the vehicle manufacturer's specification), misuse, impact, unauthorised modification or incorrect use. The fire extinguisher and its own mounting bracket are not covered by this warranty.

To make a warranty claim, contact UAG Services Pty Ltd (Gate 2, 7 Royan Place, Bayswater North VIC 3153) at sales@uags.com.au or (03) 8750 0926 with your order reference, a description of the issue and photos of the product. Claims are subject to inspection and approval. Where a defect is confirmed, UAG Services Pty Ltd will repair, replace or refund the product at its discretion. Return shipping costs are handled in accordance with the UAGS Returns Policy unless otherwise required under Australian Consumer Law.

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. This warranty is provided in addition to these rights and does not limit or exclude them.
