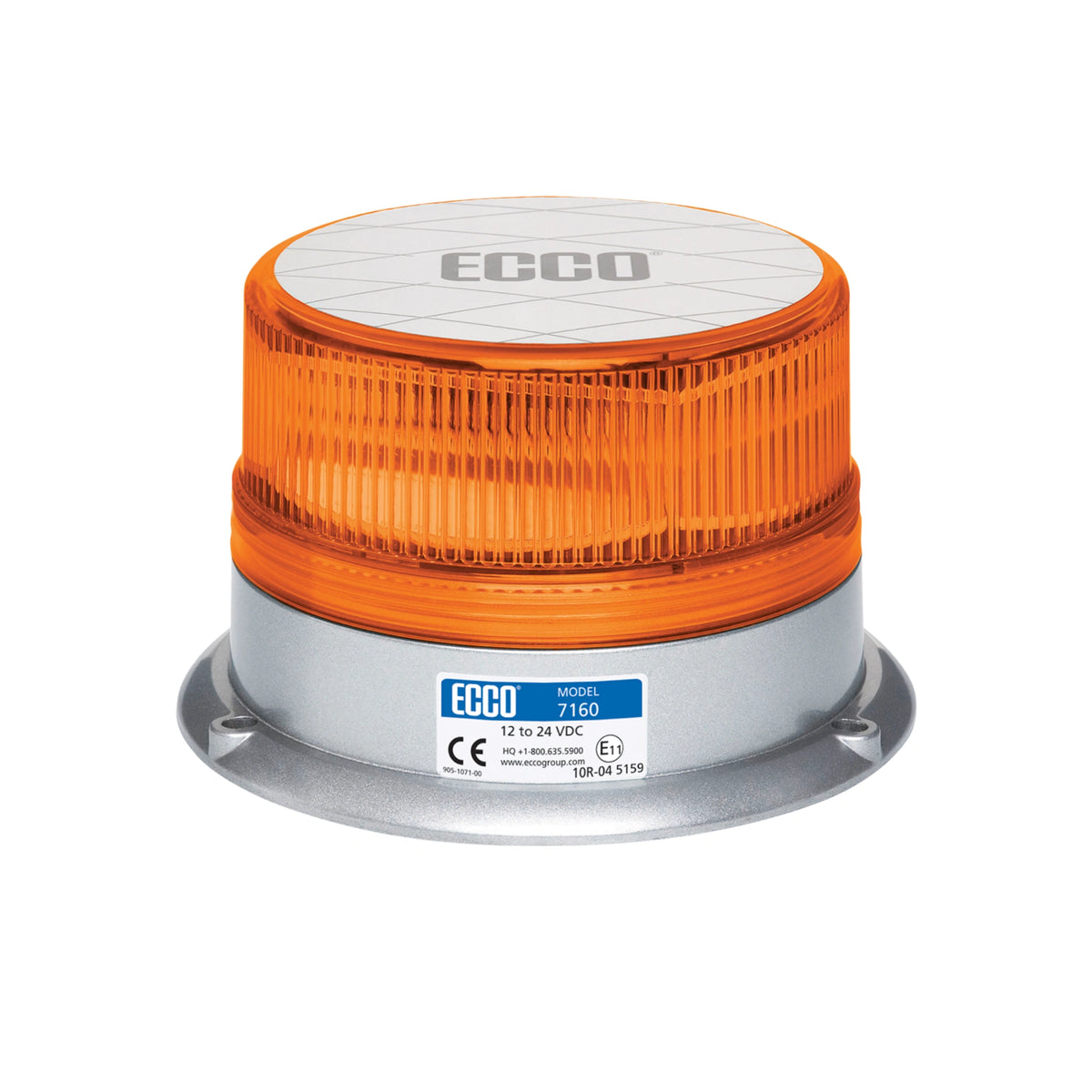

ECCO 7160 Reflex Amber LED Beacon | 3-Bolt Mount

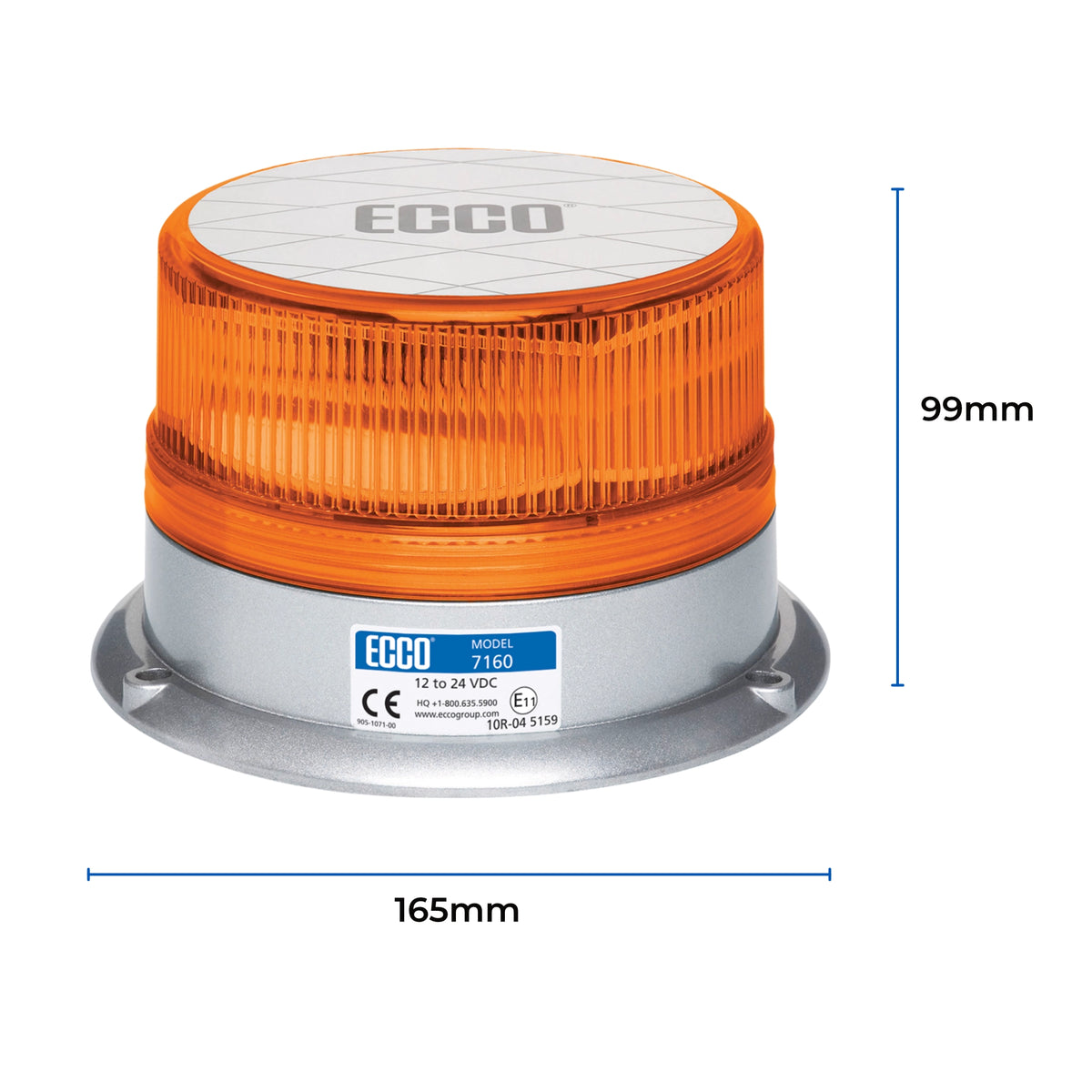

The ECCO 7160A Reflex amber LED beacon is a permanently mounted 360-degree warning beacon for work vehicles and plant. High intensity LEDs work with ECCO's reflector design to produce an SAE J845 Class I warning signal from a housing 165mm in diameter and 99mm high. It suits fleets replacing older rotating or strobe beacons.

There are 23 flash patterns to choose from, covering steady burn, single, double, quad, quint and burst flashes, slow, fast and wave rotate modes, ramp up and down, and random. High and low intensity settings are available, and multiple 7160 beacons can be synchronised on the one vehicle.

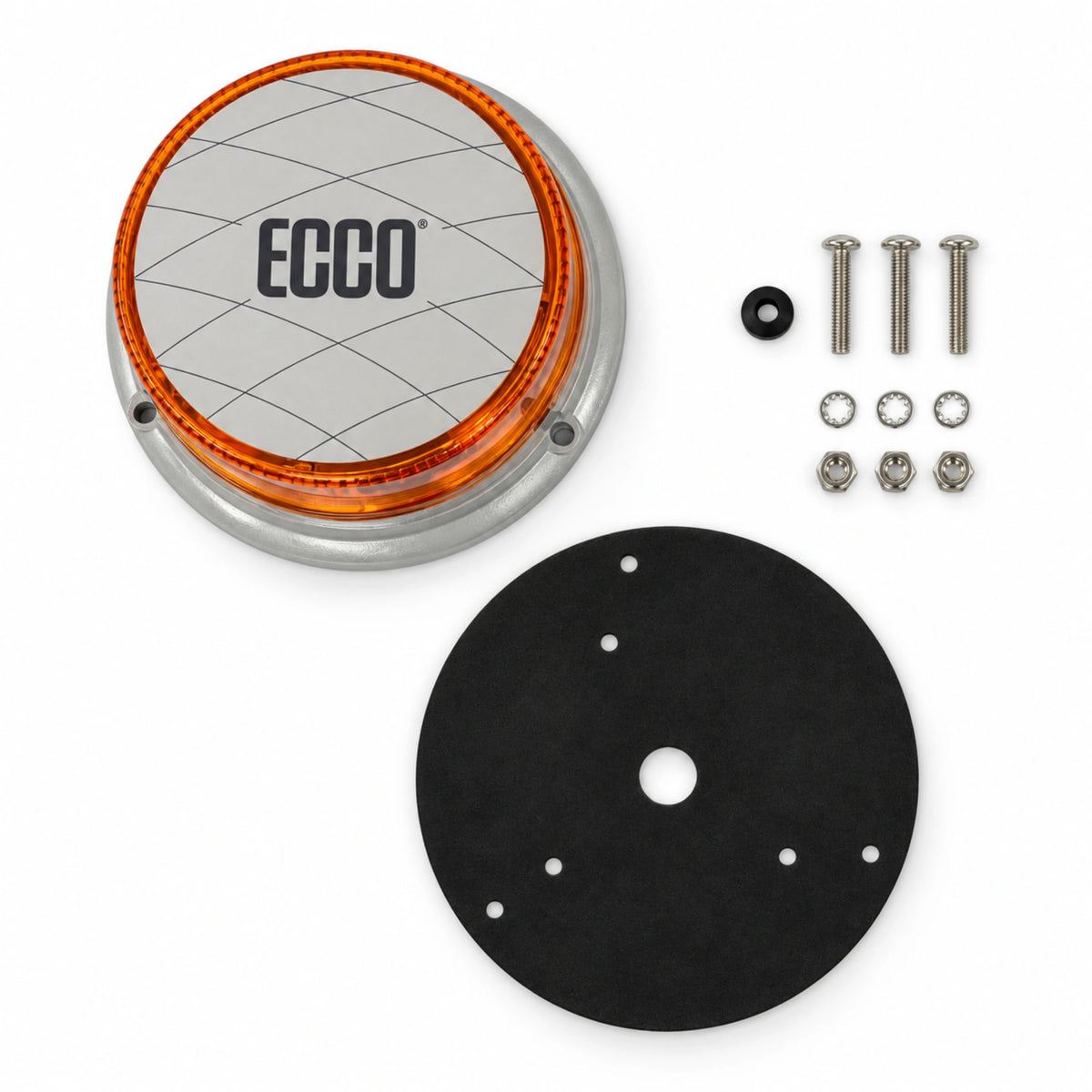

The 7160A fixes with a 3-bolt flange, and ECCO also lists it as suiting a 1 inch pipe mount. The mounting hardware is supplied: three M5 x 30mm zinc plated pan head Phillips machine screws with M5 internal tooth lock washers and M5 hex nuts, along with a rubber base gasket and a rubber cable grommet that fits a 9.5mm drilled hole. It is a direct-wired, permanent-mount beacon. The cigarette plug version in the 7160 range is the vacuum magnet model, not this one. For mounting clear of a rack upright or roof bar, it suits the UAGS 175mm Offset Beacon Mounting Bracket.

The beacon has five individual 400mm leads: red (positive), black (negative), yellow (pattern select), blue (sync) and orange (dimming). The ECCO installation instructions can be downloaded from this page and cover the 7160 series, including the vacuum magnet model. It runs on 12-24V DC with a listed draw of 2.0A peak, carries an IP66 rating and is rated for -30°C to +50°C.

ECCO product data lists SAE J845 Class I, ECE R10, CE, CISPR 25 Level 3 and RoHS. These relate to light output and electrical performance as per the supplied product data.

Commonly fitted to traffic control vehicles, civil fleet vehicles, utility vehicles, council maintenance vehicles and plant equipment. Vehicle lighting requirements may vary by vehicle type, registration category, jurisdiction and intended use. Vehicle warning systems support visibility but do not replace a traffic management plan or traffic guidance scheme.

• SAE J845 Class I Output: high intensity LEDs and reflector optics produce 360-degree amber warning light
• 23 Flash Patterns: steady burn, flash, burst, rotate, ramp and random modes
• Hi/Lo Intensity: selectable high and low output levels
• Synchronisation: multiple 7160 beacons can be synchronised on the one vehicle
• 3-Bolt Permanent Mount: 3-bolt flange base, bolts supplied, also listed by ECCO as suiting 1 inch pipe mounting
• 12-24V DC: suits 12V and 24V vehicle electrical systems, 2.0A peak draw
• IP66 Rated: operating range -30°C to +50°C
• Low EMC: CISPR 25 Level 3 listed in ECCO product data
• 5-Year ECCO Warranty: manufacturer warranty, with claims handled through UAGS

Manufacturer Warranty - 5 Years
This product is covered by the manufacturer's warranty of 5 years against defects in materials and workmanship under normal use, in accordance with ECCO's standard warranty terms.

This warranty does not cover normal wear and tear, accidental or impact damage, water ingress caused by damaged seals not reported at delivery, incorrect or unauthorised installation, unauthorised modification, or use outside the product's stated voltage and operating conditions. Installation should be carried out by a qualified auto electrician; damage caused by DIY wiring is not covered.

To make a warranty claim, contact UAG Services Pty Ltd (Gate 2, 7 Royan Place, Bayswater North VIC 3153) at sales@uags.com.au or (03) 8750 0926 with your order reference, a description of the fault and photos of the product. UAG Services Pty Ltd will refer the claim to the manufacturer or authorised representative where required. Return shipping costs are handled in accordance with the UAGS Returns Policy unless otherwise required under Australian Consumer Law.

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. This warranty is provided in addition to these rights and does not limit or exclude them.
