24W Mini Amber LED Warning Beacon | Magnetic or Fixed

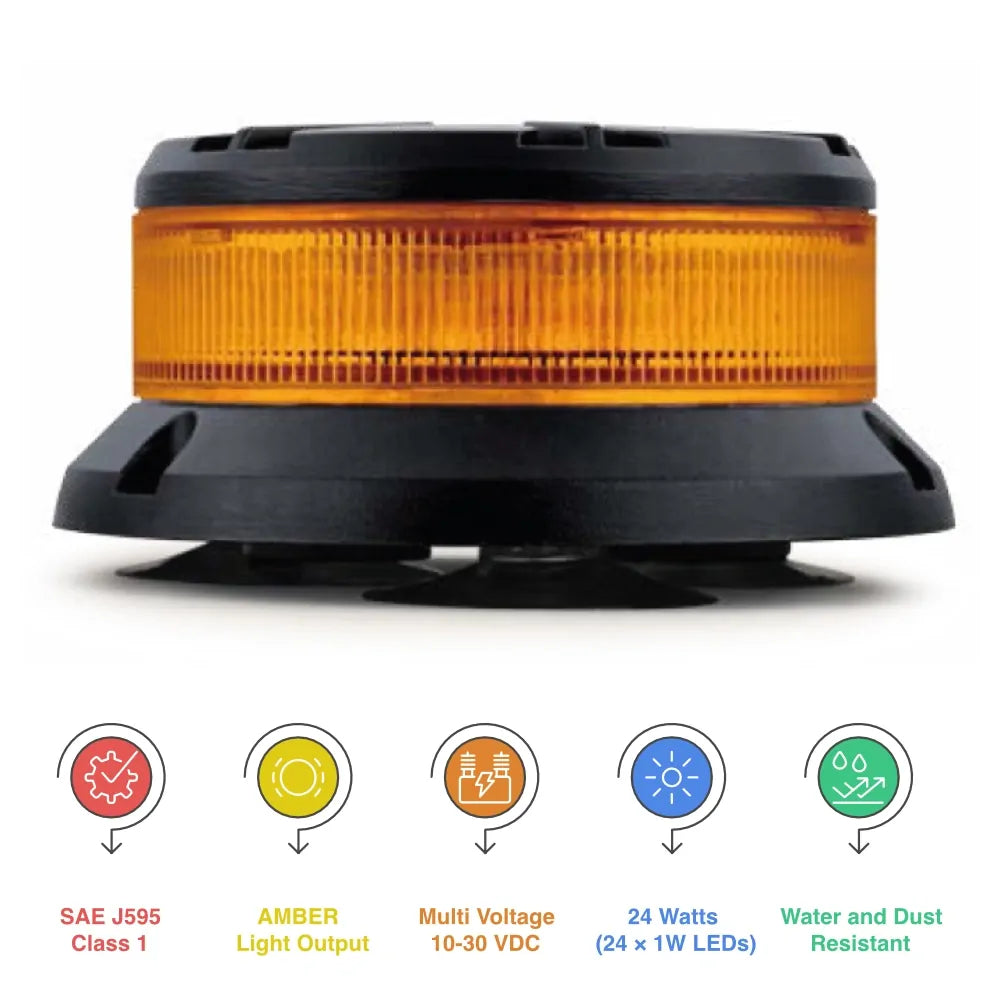

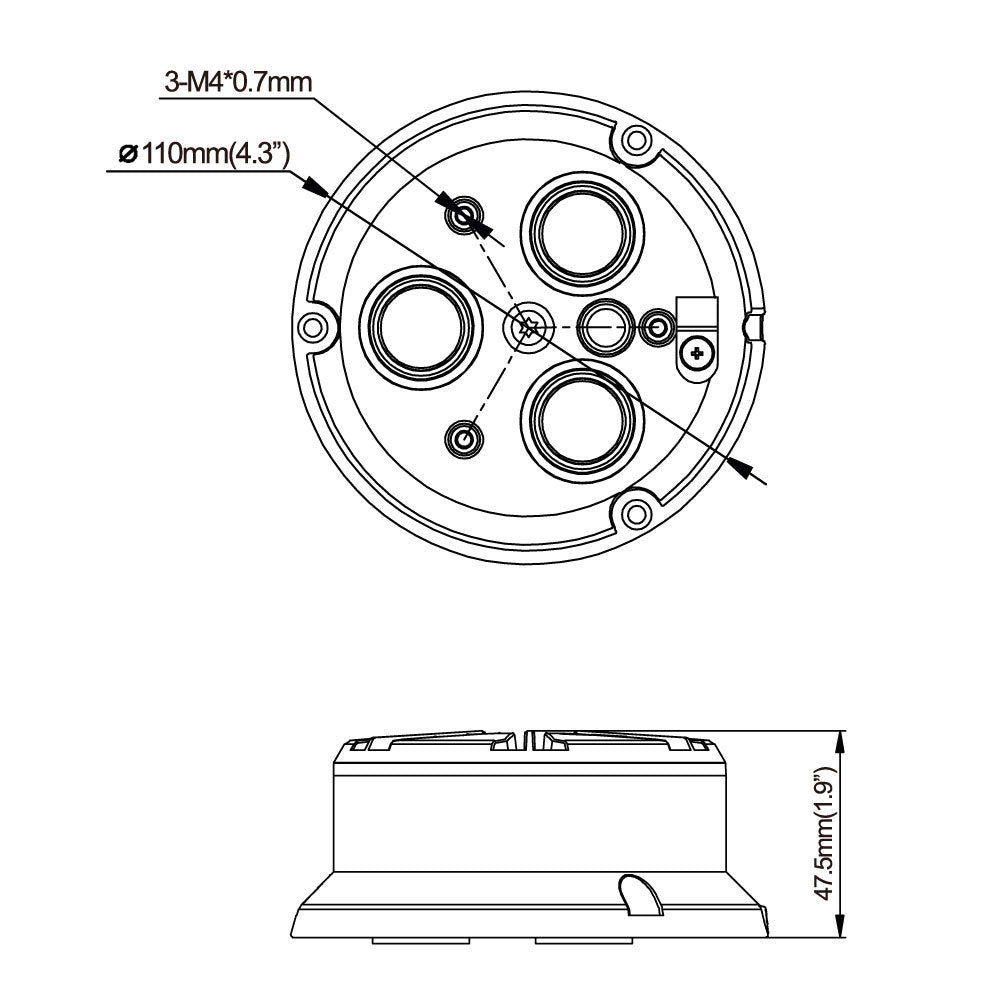

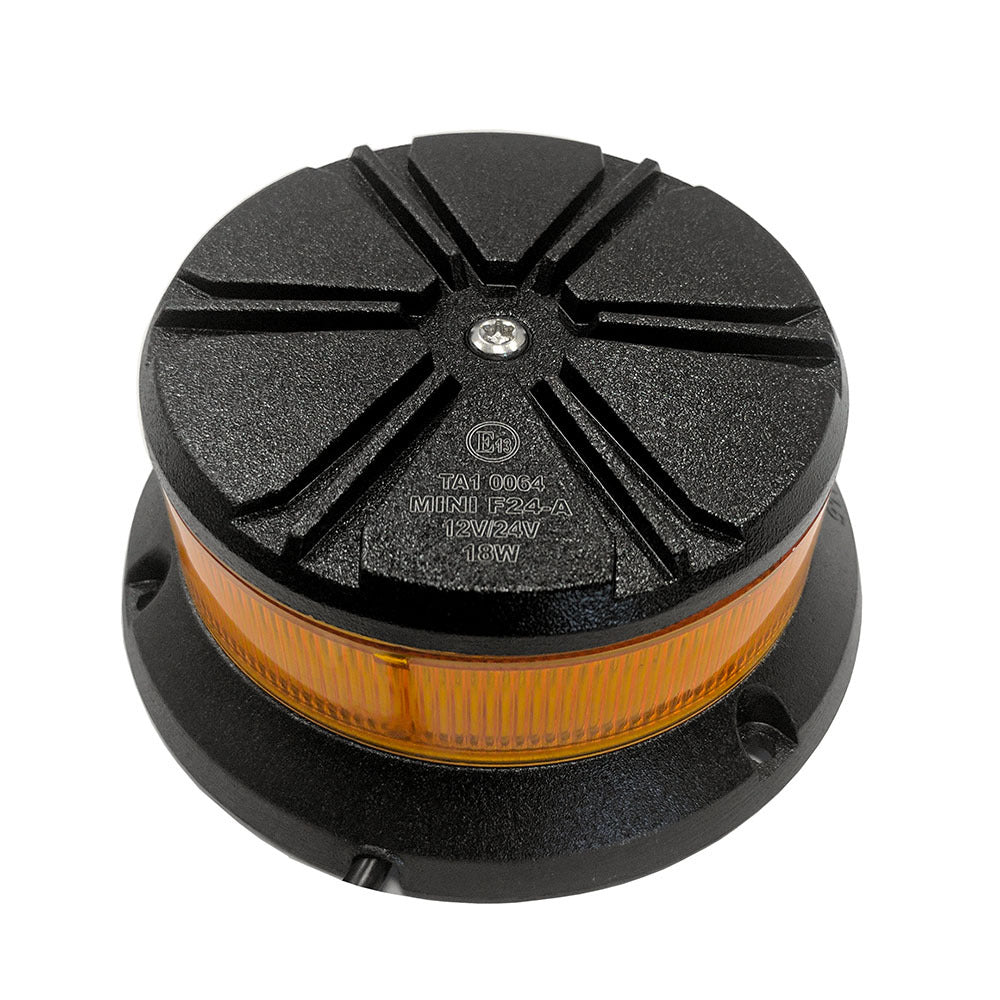

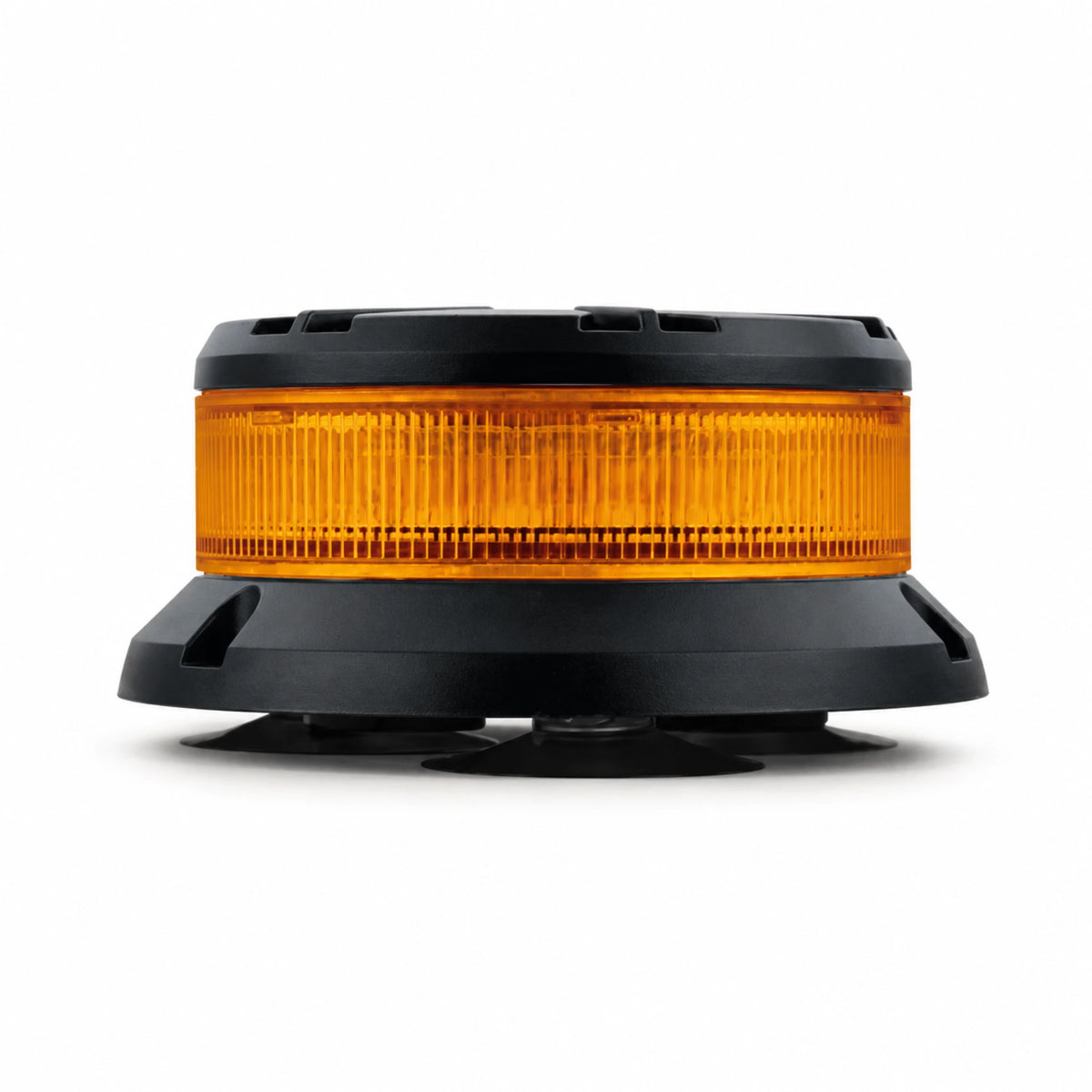

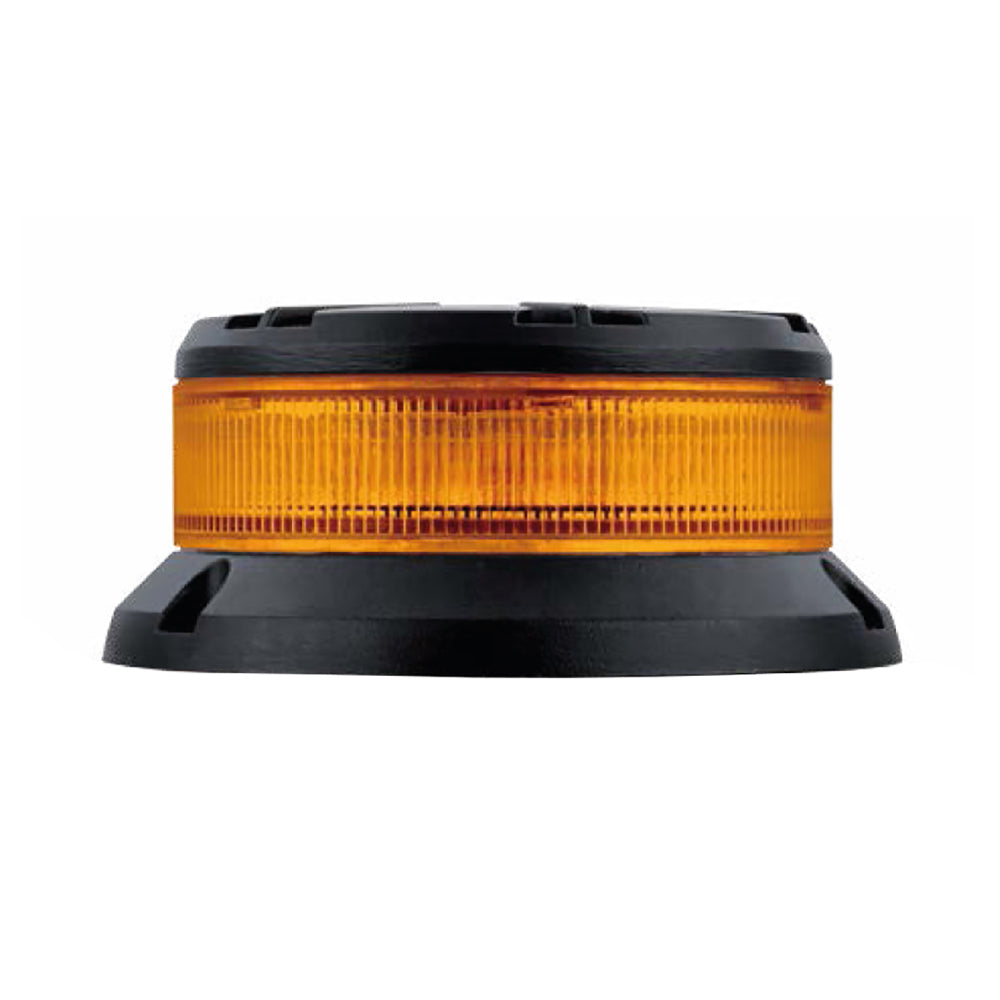

The 911 Signal FD24 Mini 24W amber LED warning beacon provides 360-degree amber hazard warning from a very low-profile housing that mounts magnetically or bolts down permanently. At 110mm diameter and 47.5mm high it suits utes, trucks, plant machinery, pilot vehicles and OSOM vehicles, and the dual mounting makes it practical both as a fixed fit-out item and as a transferable beacon moved between vehicles.

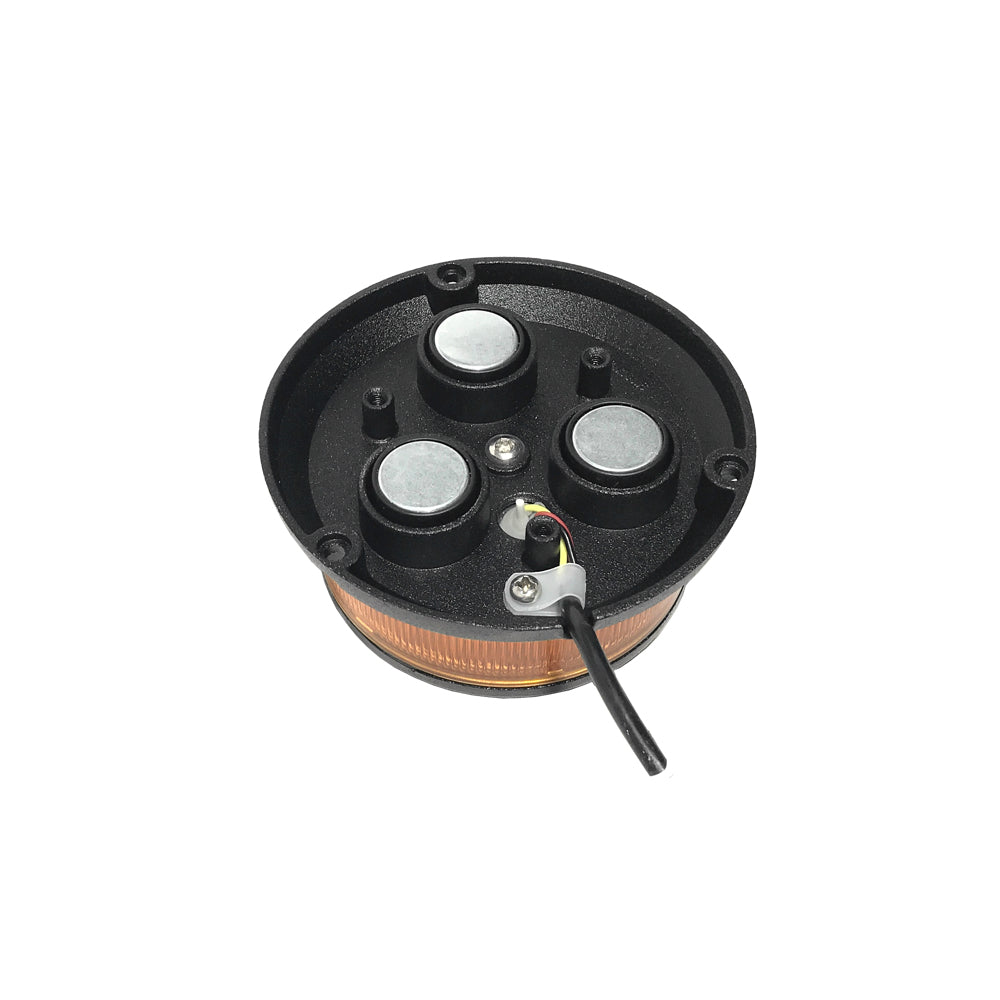

For temporary use, the magnetic base holds to a clean, flat steel surface with no drilling or permanent wiring. For permanent installation, the beacon bolts down using the supplied foam gasket. UAGS also stocks angled, disc and plate beacon mounting brackets suiting beacons up to 170mm diameter.

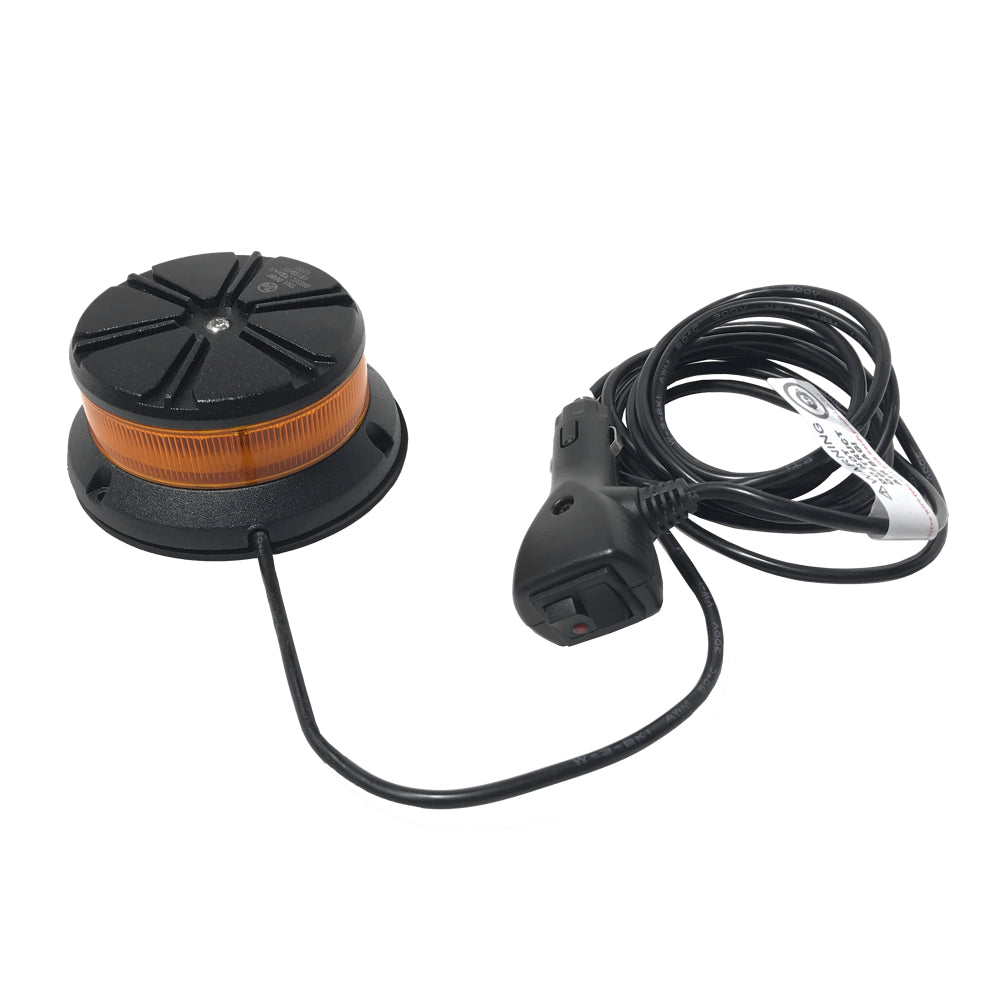

Power runs through a 3m three-core cable fitted with a cigarette lighter plug that carries the on/off and flash pattern selection switch, so the beacon is controlled from inside the cab without permanent wiring.

Light output comes from 24 x 1 watt LEDs behind a reflex PMMA lens with 92 percent light transmittance, producing 360-degree amber coverage. Eight selectable flash patterns run at 1-4Hz, including rotating and strobe modes. The LEDs are rated for a 100,000 hour lifespan.

Operation is 10-33V DC, suiting both 12V and 24V vehicle electrical systems. The aluminium alloy housing and top hat carry an IP68 ingress protection rating with an operating temperature range of -30°C to +70°C, suiting exposed positions subject to dust, water and weather.

The supplied product data lists SAE J845 Class 1 and ECE R65 (approvals TA1 00 0064 and TB1 00 0065). These certifications relate to light output performance as per the supplied product data.

For a fixed direct-wired beacon with a replaceable lens, see the U7-24 48W Amber LED Flashing Beacon.

Commonly fitted to traffic control vehicles, civil fleet vehicles, utility vehicles, pilot vehicles and plant equipment. Vehicle lighting requirements may vary by vehicle type, registration category, jurisdiction and intended use. Vehicle warning systems support visibility but do not replace a traffic management plan or traffic guidance scheme.

• 24 x 1W LED Configuration: 360-degree amber output through a reflex PMMA lens with 92 percent light transmittance
• Very Low 47.5mm Profile: 110mm diameter housing for tight or height-restricted mounting positions
• Dual Mounting: magnetic base for temporary vehicle-to-vehicle use, or bolt-down installation with the supplied foam gasket
• Plug-In Control: 3m three-core cable with cigarette lighter plug carrying the on/off and pattern selection switch
• Eight Flash Patterns: 1-4Hz modes including rotating and strobe
• Wide Voltage Range: 10-33V DC suits 12V and 24V vehicle electrical systems
• IP68 Construction: aluminium alloy housing and top hat, rated -30°C to +70°C
• Long LED Life: rated 100,000 hour LED lifespan
• Certified Output: supplied product data lists SAE J845 Class 1 and ECE R65 (TA1 00 0064, TB1 00 0065)
