120W 8.7in Oval LED Driving Light
150 x 280 x 280mm | 10,800 Lumens
120W 8.7in Oval LED Driving Light is backordered and will ship as soon as it is back in stock.
Pickup available at 7 Royan Place
Usually ready in 24 hours
120W 8.7in Oval LED Driving Light is backordered and will ship as soon as it is back in stock.
Description
Description

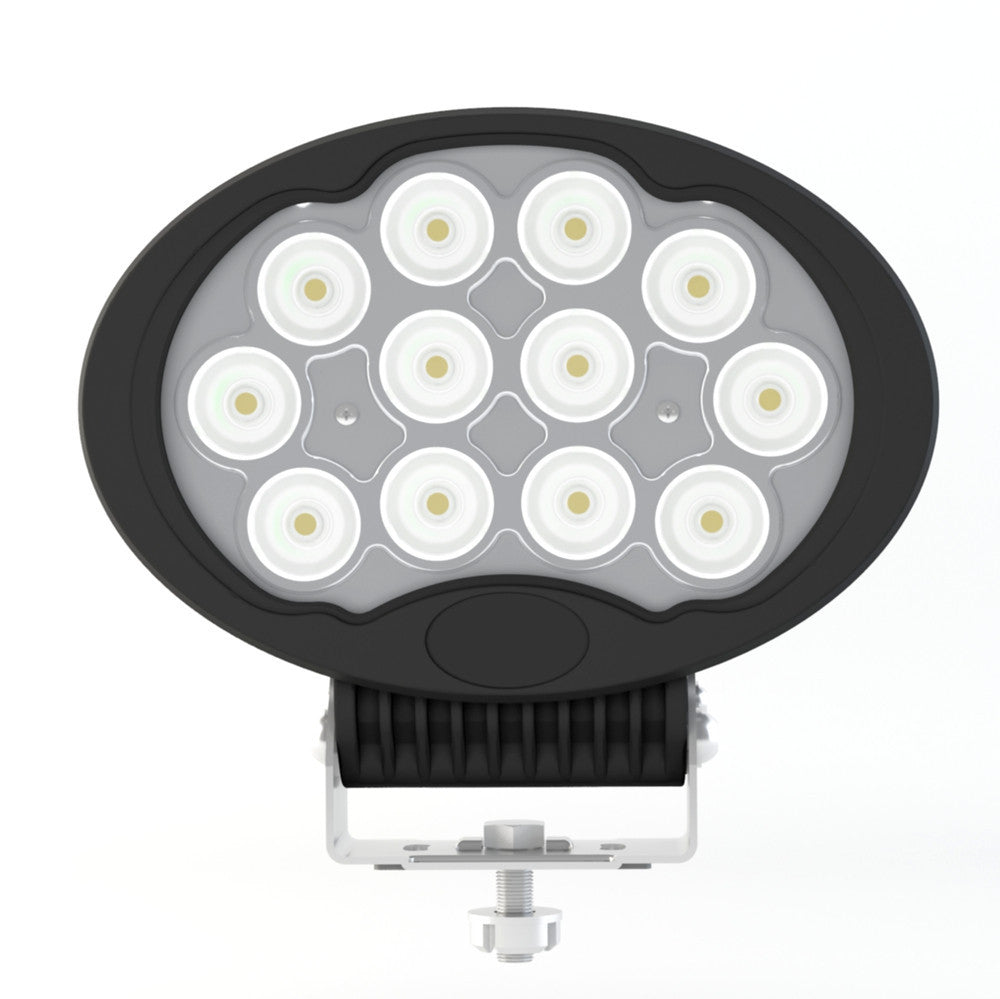

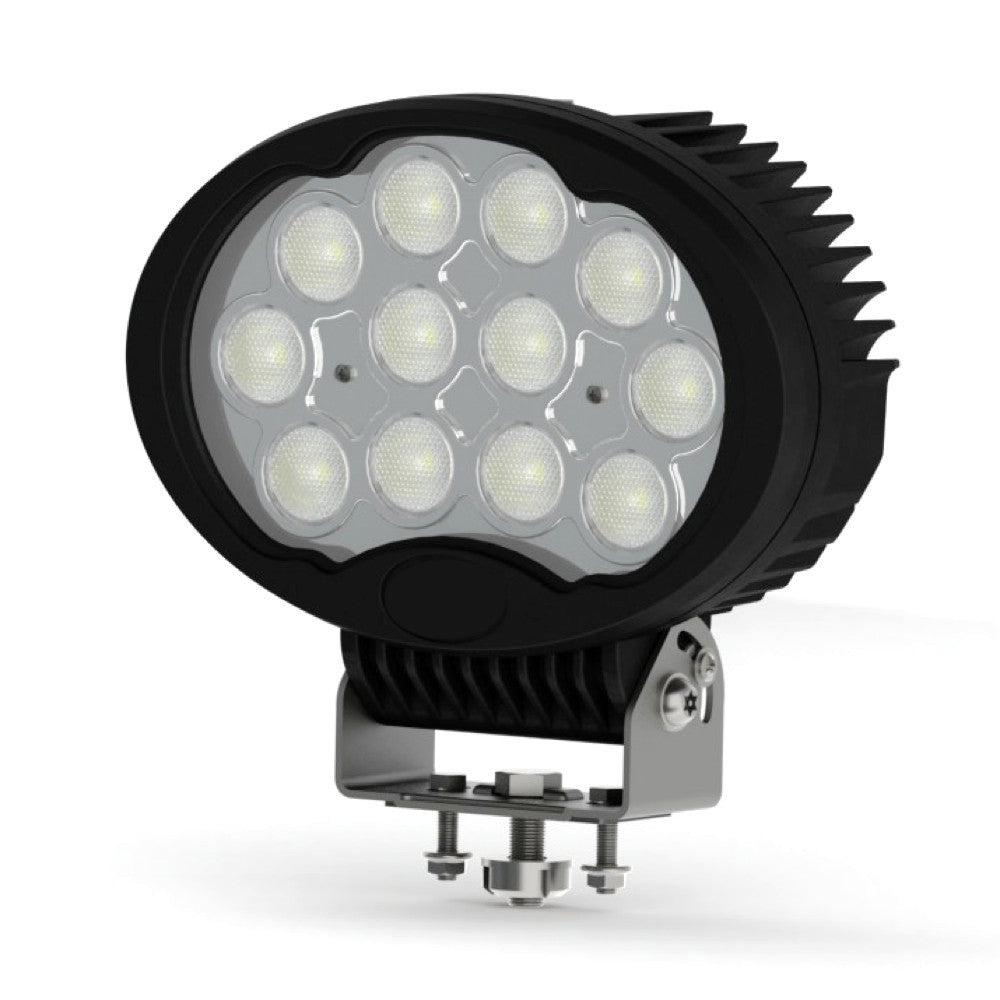

The 120W 8.7in Oval LED Driving Light is a UAG Services PRO Series driving light built for heavy duty vehicles, off-road, construction, forestry and mining use. 12 x 10W CREE LEDs deliver 10,800 lumens in a Euro beam pattern from a low-profile oval housing.

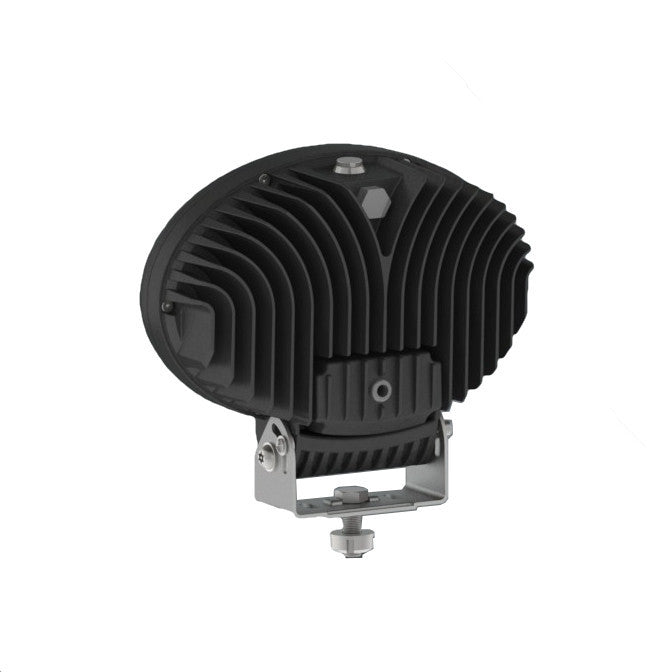

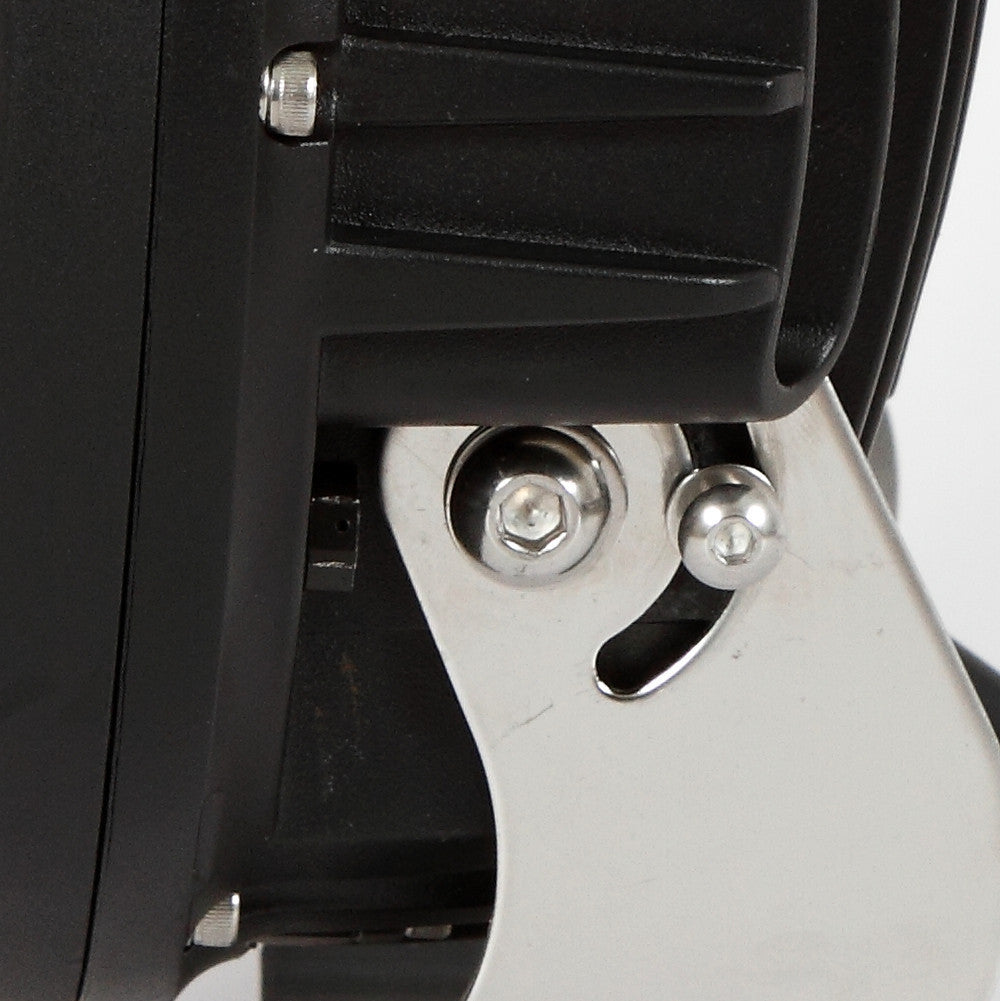

The die-cast aluminium housing sits on a stainless steel bracket, wired through a Deutsch connector. A clear protective lens cover is available separately.
Runs on 9 to 32V DC and is IP68 rated for dust and water resistance, tested from -40°C to +85°C.
Also available as the 120W 8.2in Round, which adds spot/flood beam options and a switchable daytime running light ring.
Vehicle operators who travel between states and territories must ensure that lamps fitted to their vehicles comply with the requirements in each state and territory. Consult your local road authority about fitment and use of driving lamps.
Features
Features
- 12 x 10W CREE LEDs (120W): 10,800 lumens total output, 6000K.

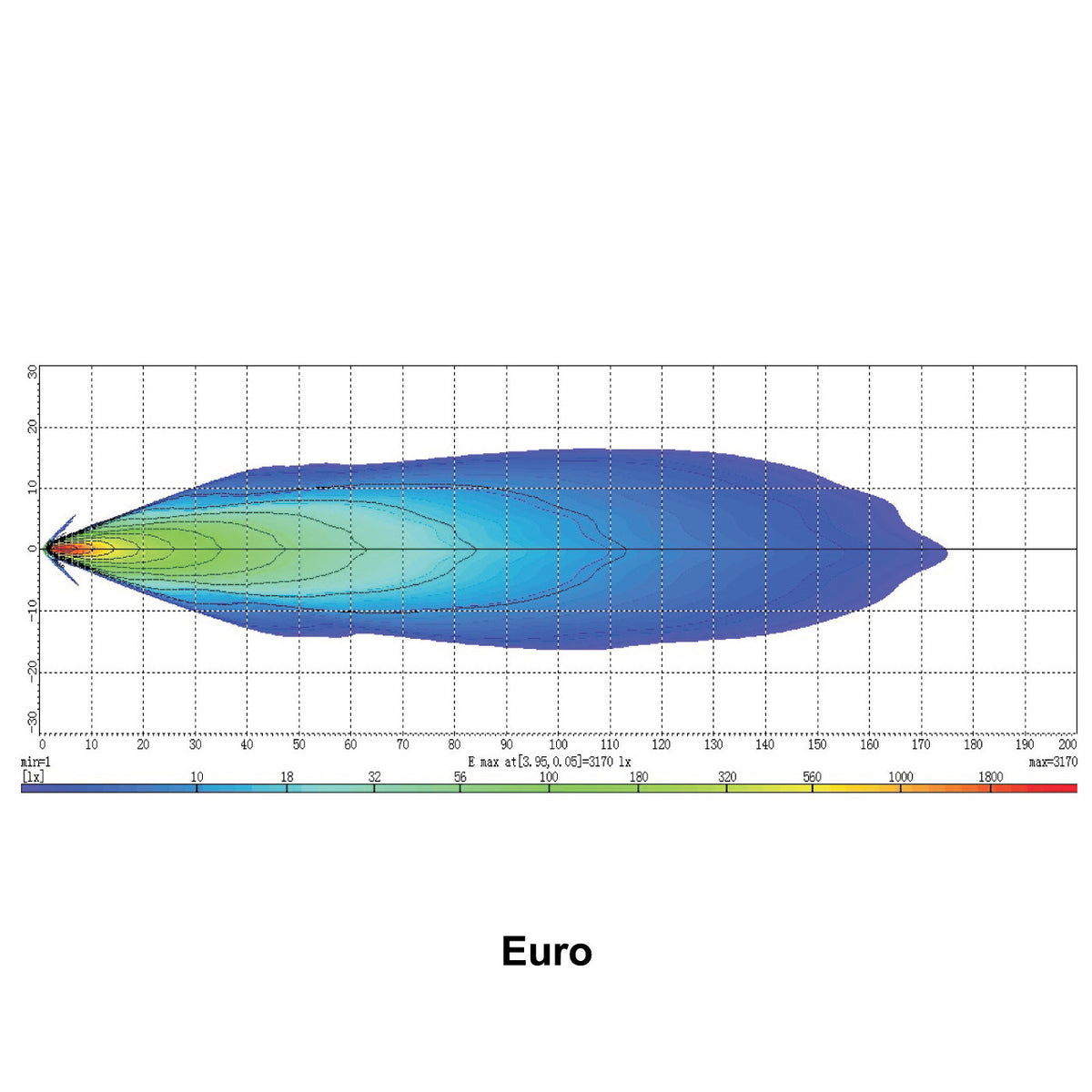

- Euro Beam Pattern: Combined spot and flood characteristics in one beam.
- Low-Profile Oval Housing: Suits mounting spots where a round housing doesn't fit as cleanly.
- Die-Cast Aluminium Housing: Stainless steel mounting bracket.
- Deutsch Connector: Waterproof connection.
- IP68 Rated: Dust and water resistant for off-road and industrial use.
Specifications
Specifications
| Model | DLO-0R12-10 |
| LED Configuration | 12 x 10W CREE LED (120W total) |
| Light Output | 10,800 lumens |
| Colour Temperature | 6000K |
| Beam Pattern | Euro |
| Voltage | 9-32V DC |
| Connector | Deutsch |
| Lens | Polycarbonate |
| Housing | Die-cast aluminium, stainless steel bracket |
| Ingress Protection | IP68 |
| Operating Temperature | -40°C to +85°C |
| Dimensions | 150 x 280 x 280mm |
| Application | Heavy duty vehicles, off-road, 4x4, construction, forestry, mining |
Warranty
Warranty
UAGS Driving Light Warranty - 3-Year Limited Coverage
This product is imported and supplied by UAG Services Pty Ltd. It is covered by a 3-year limited warranty against defects in materials and workmanship under normal use.
This warranty does not cover normal wear and tear, weathering or UV degradation, accidental or impact damage, water ingress caused by damaged seals not reported at delivery, incorrect or unauthorised installation, unauthorised modification, or use outside the product's stated voltage and operating conditions. Installation should be carried out by a qualified auto electrician; damage caused by DIY wiring is not covered.
To make a warranty claim, contact UAG Services Pty Ltd (Gate 2, 7 Royan Place, Bayswater North VIC 3153) at sales@uags.com.au or (03) 8750 0926 with your order reference, a description of the fault and photos of the product. Claims are subject to inspection and approval. Where a defect is confirmed, UAG Services Pty Ltd will repair, replace or refund the product at its discretion. Return shipping costs are handled in accordance with the UAGS Returns Policy unless otherwise required under Australian Consumer Law.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. This warranty is provided in addition to these rights and does not limit or exclude them.
120W Oval Driving Light FAQs
Round or oval, which should I choose?
Round or oval, which should I choose?
Same 120W output and specs either way. The oval housing is lower-profile, useful where mounting space is tight. See the 120W 8.2in Round if you'd prefer a round housing with a switchable daytime running light ring, or want spot/flood beam options.
Is a protective lens cover available?
Is a protective lens cover available?
Yes. See the 8.7in Oval Lens Cover (Pair), a clear protective cover made to fit this light.
Does it come with a wiring harness?
Does it come with a wiring harness?
No. See the wiring harness with relay, which suits this light's Deutsch connector.
Is this legal to fit to my vehicle?
Is this legal to fit to my vehicle?
Requirements for driving lamps vary by state and territory. Confirm the rules that apply to your vehicle with your local road authority before fitting.
