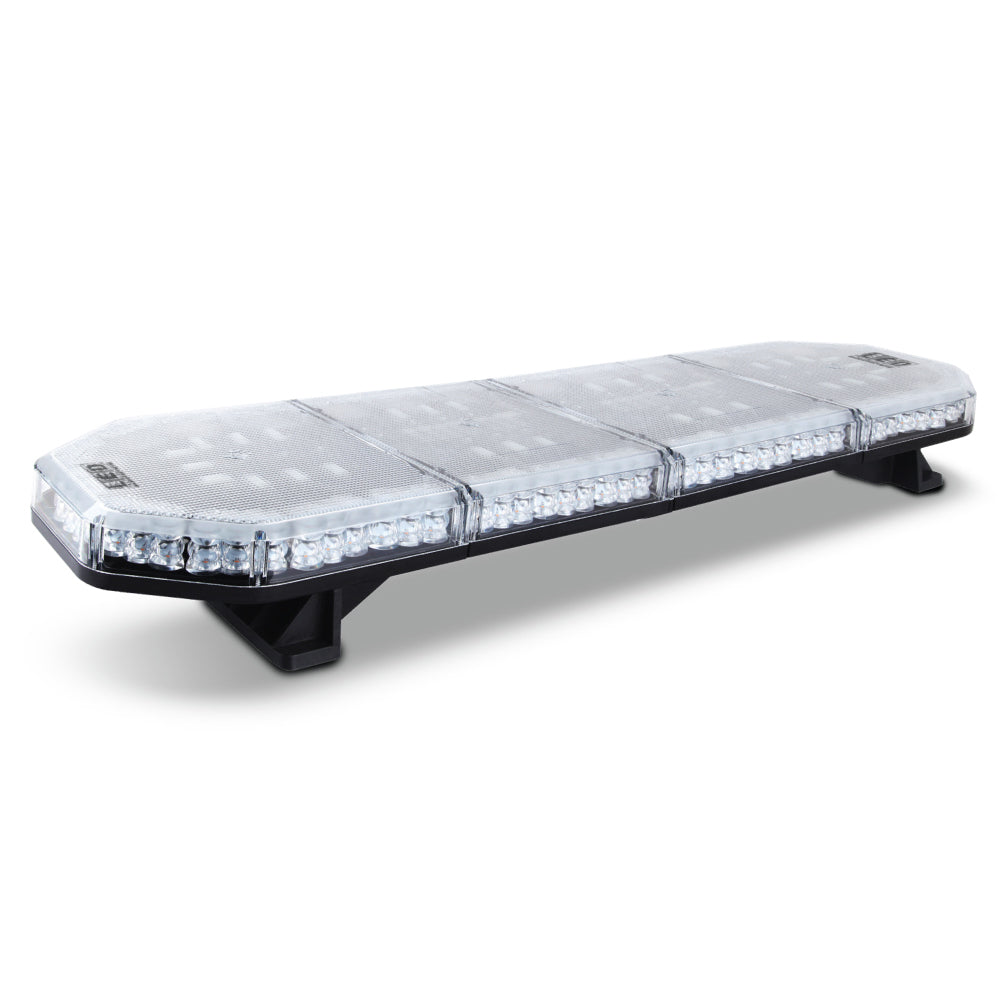

964mm 90W Amber LED Warning Lightbar

The LED Autolamps LB964ACM amber warning lightbar provides 360-degree amber hazard warning from the vehicle roof during roadside work, traffic control operations and mobile works activities. At 964mm long it is the largest bar in the UAGS LED Autolamps lightbar range, suited to trucks, utes and fleet vehicles working in traffic control, civil, utility and council environments.

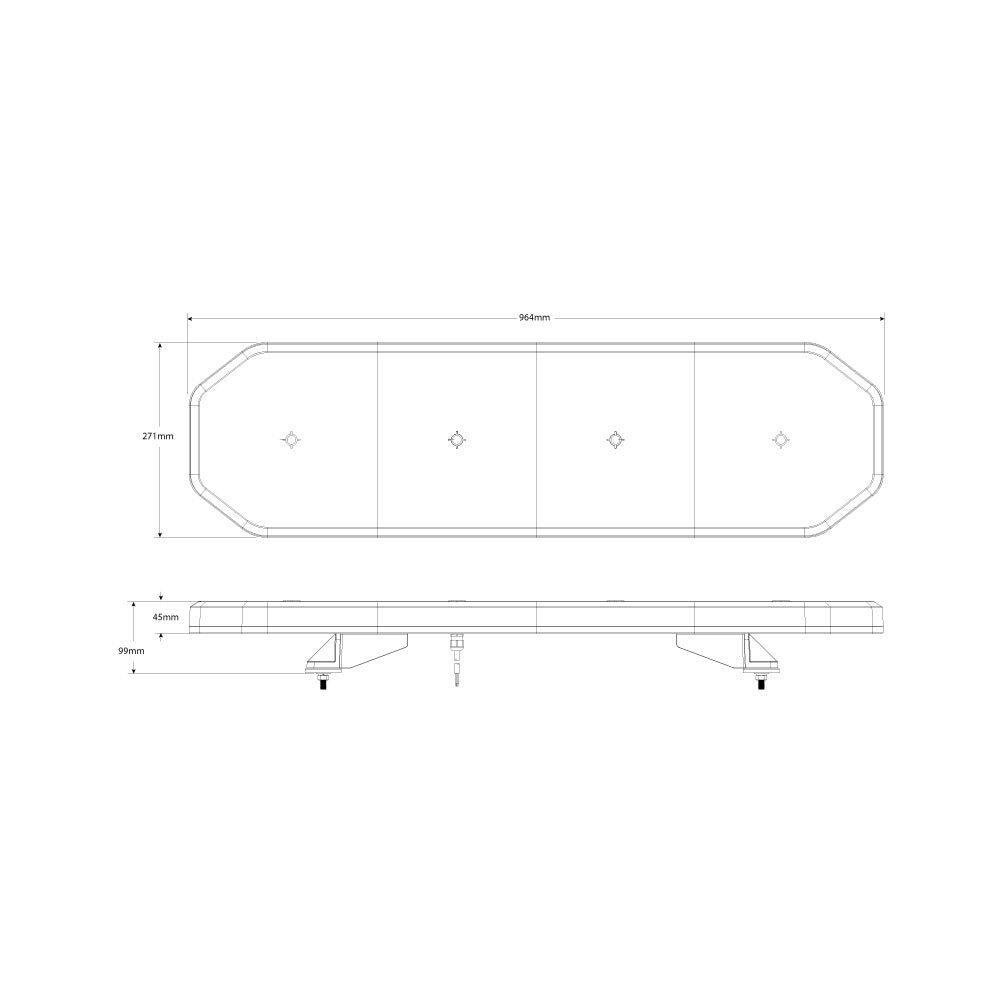

The bar is supplied with a four-point mounting bracket kit, using M8 bolts and coach bolts with mounting pads, washers and nuts, for fixed installation direct to the vehicle roof. The bracket is optional: the bar can also be mounted directly to roof bars, which is how UAGS generally fits it during vehicle fit-outs. A 50cm three-core cable connects the bar to the vehicle electrical system, and the low 45mm profile keeps installed height down on vehicles that work under height limits or carry other roof equipment. An in-cab switch is not included and is arranged as part of the installation.

Light output comes from 90 x 1 watt LEDs with TIR optics behind a clear polycarbonate lens, producing amber output rated at 7200 lumen raw and 5400 lumen effective as supplied. Output is 360-degree omnidirectional, and 19 selectable flash patterns allow the bar to be configured to suit different operating conditions and vehicle setups. Two or more bars can be synchronised on patterns 1 to 12 via the pattern-select wire, keeping flash output matched across bars on the same vehicle.

Multivolt 10-30V DC operation supports installation on both 12V and 24V vehicle electrical systems. Current draw is 5.8A at 13.8V DC and 2.9A at 28V DC.

The ABS base and aluminium thermal management carry an IP65 ingress protection rating with an operating temperature range of -40°C to +60°C, suiting exposed roof positions subject to dust, weather and vibration.

The supplied product data lists ECE R65 and ECE R10 approval and SAE J845 Class 1 compliance, with flash patterns 1 and 4 identified as the ECE R65 and SAE J845 Class 1 compliant patterns. These certifications relate to light output performance and electromagnetic compatibility as per the supplied product data.

The LB964ACM is the longest bar in the range. For a mid-size roof bar, see the 744mm 72W Amber LED Warning Lightbar; for smaller vehicles or temporary use, see the 380mm Amber LED Magnetic Warning Minibar.

Commonly used on traffic control vehicles, civil fleet vehicles, utility vehicles and maintenance vehicles. Vehicle lighting requirements may vary by vehicle type, registration category, jurisdiction and intended use. Vehicle warning systems support visibility but do not replace a traffic management plan or traffic guidance scheme.

• 90 x 1W LED Configuration: TIR optics and amber output through a clear polycarbonate lens, rated 7200 lumen raw and 5400 lumen effective as supplied
• 360-Degree Output: omnidirectional amber warning coverage from the roof-mounted position
• 19 Flash Patterns: selectable via the pattern-select wire, with patterns 1 and 4 the ECE R65 and SAE J845 Class 1 compliant patterns
• Synchronisation: two or more bars synchronise on patterns 1-12 via the pattern-select wire
• Multivolt Operation: 10-30V DC input suits 12V and 24V vehicle electrical systems
• Four-Point Mounting Bracket: supplied M8 bracket kit for direct roof installation, with the option to mount the bar directly to roof bars instead
• Low 45mm Profile: stainless steel fittings and 50cm three-core cable, suited to vehicles carrying other roof equipment
• IP65 Construction: ABS base with aluminium thermal management, rated -40°C to +60°C
• Certified Output: supplied product data lists ECE R65 and ECE R10 approval and SAE J845 Class 1 compliance
• Fleet Application: used on traffic control, civil, utility and council vehicles

Manufacturer Warranty - 5 Years
This product is covered by the manufacturer's warranty of 5 years against defects in materials and workmanship under normal use, in accordance with the manufacturer's standard warranty terms.

This warranty does not cover normal wear and tear, weathering or UV degradation, accidental or impact damage, incorrect or unauthorised installation, unauthorised modification, or use outside the product's stated operating conditions. Installation should be carried out by a qualified auto electrician; damage caused by DIY wiring is not covered.

To make a warranty claim, contact UAG Services Pty Ltd (Gate 2, 7 Royan Place, Bayswater North VIC 3153) at sales@uags.com.au or (03) 8750 0926 with your order reference, a description of the fault and photos of the product. UAG Services Pty Ltd will refer the claim to the manufacturer or authorised representative where required. Return shipping costs are handled in accordance with the UAGS Returns Policy unless otherwise required under Australian Consumer Law.

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. This warranty is provided in addition to these rights and does not limit or exclude them.
