175mm Flat Beacon Mounting Plate

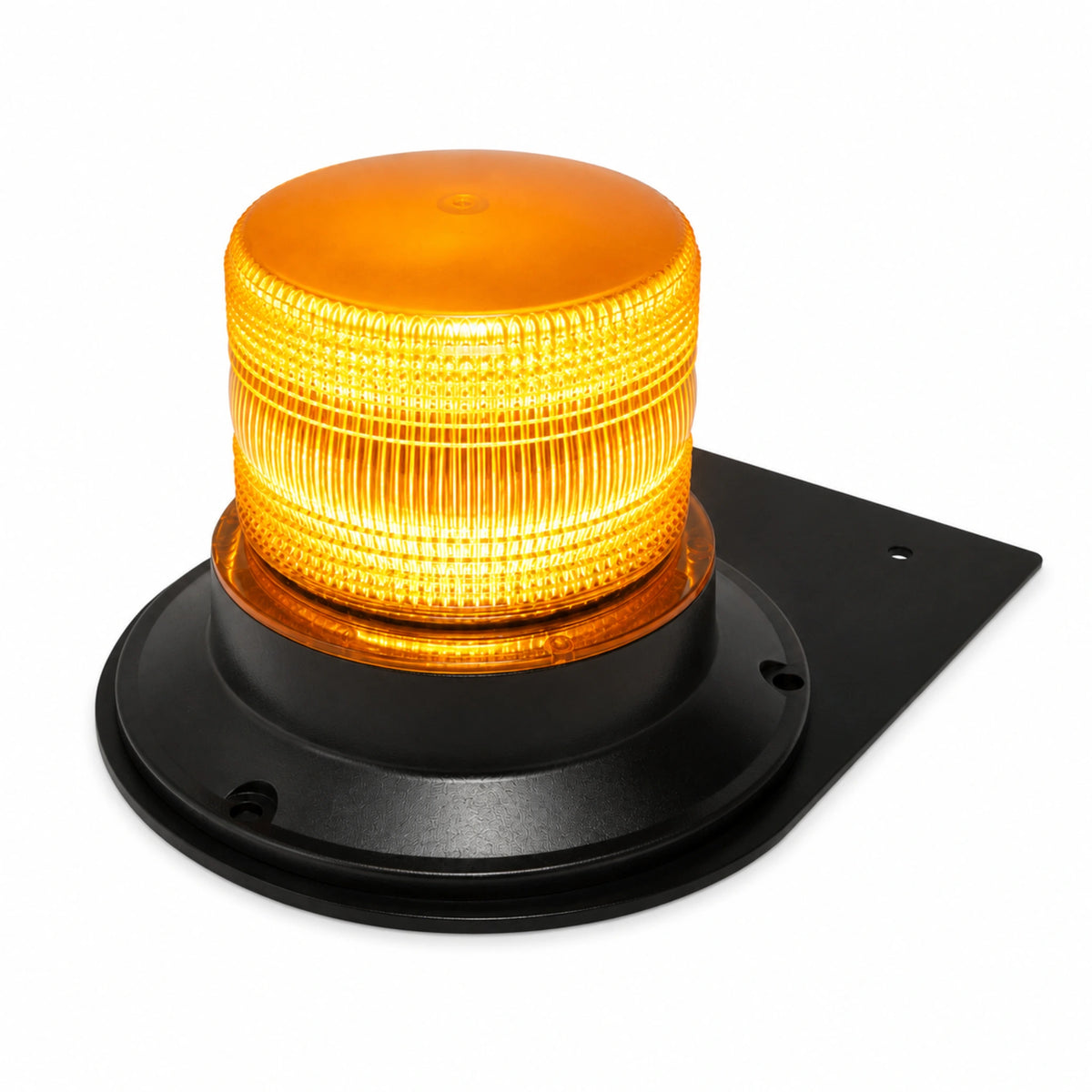

This heavy duty 3mm steel plate gives you a flat mounting point for a warning beacon on flat surfaces such as headboards, canopies and equipment frame panels, where a bolt-on plate is easier to fit than a bent bracket. The slotted holes let you shift the beacon along the plate to clear an obstruction or line up with existing fixing points. It suits most standard warning beacons up to 170mm base diameter.

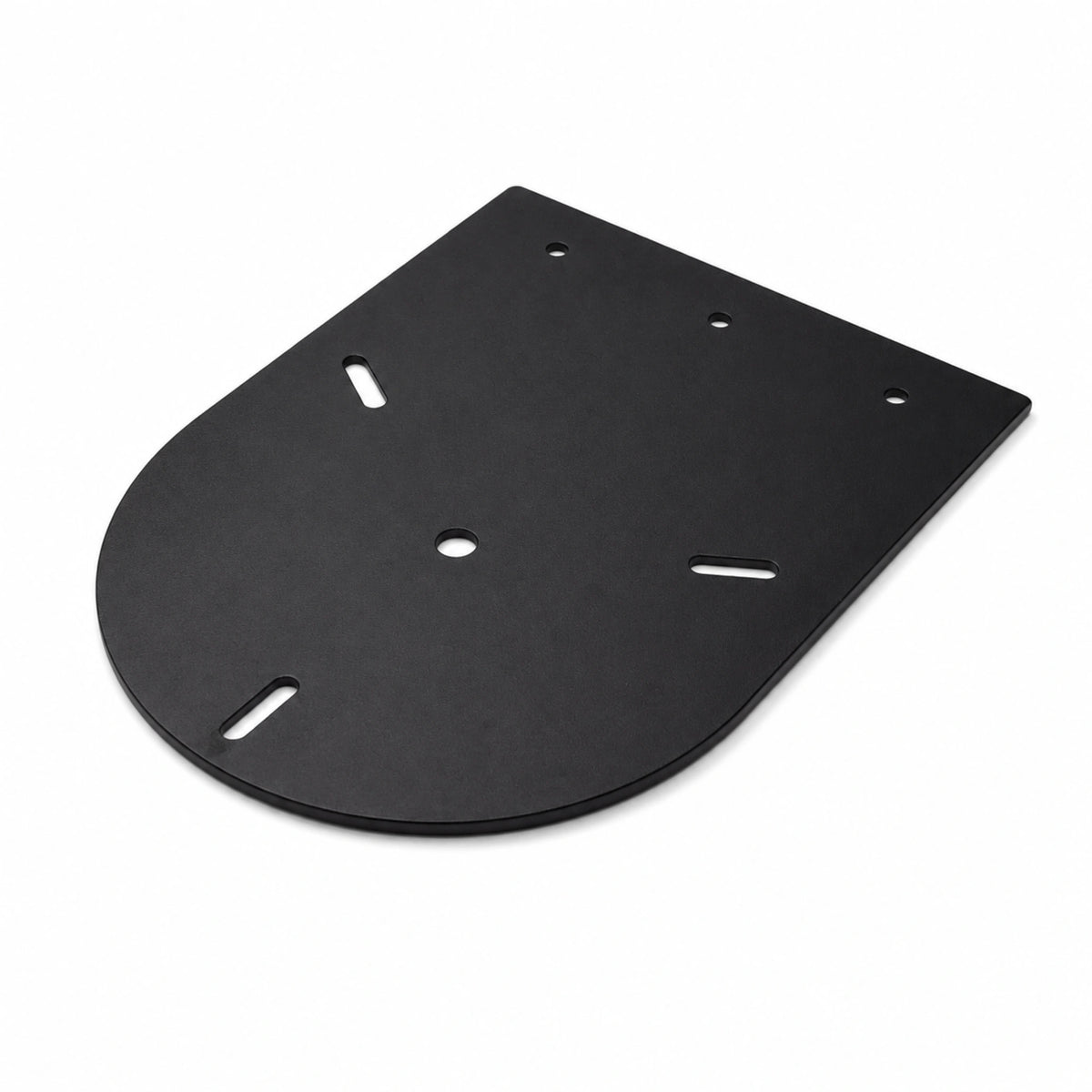

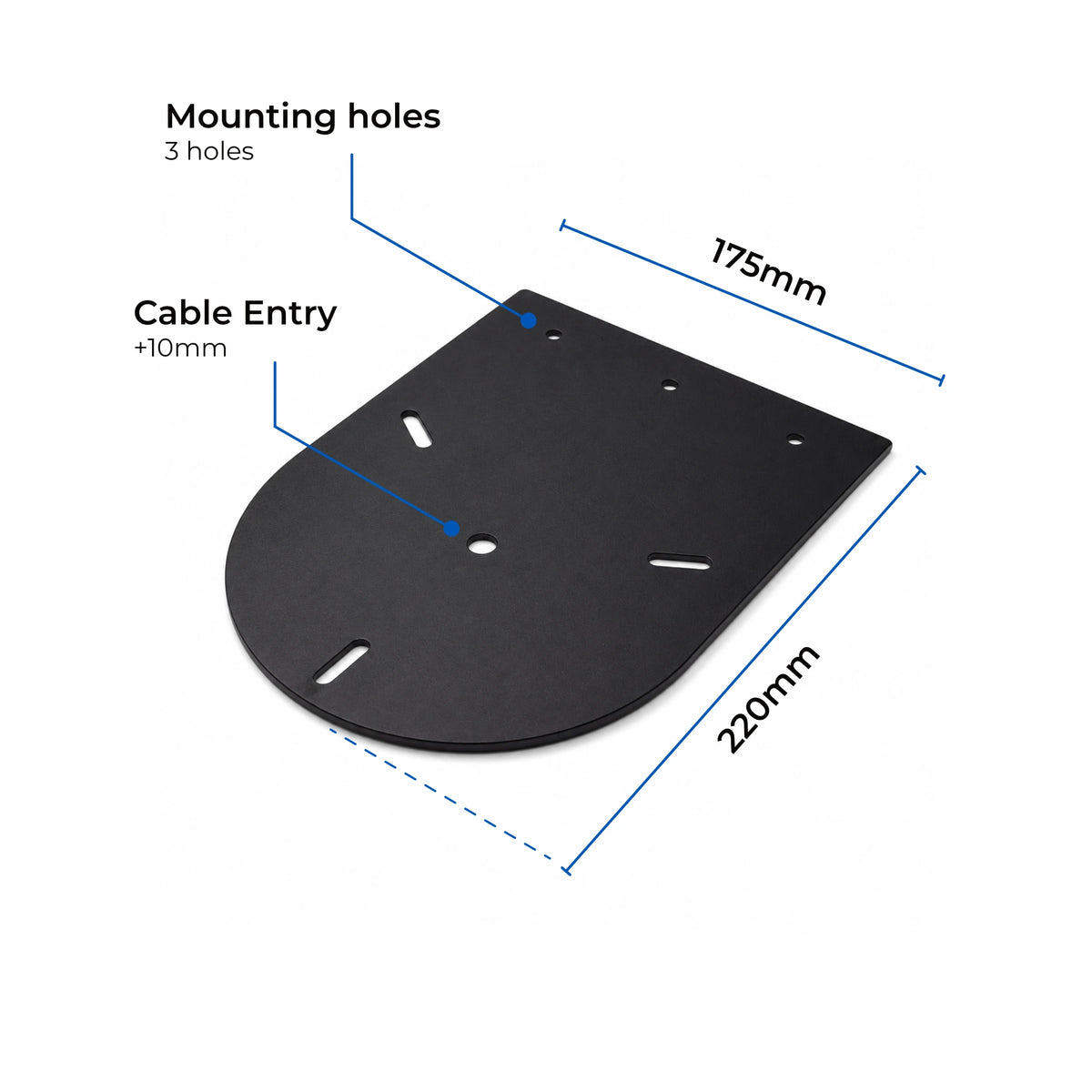

Powdercoated black, with slotted mounting holes for adjustment, 3 x 5mm fixing holes and a cable entry hole through the plate. Overall size 220 x 170 x 3mm, weighs approximately 0.8kg. Sold individually, beacon not included.

Part of the UAGS beacon mounting bracket range, alongside the 175mm offset bracket, 145mm offset bracket and 170mm round plate. If you need to clear a roof rack crossbar, rack upright or other round section, the offset bracket is usually the better fit.

• Heavy Duty 3mm Plate: Steel construction, powdercoated black for a durable finish.
• Suits Flat Mounting Surfaces: Ideal for headboards, canopies and flat equipment frame panels.
• Slotted Mounting Holes: Allow the beacon position to be adjusted along the plate.
• Fits Most Standard Beacons: Suits beacons up to 170mm base diameter.
• Cable Entry Hole: Keeps wiring tidy and protected through the plate.

UAGS Fabricated Steel Warranty - 2-Year Limited Coverage
This product includes a 2-year limited warranty from UAG Services Pty Ltd covering manufacturing defects in the fabrication, including structural integrity and finish adhesion, under normal use conditions.

This warranty does not cover wear and tear, rubbing, scuffing or wearing of the powder coat finish from normal handling, transport or storage, nor does it cover damage from misuse, impact, unauthorised modification or incorrect use.

To make a warranty claim, contact UAG Services Pty Ltd (Gate 2, 7 Royan Place, Bayswater North VIC 3153) at sales@uags.com.au or (03) 8750 0926 with your order reference, a description of the issue and photos of the product. Claims are subject to inspection and approval. Where a defect is confirmed, UAG Services Pty Ltd will repair, replace or refund the product at its discretion. Return shipping costs are handled in accordance with the UAGS Returns Policy unless otherwise required under Australian Consumer Law.

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. This warranty is provided in addition to these rights and does not limit or exclude them.
