24W Amber LED Warning Light Beacon Amber Lens

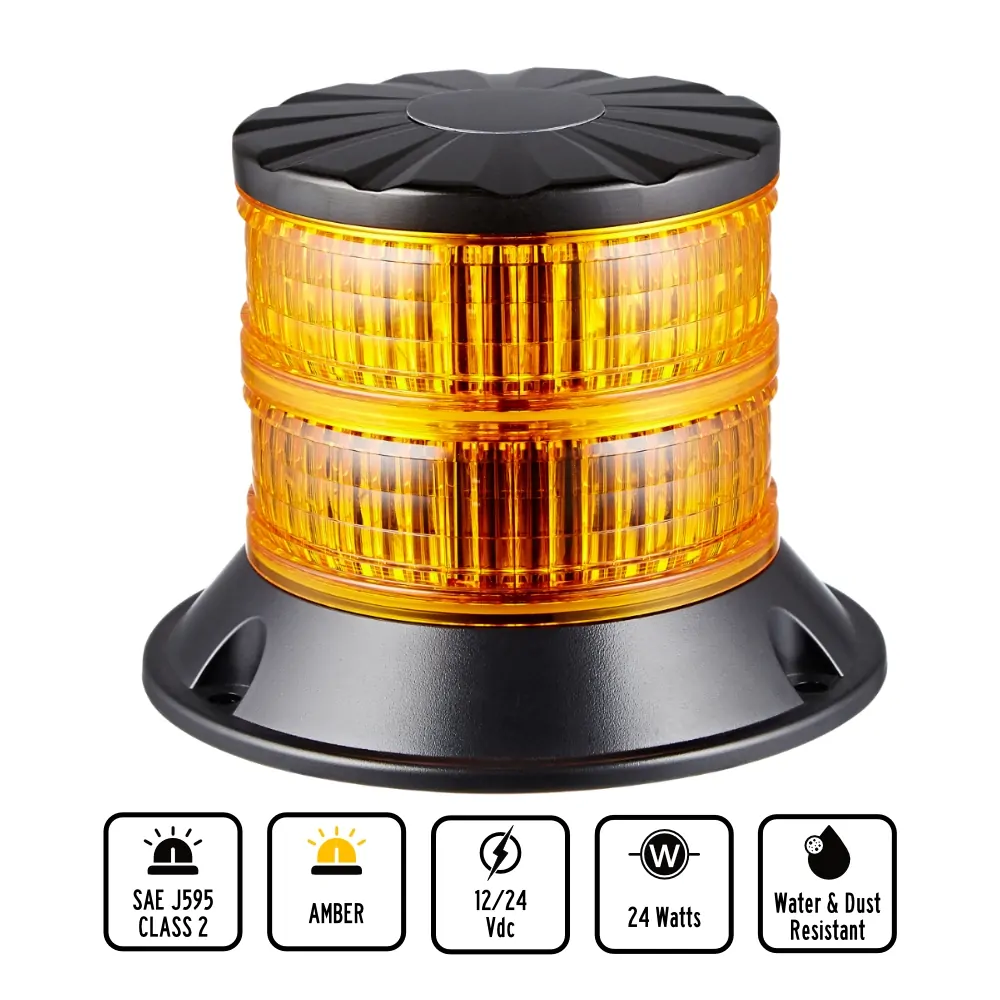

U4-24 24W LED Beacon

Model: U4-24

• IP65 Waterproof design
• Provides 360 degrees of Coverage
• Two levels of unique LED reflectors provide a full bodied beacon
• 18 flash patterns modes including flashing and rotating function.
• Low amp draw and bright output provide the ideal beacon for everyday use

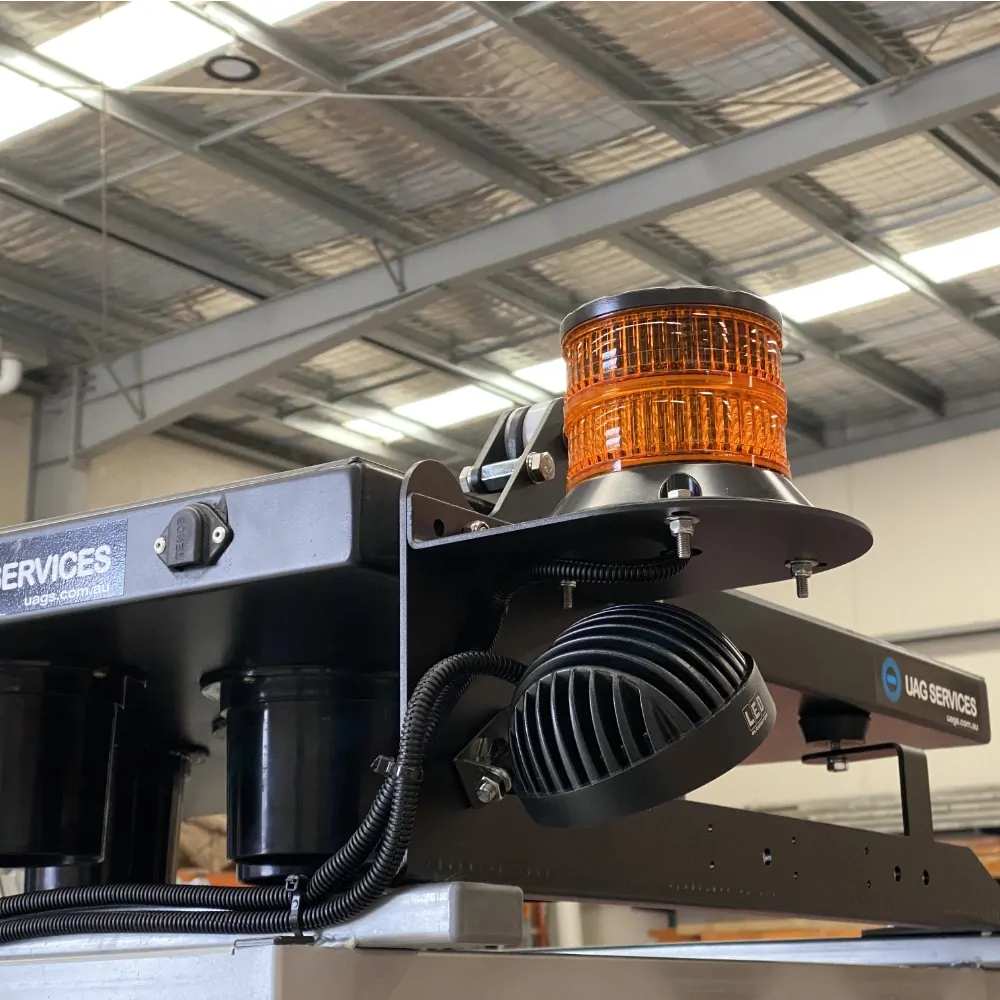

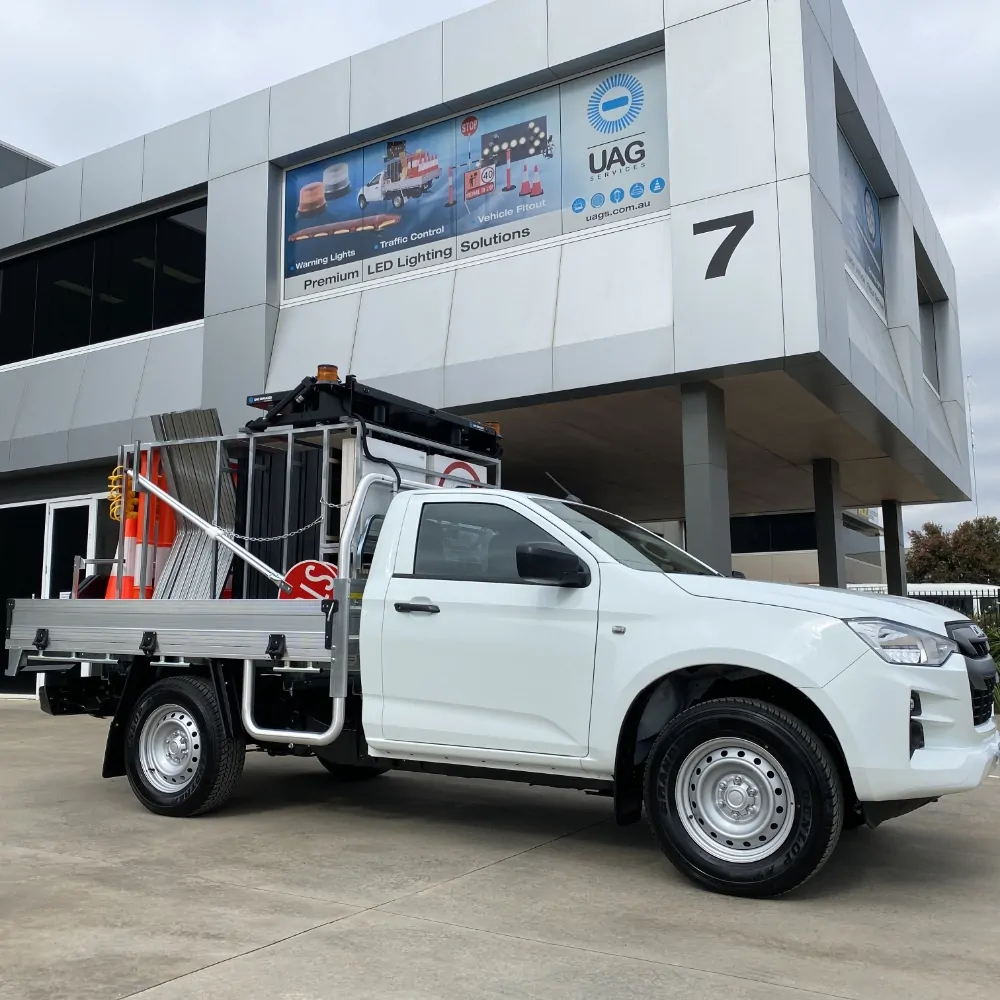

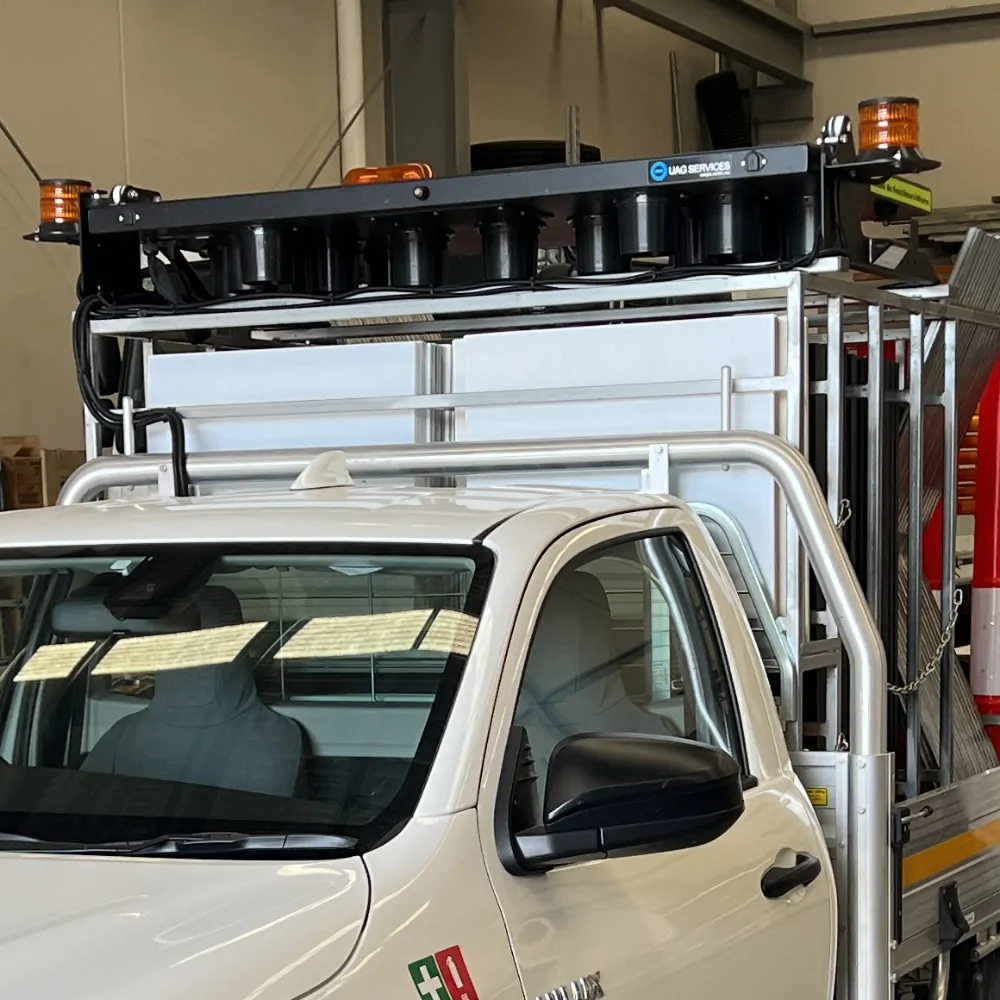

• Application: Car / Truck / Plant/ Machinery / Equipment / Forklift /Excavator

TECHNICAL SPECIFICATIONS

Light Characteristics

• LED Power: 24W (24PCS 1W LED)
• LED: Amber
• LENS: PC Amber

Electrical Characteristics

• Voltage: 10-30VDC
• MAX 2.6A @ 13.8VDC during flashing
• Blue wire to (-ve) momentun switch for pattern change

Physical Characteristics

• Waterproof: IP65
• Mounting: Aluminium Permanent three point base Gasket Supplied
• Flash patterns: 18
• ECE R65 / SAE CLASS 2

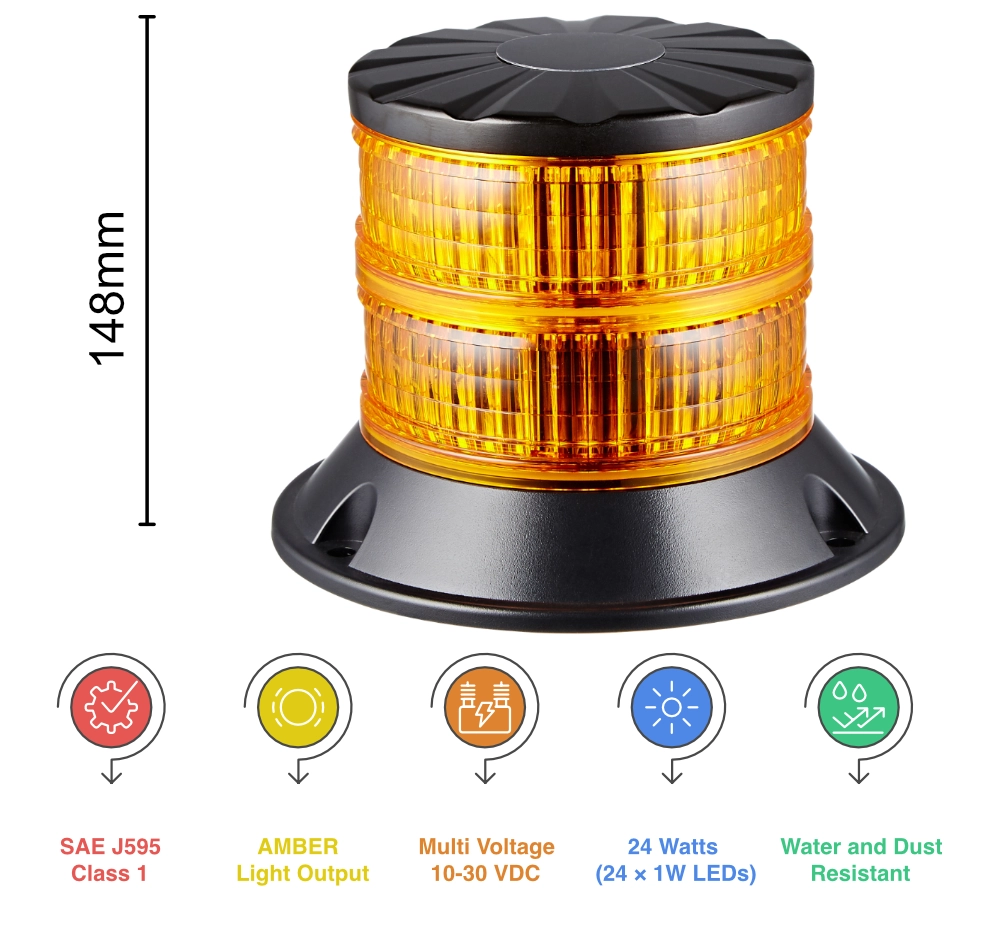

• Product Dimension: 148mm x 111mm

FLASH PATTERN

1. ECE Single Flash 120 FPM Ph1
2. ECE Single Flash 120 FPM Ph2
3. ECE Double Flash 120 FPM Ph1
4. ECE Double Flash 120 FPM Ph2
5. ECE Quad Flash 120 FPM Ph1
6. ECE Quad Flash 120 FPM Ph2
7. ECE Rotate Flash 120 FPM Ph1
8. ECE Rotate Flash 120 FPM Ph2
9. SAE Sigle Flash 75FPM Ph1
10. SAE Sigle Flash 75FPM Ph2
11. SAE Double Flash 75FPM Ph1
12. SAE Double Flash 75FPM Ph2
13. SAE Quad Flash 75FPM Ph1
14. SAE Quad Flash 75FPM Ph2
15. SAE Rotate Flash 75FPM Ph1
16. SAE Rotate Flash 75FPM Ph2
17. Steady On
18. Off

To select flash pattern, apply BLUE to BLACK (-ve) wire:

• 1 second for next pattern
• 2-3 second for previous pattern
• 4 seconds return to default pattern (PA1)
• 5 seconds to Dim
• 8 seconds to turn off the device

Operation/Connection

• Connect the RED Wire to +VDC (5A Fuse)
• Connect the BLACK Wire to chassis ground (-ve).
• Connect the Blue wire to Black wire (GRND) momentarily for pattern change.
• Connect the YELLOW wire of all lights together for synchronization.
• Connect the White wire to dim the unit.
