GME TX6160 5 Watt IP67 CB UHF Handheld Radio

Calculate Shipping

Pick-up from store - $0.00
Pickup in store from 7 Royan Pl, Bayswater North, Victoria between the hours of 9am and 3pm Mon - Fri, business days only. Please wait for confirmation that your order is ready before attempting pickup.

TX6160 5 Watt IP67 UHF CB Handheld Radio

Introducing the all-new 5 Watt UHF CB Handheld Radio from GME, TX6160.

Featuring class-leading 5 watt transmission power, an IP67 ingress-protection rating for outstanding performance and years of reliable use in the harshest Australian environments, up to 30 hours battery life, VOX Hands-free mode, a built-in LED torch, and a full suite of professional-grade accessories included.

These radios are serious equipment for users who demand the ultimate in handheld UHF CB communication, for both work and play.

Also available as a standalone unit (TX6160X), and a twin pack (TX6160TP).

Features:

5/ 1 Watt switchable transmission power
Rugged design, IP67 ingress protection
Up to 30 hours battery life
Built-in LED torch
Improved scan speed
Rotary power/ volume control for easy operation
Warranty: 3 Years

Product Specifications:

GENERAL
Frequency Range: TX476.425 - 477.4125 MHz
Number of Channels: 80, (75 voice, 2 telemetry RX only, 3 for future use)
Channel Spacing: 12.5 kHz
Dimensions 57 mm x 102 mm x 35 mm (without antenna)

RECEIVER
Sensitivity: -121 dBm
Audio Output Power: >0.5 watt max. (8 Ohm)

In the Box:

5 watt UHF CB Handheld radio (TX6160)
2600mAh Li-Ion battery pack (BP024)

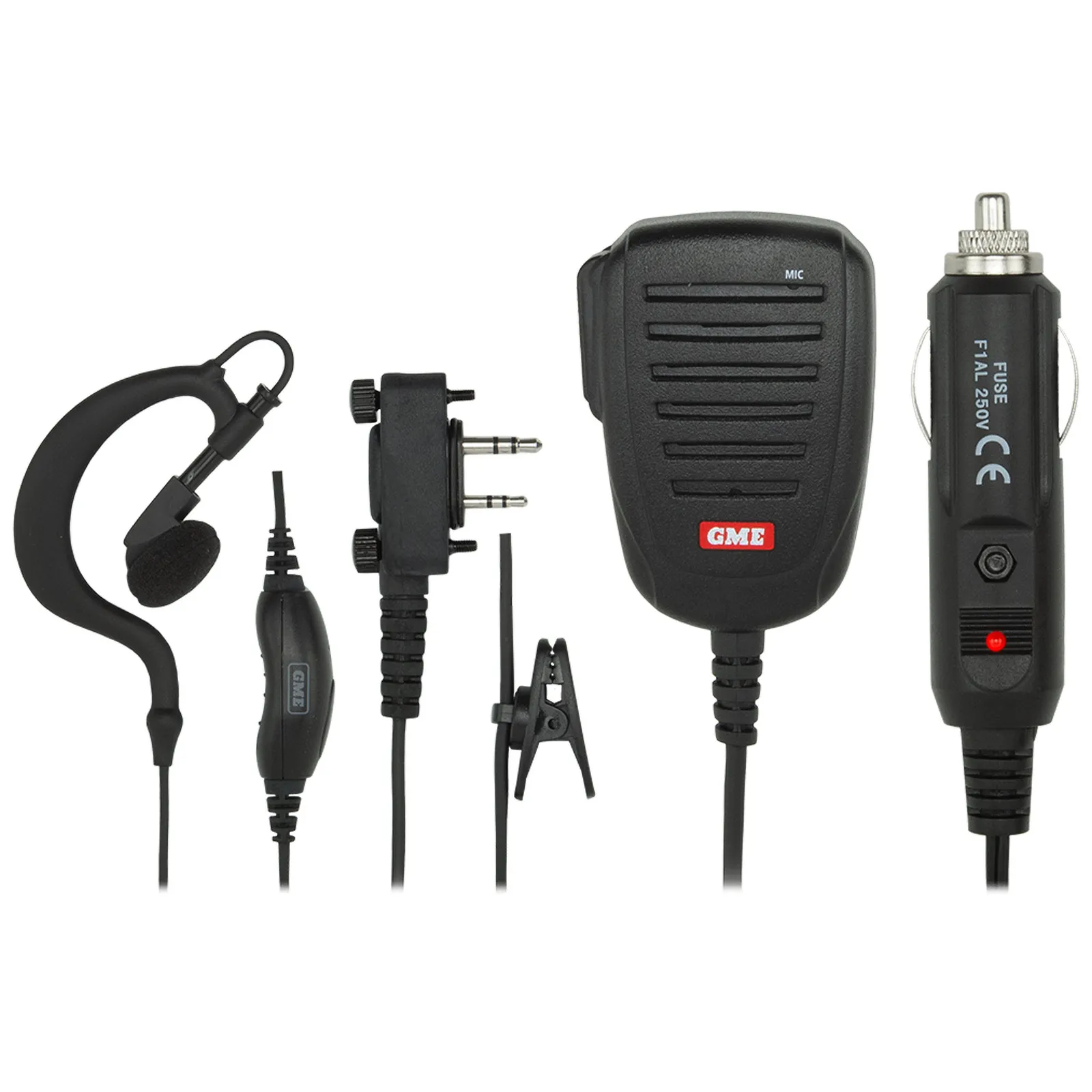

IP67 Waterproof speaker microphone (MC011)
Earpiece style microphone (HS015)
12V DC vehicle charger

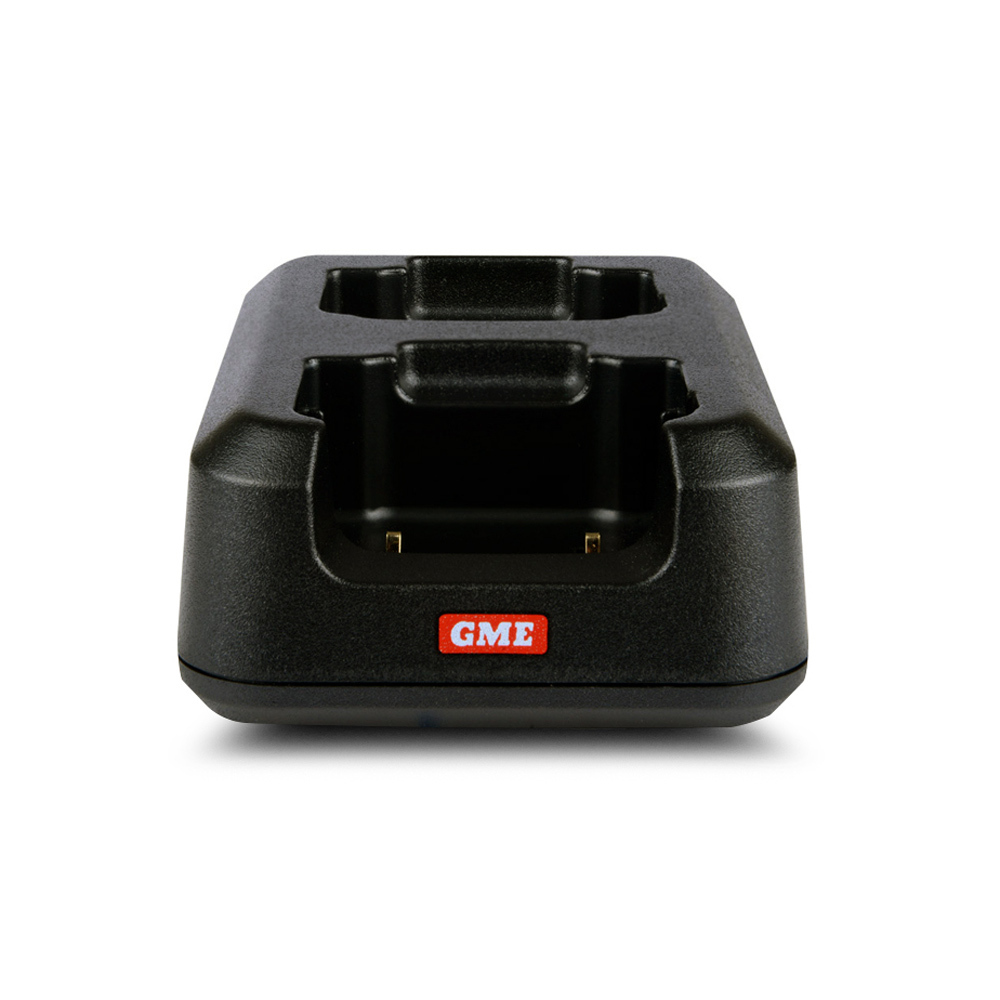

Desktop charger
AC adaptor
Belt Clip

(TX6160)

80 Channel UHF CB Radio
Up to 30 Hours Battery
Switchable Power Output (5W/1W)
Scan, CTCSS & VOX Function
DCS Digital Coded Squelch
Backlit LCD

General

Frequency Range: 476.425 – 477.4125 MHz
Channel Spacing: 12.5 kHz
Number of Channels: 80, (75 voice, 2 telemetry RX only, 3 for future use).
CTCSS Codes: 50
DCS Codes: 104
Dimensions: (W x H x D): 59 mm x 102 mm x 35 mm (without antenna and battery pack)
Complies with: AS/NZS 4365: 2011

Power Supply

Power Source: Li-ion rechargeable – 7.4V DC, 2600 mA
Operating Time: Low Power: Up to 30 hrs, High Power: Up to 18 hrs (Transmit 5%, Receive 5%, Standby 90%)

Receiver

Usable Sensitivity: -121 dBm
Maximum Audio Output: >0.5W max. (8 Ohm)
Modulation Distortion: <5% (1 kHz 70%)

Transmitter

Transmit Power: Hi: 5 watts Lo: 1 watt

SKU	TX6160
Barcode #	9319493277457
Brand	GME
Shipping Weight	0.8000kg
Shipping Width	0.100m
Shipping Height	0.290m
Shipping Length	0.100m
Shipping Cubic	0.002900000m3

Australian GME Warranty
Warranty: 3 Years
