OEX LED Work Light | Square, 12W

OEX LED Work Light - Square, 12W, 1300lm (Model: LLX08308)

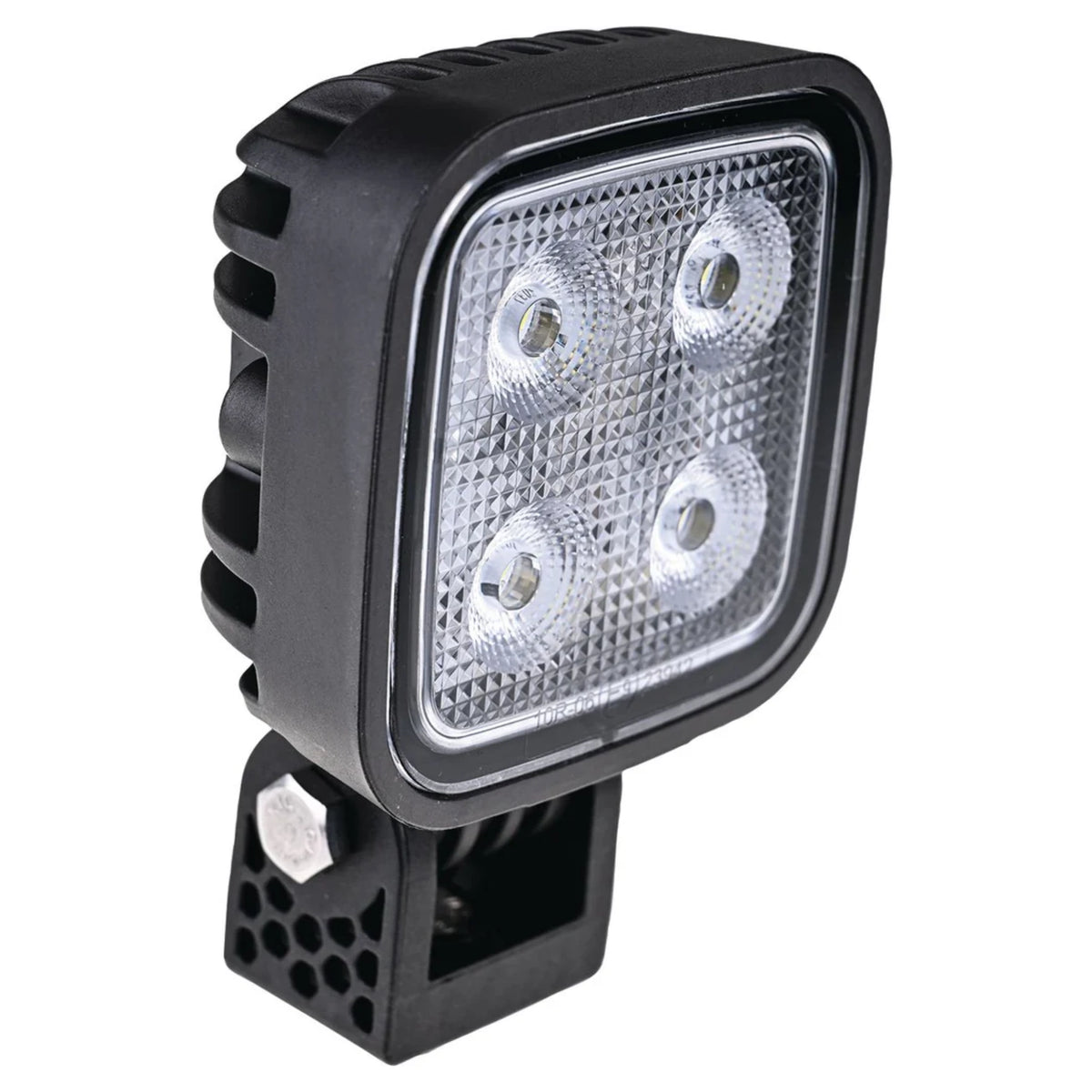

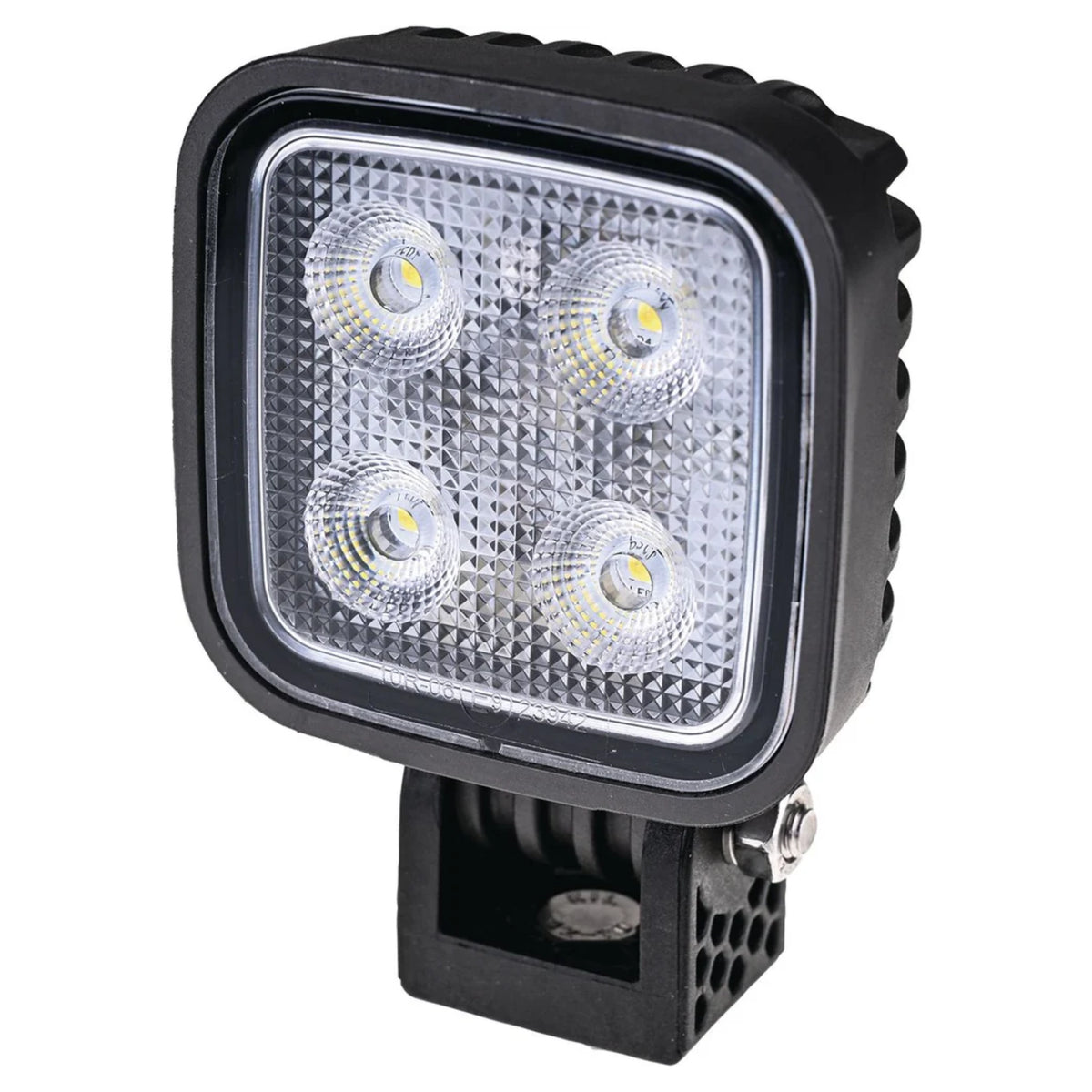

The OEX LLX08308 is a compact square LED work light that delivers 1300 effective lumens through a flood beam, giving crews clear light across a work area, tray or loading zone. It's a work and scene light, not a warning or hazard beacon, built for vehicles and plant that need reliable lighting on site.

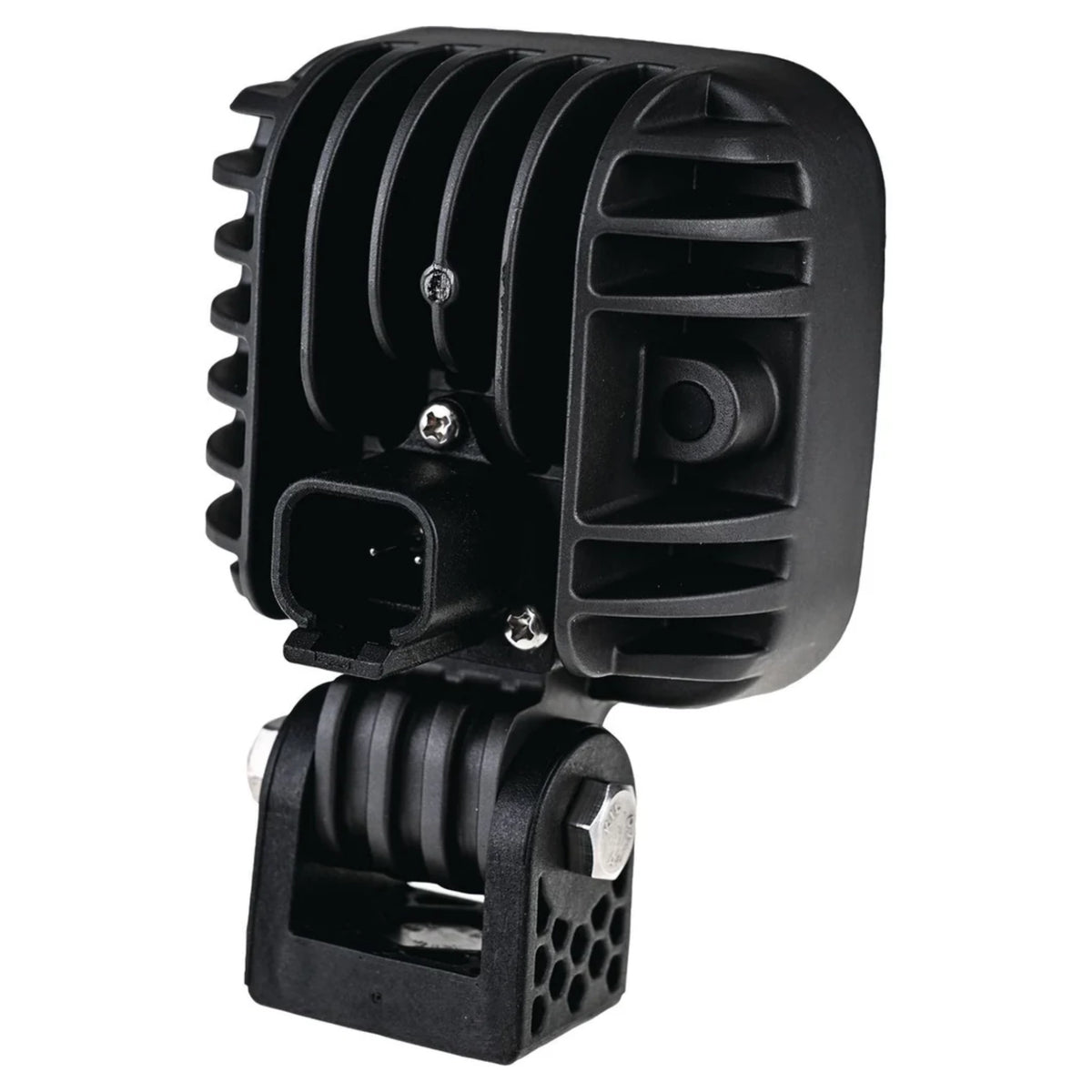

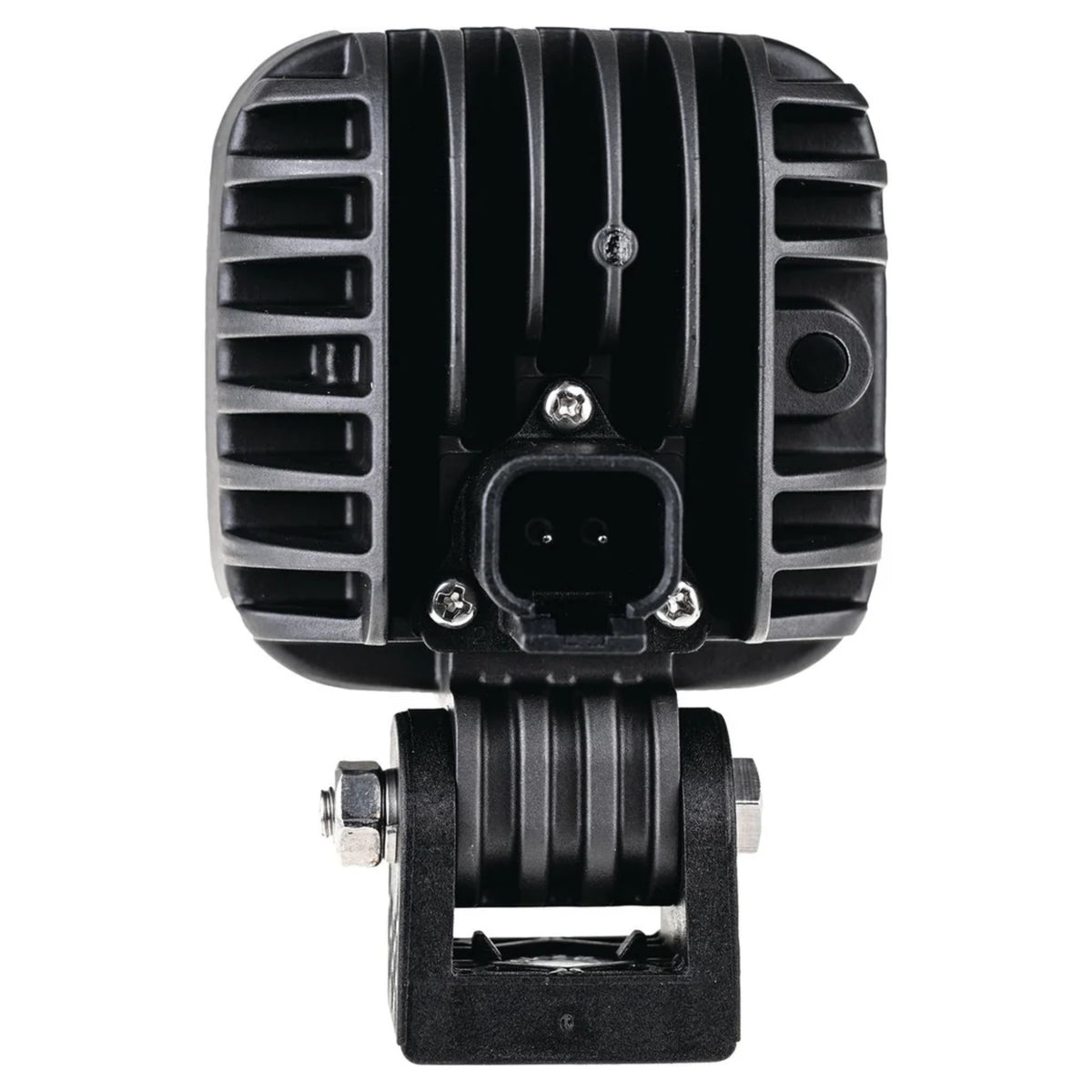

It mounts on a single bolt fixing with a DT04-2P connector, suiting fitout onto utility vehicle trays, canopies, trailers and plant equipment where a fixed flood light is needed. The compact 97 x 71 x 49mm housing and square profile keep it low profile in tight mounting positions.

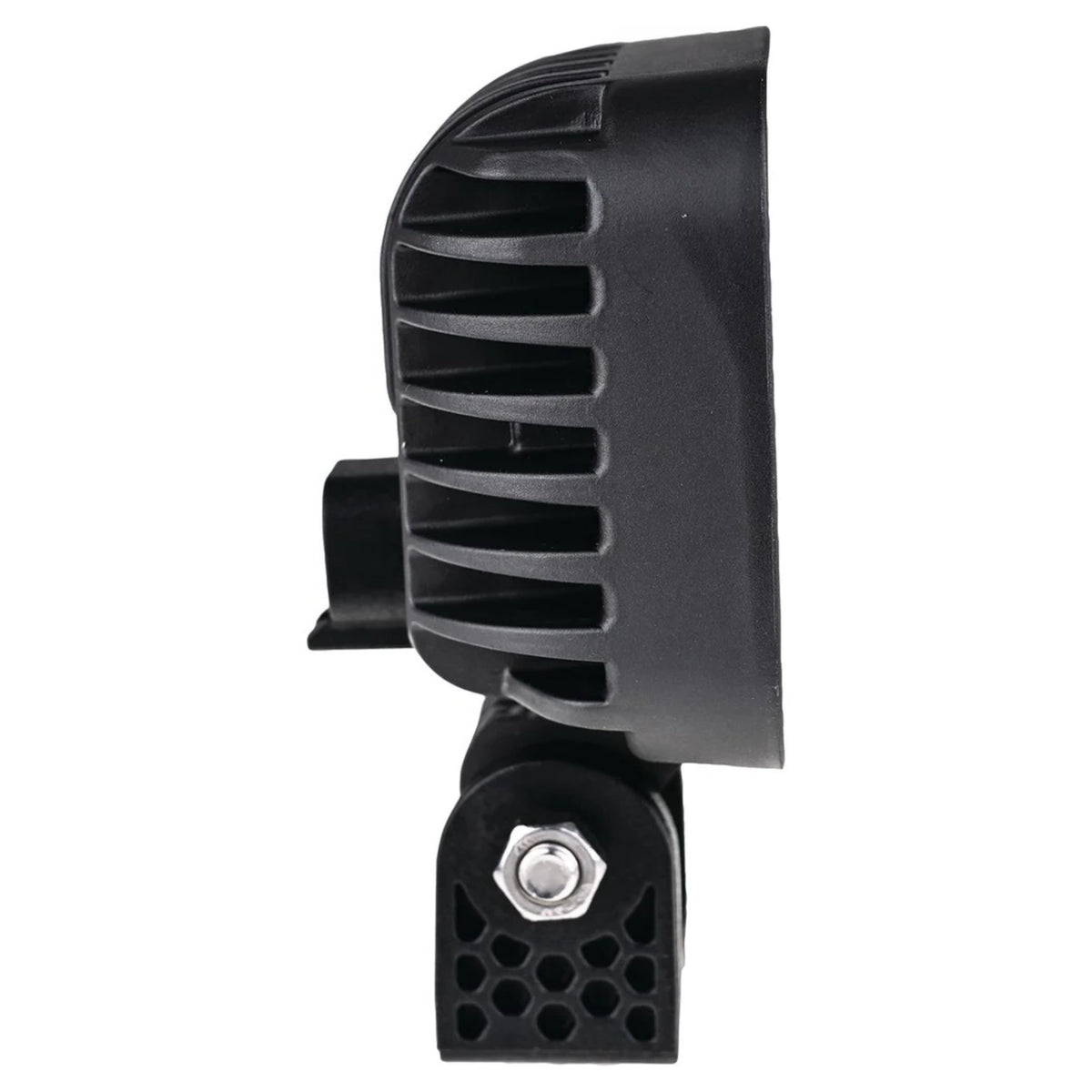

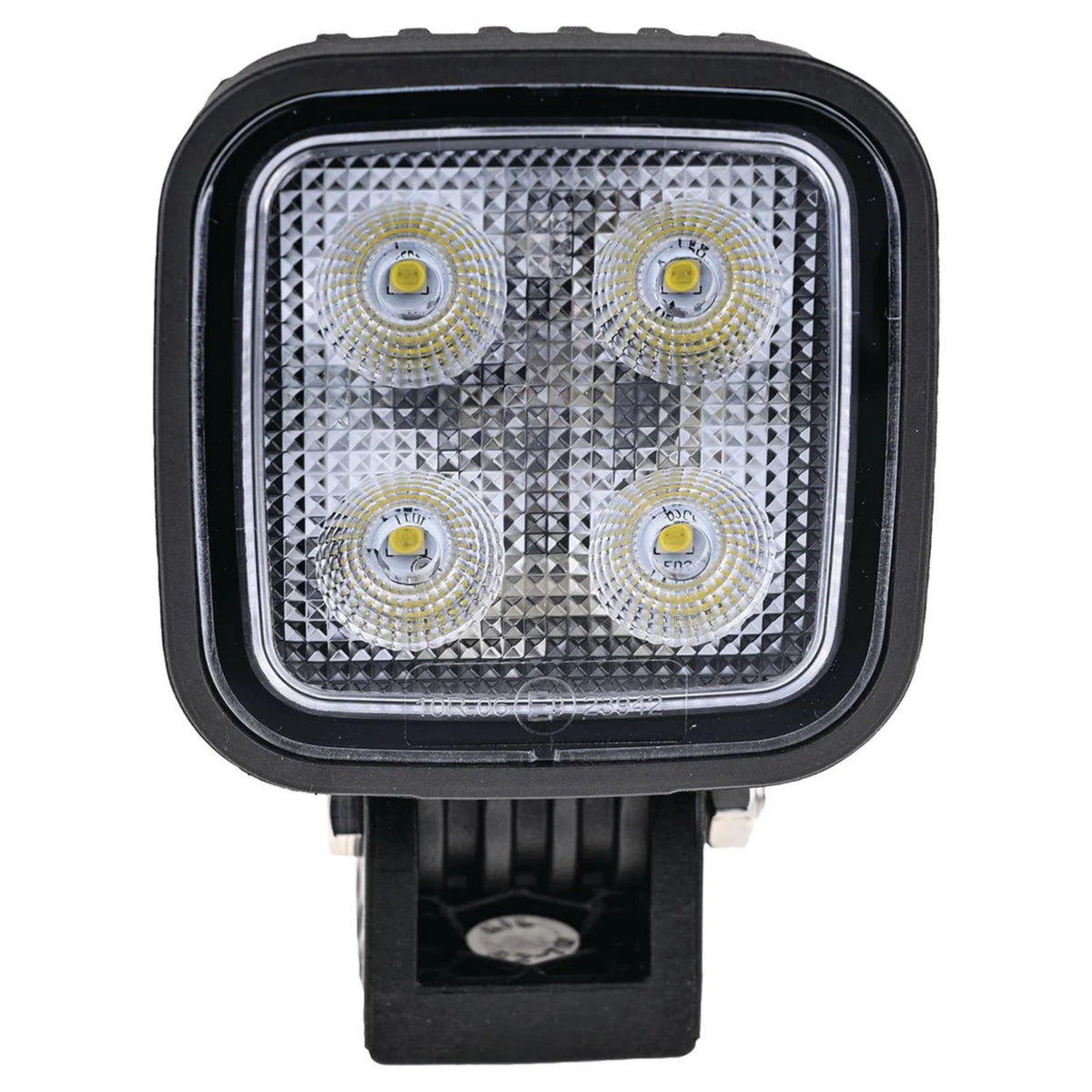

The housing is a corrosion-resistant thermal plastic that helps manage heat from the 4 x 3W LED array, fitted with a polycarbonate lens. It's sealed to IP67 and IP69K, so it holds up to dust, submersion and high-pressure washdown, and it's rated to 20G vibration for continuous use on working vehicles.

The LLX08308 runs on 10 to 30V DC, covering both 12V and 24V vehicle systems, and draws 0.9A at 13V. It's rated to CISPR25 Class 3 for electromagnetic compatibility, so it won't interfere with two-way radios or onboard electronics when wired in.

Suited to fitout on traffic management utes, civil and utility vehicles, trailers and plant equipment. Installation should be carried out by a suitably competent person or auto electrician. For the same light in a round housing, see the OEX LED Work Light | Round, 12W.

• Light Output: 1300 effective lumens from a flood beam pattern
• Housing: corrosion-resistant thermal plastic with a polycarbonate lens
• Sealing: IP67 and IP69K rated, dust-tight and high-pressure washdown resistant
• EMC Compliance: CISPR25 Class 3, safe for use near two-way radios and vehicle electronics
• Voltage: 10 to 30V DC, suits 12V and 24V vehicle systems
• Mounting: single-bolt fixing with DT04-2P connector
• Profile: compact square housing, 220g

Manufacturer Warranty - 12 Months
This product is covered by the manufacturer's warranty of 12 months against defects in materials and workmanship under normal use, in accordance with the manufacturer's standard warranty terms.

This warranty does not cover normal wear and tear, weathering or UV degradation, accidental or impact damage, incorrect or unauthorised installation, unauthorised modification, or use outside the product's stated operating conditions. Installation should be carried out by a qualified auto electrician; damage caused by DIY wiring is not covered.

To make a warranty claim, contact UAG Services Pty Ltd (Gate 2, 7 Royan Place, Bayswater North VIC 3153) at sales@uags.com.au or (03) 8750 0926 with your order reference, a description of the fault and photos of the product. UAG Services Pty Ltd will refer the claim to the manufacturer or authorised representative where required. Return shipping costs are handled in accordance with the UAGS Returns Policy unless otherwise required under Australian Consumer Law.

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. This warranty is provided in addition to these rights and does not limit or exclude them.
