Stepmate Towbar Step

Mounts Under Tow Ball | 4mm Powder Coated Steel

SKU: STEPM-YEL
$25000
Taxes and shipping calculated at checkout.

Pickup available at 7 Royan Place

Usually ready in 24 hours

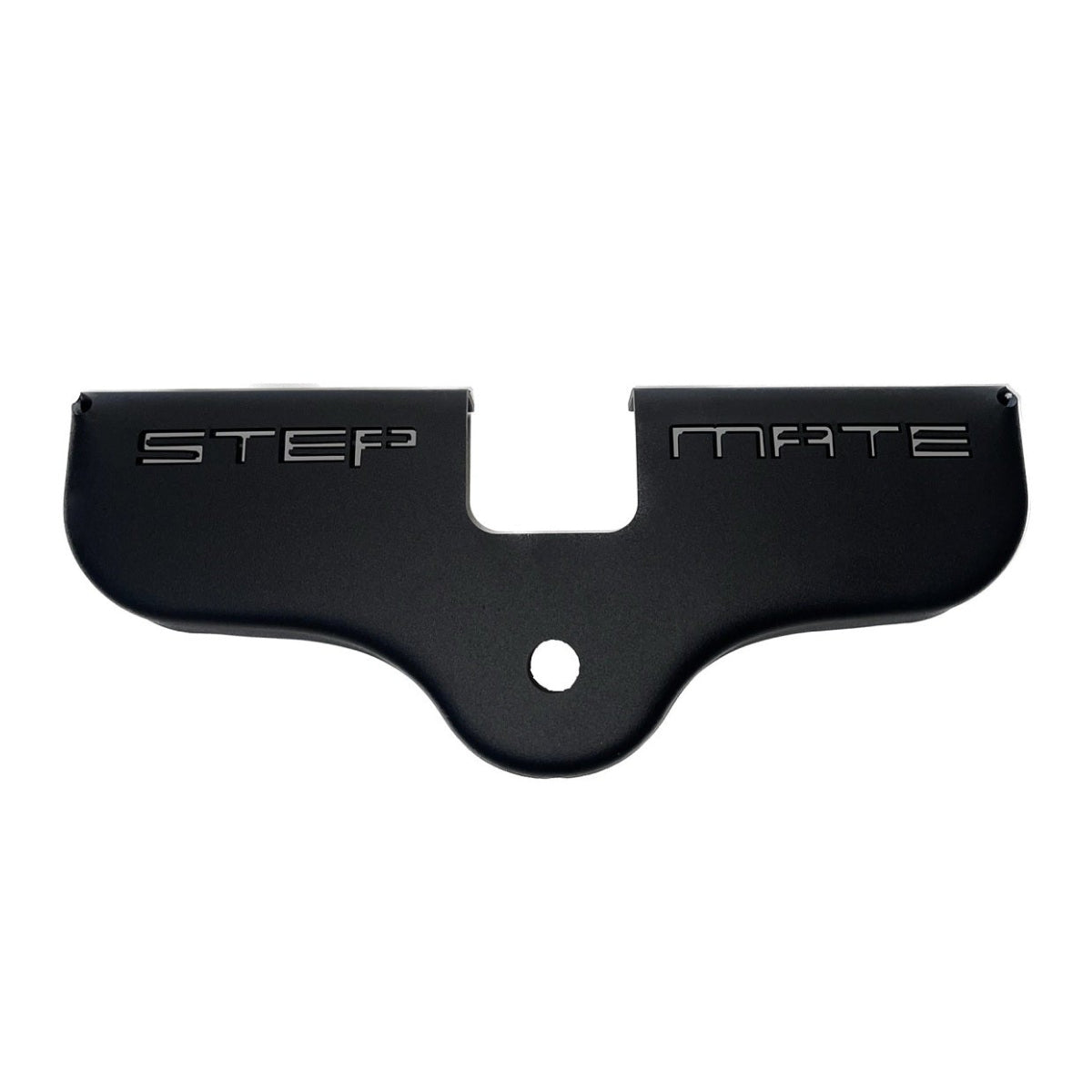

Australian-made towbar step that fits under your existing tow ball and stays fitted when towing. 4mm zinc nickel coated steel with a textured powder coat, in black or safety yellow.

Description

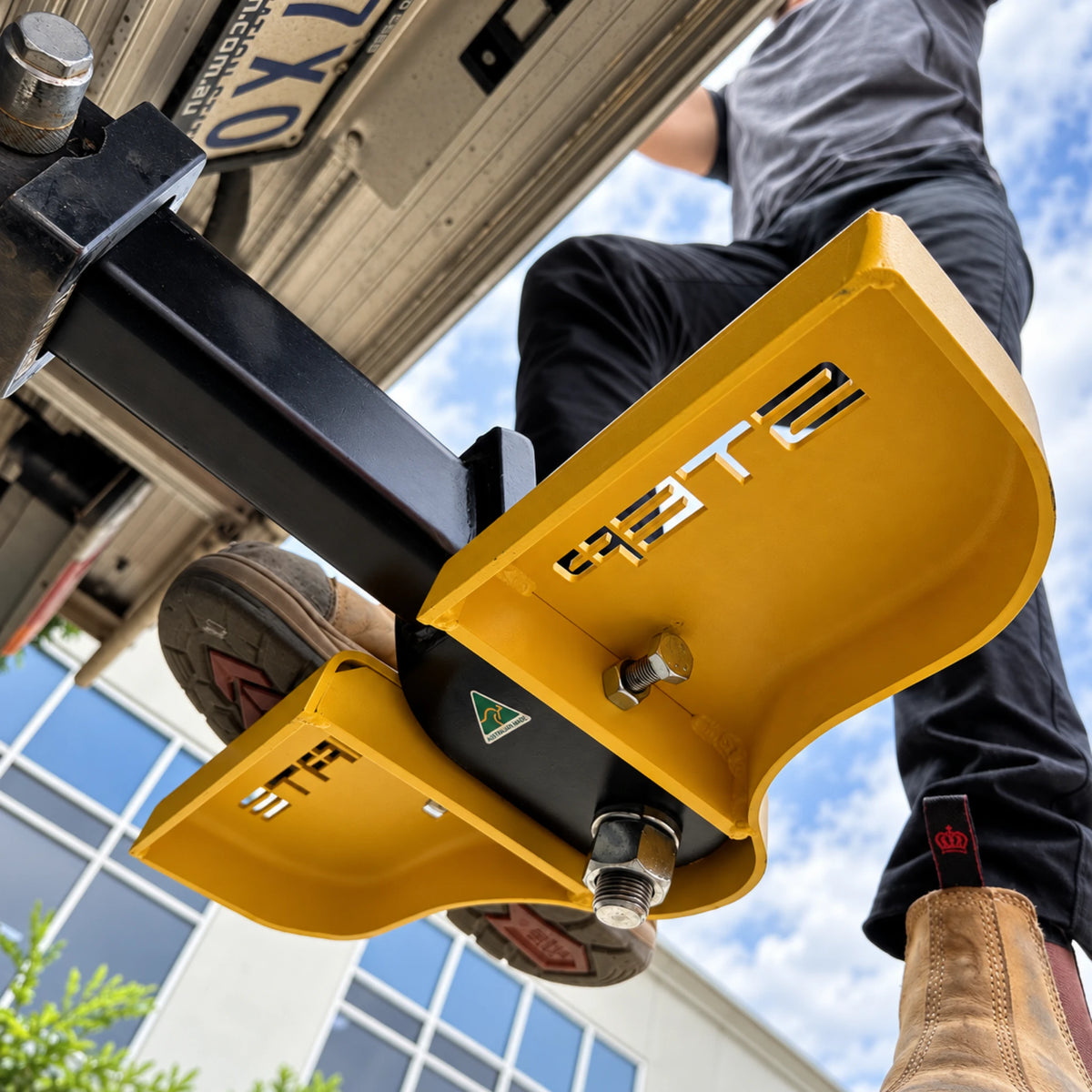

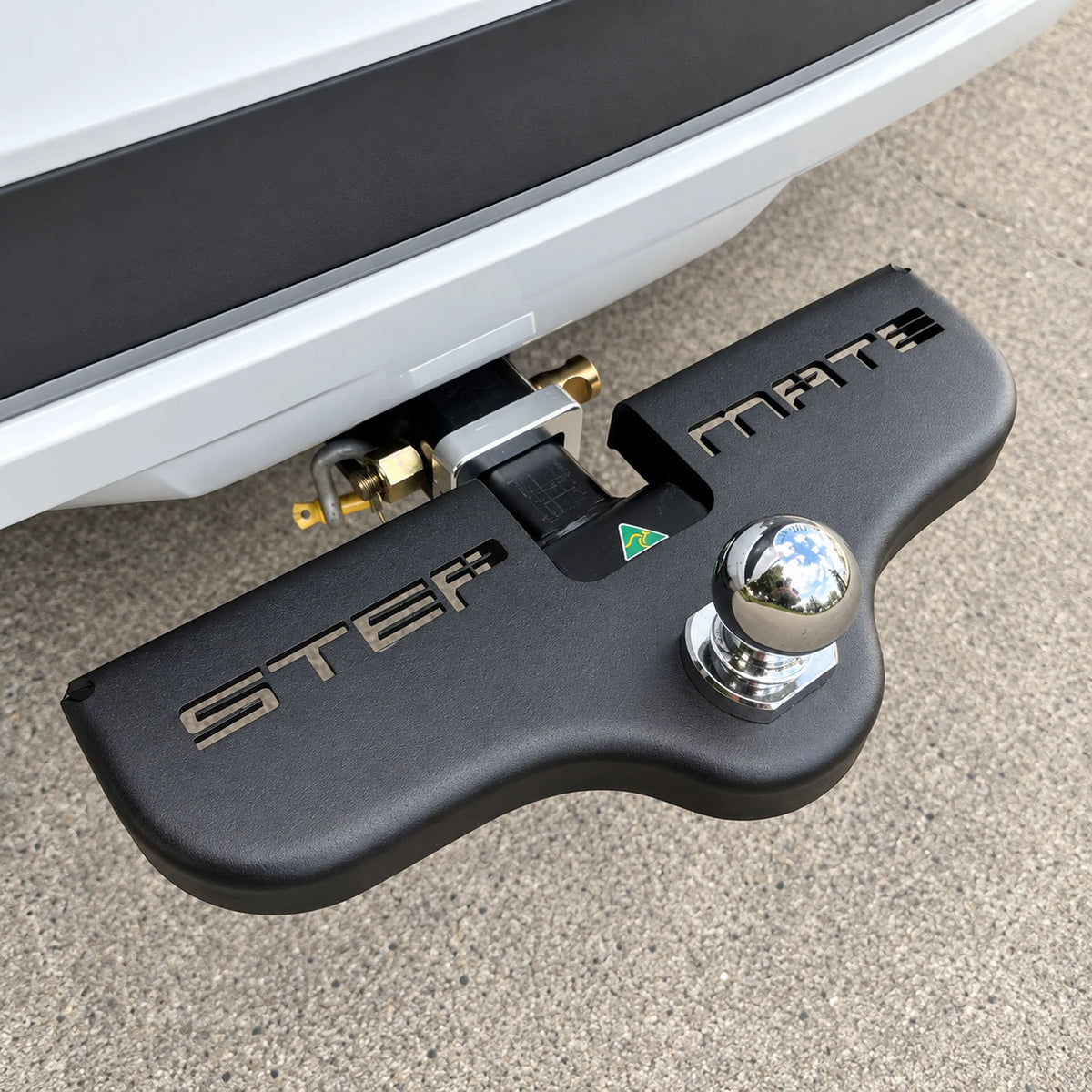

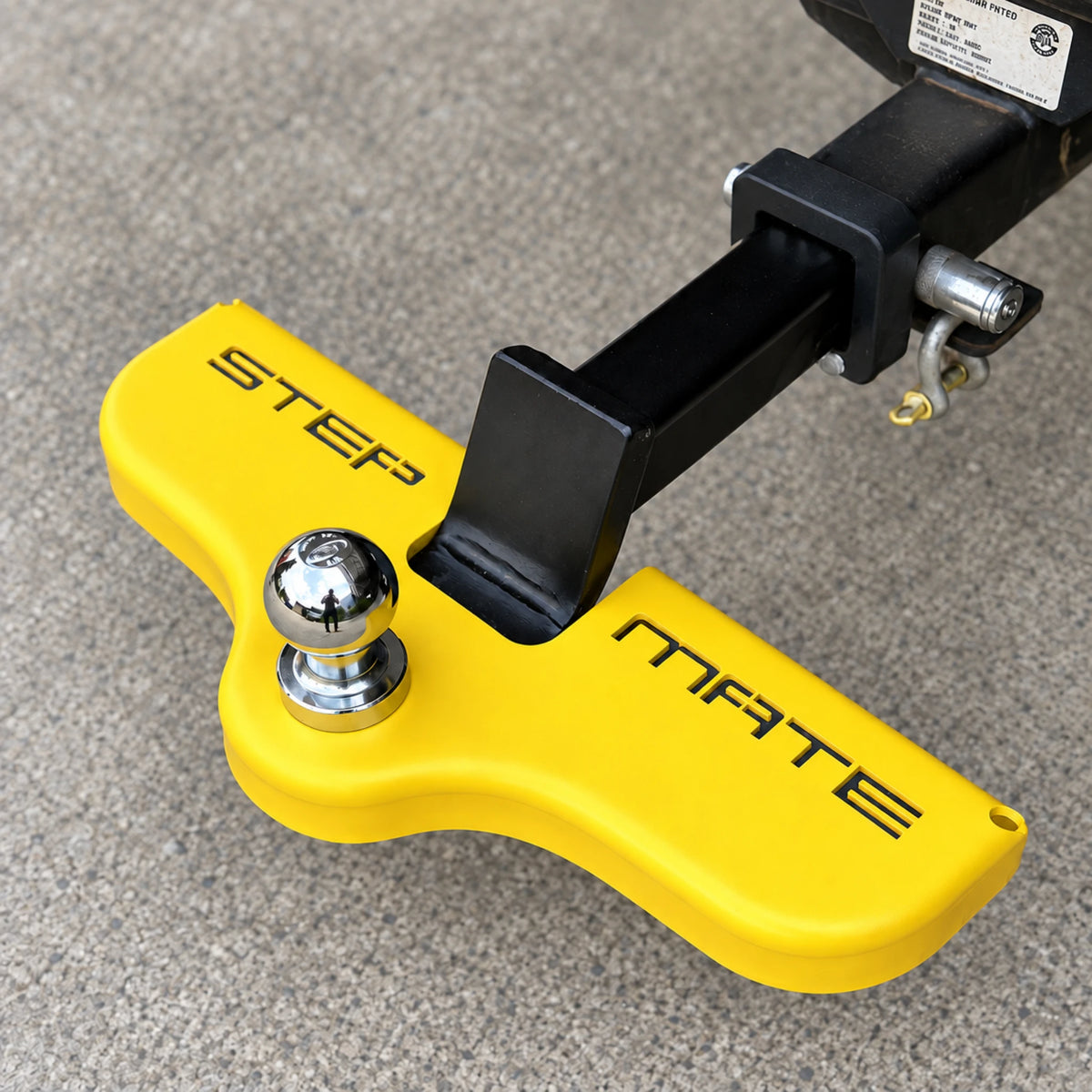

Stepmate is an Australian-made towbar step that fits between your tow ball and tow bar tongue. It gives you a solid step at the rear of the vehicle for loading the roof, washing the vehicle or reaching into the back. It stays fitted when you tow, so there is no need to take it off before hitching up a trailer.

It is made from 4mm steel plate, zinc nickel coated and finished in a textured powder coat, in black or safety yellow. The safety yellow suits fleets with OH&S colour requirements. The manufacturer rates it to 120kg per side (240kg total).

Fitting uses your existing tow ball, with no drilling. Remove the tow ball, sit Stepmate over the tongue, refit the tow ball, then wind in the two locking bolts until they bear on the sides of the tongue and lock them off with the nuts. It suits tongues from 60mm to 84mm wide.

Tongue shapes and tow ball setups vary between makes and model years, so check yours against the specifications before ordering. The tow ball is not included, as Stepmate fits under your existing one.

Features

  • Australian Made: 100% Australian made, carrying the Australian Made logo.
  • Stays Fitted When Towing: Designed to stay on the tongue while towing, with some tolerance when reversing a trailer.
  • 4mm Steel Plate: Zinc nickel alloy coated and finished in a textured powder coat to resist corrosion.
  • Manufacturer Load Rating: 120kg per side, 240kg total.
  • No Drilling: Fits using your existing tow ball, with two high-tensile locking bolts that clamp against the sides of the tongue.
  • Tongue Fitment: Suits tow bar tongues from 60mm to 84mm wide.
  • Two Colours: Black, or safety yellow for fleets with OH&S colour requirements.

Specifications

SKUSTEPM-BLK (Black), STEPM-YEL (Safety Yellow)
BrandStepmate
Product TypeTowbar step
Material4mm steel plate
FinishZinc nickel alloy coating with textured powder coat
ColoursBlack, safety yellow
Load Rating120kg per side, 240kg total (manufacturer rating)
Dimensions457mm (W) x 185mm (D) x 37mm (H)
Weight2.9kg
Tow Ball Hole32.5mm diameter
Tongue Width60mm to 84mm

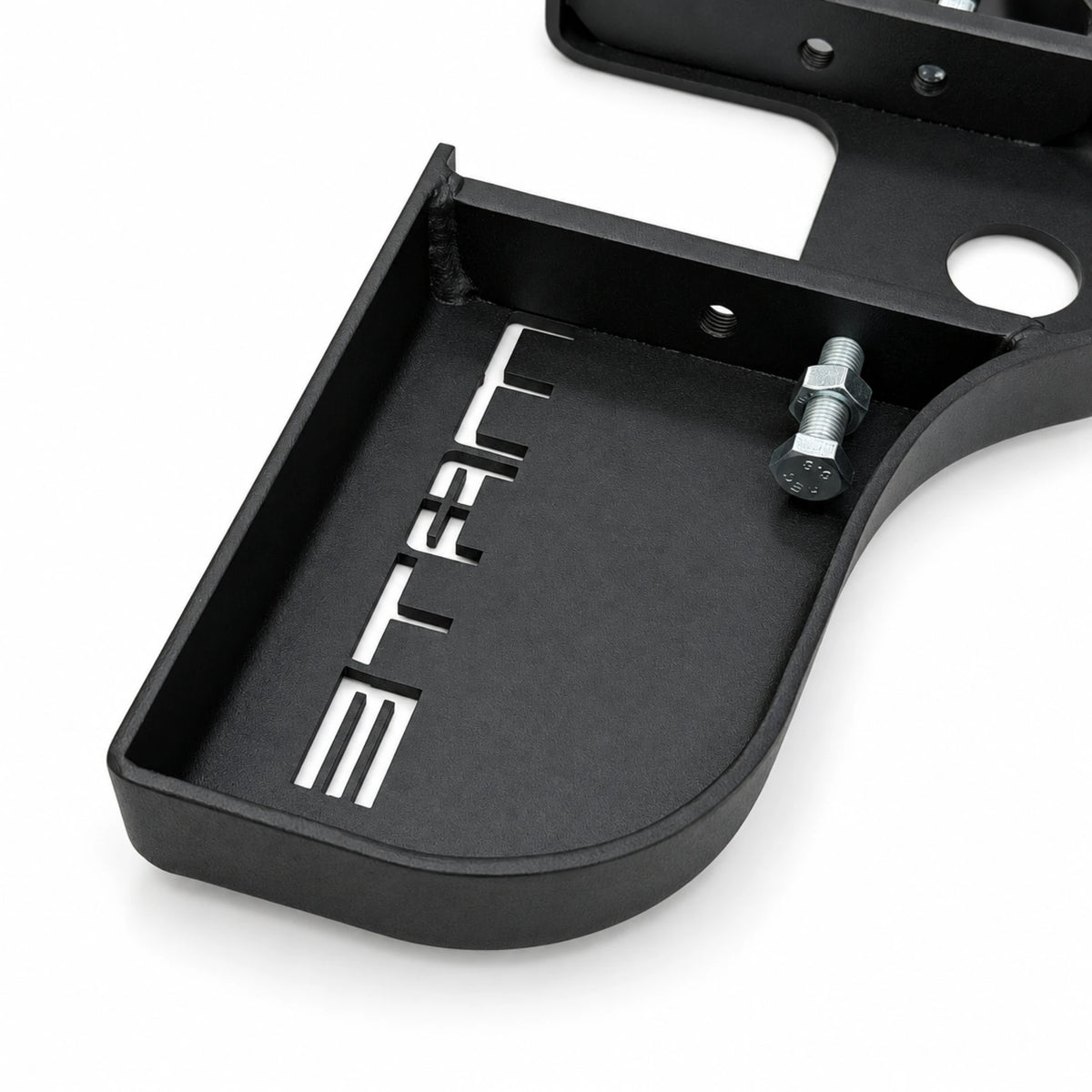

Locking Bolts2 x M10 x 40mm grade 8.8 high-tensile zinc plated hex bolts with nuts, two threaded positions
MountingBetween tow ball and tow bar tongue, no drilling
TowingCan stay fitted while towing
InclusionsStepmate step and 2 locking bolts with nuts. Tow ball not included.
Made InAustralia

Warranty

Stepmate Manufacturer Warranty: 12 Months
Stepmate is covered by the manufacturer's 12-month warranty.

This warranty does not cover wear to the powder coat finish from normal use, damage from impact (including contact with a trailer while reversing), loads above the manufacturer's rating, incorrect installation or loose fittings, or modification.

To make a warranty claim, contact UAG Services Pty Ltd (Gate 2, 7 Royan Place, Bayswater North VIC 3153) at sales@uags.com.au or (03) 8750 0926 with your order reference, a description of the issue and photos of the product. Claims are subject to inspection and assessment with the manufacturer. Where a defect is confirmed, the product will be repaired, replaced or refunded. Return shipping costs are handled in accordance with the UAGS Returns Policy unless otherwise required under Australian Consumer Law.

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. This warranty is provided in addition to these rights and does not limit or exclude them.

Stepmate Towbar Step FAQs

Is a tow ball included?

No. Stepmate fits under your existing tow ball, which you remove and refit during installation.

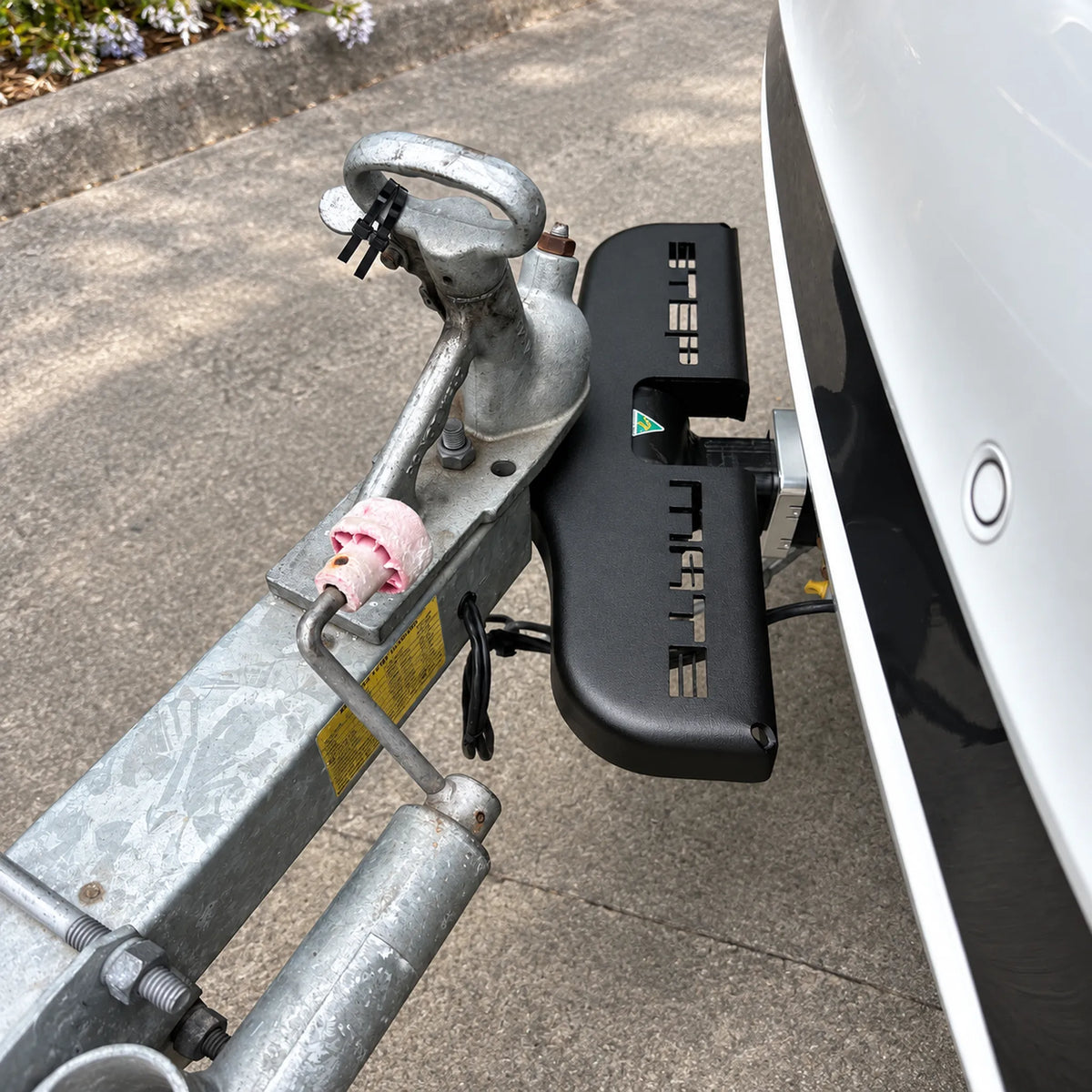

Do I need to remove it to tow?

No. Stepmate is designed to stay fitted while towing and allows some tolerance when reversing a trailer. Take care when reversing, as the driver is responsible for safe towing.

Will it fit my tow bar?

Stepmate suits tow bar tongues from 60mm to 84mm wide and has a 32.5mm tow ball hole. Tongue shapes vary between makes and model years, so measure your tongue before ordering. Some older or non-standard tongues may need replacing to suit.

Will my tow ball have enough thread?

Stepmate adds 4mm of plate under the tow ball. Check your tow ball shank has enough thread left for the nut to engage fully once Stepmate is fitted.

How much weight will it hold?

The manufacturer rates Stepmate to 120kg per side, 240kg total.

How is it installed?

With hand tools and no drilling. Remove the tow ball, nut and washer. Loosen the two locking bolts so they clear the tongue, sit Stepmate over the tongue hole and refit the tow ball. Tighten the tow ball first, then wind the locking bolts in evenly on both sides until they bear on the tongue, and tighten the nuts to lock them.

Why are there two bolt positions?

Each locking bolt can go in either of two threaded positions. Use whichever position sits best against your tongue.

Is the safety yellow version the same product?

Yes. It is the same steel, coating and fitment, finished in safety yellow for fleets and sites with OH&S colour requirements.
