HL6 18W White LED Warning Light Head | Linear Lens

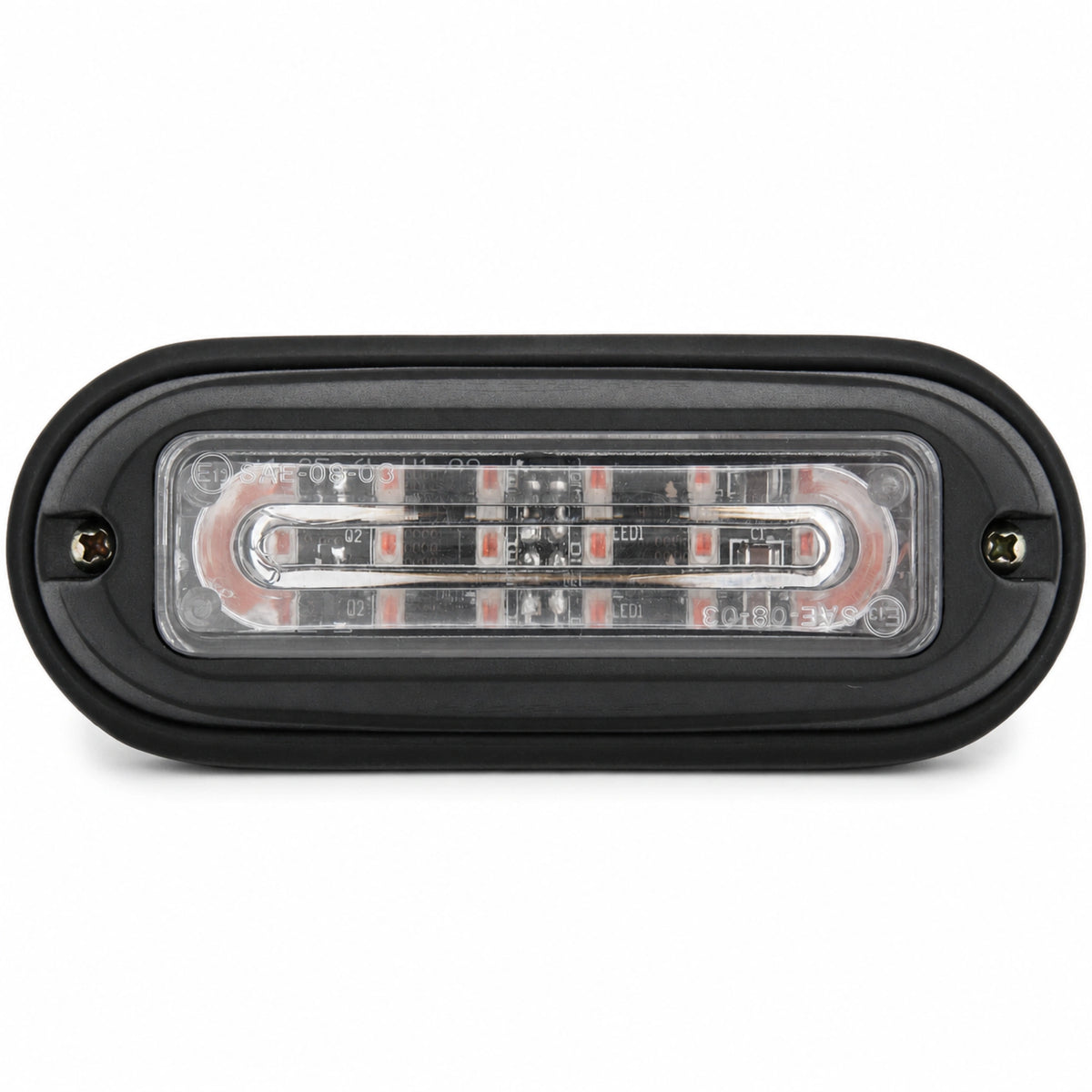

The HL6 is a surface mount LED warning light head built around six 3W LEDs behind a linear (LIN) lens, giving an 18W LED array. The manufacturer rates it as a wide angle warning light, and the linear lens spreads output along the length of the lens window rather than through separate optical cells. It signals vehicle presence on traffic control, civil, utility and fleet vehicles, plant and machinery, and is supplied in white output only.

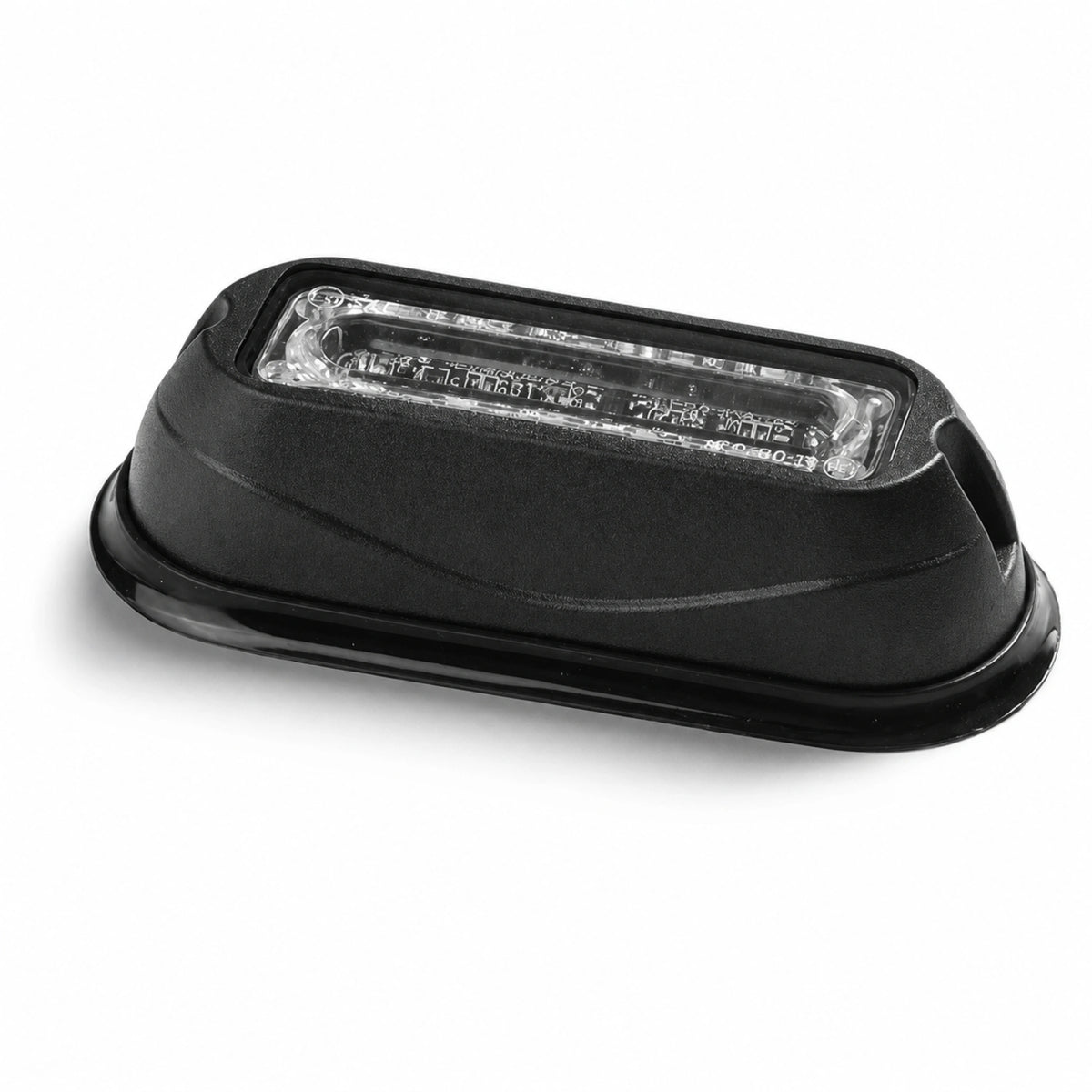

The HL6 surface mounts through two screw fixing points, one at each end of the housing, 104mm between centres, using 4mm screws. A moulded rubber surround seats the head against the mounting surface. It suits grille surrounds, bull bars, guards, tray and body rails, headboards and rear body panels where a low profile head is needed. Confirm mounting hardware and wiring with your auto electrician for your specific vehicle and application.

Output runs across 19 selectable flash patterns at a flash rate of 1 to 4Hz. Input is 10 to 30V DC, covering 12V and 24V vehicles and plant with the one part, at a maximum draw of 8W.

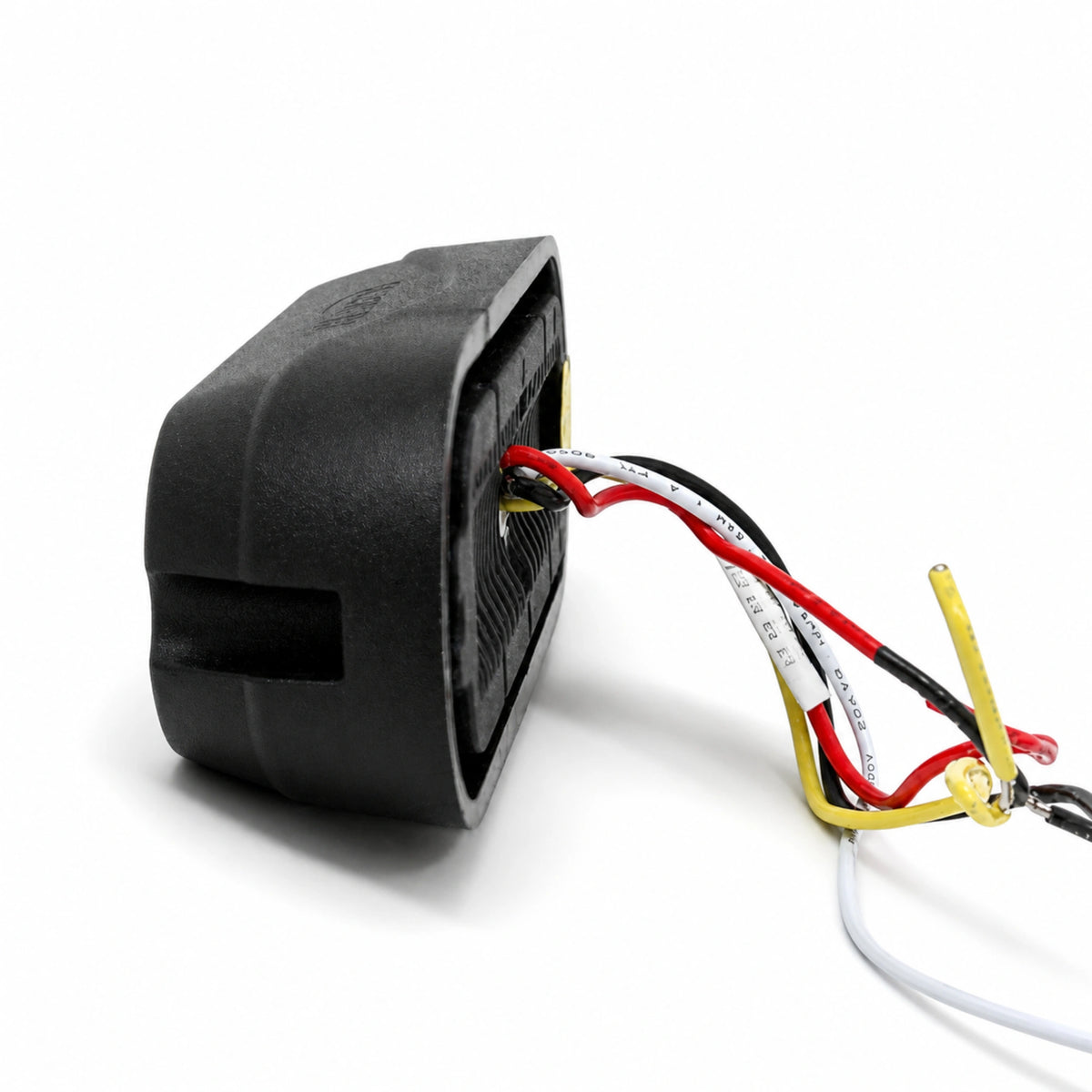

Wiring runs on four cores: red for +12 to 24V DC power through a 3A fuse, black for chassis ground, white to set the head into flash group one or group two for simultaneous or alternating operation, and yellow for pattern selection and synchronisation. Connecting the yellow wires of several heads together synchronises their flash, so a set of front, side and rear heads runs as one system. Wiring should be carried out by a qualified auto electrician.

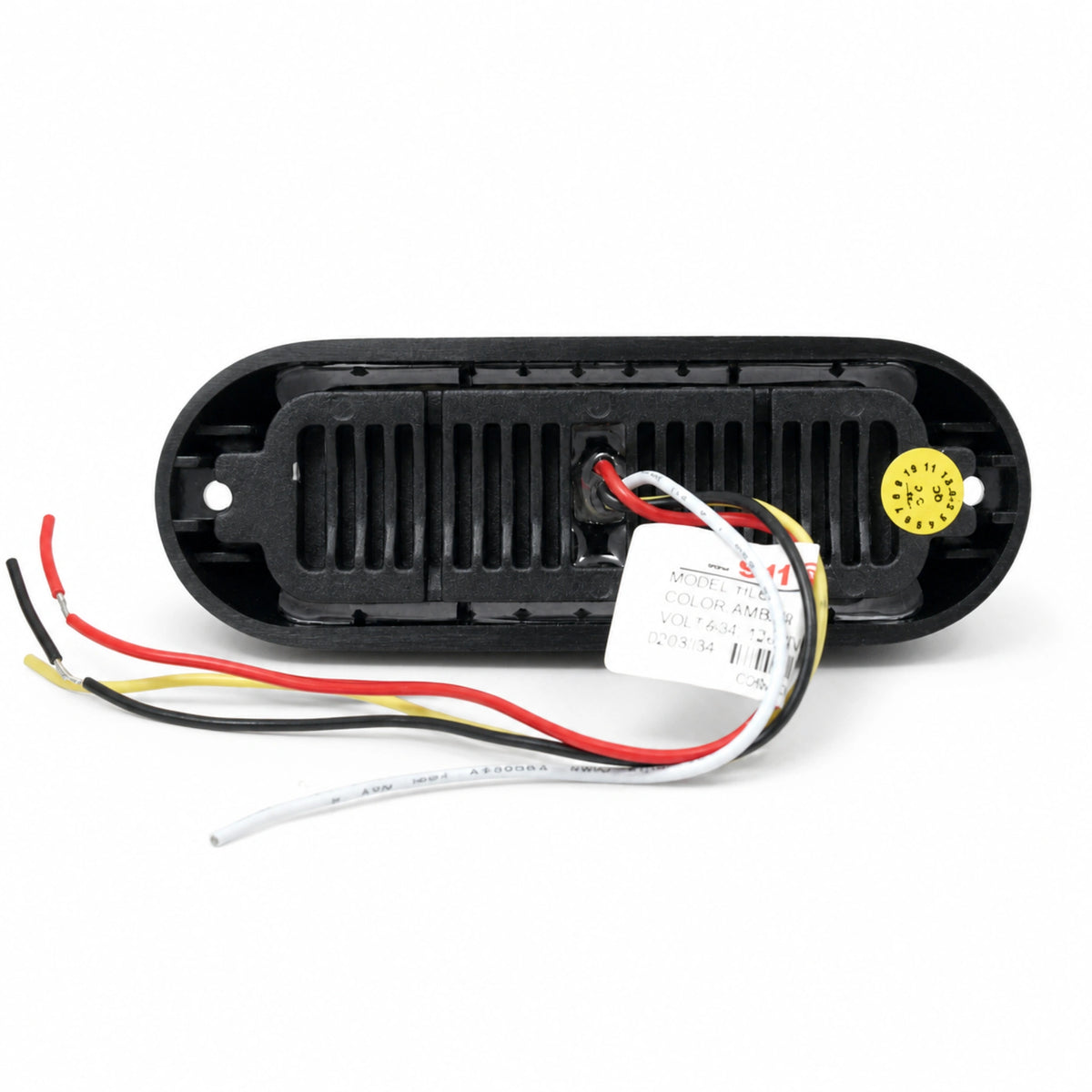

The head is built on an aluminium base, with the internals fully encapsulated for moisture, vibration and corrosion resistance. It is rated for ambient temperatures from -20 to +65 degrees, suited to exposed mounting positions on vehicles working in vibration, dust and weather, and LED lifespan is rated at 100,000 hours.

Supplied product data lists ECE R10 03 12468. Vehicle lighting requirements vary by vehicle type, registration category and jurisdiction, so confirm the requirements that apply to your vehicle and use.

The HL6 is the linear lens head in this range, and shares its 120 x 42 x 25mm housing with the H4 12W LED warning light head, which carries four LEDs behind a TIR lens instead and is available in white, red, or red and blue. The X6 18W LED warning light head is the other six-LED 18W head, in a much smaller 90mm housing with a 180 degree TIR lens, and the F3 9W mini LED warning light head is the smallest head in the range for tight spaces. For amber warning output on traffic control and civil vehicles, see the UAGS-branded U30-6, U30-12A and U31 light heads.

• 6 x 3W LEDs (18W Array): Six LEDs behind a single lens window.

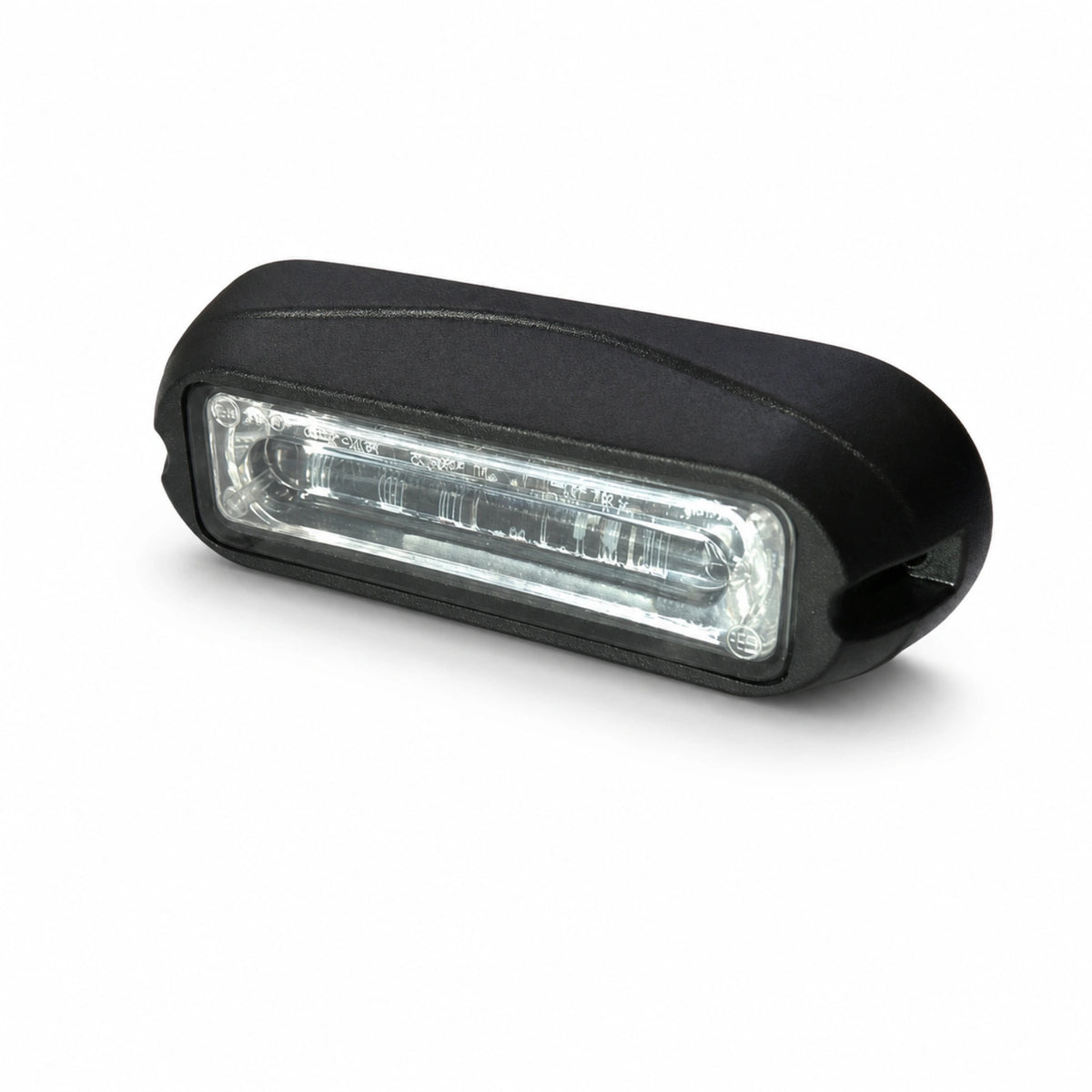

• Linear (LIN) Lens: Spreads output along the length of the lens window rather than through separate optical cells, for a wide angle warning light.

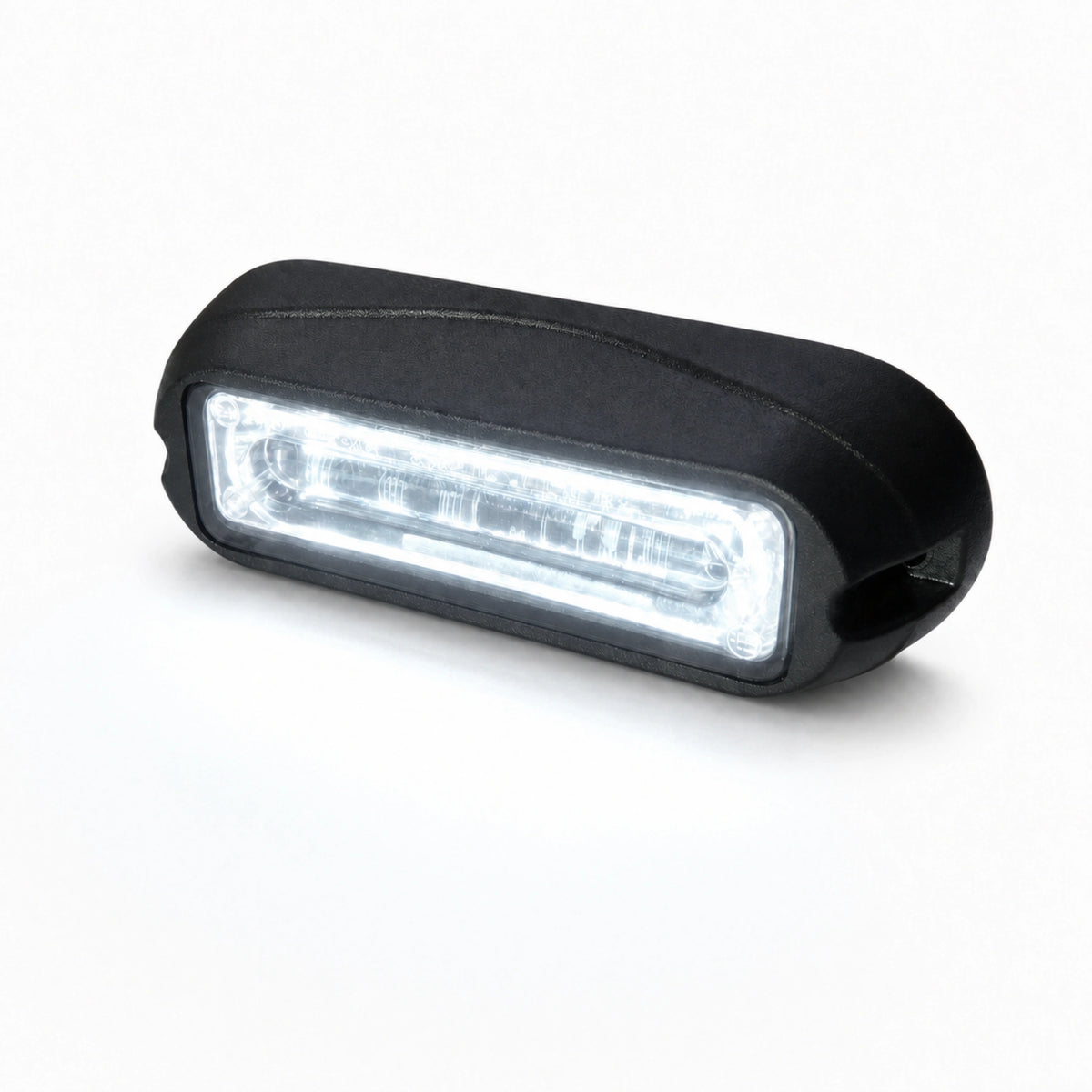

• White Output: Supplied in white only, as a single fixed output.
• 19 Flash Patterns: Selected through the yellow wire, at a flash rate of 1 to 4Hz.
• Synchronisation: Yellow wires linked between heads run a set of front, side and rear lights as one system.
• Two Flash Groups: The white wire sets each head to group one or group two for simultaneous or alternating flash.
• 10-30V DC: Suits 12V and 24V vehicles and plant with one part, 8W maximum draw.
• Surface Mount: Two screw fixing points, one at each end of the housing, 104mm between centres, 4mm screws.
• Low Profile: 120 x 42 x 25mm, for grille surrounds, guards, tray rails, headboards and rear body panels.
• Aluminium Base: Internals fully encapsulated for moisture, vibration and corrosion resistance, rated -20 to +65 degrees for exposed mounting positions.
• 100,000 Hour LED Lifespan.
• Approvals: ECE R10 03 12468.

UAGS Warning Light Warranty - 3-Year Limited Coverage
This product is imported and branded by UAG Services Pty Ltd, which acts as the manufacturer of this item for warranty purposes. It is covered by a 3-year limited warranty against defects in materials and workmanship under normal use.

This warranty does not cover normal wear and tear, weathering or UV degradation, accidental or impact damage, water ingress caused by damaged seals not reported at delivery, incorrect or unauthorised installation, unauthorised modification, or use outside the product's stated voltage and operating conditions. Installation should be carried out by a qualified auto electrician; damage caused by DIY wiring is not covered.

To make a warranty claim, contact UAG Services Pty Ltd (Gate 2, 7 Royan Place, Bayswater North VIC 3153) at sales@uags.com.au or (03) 8750 0926 with your order reference, a description of the fault and photos of the product. Claims are subject to inspection and approval. Where a defect is confirmed, UAG Services Pty Ltd will repair, replace or refund the product at its discretion. Return shipping costs are handled in accordance with the UAGS Returns Policy unless otherwise required under Australian Consumer Law.

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. This warranty is provided in addition to these rights and does not limit or exclude them.
