Left Turn Lane Ahead Open (SYM)

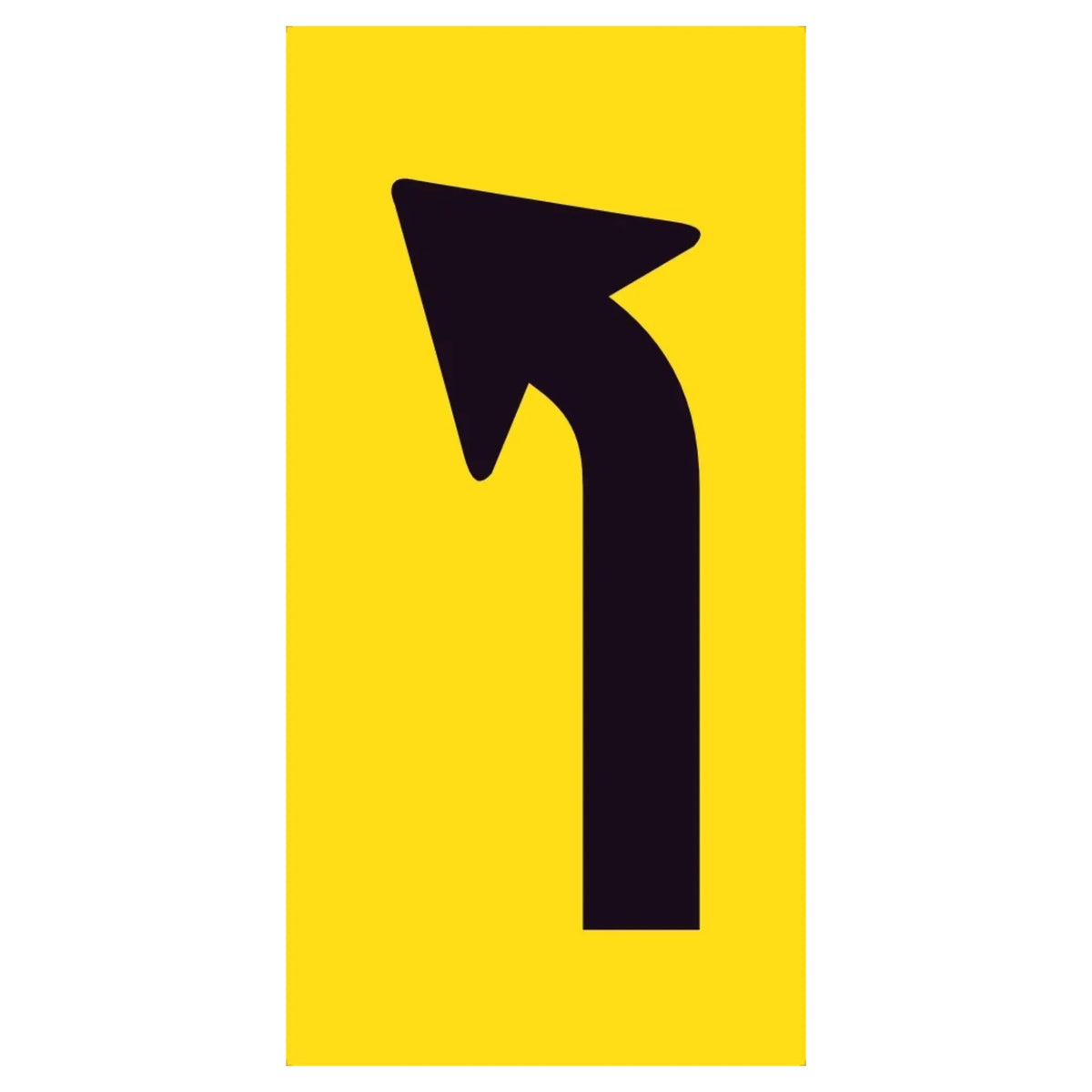

Left Turn Lane Ahead Partial Panel (300x600mm) corflute sign panel is a modular lane status partial panel used to display a black left-turn arrow / left-turn lane ahead symbol within a compatible Lane Status sign arrangement. It is intended to be used with other compatible partial panels, not as a complete Lane Status sign by itself.

This is an individual 300x600mm lane status partial panel. No verified national code has been supplied for this partial panel by itself. It may be used with other compatible lane status partial panels to configure complete TM10 Series Lane Status sign arrangements, including arrangements such as TM10-7A and TM10-12A where the full panel combination, lane arrangement, frame layout, lane count, permitted movements and sign code relationship are specified. This individual panel must not be treated as the complete TM10-7A or TM10-12A sign by itself.

VicRoads Sign Code TM10-V100 is supplied as a state / legacy reference only. This reference must not be treated as a national code, road authority approval claim, national use requirement or confirmation of site suitability.

UAGS temporary traffic sign corflute panels are manufactured from 6mm UV stabilised corflute using Class 400T retroreflective yellow sheeting with opaque black printing. The black left-turn arrow symbol and yellow retroreflective background support clear lane status messaging where this partial panel is specified as part of a compatible sign arrangement.

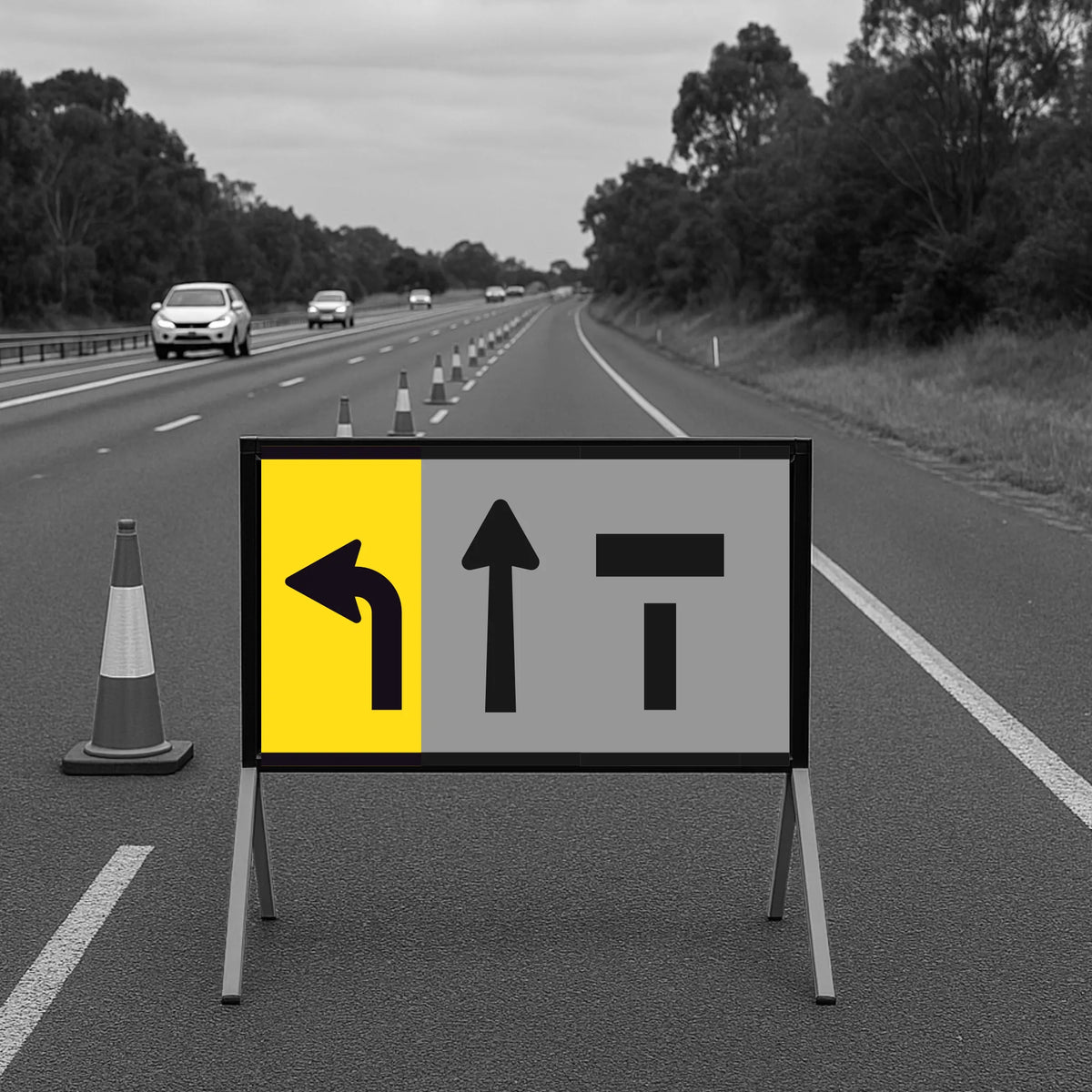

In deployment-context terms, Lane Status signs are used to give advance warning where one or more lanes of a multilane roadway is closed or where the direction a lane leads to is altered, such as left turn, through/ahead or right turn. This partial panel provides one left-turn lane symbol only and must be used as part of a suitable complete lane status arrangement where required.

This 300x600mm corflute partial panel is compatible with suitable temporary roadwork sign frame systems that accept 300x600mm partial panels. It may also be used in compatible Multi-Message Sign Frame No. 1 arrangements where the frame layout, panel combination and lane status configuration are suitable.

This panel does not replace adequate signing, delineation, lane closure devices or other temporary traffic control measures where those are required. Selection, panel combination, lane count, arrow direction, placement, frame arrangement and use remain subject to the applicable TMP, TGS, project requirements, site conditions and relevant authority requirements.

• Partial Lane Status Panel: 300x600mm modular component panel displaying a left-turn lane ahead symbol.
• Component Panel Role: Used as one panel within a compatible Lane Status sign arrangement, not as a complete standalone Lane Status sign.
• Symbol: Black left-turn arrow / left-turn lane ahead symbol on a yellow retroreflective background.
• Reflective Sheeting: Class 400T retroreflective yellow sheeting with opaque black printing for temporary traffic management sign applications.
• Substrate: Manufactured from 6mm UV stabilised corflute for lightweight handling, transport and temporary site use.
• Code Boundary: No verified national code has been supplied for this individual 300x600mm partial panel.
• Related Arrangement Note: TM10-7A may be referenced only as an example of a complete Lane Status sign arrangement that may use compatible partial panels where specified.
• State / Legacy Reference: VicRoads TM10-V100 is supplied as a state / legacy reference only and must not be treated as a national code or approval claim.
• Frame Compatibility: Compatible with suitable temporary roadwork sign frame systems that accept 300x600mm partial panels, including compatible Multi-Message Sign Frame No. 1 arrangements where the frame layout and panel combination are suitable.
• Deployment Note: Selection, panel combination, lane count, arrow direction, placement, frame arrangement and use remain subject to the applicable TMP, TGS, project requirements, site conditions and relevant authority requirements.

Reflective terminology note: This panel is supplied with Class 400T retroreflective yellow sheeting and opaque black printing. Check project-specific reflective sheeting requirements where applicable.

Corflute Sign Warranty - 1-Year Limited Coverage
This product includes a 1-year limited warranty from UAG Services Pty Ltd covering defects in materials and workmanship present at the time of delivery.

This warranty applies only to signs that are unused, unmodified and stored under normal conditions. It does not cover wear and tear, weathering, UV degradation, fading, accidental damage, transport or handling damage after delivery, or incorrect or improper installation.

To make a warranty claim, contact UAG Services Pty Ltd (Gate 2, 7 Royan Place, Bayswater North VIC 3153) at sales@uags.com.au or (03) 8750 0926 with your order reference, a description of the issue and photos of the product. Claims are subject to inspection and approval. Where a defect is confirmed, UAG Services Pty Ltd will repair, replace or refund the product at its discretion. Return shipping costs are handled in accordance with the UAGS Returns Policy unless otherwise required under Australian Consumer Law.

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. This warranty is provided in addition to these rights and does not limit or exclude them.
