Horizontal Arrow (SYM) TM5-8B

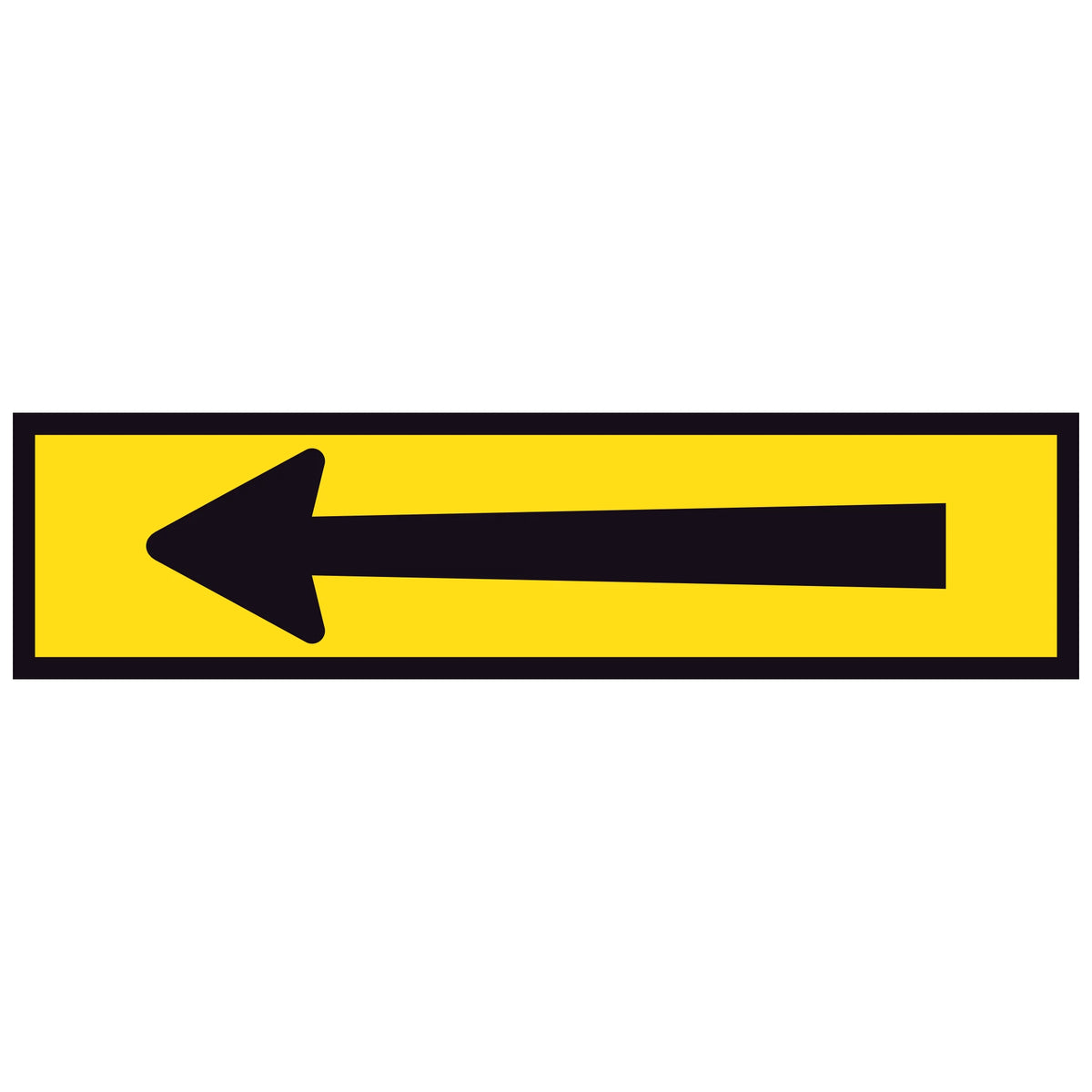

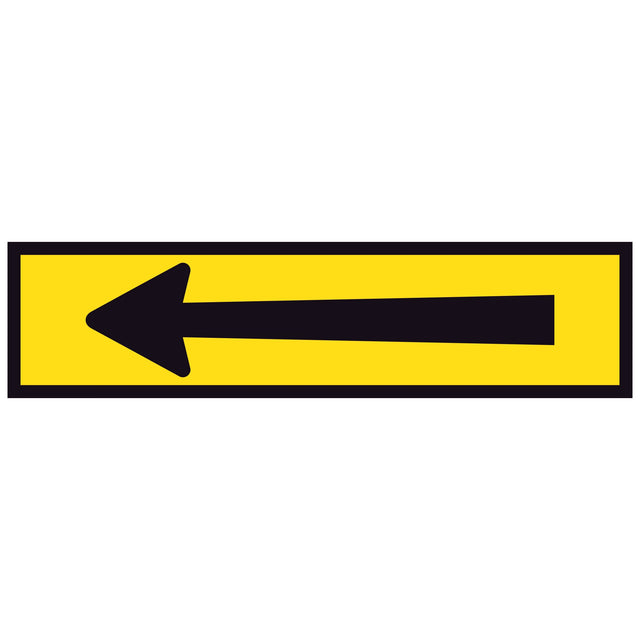

Horizontal Arrow (SYM) TM5-8B (1200x300mm) corflute sign panel, commonly called a long directional arrow, displays a black long directional arrow symbol on a yellow retroreflective background. It is used in temporary traffic management setups to indicate the direction of a side road or location where roadwork, road plant or an event is taking place, displayed beneath the panel that describes the activity.

The signface layout, symbol and colours follow the applicable AS 1743:2023 signface design for the TM5-8B code. This standard-listed TM Series traffic diversion and direction panel is supplied as a modular corflute panel for use with compatible temporary roadwork sign frame systems.

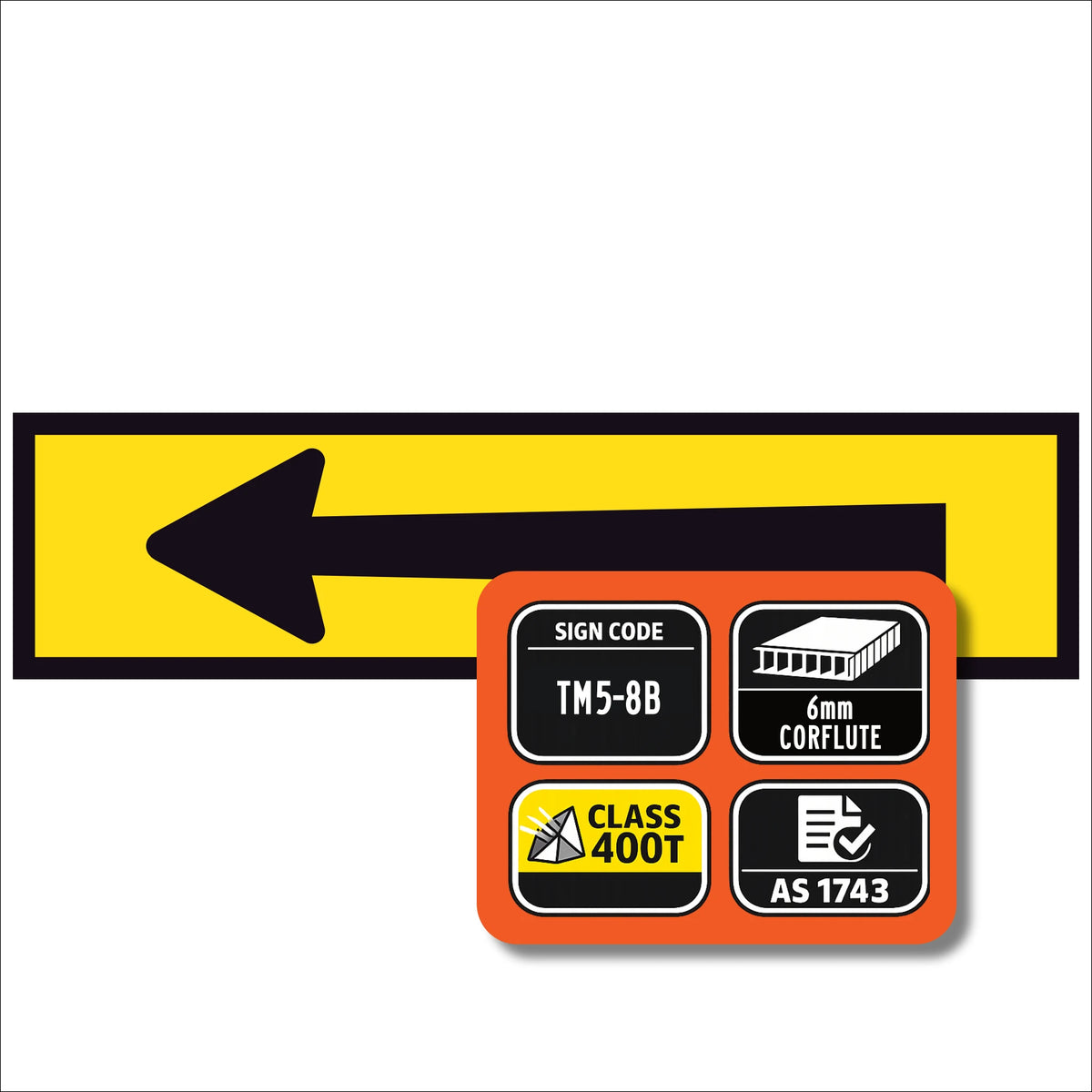

UAGS temporary traffic sign corflute panels are manufactured on 6mm UV stabilised corflute using Class 400T retroreflective yellow sheeting with opaque black printing. The black long directional arrow symbol, black border and yellow retroreflective background support clear direction indication where this panel is specified.

This 1200x300mm corflute sign panel is designed to slide into compatible temporary roadwork sign frames, including suitable 1200x300mm Double-Sided Traffic Sign Frame Type 4 arrangements and suitable Multi-Message Sign Frame No. 1 arrangements where the frame accepts a 1200x300mm corflute panel.

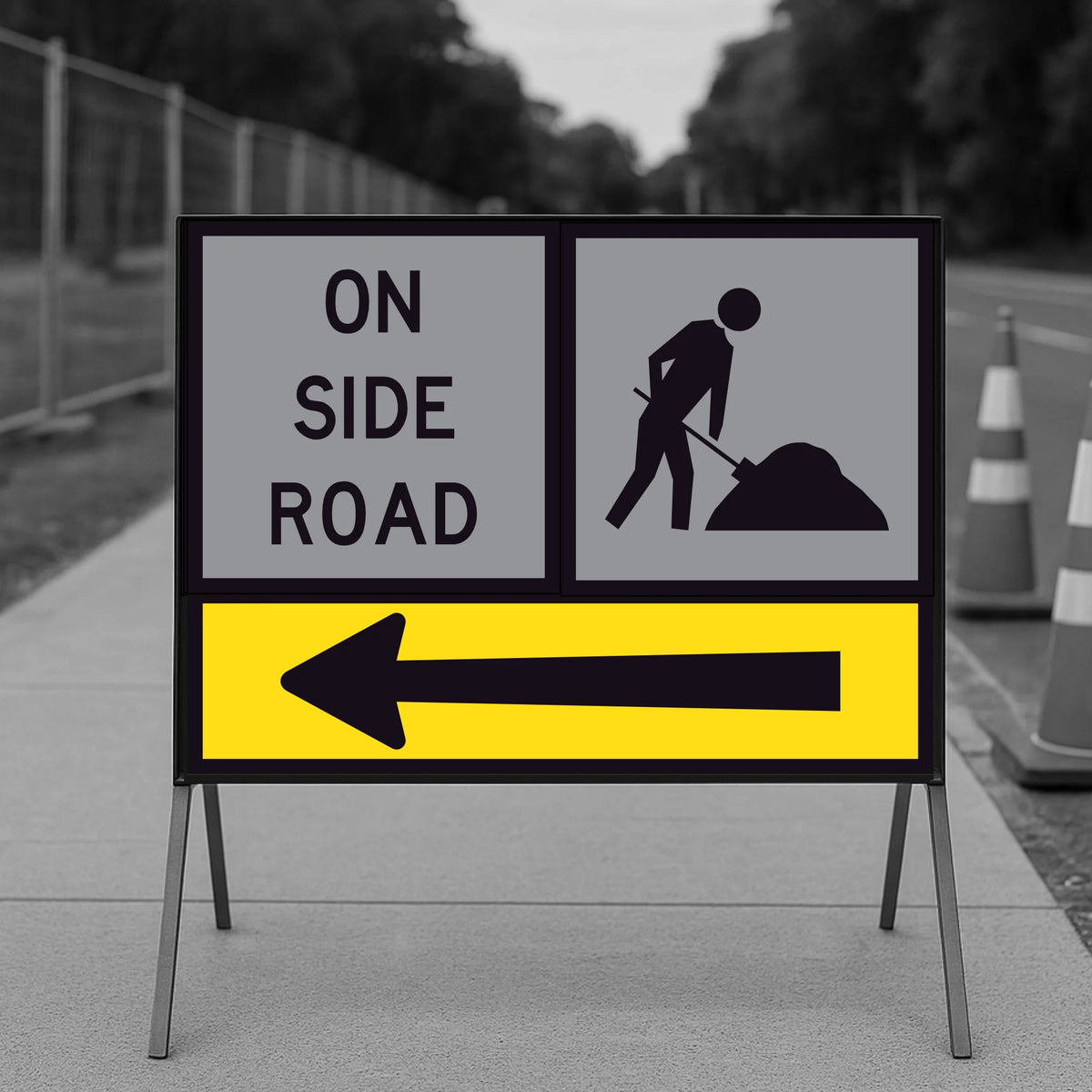

In practical use, the long directional arrow may be displayed with an On Side Road TM5-9A panel to indicate the direction of the side road where roadwork is being carried out, or with an advance warning panel such as Roadwork Ahead or Road Plant Ahead to indicate which direction the activity lies from an intersection. The panel is printed as a single arrow; the direction shown depends on how the panel is oriented in the frame for the site.

The long directional arrow is a direction indicator, not a detour marker. Where traffic is being diverted off the normal roadway, the Detour Left TM5-1B(L) and Detour Right TM5-1B(R) panels carry a DETOUR legend with an arrow for that purpose.

This panel provides direction information only. It does not create, authorise or legally enforce a lane change, turn restriction, detour or traffic control arrangement by itself. Selection, placement, panel pairing, frame arrangement and use remain subject to the applicable TMP, TGS, project requirements, site conditions and relevant authority requirements.

• Substrate: Manufactured from 6mm UV stabilised corflute for lightweight temporary traffic sign use.
• Reflective Sheeting: Class 400T retroreflective yellow sheeting with opaque black printing.
• Direction Indication: Displays a black long directional arrow symbol with a black border on a yellow retroreflective background to indicate the direction of a side road or activity location.
• AS 1743 Signface Design: TM5-8B signface layout, symbol and colours follow the applicable AS 1743:2023 design for this sign code.
• Standard-Listed TM Panel: Standard-listed temporary traffic management traffic diversion and direction panel for use where a direction arrow is specified beneath an activity or warning panel.
• Frame Compatibility: Designed for compatible 1200x300mm temporary roadwork sign frames and suitable lower slot arrangements in Multi-Message Sign Frame No. 1 where the frame accepts 1200x300mm corflute panels.
• Typical Use: May be displayed with On Side Road, Roadwork Ahead, Road Plant Ahead or event advance warning panels to indicate the direction of the side road or activity where specified.
• Deployment Note: Selection, placement, panel pairing, frame arrangement and use remain subject to the applicable TMP, TGS, project requirements, site conditions and relevant authority requirements.

Reflective terminology note: This panel is supplied with Class 400T retroreflective yellow sheeting and opaque black printing. Check project-specific reflective sheeting and signface requirements where applicable.
