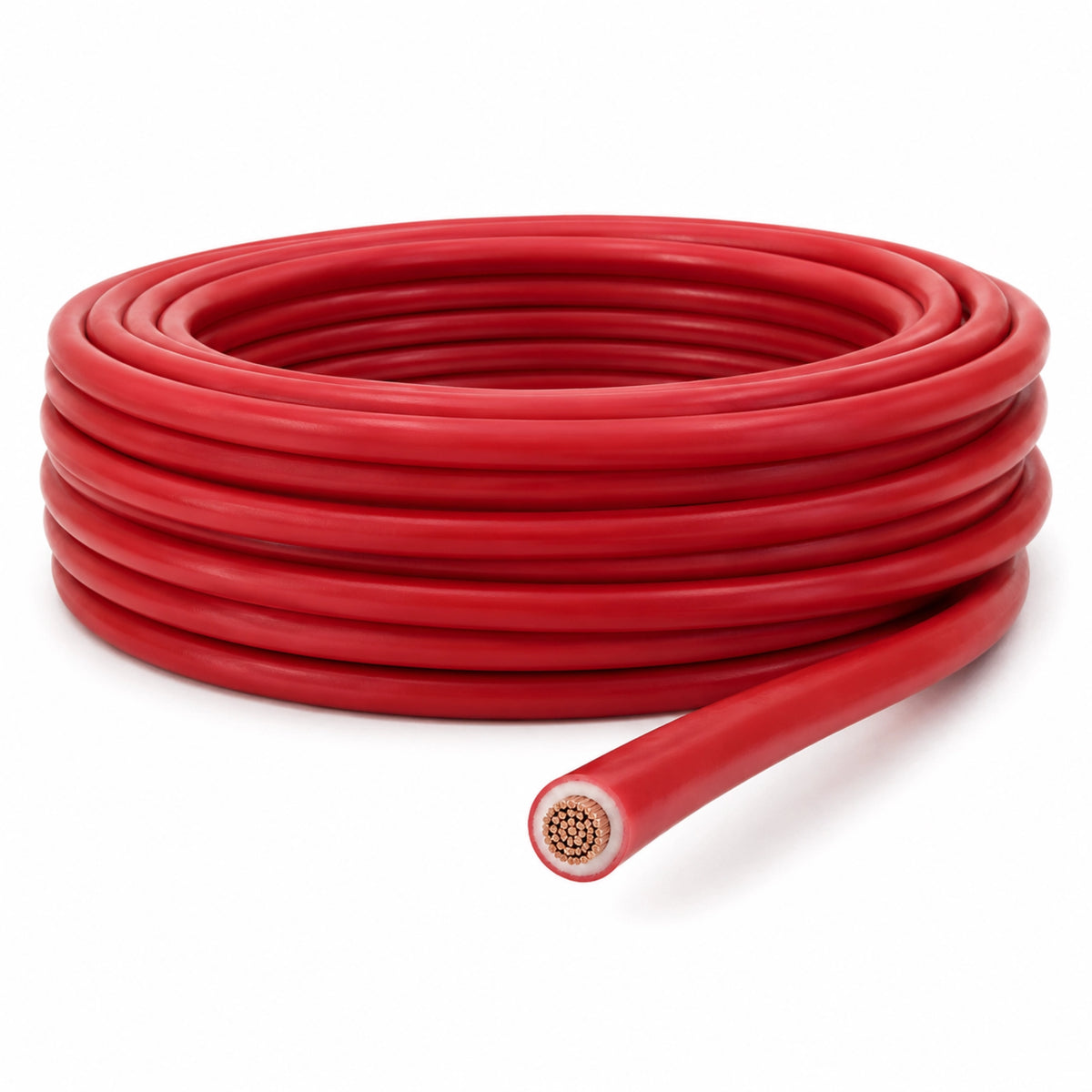

Single Core Battery Cable | 8 B&S Red

OEX Single Core Battery Cable 8 B&S Red – 30m Roll is a flexible copper power cable used in compatible vehicle and auxiliary electrical systems. It is suitable for selected 12V and 24V applications, including dual battery systems, work utes, fleet vehicles, traffic control vehicle fitouts, 4WD builds, caravans, camper trailers and marine electrical systems.

The cable can be used between compatible batteries, DC-DC chargers, battery isolators, fuse holders, circuit protection devices, inverters and other auxiliary electrical equipment where the cable specifications suit the system design.

Manufactured with a 99.99% oxygen-free copper conductor, the cable uses a fine-strand construction of 112 strands x 0.3mm. This provides the flexibility required for routing through suitable vehicle and equipment layouts while maintaining the specified 7.91mm² conductor cross-section.

The red V90-rated PVC insulation has a maximum insulation temperature of 90°C and is UV stabilised for use in suitable exposed applications. The cable is rated up to 110V and complies with AS/NZS 3808:2000 and RoHS requirements.

The supplied current rating is up to 74A. Actual suitability depends on cable run length, installation method, ambient temperature, voltage drop requirements, electrical load and overall system design. Final cable selection should be confirmed by the installer for the intended application.

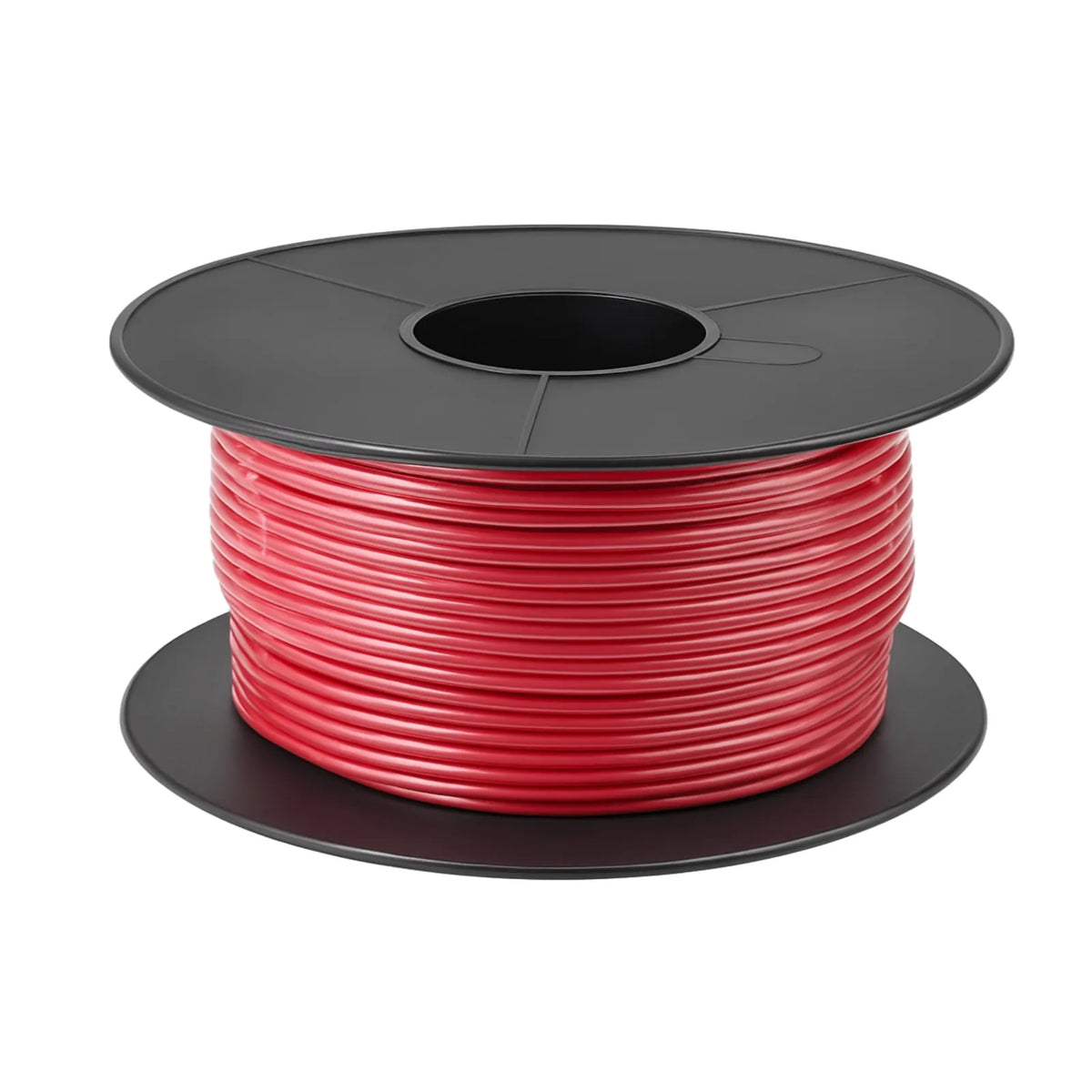

Supplied as a 30 metre roll, this OEX 8 B&S battery cable is suited to professional vehicle, fleet, caravan, 4WD and auxiliary power fitouts where red single core power cable is required.

• 99.99% oxygen-free copper conductor for dependable current transfer in suitable electrical systems.
• Fine-strand construction using 112 strands x 0.3mm for practical cable flexibility.
• 8 B&S cable size with a 7.91mm² conductor cross-section.
• 30 metre red cable roll for vehicle and auxiliary electrical fitouts.
• V90-rated PVC insulation with a maximum insulation temperature of 90°C.
• UV-stabilised insulation for suitable exposed installation environments.
• Rated up to 74A, subject to cable run length, installation conditions, voltage drop requirements and system design.
• Complies with AS/NZS 3808:2000 and RoHS requirements.

Manufacturer Warranty - 1 Year
This product is covered by the manufacturer's warranty of 1 year against defects in materials and workmanship under normal use, in accordance with the manufacturer's standard warranty terms.

Product suitability and installation requirements should be checked against the supplied specifications and intended electrical system before use. This warranty does not cover damage from incorrect installation, overloading beyond the cable's rated current, or use outside the product's stated operating conditions.
