Adjustable Warning Light Window Mount

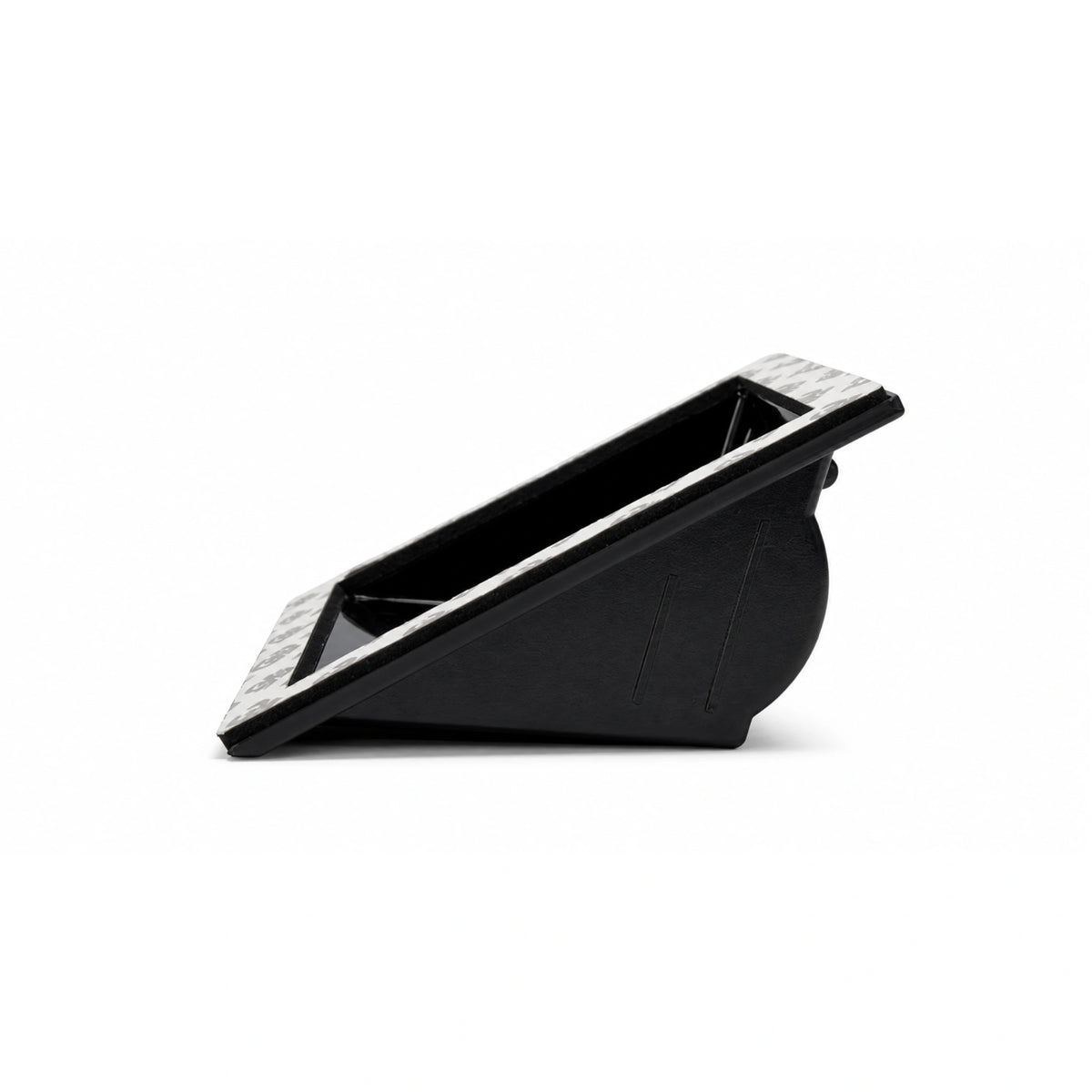

WM-155-30 Adjustable Warning Light Window Mount fits a standard surface mount warning light head to the inside of a front, side or rear vehicle window, projecting the warning light outward through the glass without drilling into the dashboard, interior trim or bodywork. The angled black housing shrouds the light head from the cabin, helping prevent flashback into the vehicle and reducing distraction to the driver. Unlike an integrated dash or visor light, the warning light head and window mount remain separate components, so either part can be replaced independently.

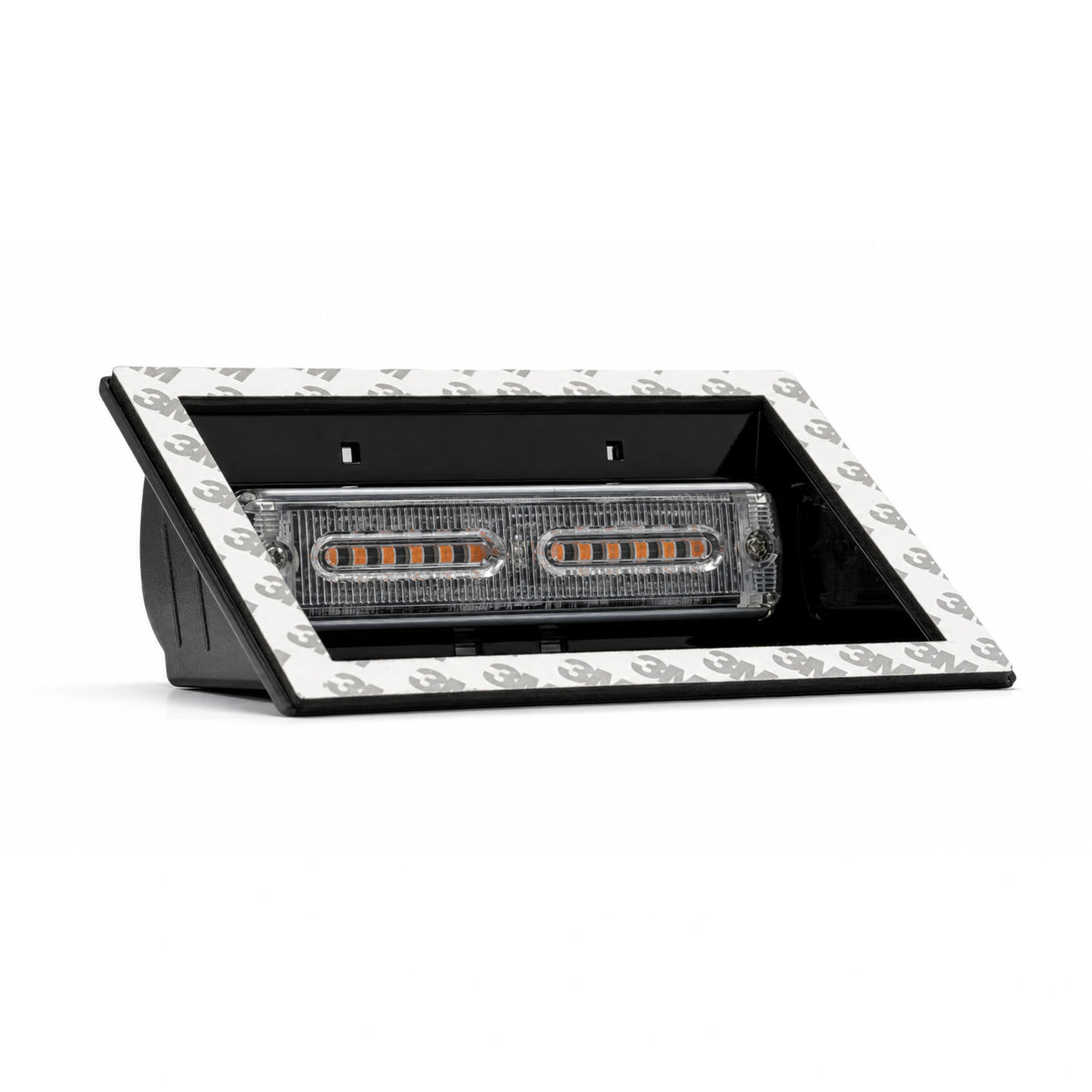

The mount fixes to the glass with its factory-applied 3M double-sided adhesive tape. Peel the backing, position the mount on clean, dry glass and press firmly for 30 seconds. Choose a position that does not obstruct the driver's view or interfere with window operation, tint film, demister elements or other window fittings.

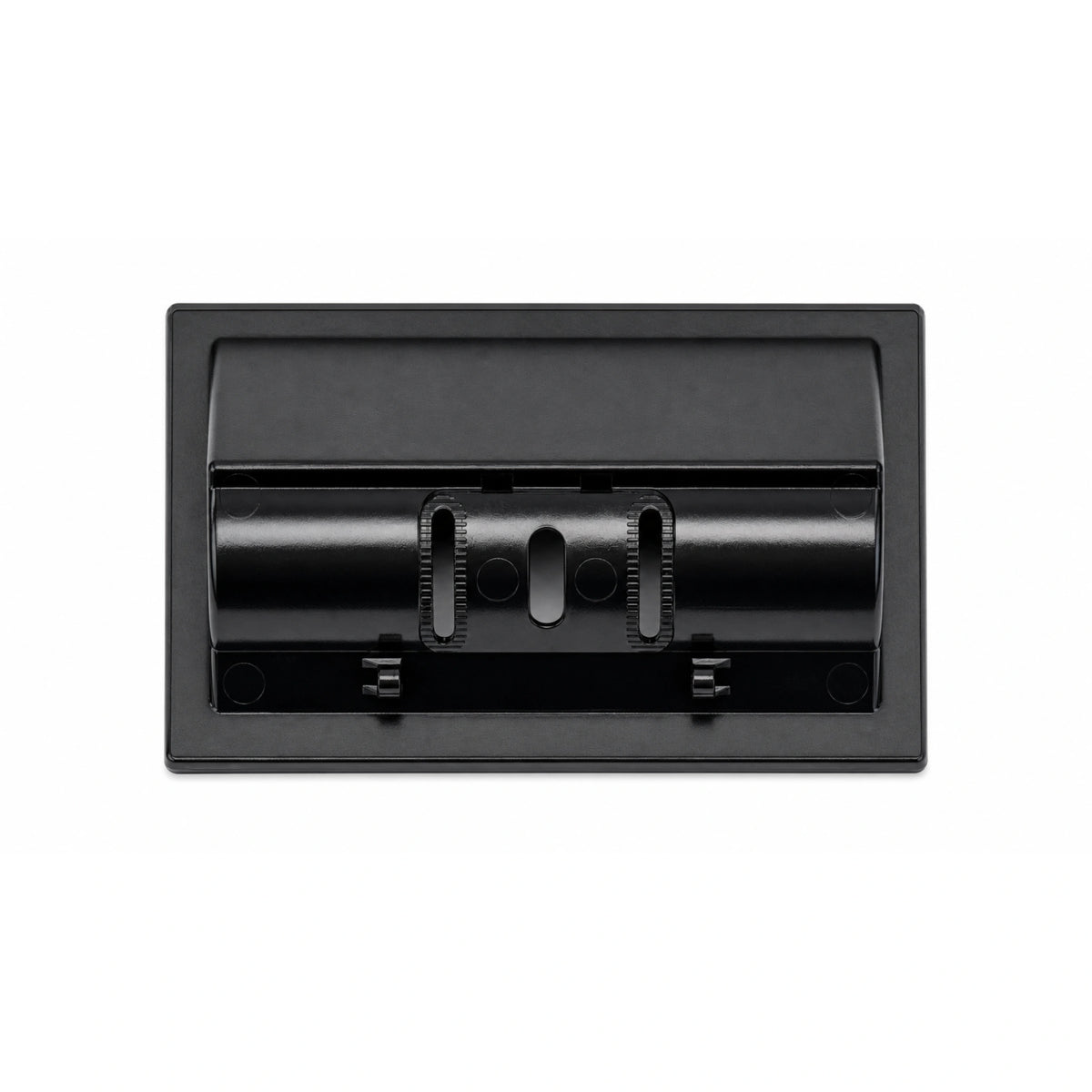

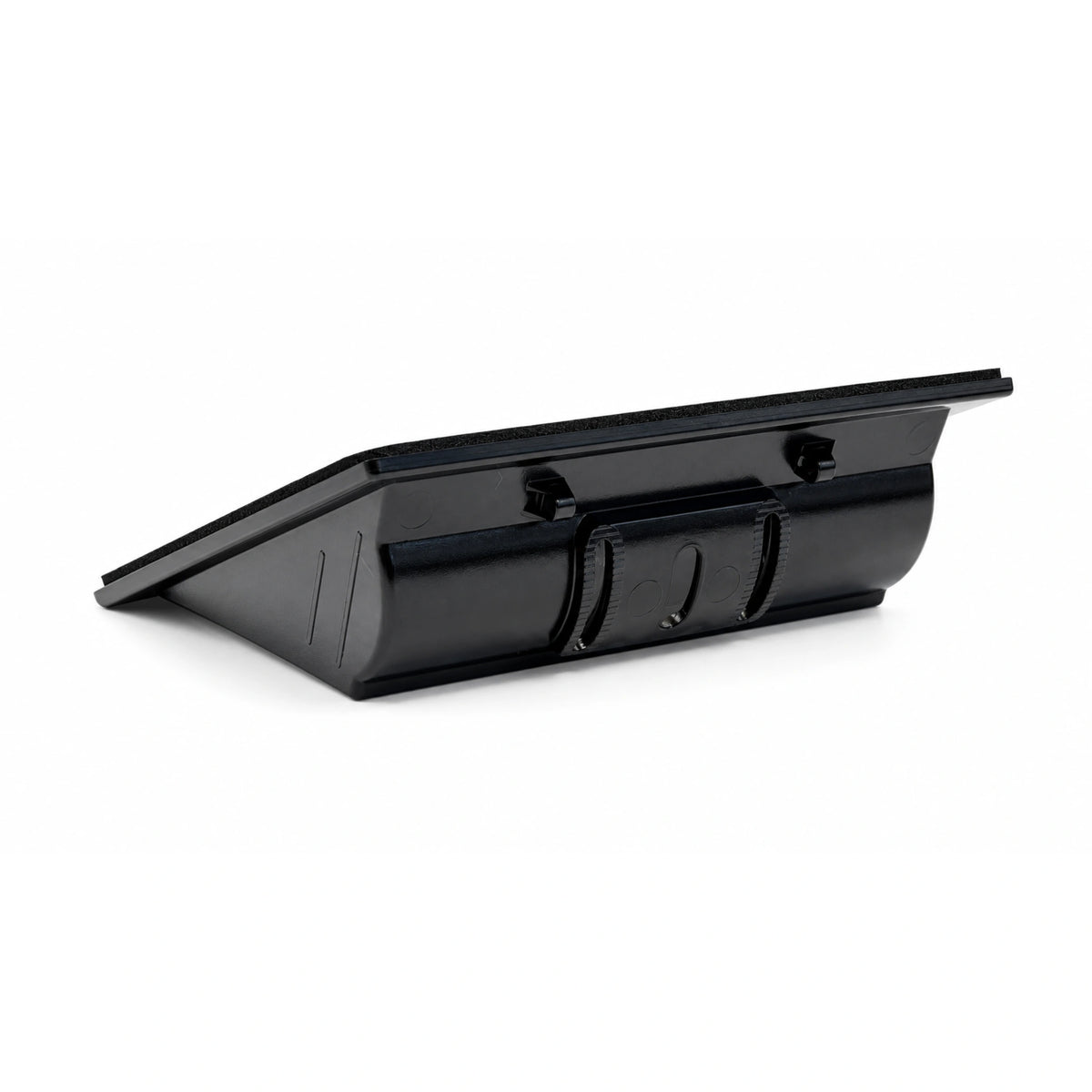

The light head fastens to one of the three supplied back plates with the included screws and nuts, and the assembled module seats in the housing on washered acorn nuts running in curved slots at the rear. Loosening the nuts lets the module slide within the slots to adjust the viewing angle by up to 30 degrees, so output aims correctly through raked windscreens, side glass and rear windows, before locking off.

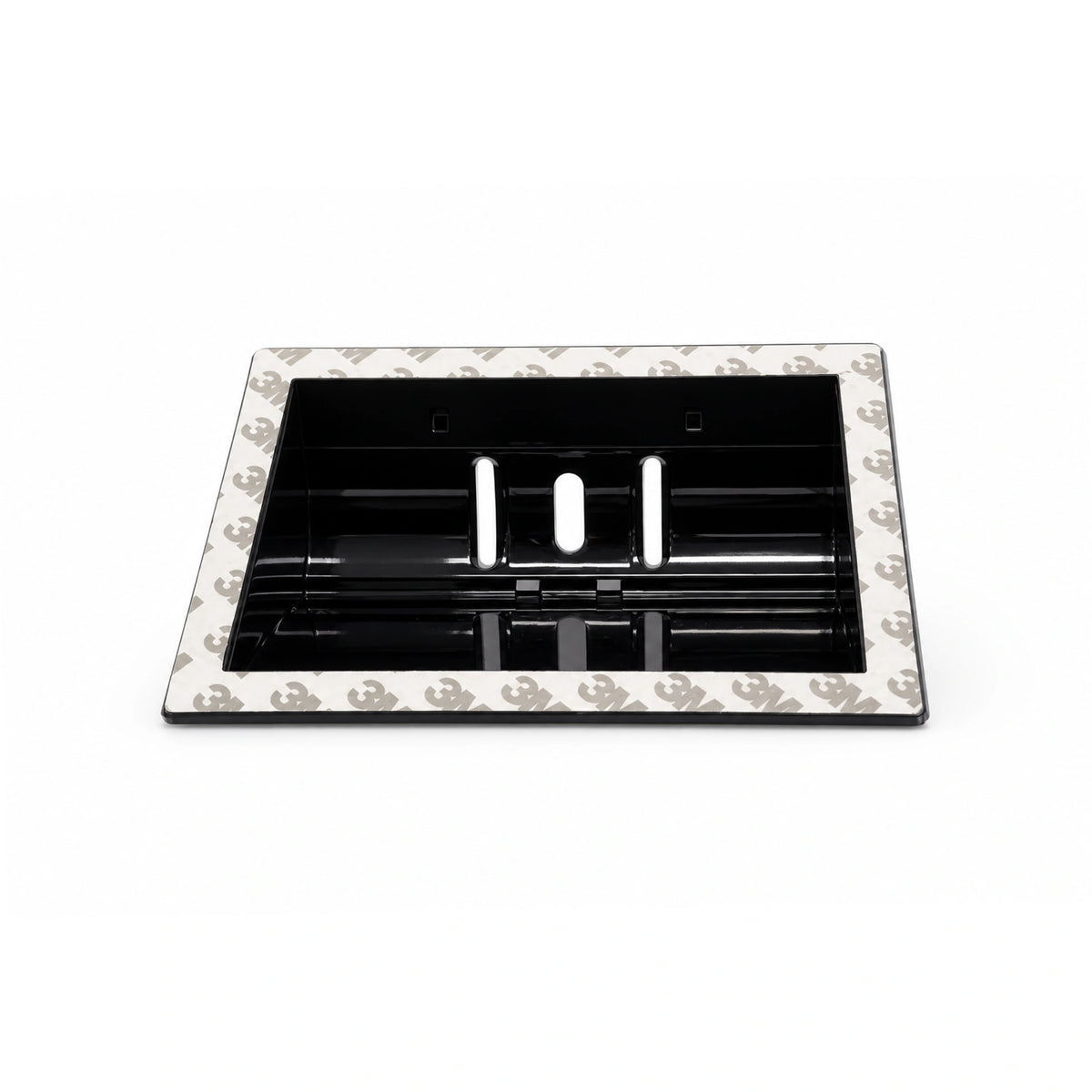

The mount opening holds surface mount warning light heads up to 122mm wide. The confirmed UAGS pairing is the U30-12A 12W Ultra-Slim Amber LED Warning Light Head, whose 119mm slim housing sits within the mount opening. The three back plate options suit different module fixings. Width alone does not guarantee compatibility: the light head's depth, mounting hole position and cable clearance also need to be considered, so contact UAGS to confirm fitment before ordering the mount for another light head model.

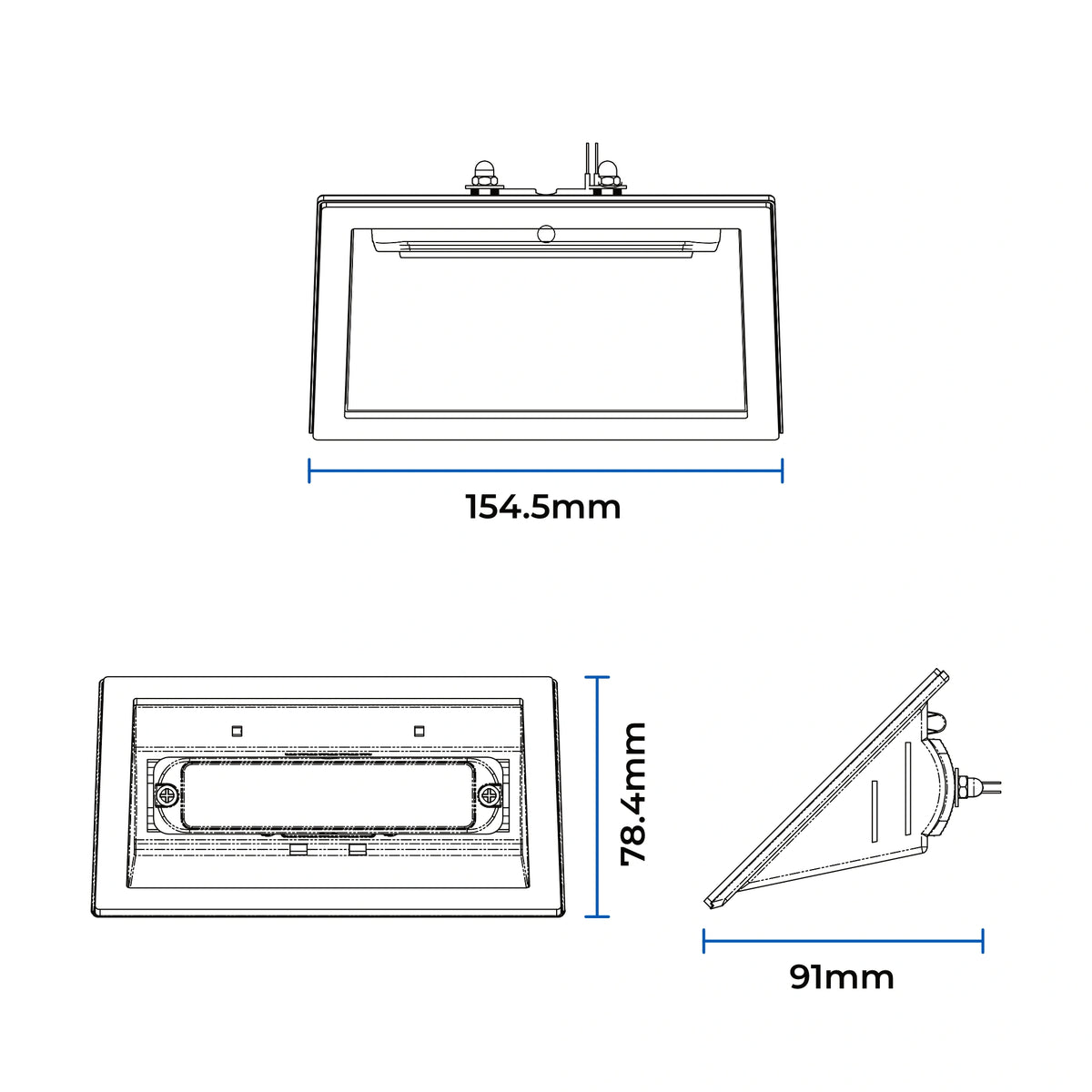

The housing is moulded ABS plastic in black with an overall width of 154.5mm (154.5 x 78.4 x 91mm). Clean it with a damp cloth or mild soapy water; avoid solvents and harsh chemical cleaners, which can craze the plastic.

The WM-155-30 suits traffic control utes, TMA support vehicles, shared fleet vehicles, hire vehicles and other applications where drilling into panels or bodywork is not an option. Paired with the U30-12A, the mount provides the same general interior directional warning function as a conventional dash or visor light, while allowing the light head and housing to be replaced separately. For crews who previously ran H2 series visor kits, this covers the same role.

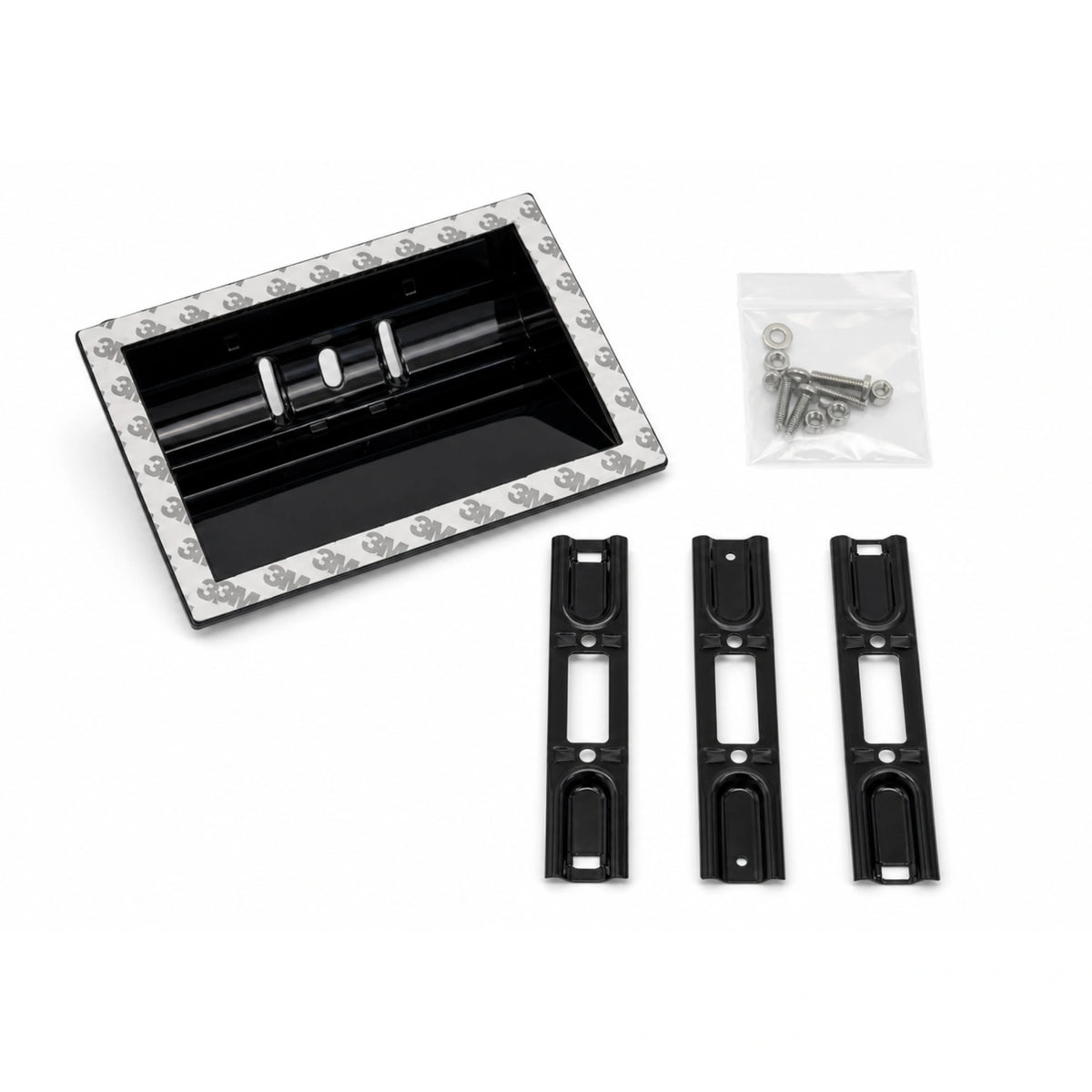

This listing is for the WM-155-30 window mount, three back plates and installation fasteners only. The warning light head shown in the images is for illustration and is sold separately.

• Interior Glass Mounting: Fits a standard surface mount warning light head to the inside of a front, side or rear vehicle window, projecting light outward through the glass with no drilling of dash or bodywork
• Shrouded Housing: Angled black housing shields the light head from the cabin, helping prevent flashback and reducing distraction to the driver
• Holds Heads Up To 122mm: Mount opening takes surface mount warning light heads up to 122mm wide
• 3M Adhesive Fixing: Factory-applied 3M double-sided adhesive tape bonds to clean glass, pressed and held for 30 seconds
• Adjustable Viewing Angle: Washered acorn nuts run in curved slots on the rear housing, adjusting angle by up to 30 degrees so output aims correctly through raked glass
• Three Back Plates Included: Back plate options suit different module fixings, with all mounting screws and nuts supplied
• Confirmed U30-12A Pairing: Sized for the UAGS U30-12A Ultra-Slim light head, sold separately
• Interchangeable Format: Head and mount replace independently, unlike sealed visor kit units
• ABS Construction: Black moulded ABS housing, 154.5mm overall width, cleaned with a damp cloth or mild soapy water only
• Fleet Applications: Interior warning for traffic control utes, TMA support vehicles, pool, hire and fleet vehicles

Manufacturer Warranty - 12 Months
This product is covered by the manufacturer's warranty of 12 months against defects in materials and workmanship under normal use, in accordance with the manufacturer's standard warranty terms.

This warranty does not cover normal wear and tear, weathering or UV degradation, accidental or impact damage, incorrect or unauthorised installation, unauthorised modification, damage caused by cleaning with solvents or harsh chemical cleaners, or use outside the product's stated operating conditions.

To make a warranty claim, contact UAG Services Pty Ltd (Gate 2, 7 Royan Place, Bayswater North VIC 3153) at sales@uags.com.au or (03) 8750 0926 with your order reference, a description of the fault and photos of the product. Claims are subject to inspection and approval. Return shipping costs are handled in accordance with the UAGS Returns Policy unless otherwise required under Australian Consumer Law.

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. This warranty is provided in addition to these rights and does not limit or exclude them.
