24W Amber LED Square Warning Beacon

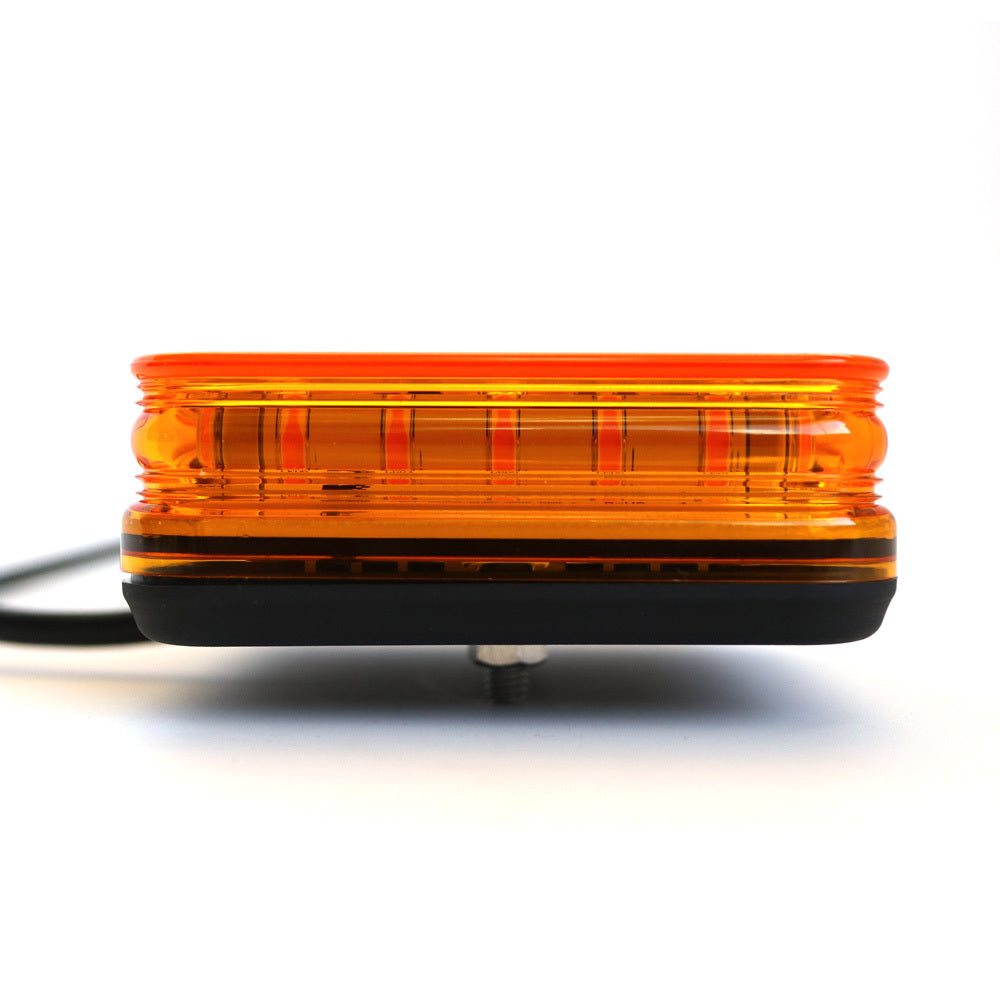

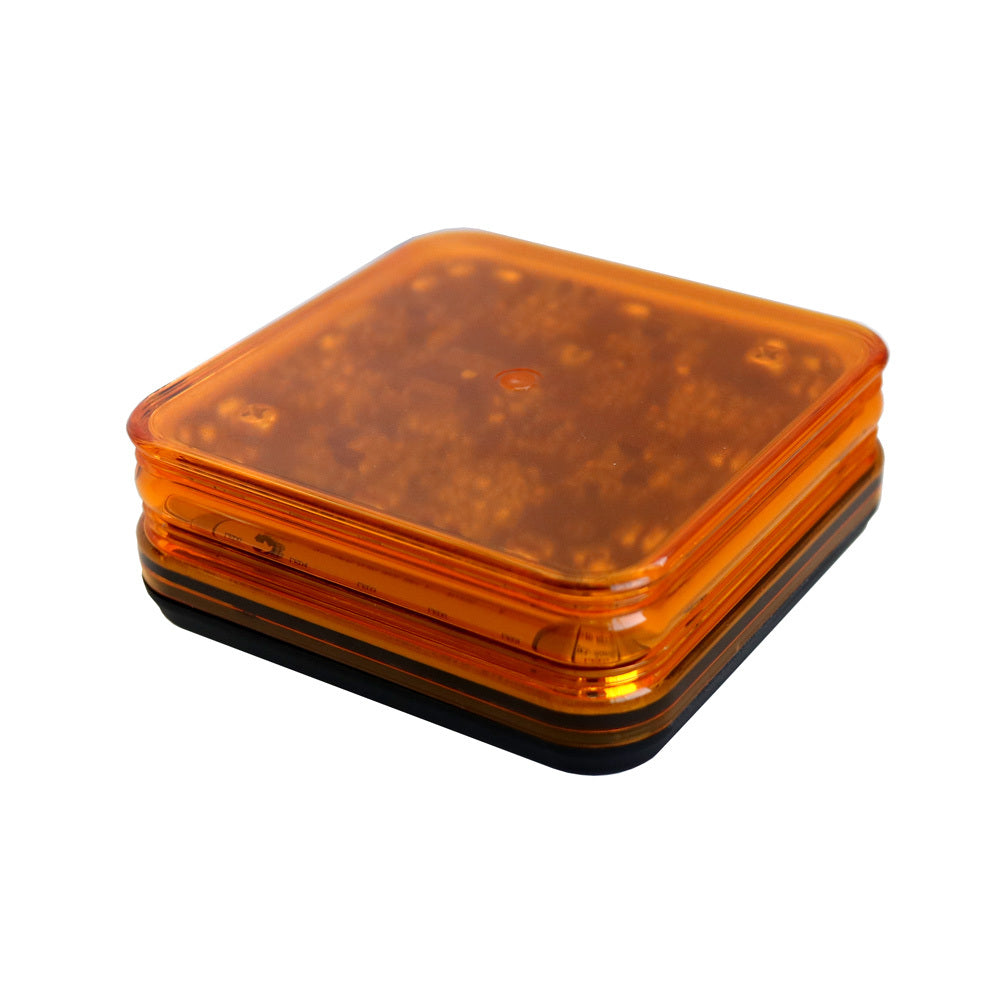

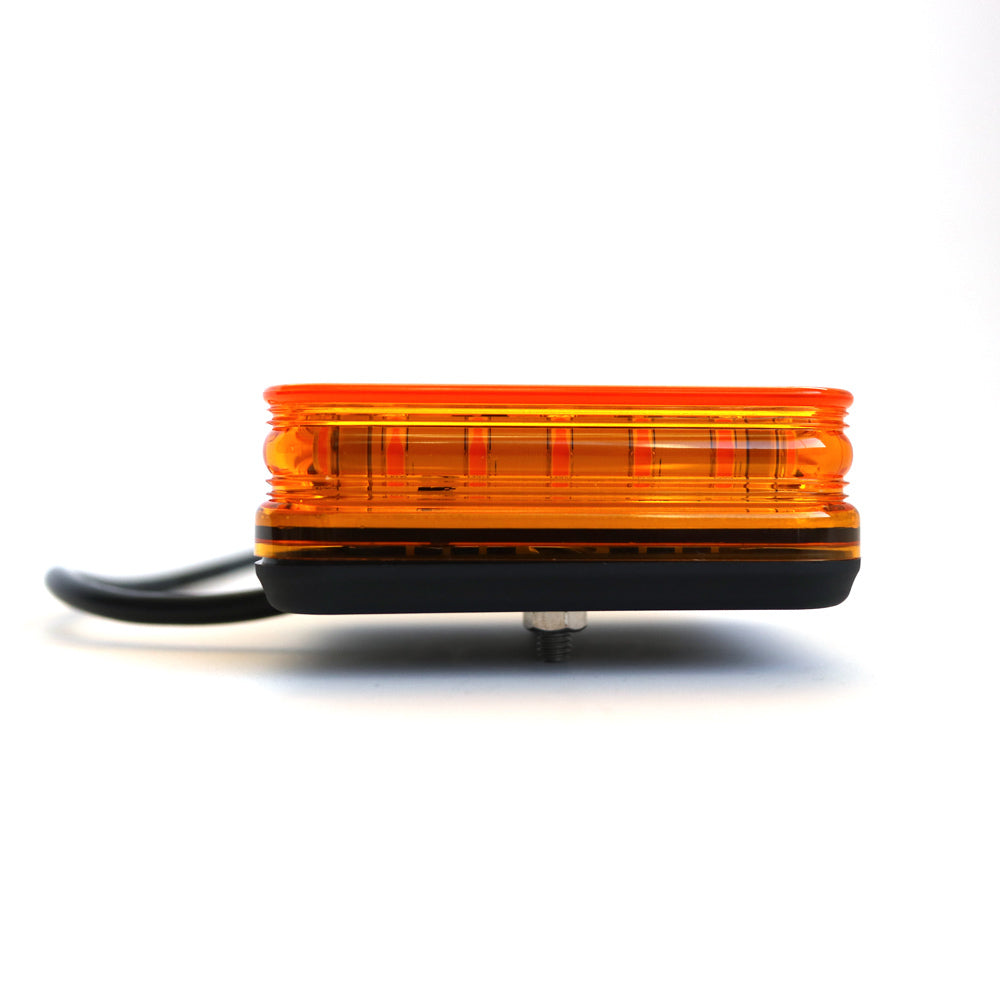

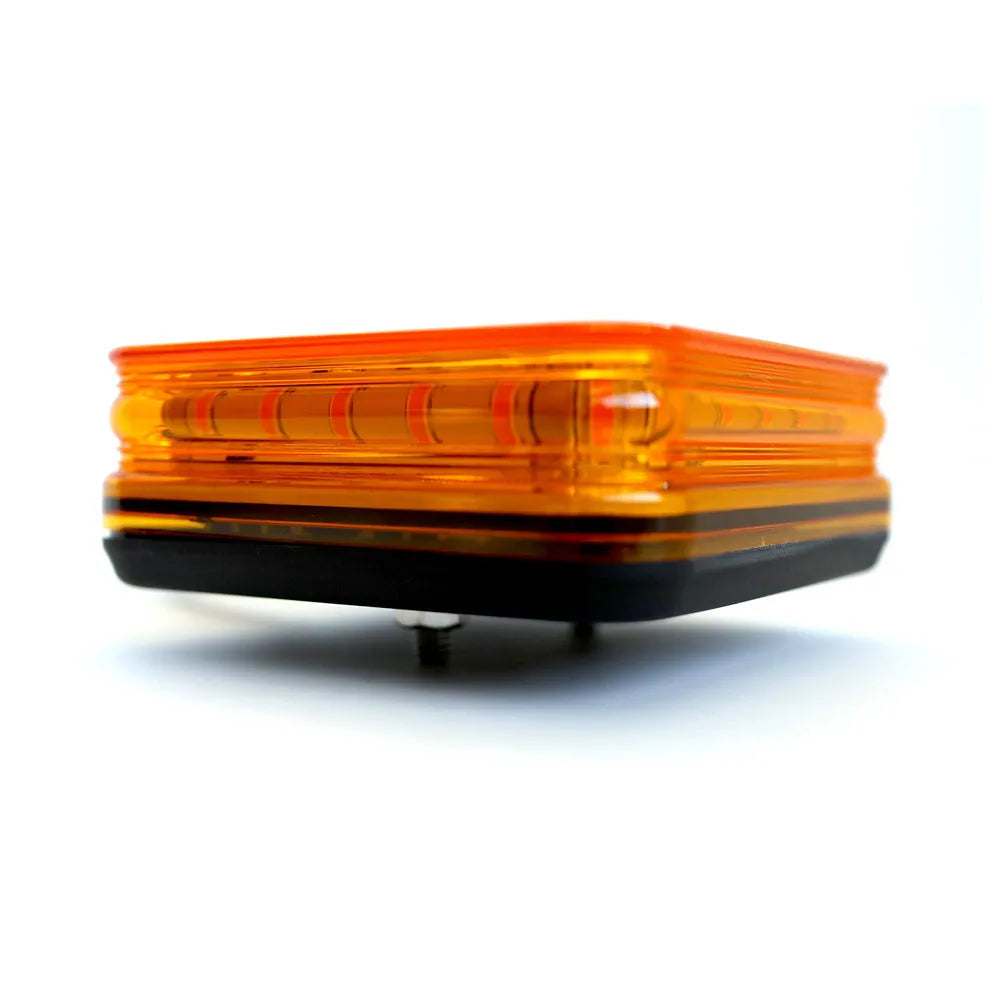

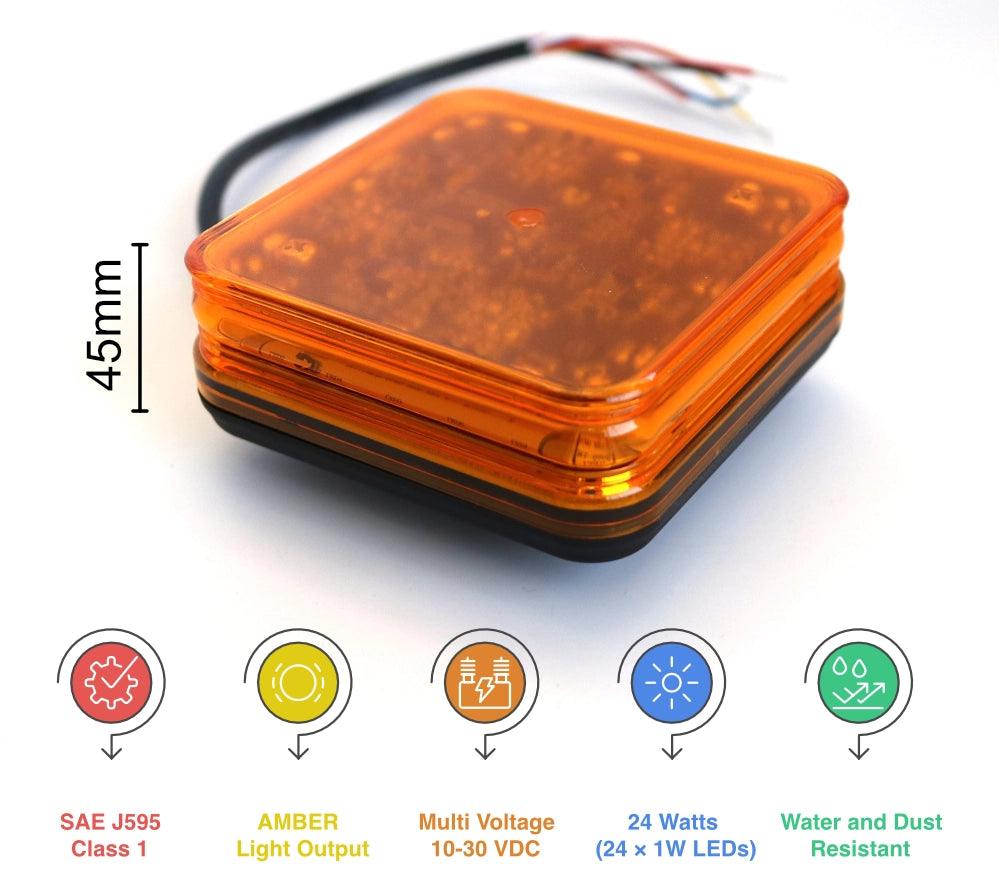

The UAGS U3-24 24W amber LED square warning beacon provides 360-degree amber hazard warning from a compact, low-profile square housing. At 100mm x 100mm x 45mm it suits space-limited mounting positions on utes, trucks, plant machinery, pilot vehicles and OSOM transport where a full-size dome beacon will not fit.

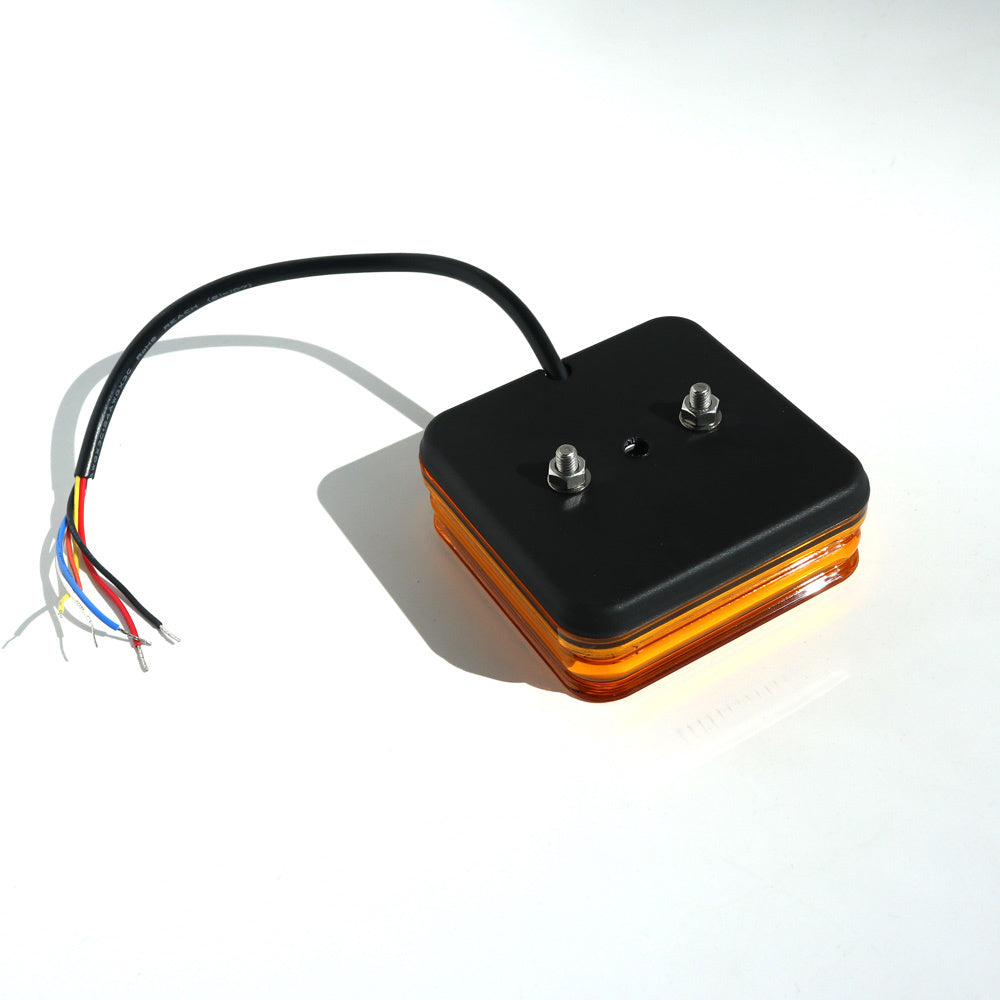

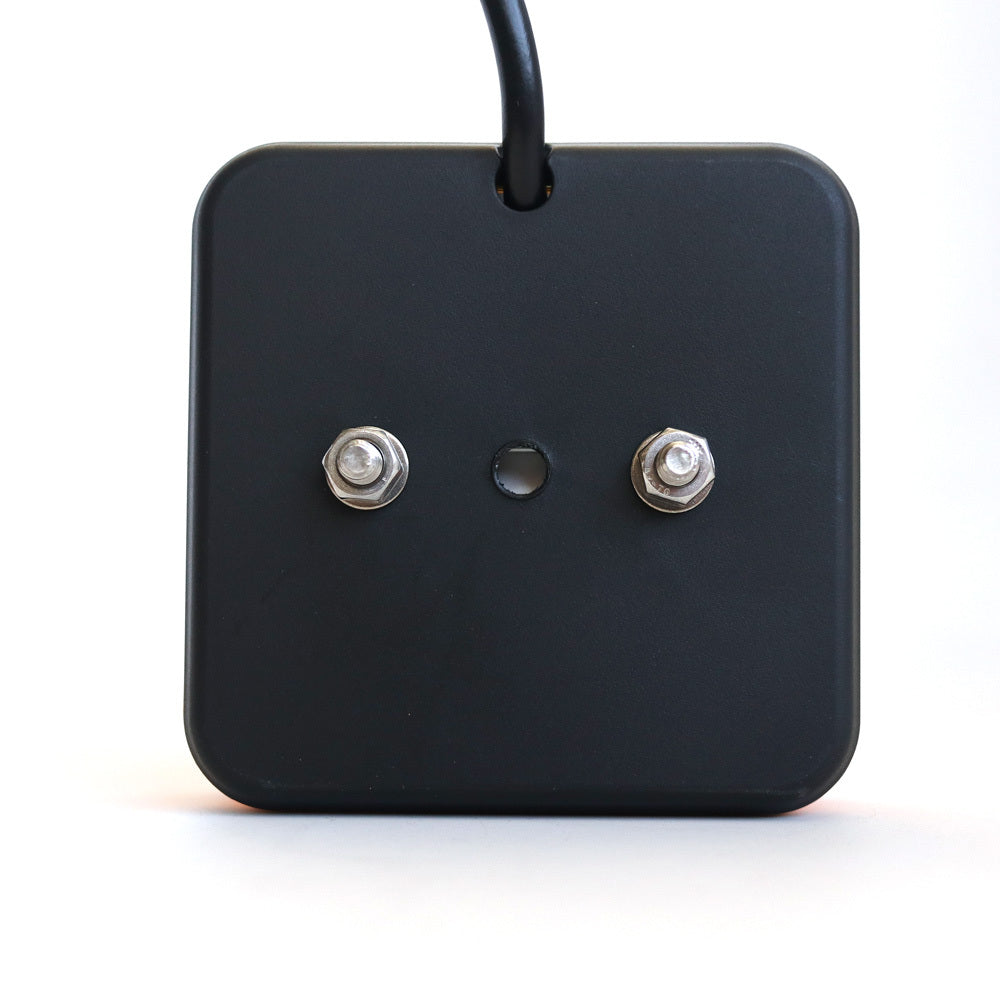

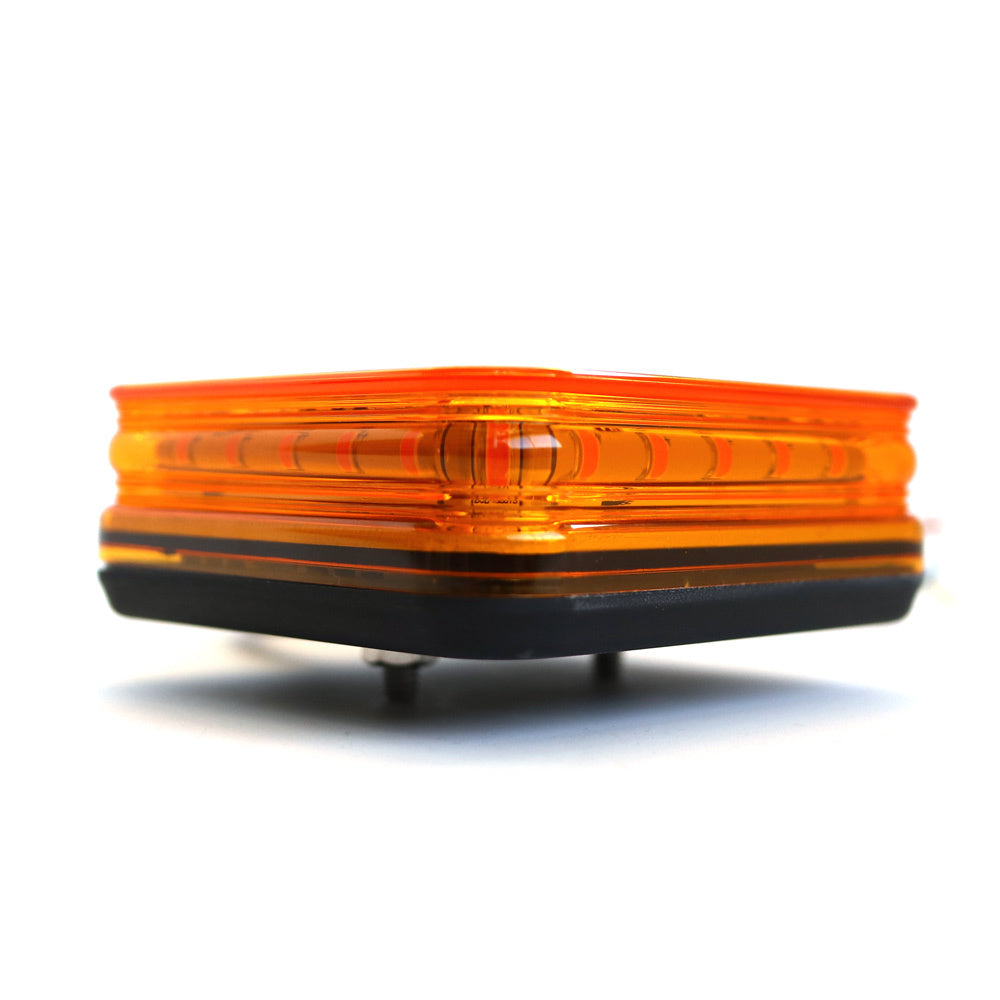

The beacon surface-mounts with a two-point bolt-down base, fixing flat to vehicle roofs, cab guards, tray bodies and plant surfaces. The low 45mm profile keeps it clear of branches, height limits and equipment.

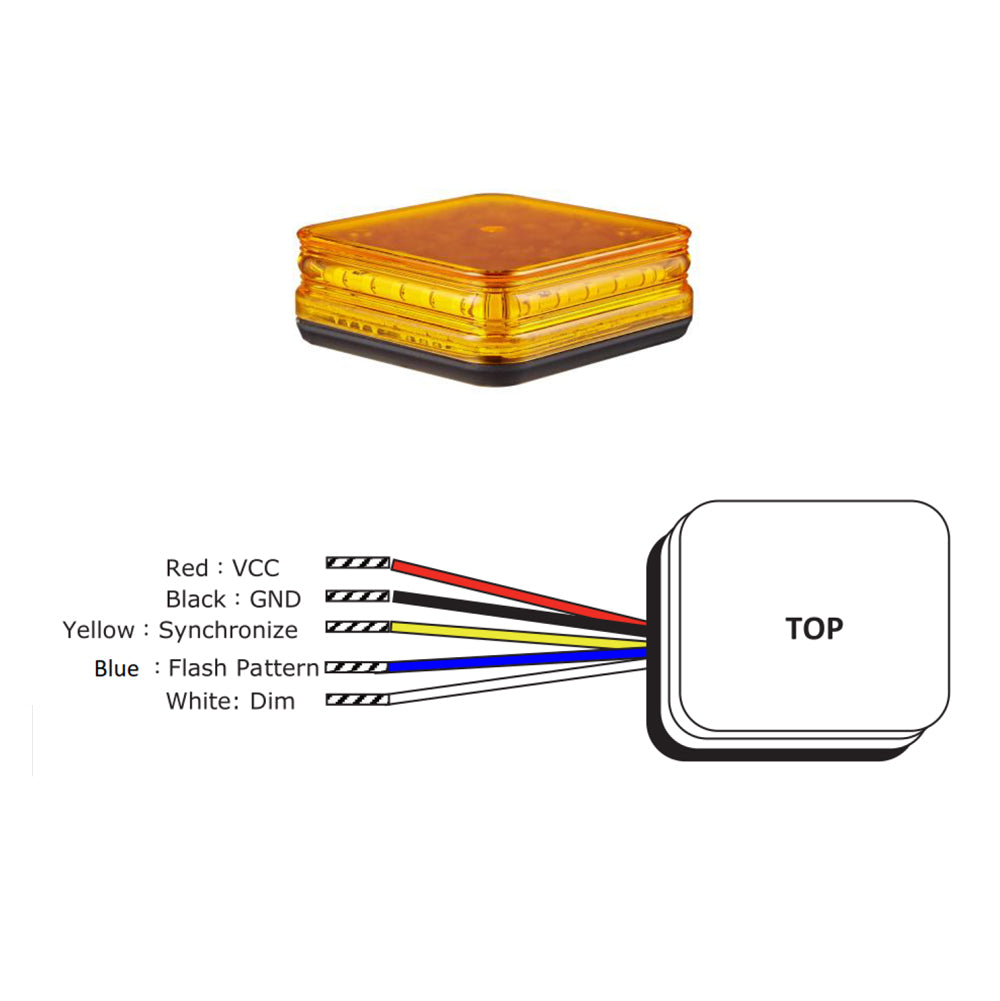

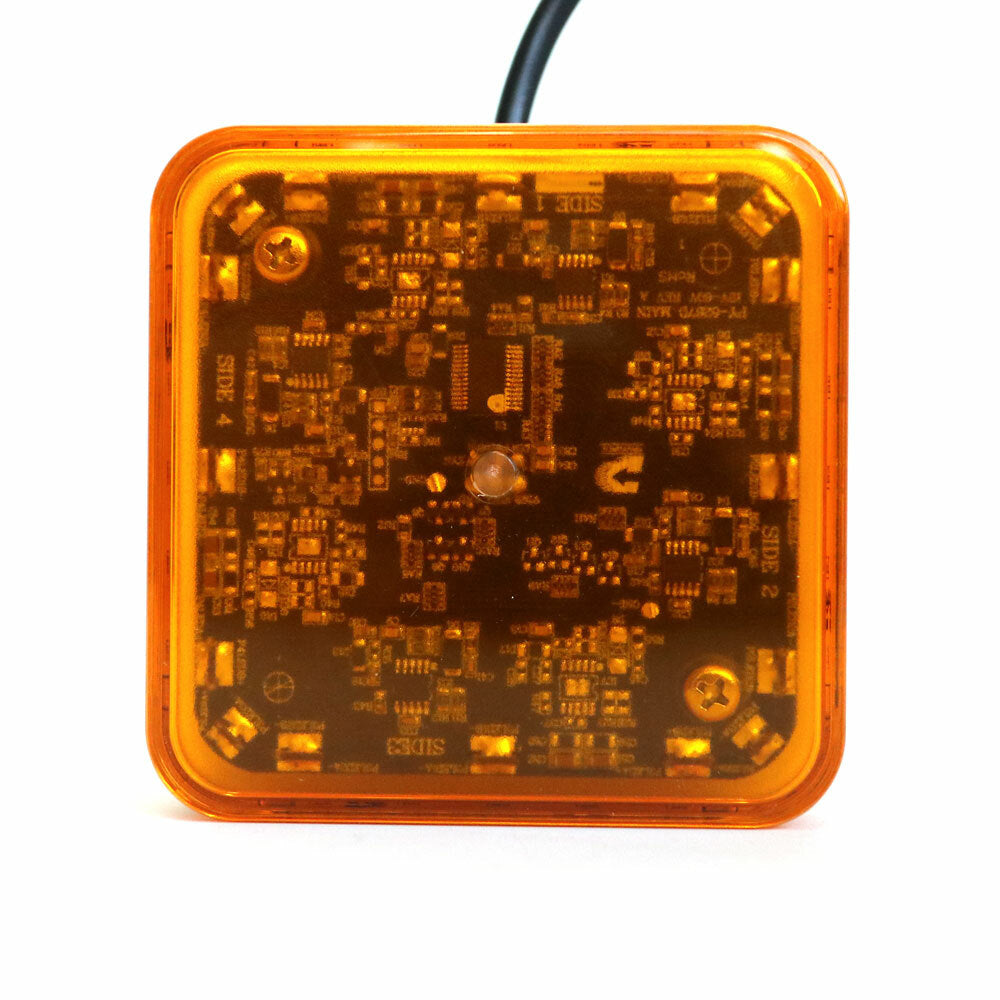

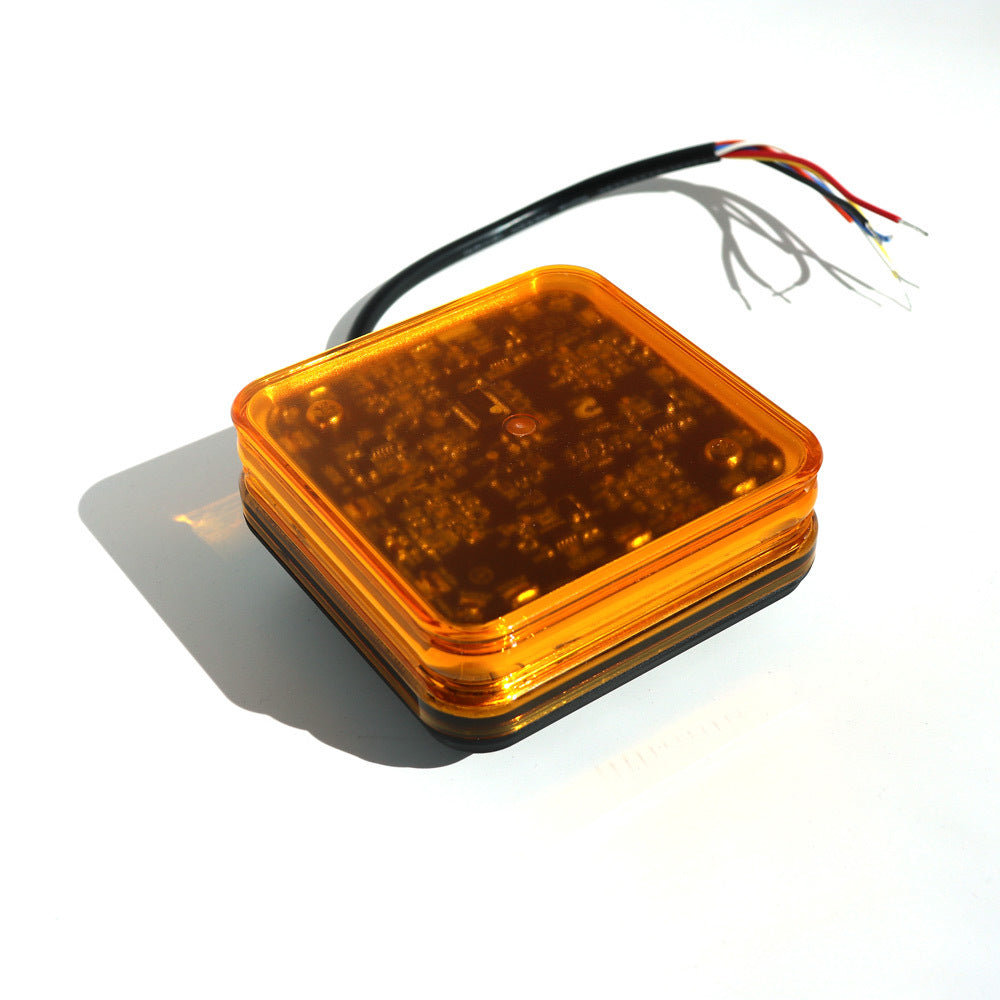

Light output comes from 24 x 1 watt LEDs behind an amber polycarbonate lens, producing 360-degree amber coverage. Nine selectable modes include ECE R65 compliant rotator, single, double and quad flashes at 120 FPM and SAE compliant equivalents at 75 FPM, per the supplied product data. Pattern selection runs through the pattern wire, brightness can be reduced for night work through the dimming wire, and multiple units synchronise through the sync wire.

Multivolt 10-30V DC operation suits both 12V and 24V vehicle electrical systems, with a maximum current draw of 2.0A at 12V DC in flashing mode.

The aluminium base and polycarbonate lens carry an IP67 ingress protection rating with an operating temperature range of -30°C to +50°C, suiting exposed mounting positions subject to dust, water and vibration. The unit weighs approximately 0.4kg.

The supplied product data lists ECE R65 Class 1 and SAE J845 Class 1. These certifications relate to light output performance as per the supplied product data.

For a round compact beacon, see the U4-12 12W Amber LED Warning Beacon; for higher output, see the U4-24 24W Amber LED Warning Beacon.

Commonly fitted to traffic control vehicles, civil fleet vehicles, utility vehicles and plant equipment. Vehicle lighting requirements may vary by vehicle type, registration category, jurisdiction and intended use. Vehicle warning systems support visibility but do not replace a traffic management plan or traffic guidance scheme.

• 24 x 1W LED Configuration: 360-degree amber output through an amber polycarbonate lens
• Low-Profile Square Housing: 100mm x 100mm x 45mm for tight installs and height-restricted vehicles
• Two-Point Bolt-Down Mounting: surface mounts flat to roofs, cab guards, trays and plant bodywork
• Nine Flash Modes: ECE R65 compliant rotator, single, double and quad at 120 FPM plus SAE compliant equivalents at 75 FPM, per supplied data
• Dimming Function: brightness reduces for night operation via the dimming wire
• Synchronisation: multiple units synchronise via the sync wire for coordinated flashing
• Multivolt Operation: 10-30V DC input suits 12V and 24V vehicle electrical systems, 2.0A maximum at 12V DC
• IP67 Construction: aluminium base and polycarbonate lens, rated -30°C to +50°C, approx 0.4kg
• Certified Output: supplied product data lists ECE R65 Class 1 and SAE J845 Class 1
