(U32-3AW)

3-Year Limited Warranty

This 3 LED Dual-Color Warning Light Head Module is warranted to be free from defects in materials and workmanship for a period of three (3) years from the date of purchase. If the product fails to function as intended under normal use within this period, UAG Services will, at its sole discretion, repair or replace the product at no cost to the original purchaser, provided the product is returned with proof of purchase to the place of purchase or an authorised service center.

Warranty Conditions

• The warranty applies only to the original purchaser and is non-transferable.
• The product must be installed and operated in accordance with the provided instructions and within the specified operating conditions (DC 10-30V, -30°C to +70°C).
• Damage resulting from misuse, abuse, improper installation, unauthorized modifications, accidents, or natural disasters is not covered.
• Normal wear and tear, including but not limited to fading or minor surface imperfections, is excluded from coverage.
• The warranty does not cover consequential or incidental damages, including loss of use or costs associated with removal or reinstallation.

To initiate a warranty claim, contact UAG Services or authorised distributor with your proof of purchase and a detailed description of the issue. All returns must be pre-authorised. The liability under this warranty is limited to the repair or replacement of the defective product, and no other remedies are implied or provided. This warranty gives you specific legal rights, and you may also have other rights with ACL.

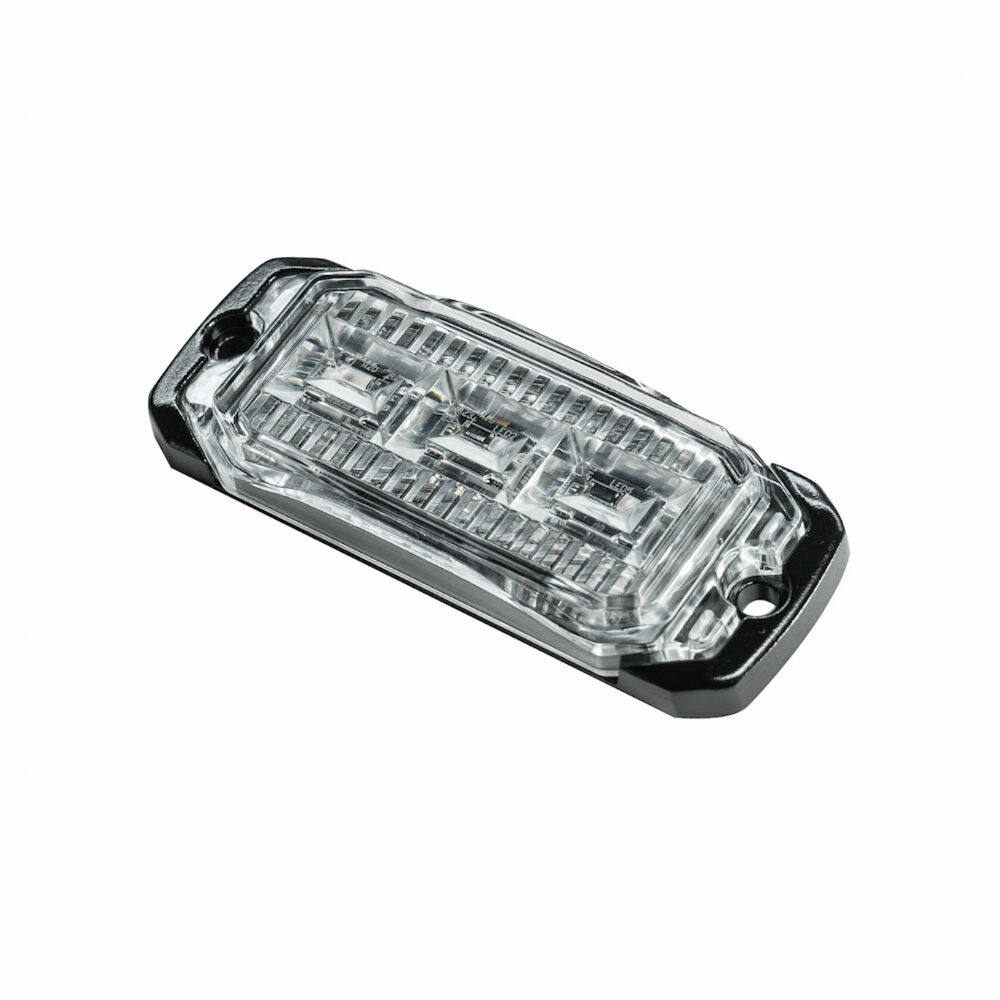

Key Features

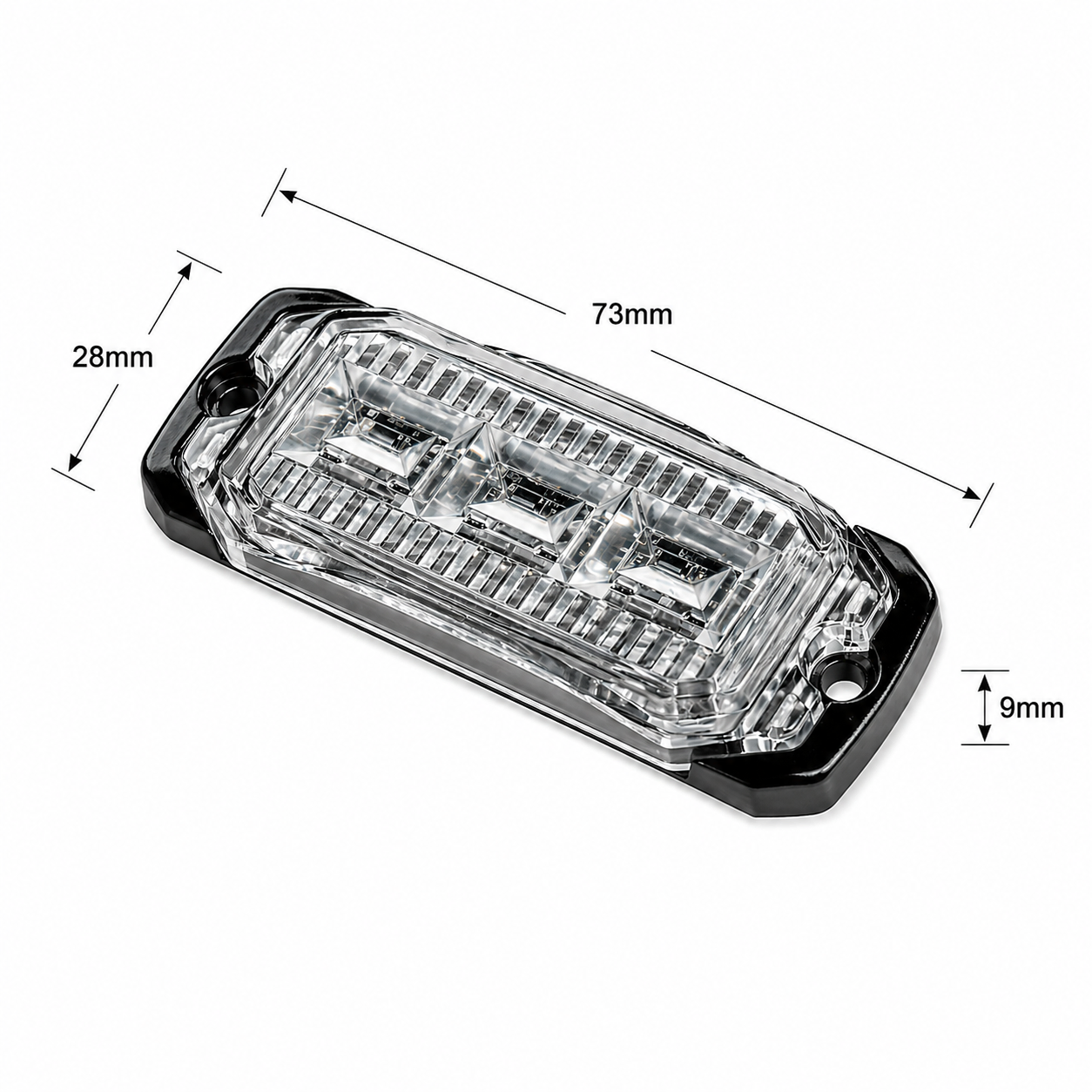

• Ultra-Slim Design: Only 9mm thick for seamless integration.
• Dual-Color Output: 3 white and 3 amber LEDs for versatile signaling.
• Rugged Construction: Durable black aluminum housing.
• Lens: Polycarbonate.
• Fixing: 3M adhesive pad and/or 2 x Stainelss Screws.
• Wide Operating Range: DC 10-30V compatibility for various vehicles.
• Extreme Durability: IP67-rated and functional in -30°C to +70°C.
• Certified Performance: Meets SAE J595 Class 1, CA T13, and ECE R10 standards.
• 15 Flash Patterns: Includes ECE R65 and SAE-compliant single, double, and quad flash modes (75-120 FPM), plus steady and fast/slow patterns for customized signaling.
• Sync & Dim Capabilities: Synchronize multiple modules or dim output for tailored operation.

Lorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry's standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book. It has survived not only five centuries, but also the leap into electronic typesetting, remaining essentially unchanged. It was popularised in the 1960s with the release of Letraset sheets containing Lorem Ipsum passages, and more recently with desktop publishing software like Aldus PageMaker including versions of Lorem Ipsum.

Wiring & Control

• Red/Purple: (Amber/White) Positive (+) with recommended 2A fuse.
• Black: Negative (-).
• Blue: Tap positive to cycle patterns (<1 sec for next, 1-3 sec for previous, >5 sec to reset).
• Yellow: Syncs modules (set to same pattern; use PH1/PH2 for alternate sync).
• White: Activates dim mode when connected to positive.

Flash Patterns

• P1-P6: ECE R65 single/double/quad flash (120 FPM, Color1, PH1/PH2).
• P7-P12: SAE single/double/quad flash (75 FPM, Color1, PH1/PH2, CA T13).
• P13: Fast/slow single flash.
• P14: Steady (50% PWM).
• P15: Off (no memory).

SKU	U32-3AW
Shipping Weight	0.2000kg
Shipping Width	0.010m
Shipping Height	0.050m
Shipping Length	0.010m
Shipping Cubic	0.000005000m3
