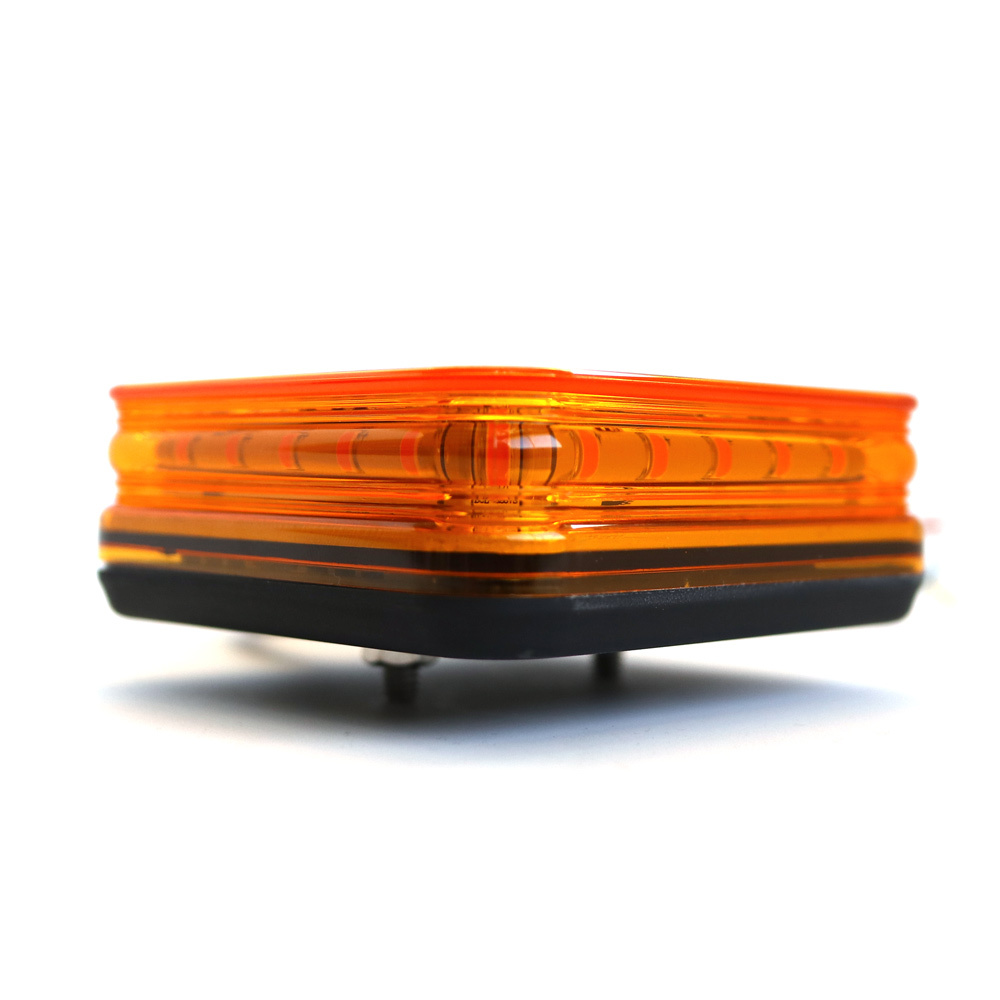

24W Amber Mini Compact LED Square Beacon

24W Amber Mini Compact Square LED Beacon (Class 1)

Model: U3-24-AA

• Amber flashing light for vehicles in Australia
• IP67 waterproof design.
• Emits a yellow / amber coloured light of rotating and flashing effect
• Provides 360 degree of Coverage.
• Rotating flashing lights pattern.
• Dimming Function.
• Amber flashing light fixed design with bolt down locations.
• Low power draw and bright output provide the ideal beacon for everyday use.
• LED flashing lights for: Utes / Trucks / Plant / Machinery / Equipment / Traffic Control / Pilot Vehicle / OSOM Vehicle

TECHNICAL SPECIFICATIONS

Light Characteristics

• LED Power: 24PCS 1W LED
• LED: Amber
• LENS: PC Amber

Electrical Characteristics

• Voltage: 10-30VDC
• Blue wire to momentun

Physical Characteristics

• Waterproof: IP67
• Mounting: Surface mount
• Flash patterns: 9
• ECE R65 / SAE CLASS 1
• Product Dimension: 100mm L x 100mm W x 45mm H

FLASH PATTERN

1. ECE R65 Rotator Flash
2. ECE R65 Single Flash
3. ECE R65 Double Flash
4. ECE R65 Quad Flash
5. SAE Rotator Flash
6. SAE Single Flash
7. SAE Double Flash
8. SAE Quad Flash
9. Off

To select flash pattern, apply BLUE to BLACK wire:

• less than 1 second for next pattern
• more than 1 second for previous pattern
• more than 5 seconds for turn off

Operation

• Connect the RED to +VDC
• Connect the BLACK to chassis ground.
• Connect the Blue wire to Black wire (GRND) momentarily for pattern change.
• Connect the YELLOW wire of all heads together for synchronization
• Connect the white to Red for dimming.
• Release white will back to full light intensity.
